USB-C
Use USB-C to configure the connection to the USB-C port.
The settings you can configure for the serial connection through the Extension Port include:
|
Item |
|
Details |
|---|---|---|
|
|
Enables DHCP |
|
|
|
View or enter the network IP address |
|
|
|
View or enter the network Netmask |
|
|
|
View or enter the network Gateway |

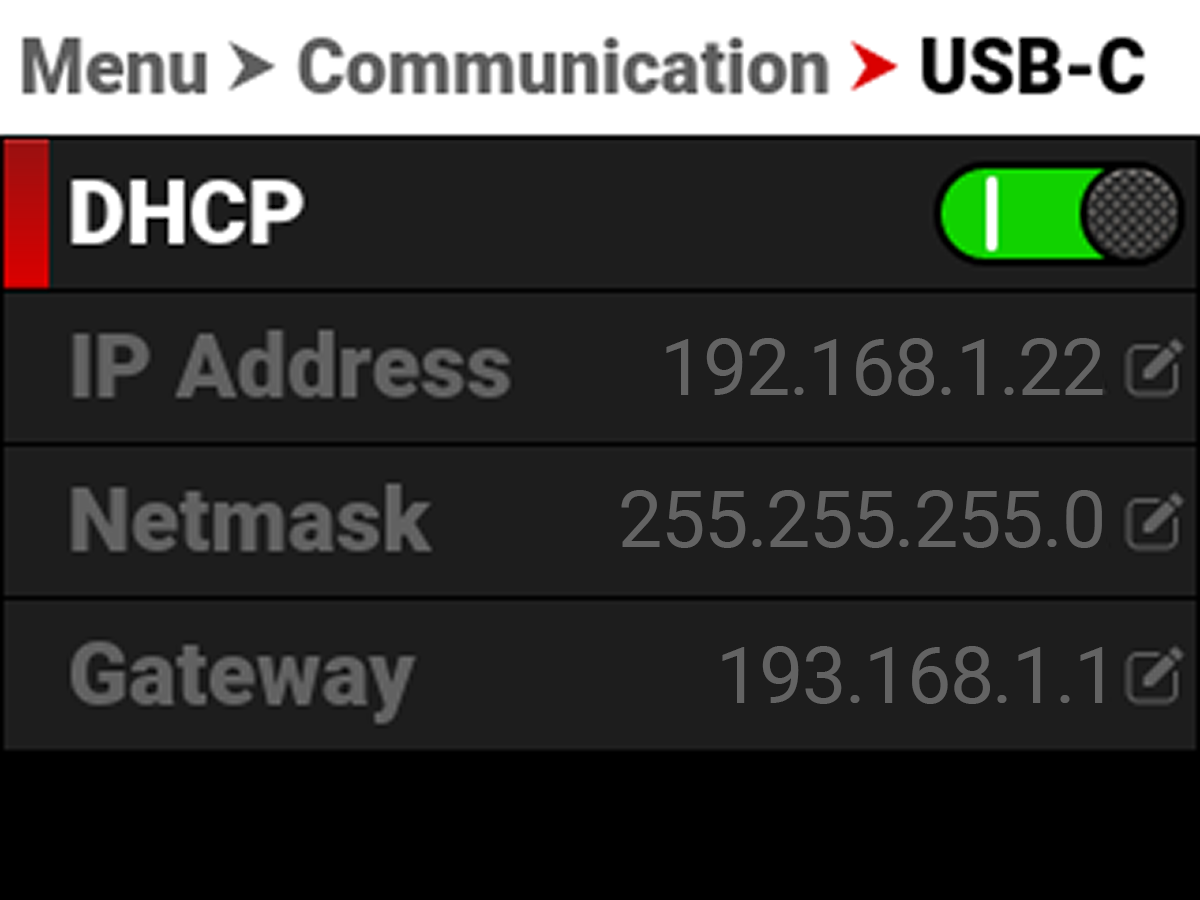

DHCP
When connected to an Ethernet network, this allows you to enable or disable Dynamic Host Configuration Protocol (DHCP).

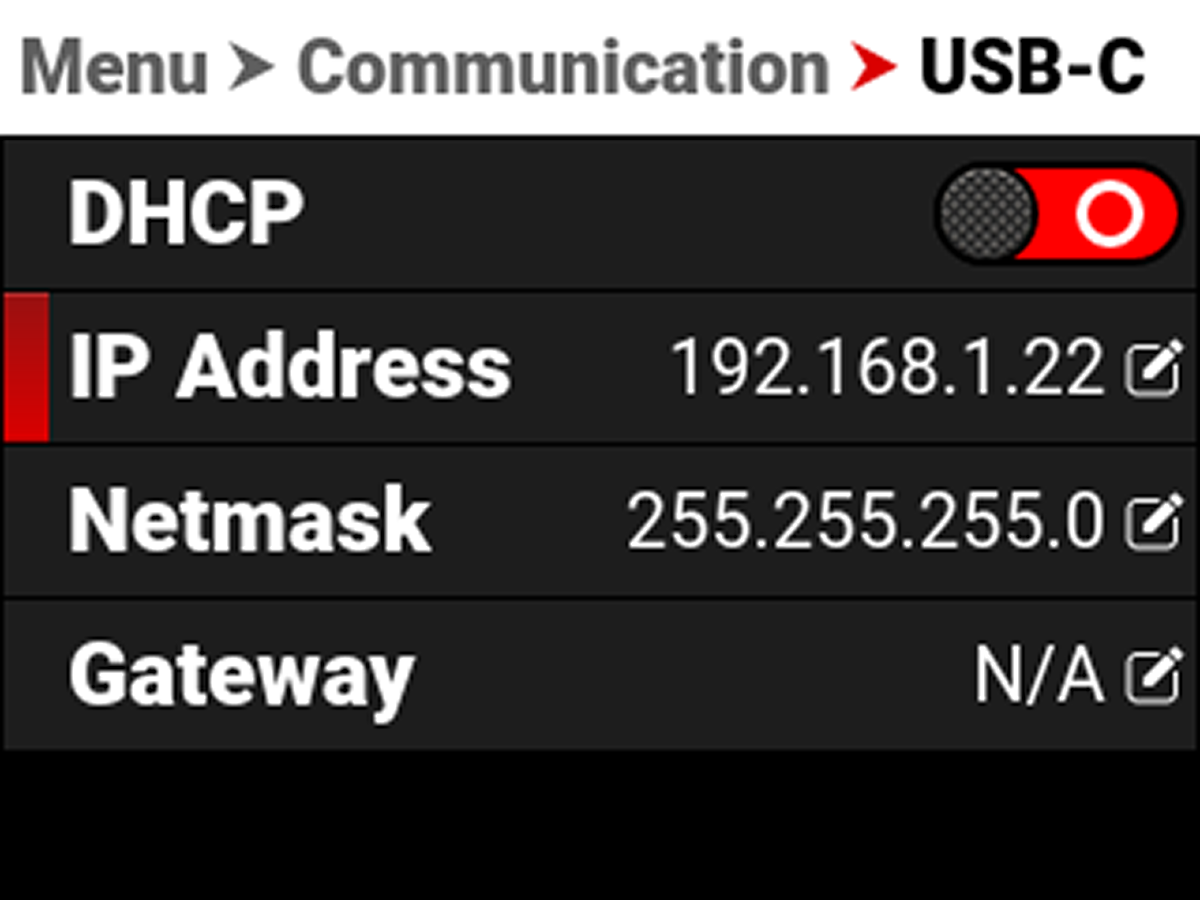

IP Address
When connected to an Ethernet network and with DHCP enabled, IP Address displays the network IP address.

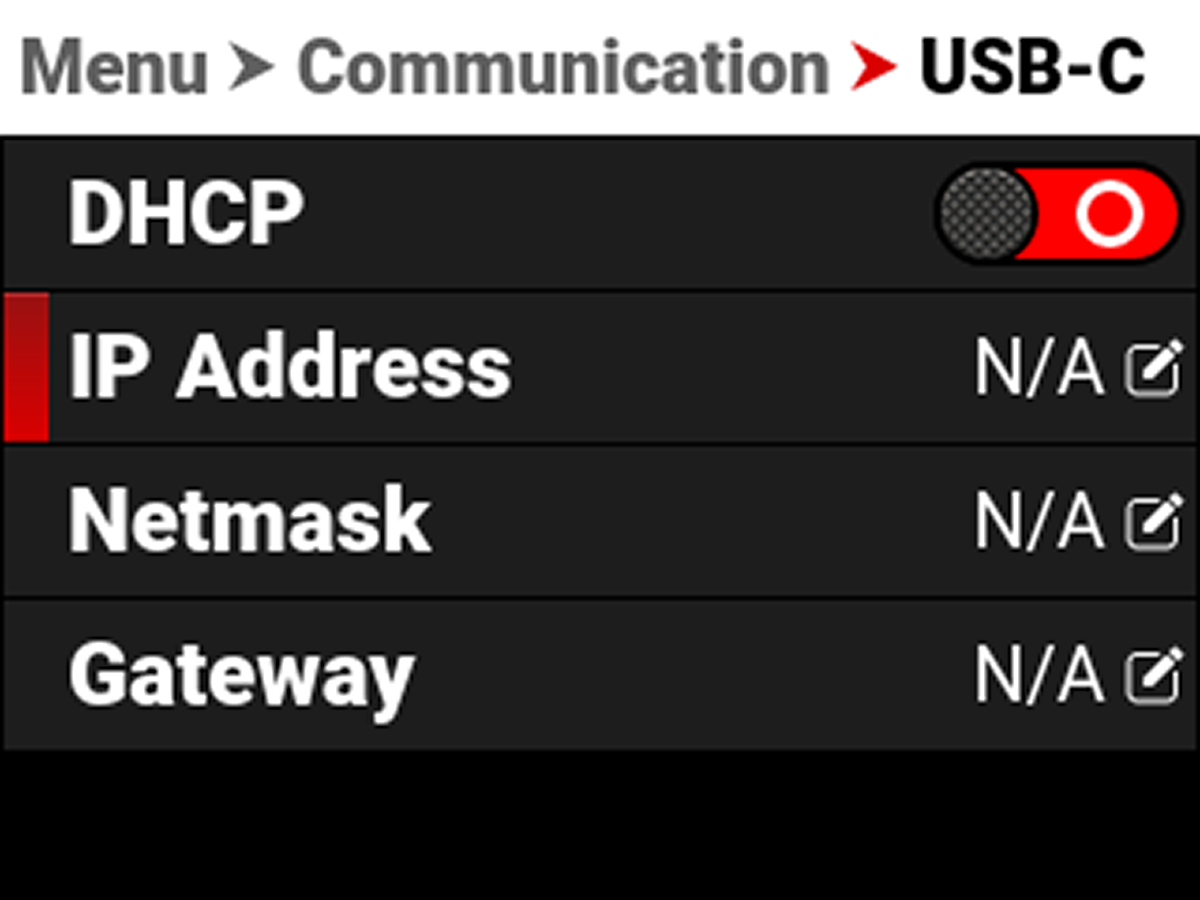

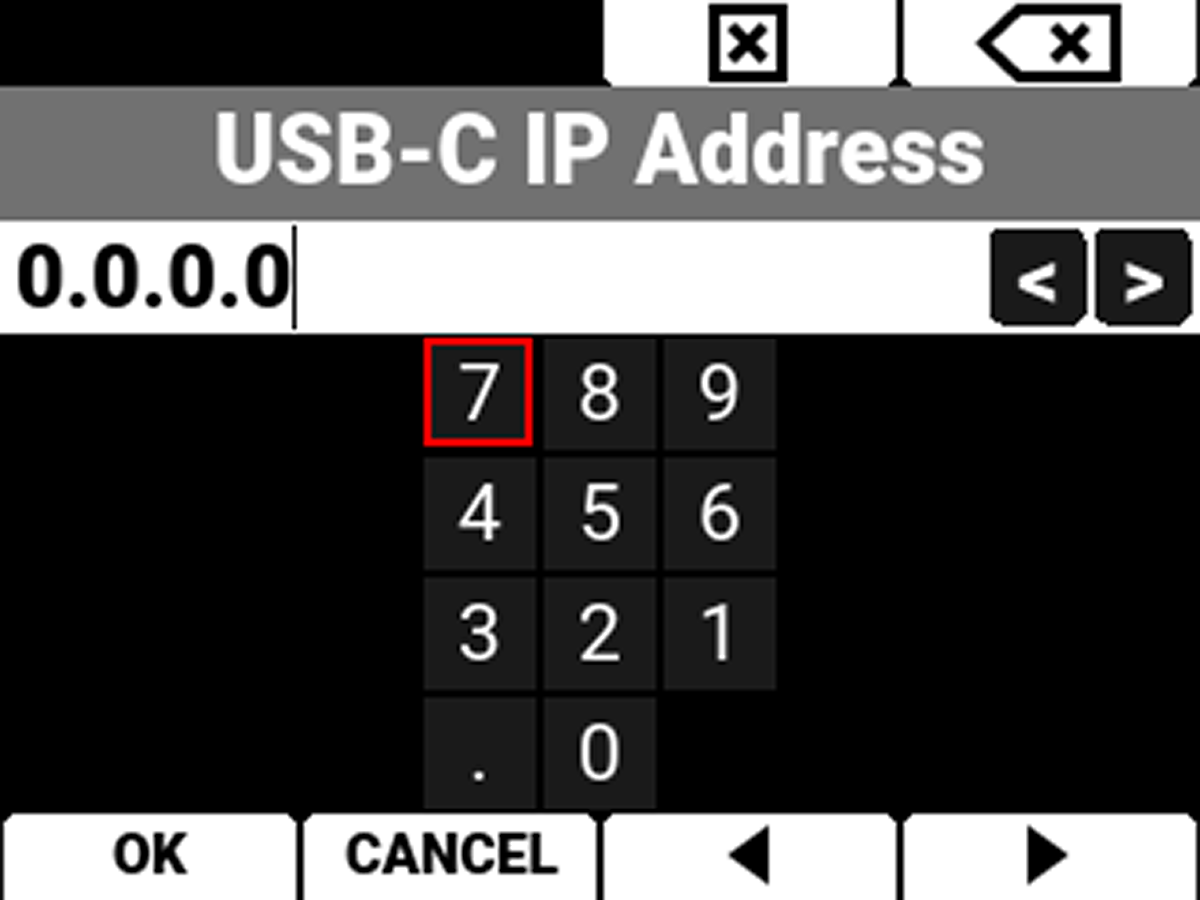

When DHCP is not enabled, you can select IP Address and manually enter a static IP address.
After you enter the static IP address and select OK, the Netmask entry screen opens.

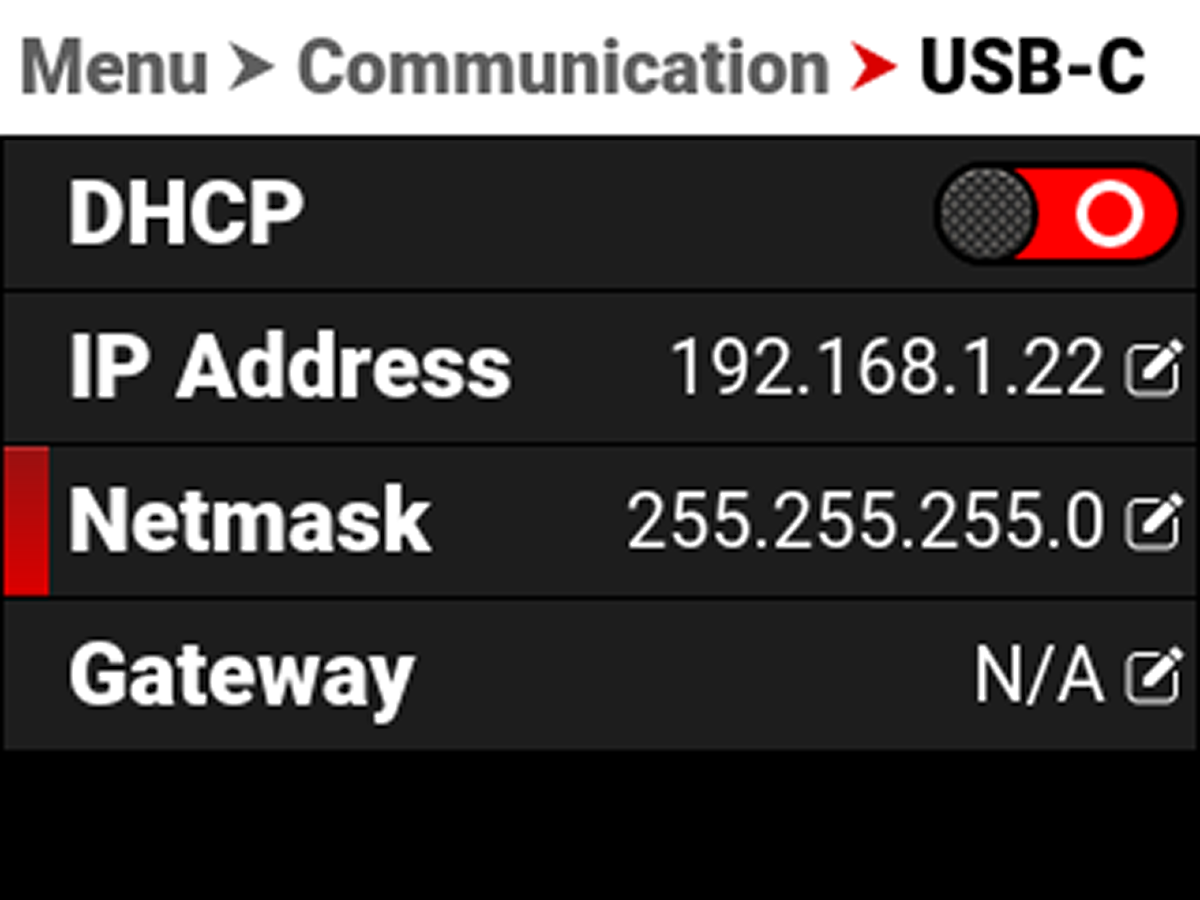

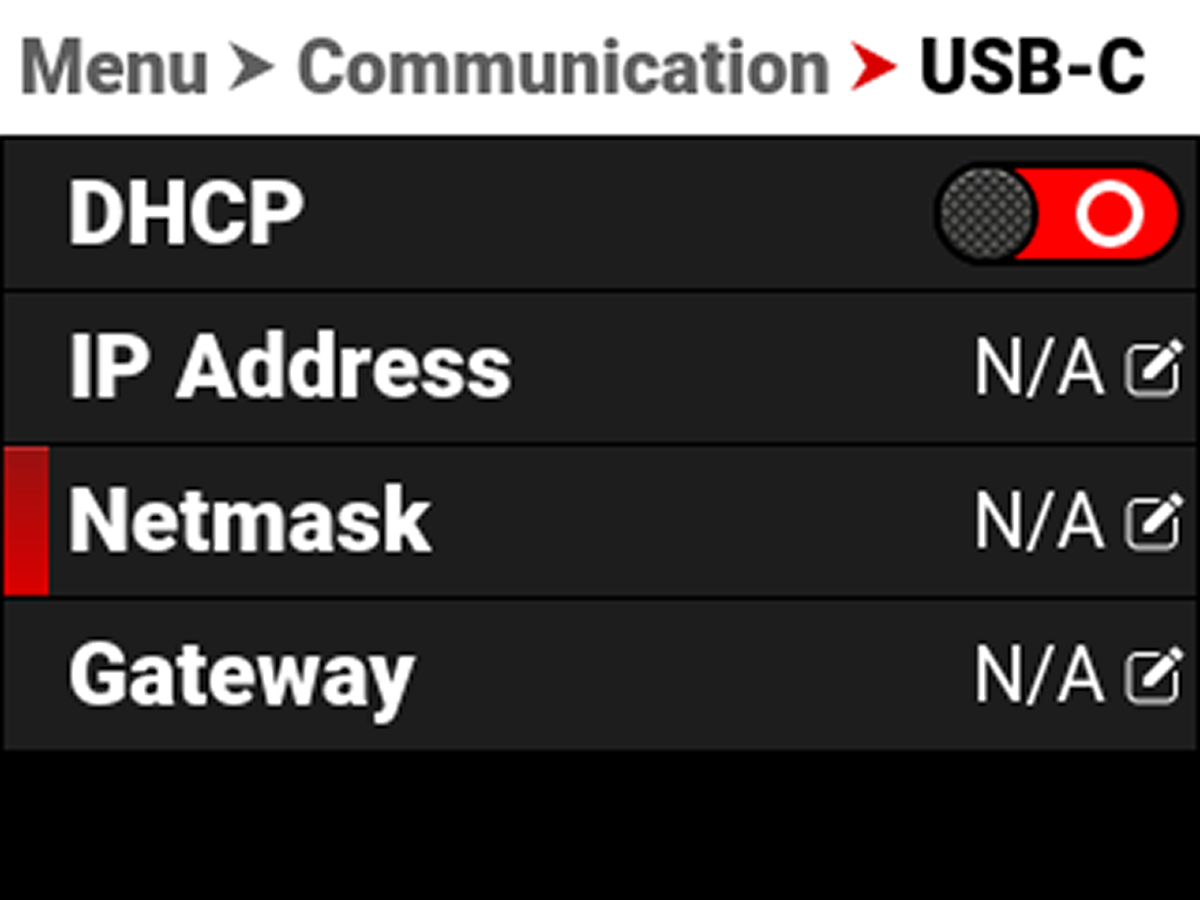

Netmask
When connected to an Ethernet network and with DHCP enabled, Netmask displays the network Netmask address.

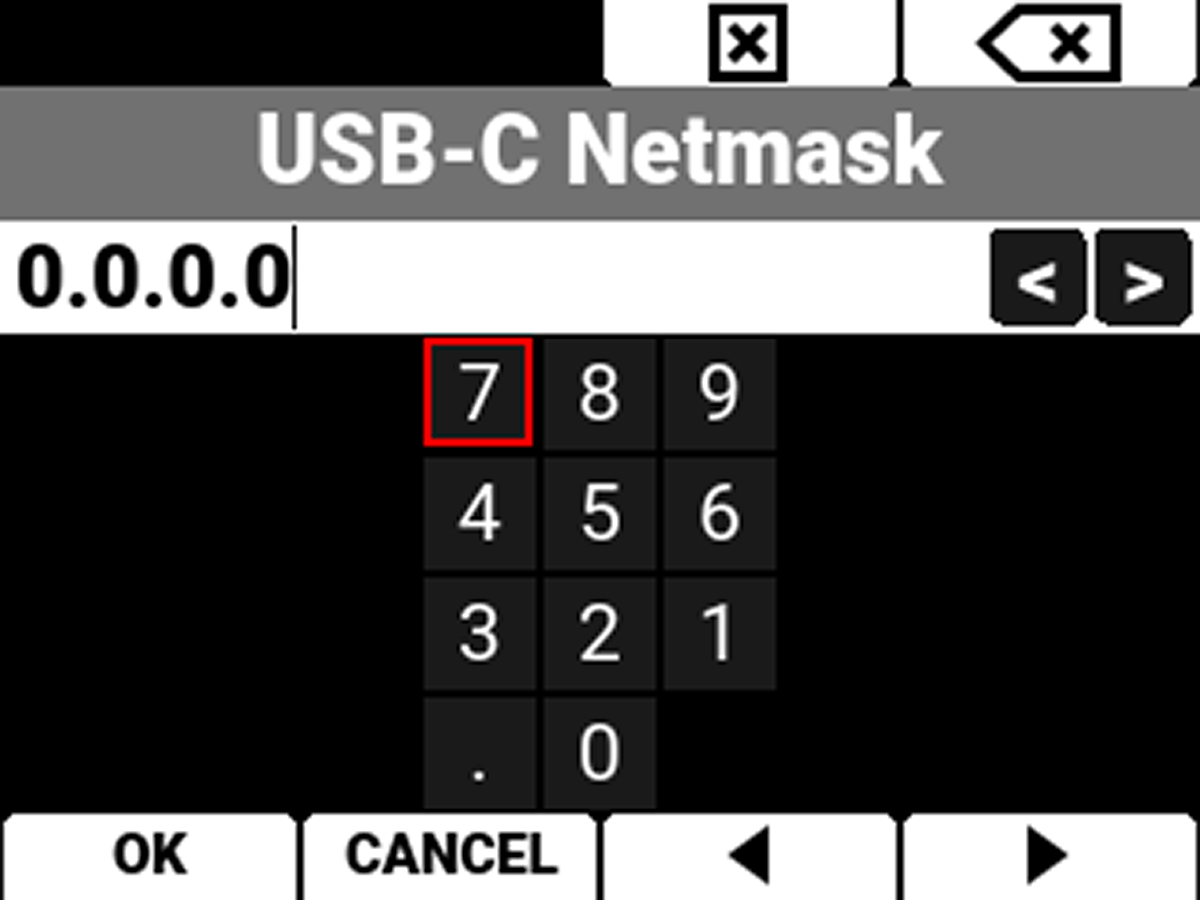

When DHCP is not enabled, you can select Netmask and manually enter a Netmask address. This screen opens automatically after you enter a static IP address.

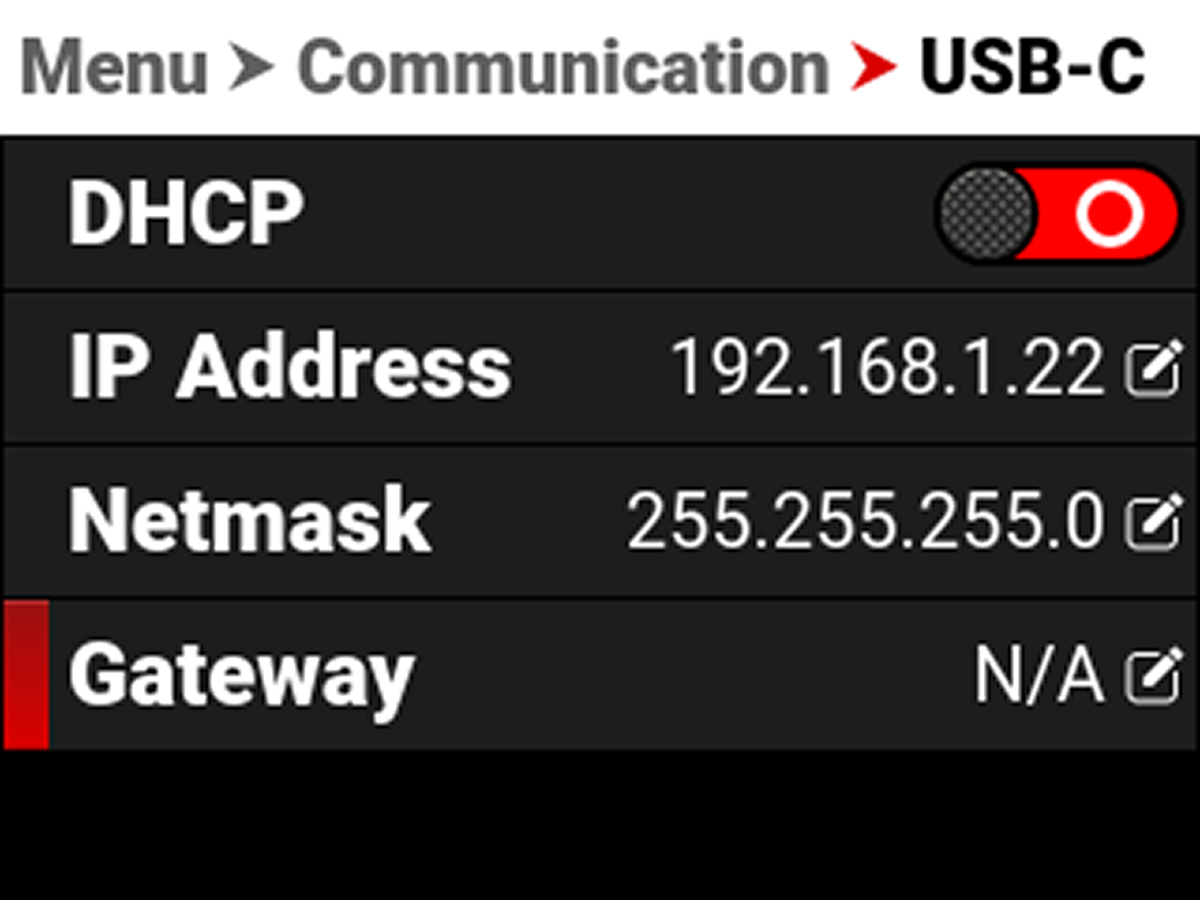

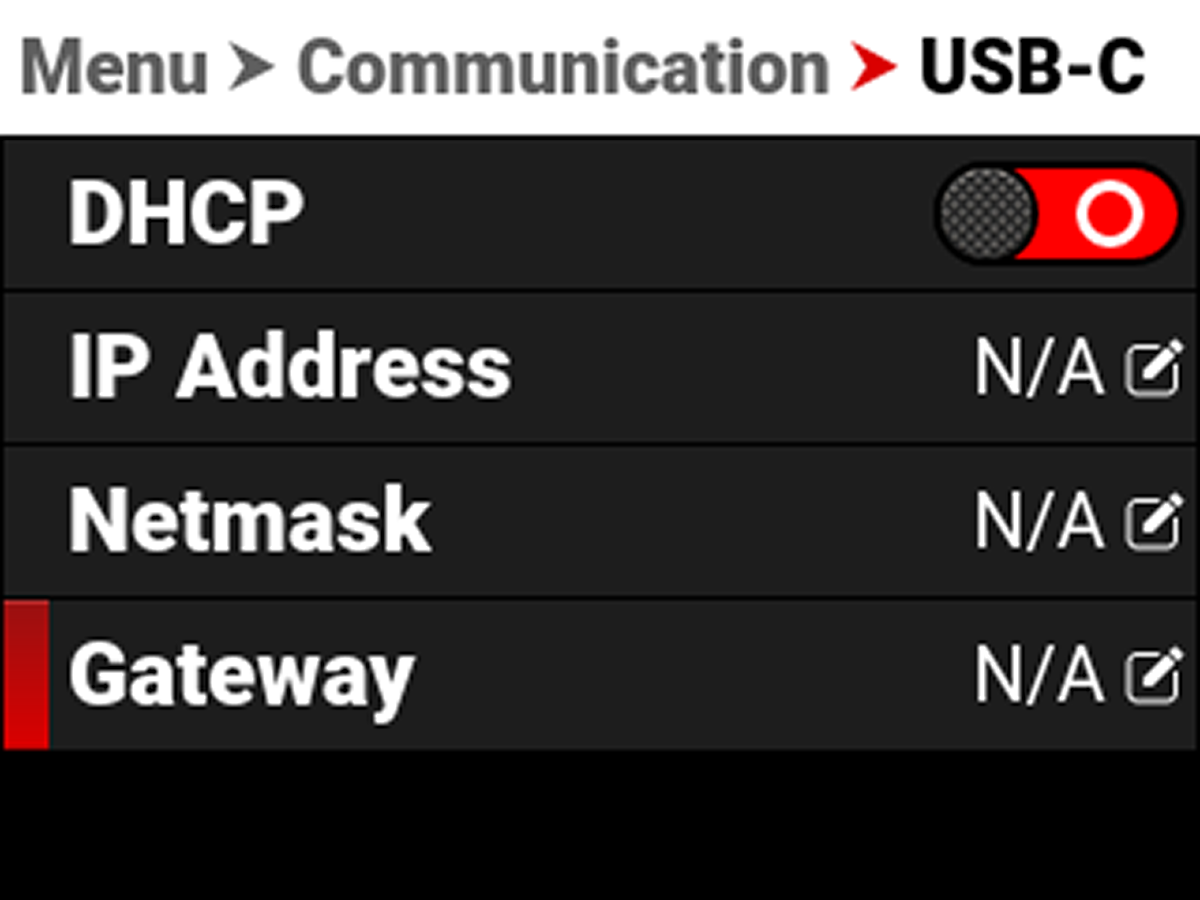

Gateway
When connected to an Ethernet network and with DHCP enabled, Gateway displays the network Gateway address (router address).

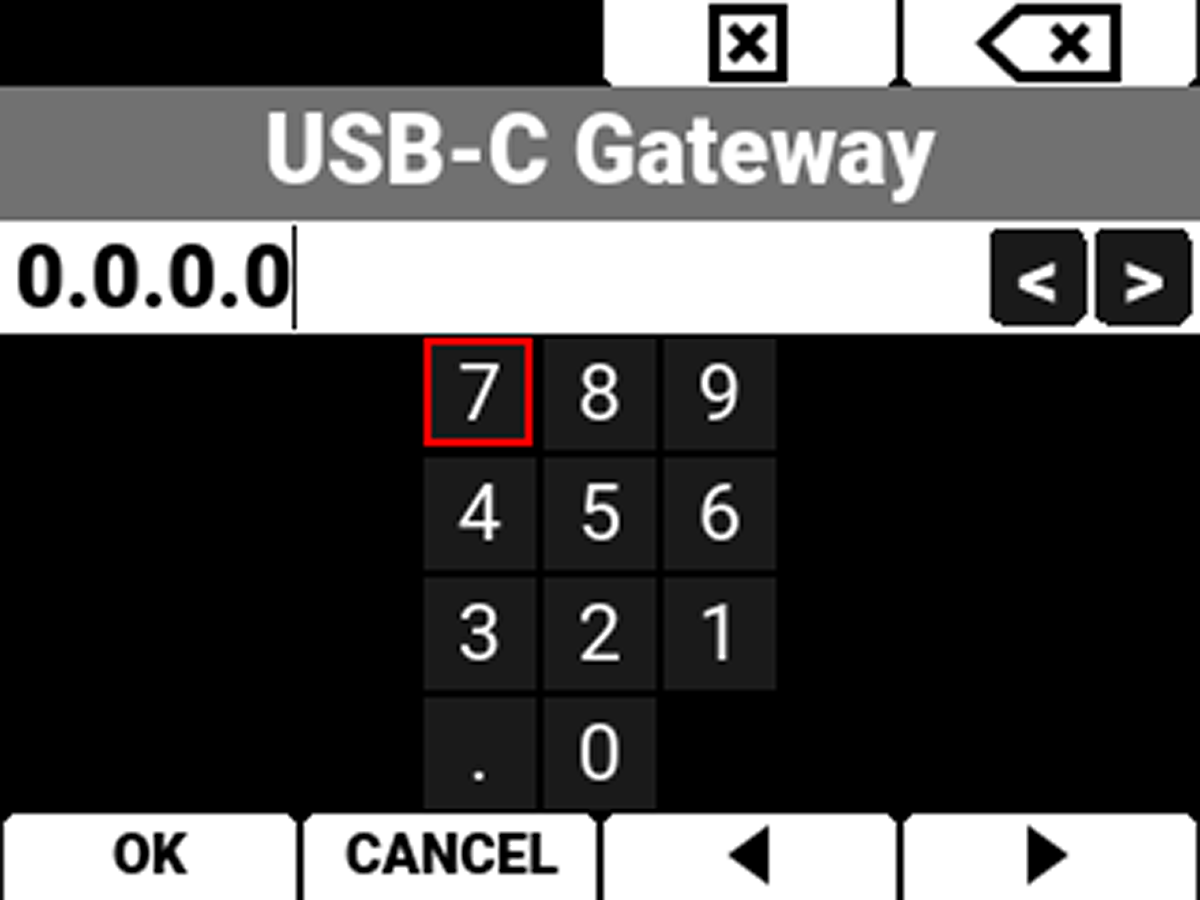

When DHCP is not enabled, you can select Gateway and manually enter a Gateway address.
