Top LCD

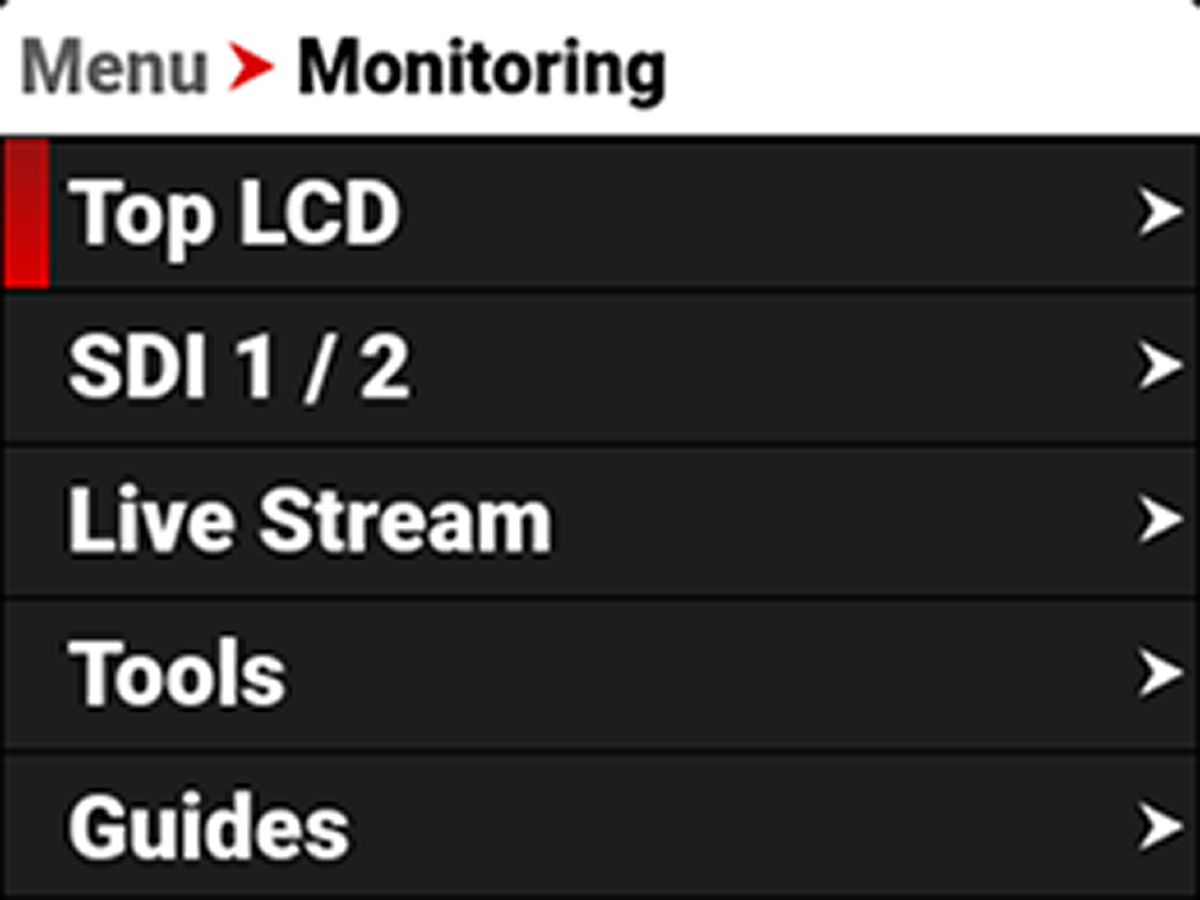

The Top LCD menu provides access to the top LCD features. This menu is only visible when the optional DSMC3 RED Touch 7.0" LCD is attached to the camera (refer to DSMC3 RED® Touch 7.0" LCD).
The SDI port settings you can configure include:
|
Item |
Details |
|---|---|
|
Select the monitor resolution |
|
|
Set the look of the monitor between RWG / Log3G10 or Image / LUT |
|
|
Select the gamma displayed on the monitor |
|
|
Enable or disable the monitor guides |
|
|
Enable or disable the monitor tools |
|
|
Magnify the monitor image |
|
|
Select the position of the original image to magnify |
|
|
Flip and mirror the top LCD display |
Resolution
|
|

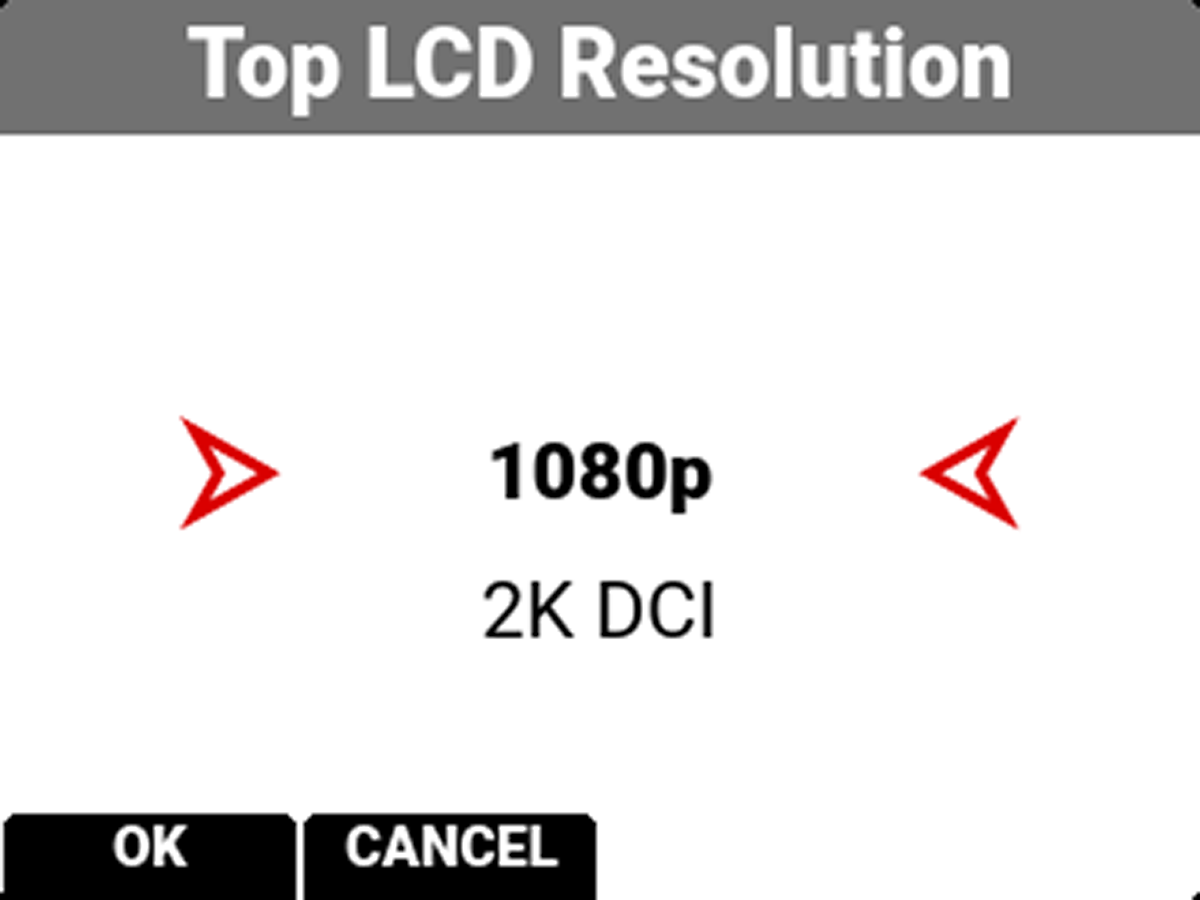

You can select the resolution of the Top LCD. The selections include: • 1080p (default) • 2K DCI |
Look
|
|

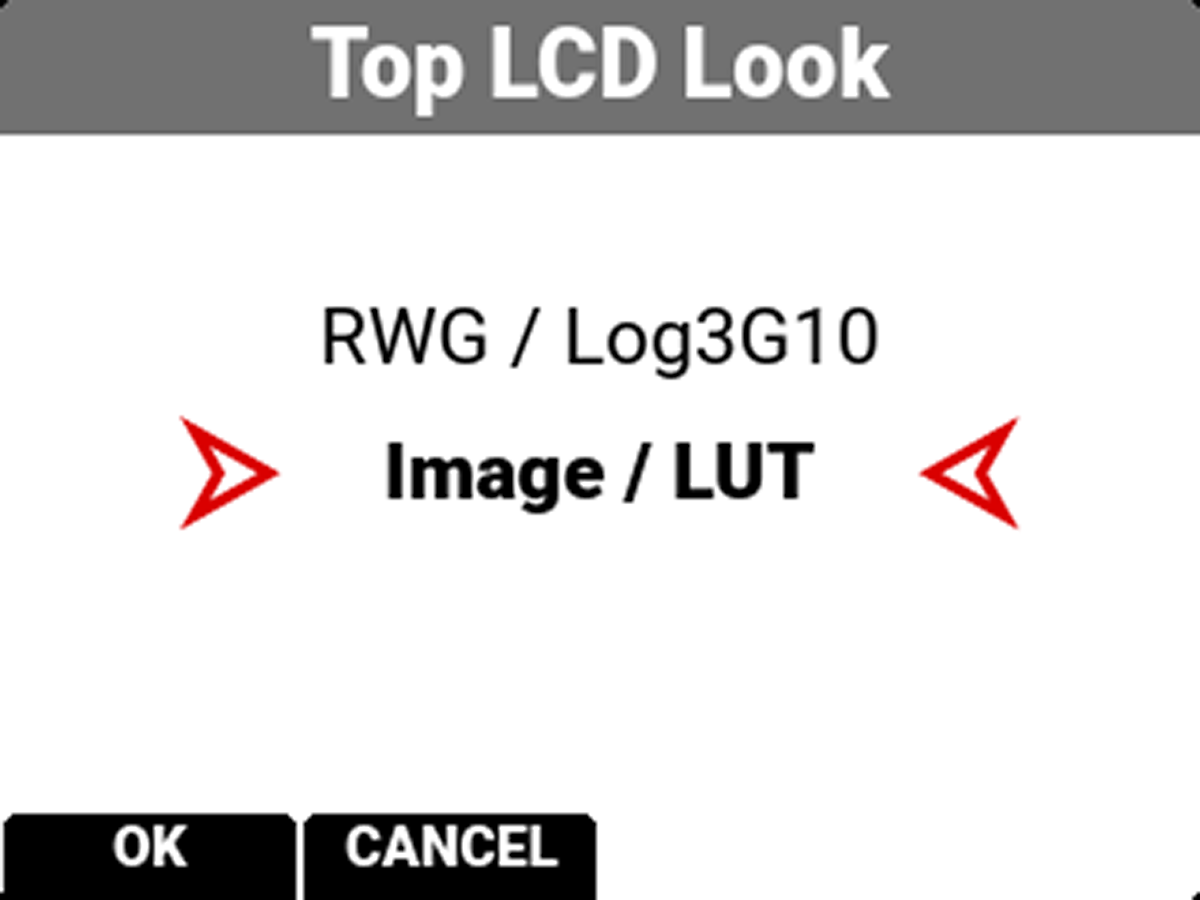

You can select the look of the image preview signal sent to the Top LCD. The selections include: • REDWideGamutRGB / Log3G10 • Image / LUT (default) |
Display Preset
|
|

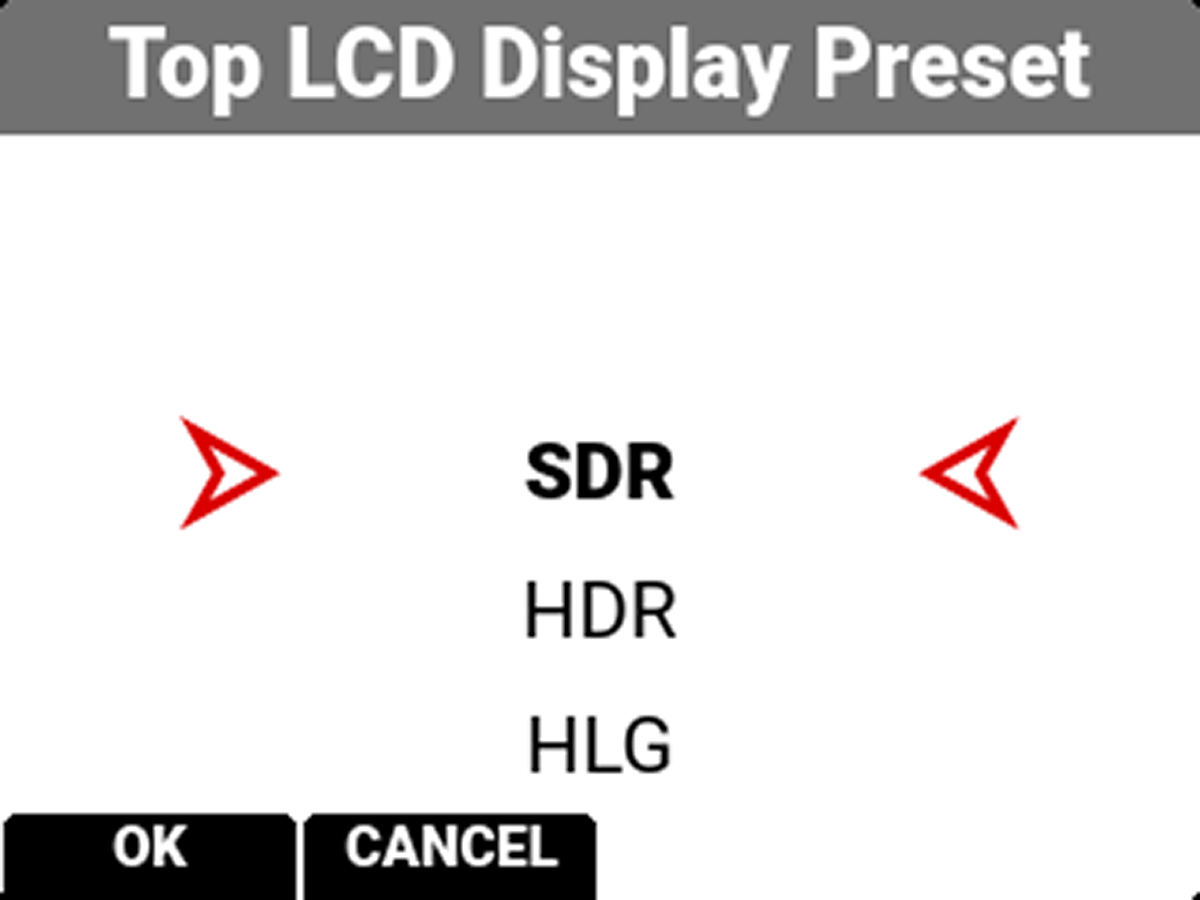

Use Display Preset to select the gamma of the displayed preview image on the Top LCD:
When shooting in R3D format, the camera stores this as metadata, which you can adjust non-destructively in post-production. |
Guides

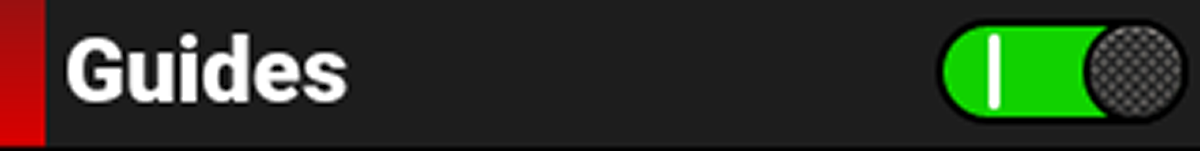

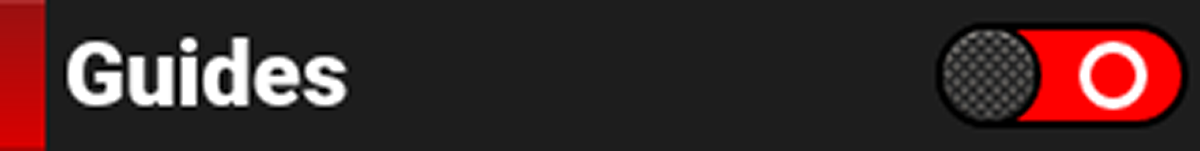

Use Guides to enable or disable the viewing of guides. Press SEL to toggle between enabled (default) and disabled.
Tools

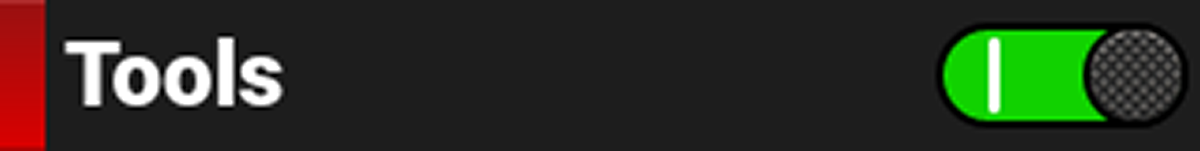

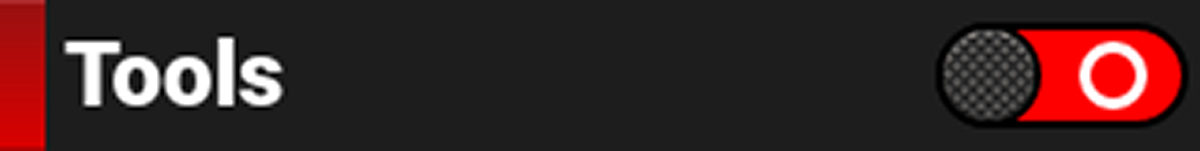

Use Tools to enable or disable the viewing of tools. Press SEL to toggle between enabled (default) and disabled.
Magnify

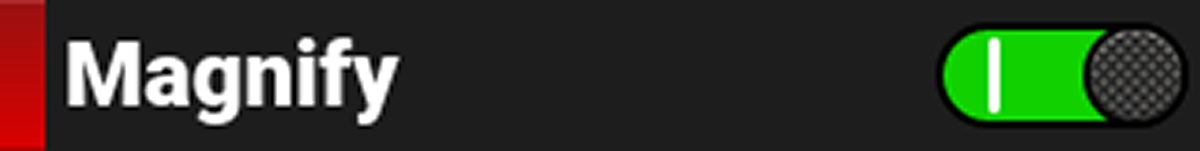

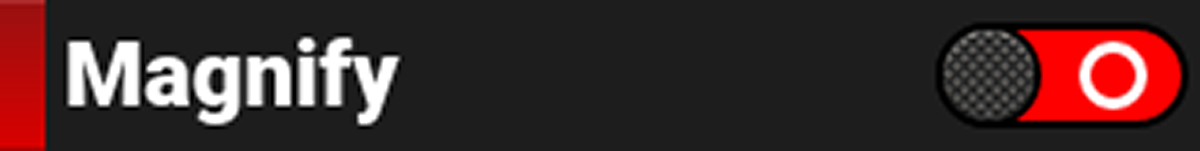

Use Magnify to enable or disable monitor magnification. Press SEL to toggle between enabled and disabled (default).
Magnify Position
|
|

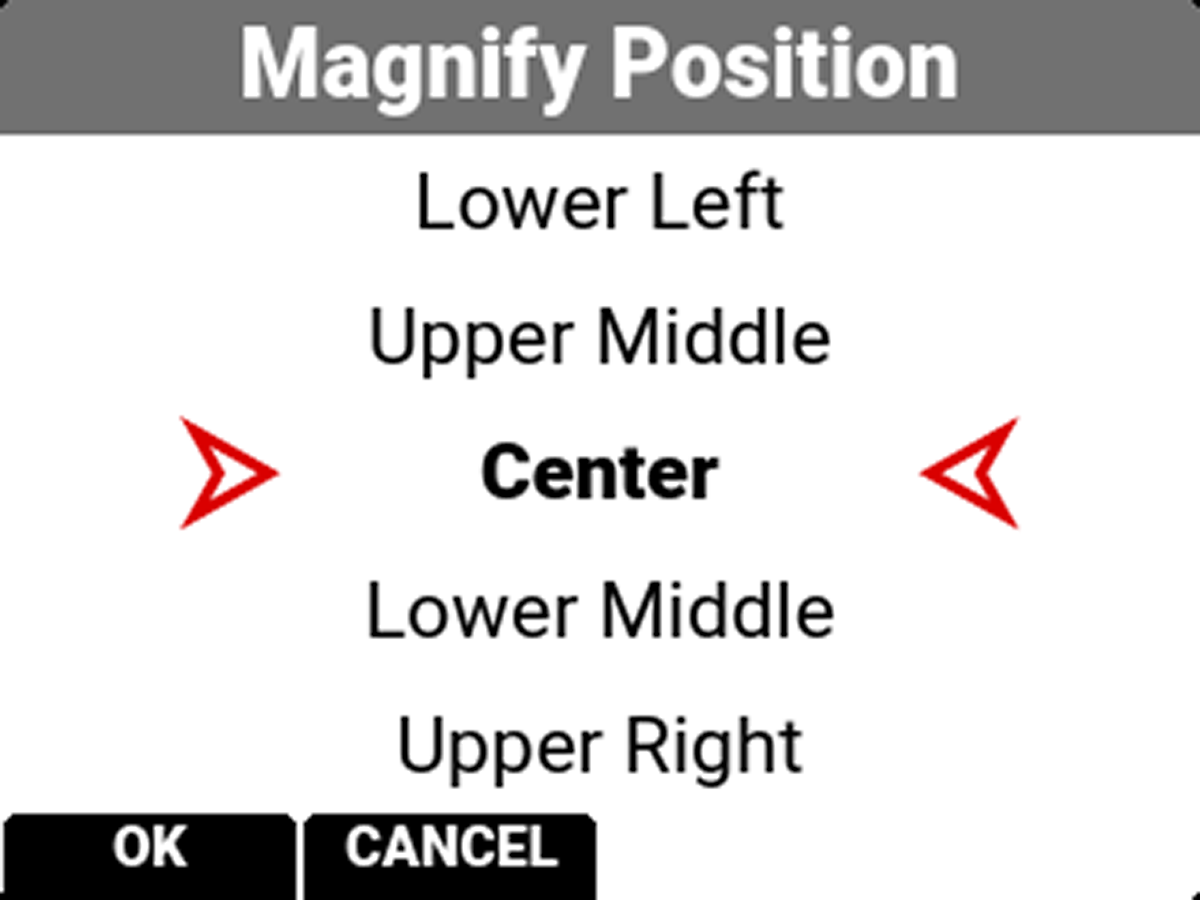

Use Magnify Position to globally select the area of the image you want to magnify. The selections include:
|
Flip / Mirror

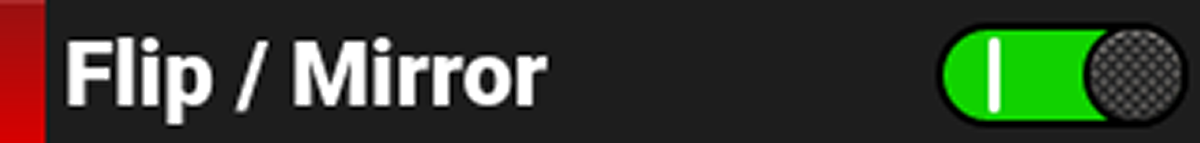

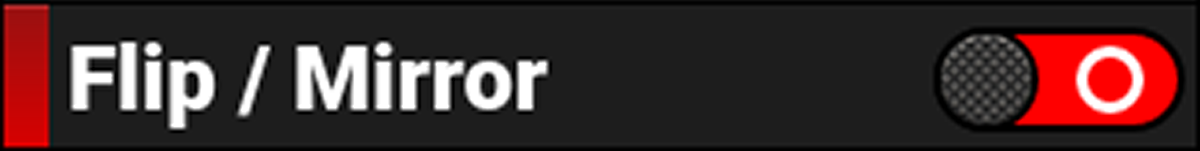

Use Flip / Mirror to enable or disable the flipped mirrored orientation of the Top LCD. Press SEL to toggle between enabled and disabled (default).
