USB-C Ethernet Configuration

The RED V-RAPTOR offers a USB-C connection that provides communication support for Ethernet networks.

Connecting to An Ethernet Network

You must use a USB-C to Ethernet adapter to connect the camera to an Ethernet network.

  1. Connect the camera to the Ethernet network using the USB-C to Ethernet adapter.

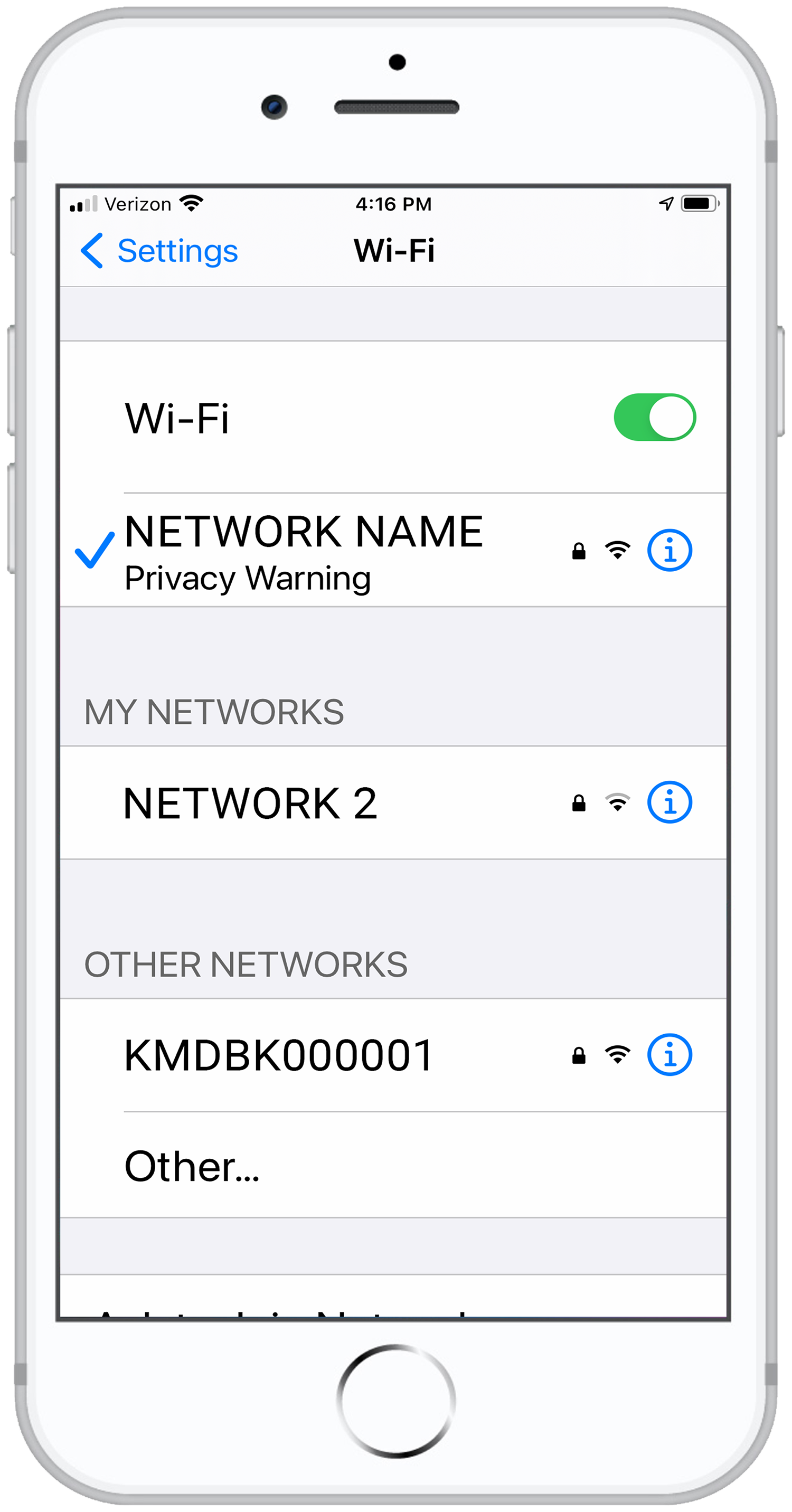

  1. From a Wi-Fi-enabled device, select the Wi-Fi connection to which the camera is connected.

  1. Open RED Control on the
    Wi-Fi-enabled device.

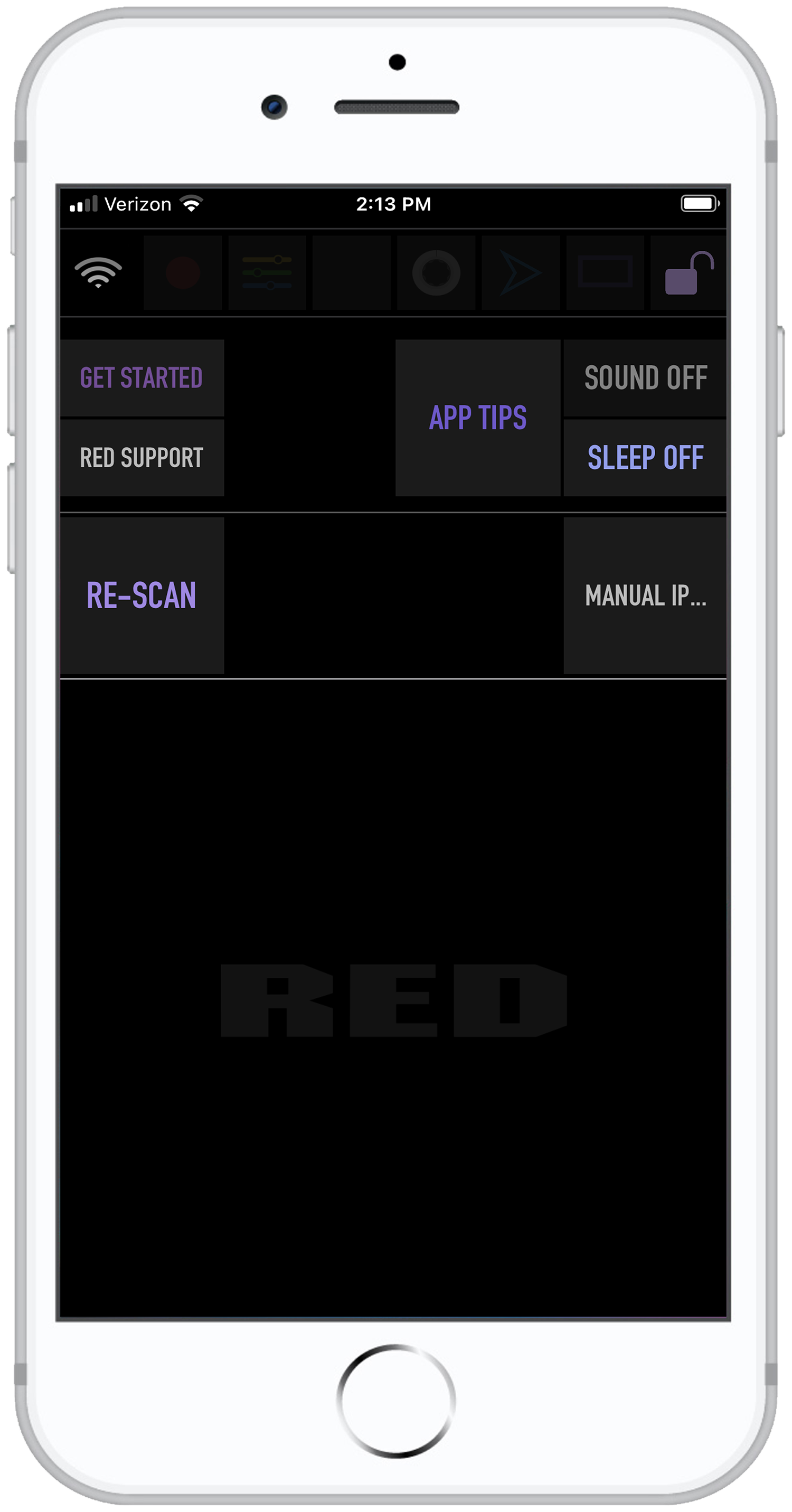

  1. Tap RE-SCAN.
    The camera icon displays.



The camera icon displays the camera's Ethernet IP address:

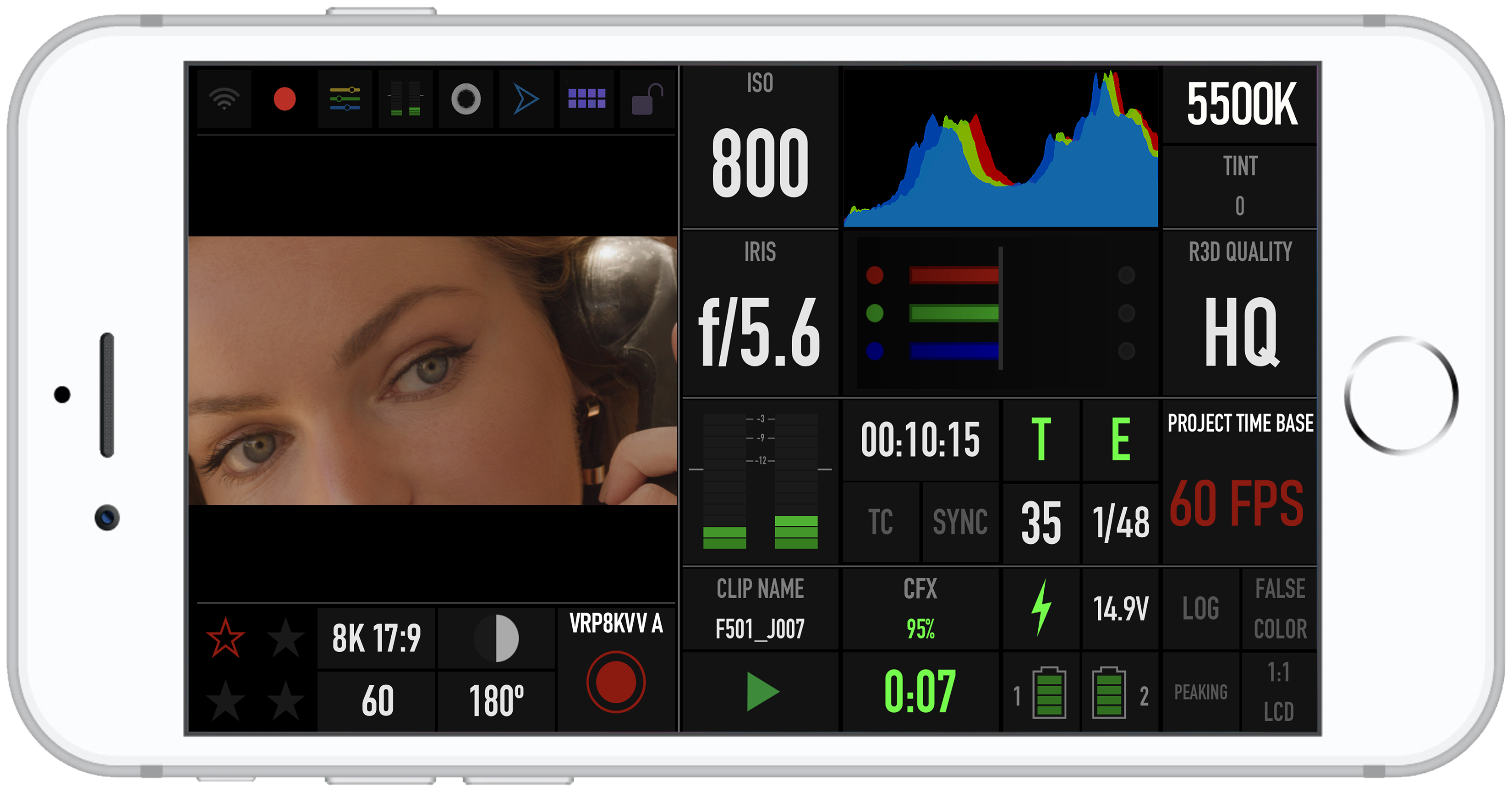

  1. Tap the camera icon to open the RED Control app tools for the networked camera.

  1. Open a browser from a computer connected to the Ethernet network.

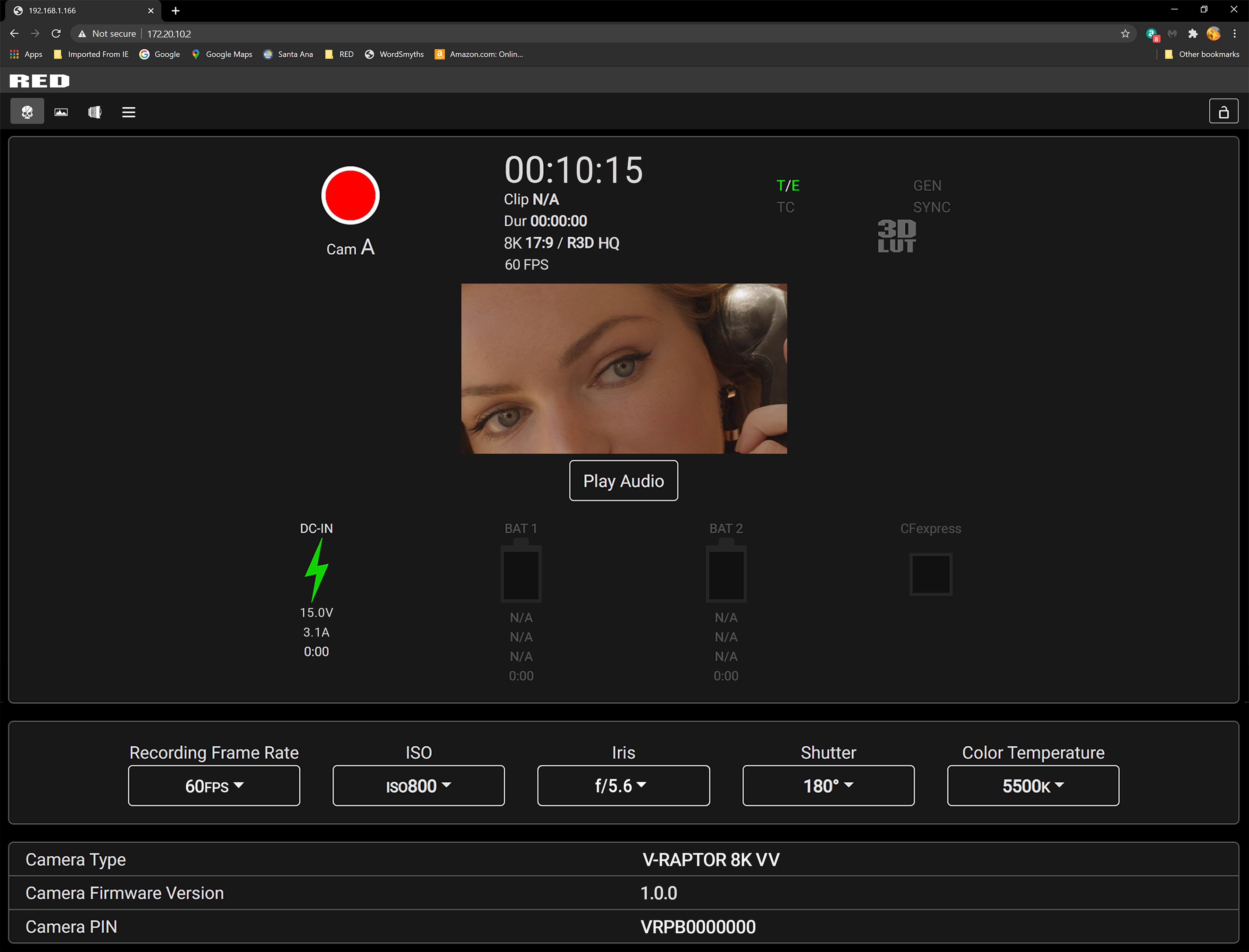

  2. In the browser address field, enter the camera IP address displayed on the RED Control camera icon. The RED Control tools are displayed in the browser.
