Status Bar

The LCD screen displays the camera status bar.

The Status Bar contains the following button and icons:

CFexpress Status Icon
Temperature / Exposure Icon
Timecode Icon
Genlock Icon
SYNC Icon
Camera Status Icon
FTPS Activity Icon
Wi-Fi Icon
Network Icon
LCD Lock Icon
Battery Icon
DC-In Icon

CFexpress Status Icon		Temperature / Exposure Icon
This icon displays the status of the CFexpress media card, and it displays the recording time remaining for the current camera settings. The status displayed includes: Good Missing Incompatible		This icon displays the temperature (T) and exposure (E) calibration indicators. • When T is yellow or red, it indicates that the camera requires sensor re-calibration at the current ambient temperature. • When E is yellow or red, it indicates that the camera requires sensor re-calibration at the current shutter speed or sensor scan orientation. Refer to Calibrating the Sensor.
Timecode Icon		Genlock Icon

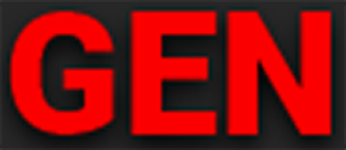

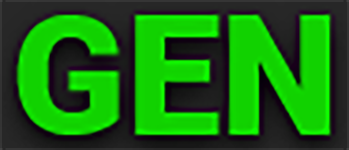

This icon indicates the state of the Timecode generator connection. Gray indicates that no Timecode generator signal is detected. Green indicates that the Timecode source is connected and jammed. Red indicates that the Timecode source is connected and not jammed. White indicates that the selected Timecode source is not currently connected but was jammed during the current camera boot. Yellow indicates that the selected Timecode source has not been jammed in current camera boot but has been within the last 12 hours, or that timecode source is cross-jammed (at a different Project Time Base).		This icon indicates the state of the Genlock connection. Gray indicates that no Genlock signal is detected. Green indicates that the camera is receiving and is locked to a Genlock signal. Red indicates that the camera is receiving and is not locked to a Genlock signal.
SYNC Icon		Camera Status Icon

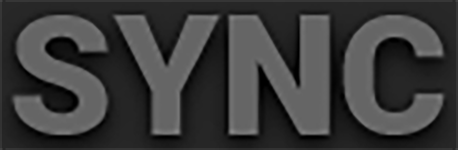

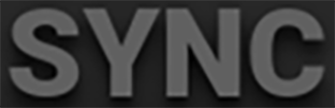

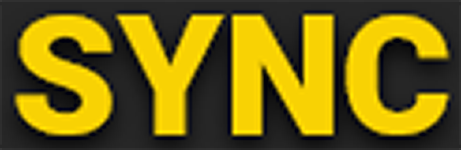

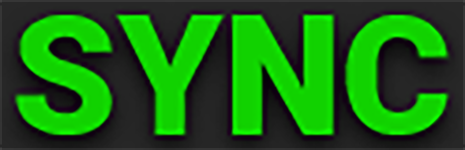

This icon indicates that the Timecode and Genlock signals are synchronized to the camera's frames per second (FPS) settings. Gray indicates that no synchronization is detected. Green indicates that the camera is synchronized with the Timecode and Genlock signals. Yellow indicates that the camera is synchronized using Genlock but not timecode.		This icon indicates the state of the camera hardware. The different icons and their corresponding status include: Good: Camera operating as expected. Overheating Warning: Camera is nearing overheated state. Consider cooling the camera. Overheating: Camera has reached temperature threshold and shut down is imminent. Shutting Down: Camera is shutting down due to overheating.
FTPS Activity Icon		Wi-Fi Icon
This icon indicates the state of FTPS data transfer. Gray indicates that the FTPS is not transferring data. Green indicates that the camera is transferring FTPS data.		This icon indicates the state of Wi-Fi connection. Gray and empty indicates that no Wi-Fi signal is detected. White bars indicate that Wi-Fi signal is detected (Infrastructure). White antenna indicates that Wi-Fi signal is broadcasting (Ad-hoc).
Network Icon		LCD Lock Icon
This icon indicates the state of the network connection. Gray indicates that the camera is not connected to a network. Green indicates that the camera is connected to a network.		This icon indicates the state of the LCD Lock. The states include: Gray and open indicates that the camera LCD is unlocked. White and closed indicates that the camera LCD is locked.
Battery Icon		DC-In Icon
This icon indicates the state of the battery connection and charge level. When the voltage is low, it displays the voltage in red. Gray indicates that no battery is connected. White indicates that the battery is connected and green shows the relative level of charge remaining. Yellow indicates 10 minutes of power remaining. Red indicates less then 5 minutes of power remaining. Gray question mark indicates no communication with the battery and no power. White question mark indicates no communication with the battery and power. Gray exclamation point indicates error communicating with the battery and no power.		This icon indicates the state of DC power connection. Gray with gray NA indicates that no DC power is connected. Green with white voltage numbers indicates that the camera is receiving DC power. Green with flashing red voltage numbers indicates low DC power. The low power warning gasholder is defined in the System Settings>Power menu.
