Ad-Hoc
Use Ad-Hoc to configure the camera as a Wi-Fi hot spot.

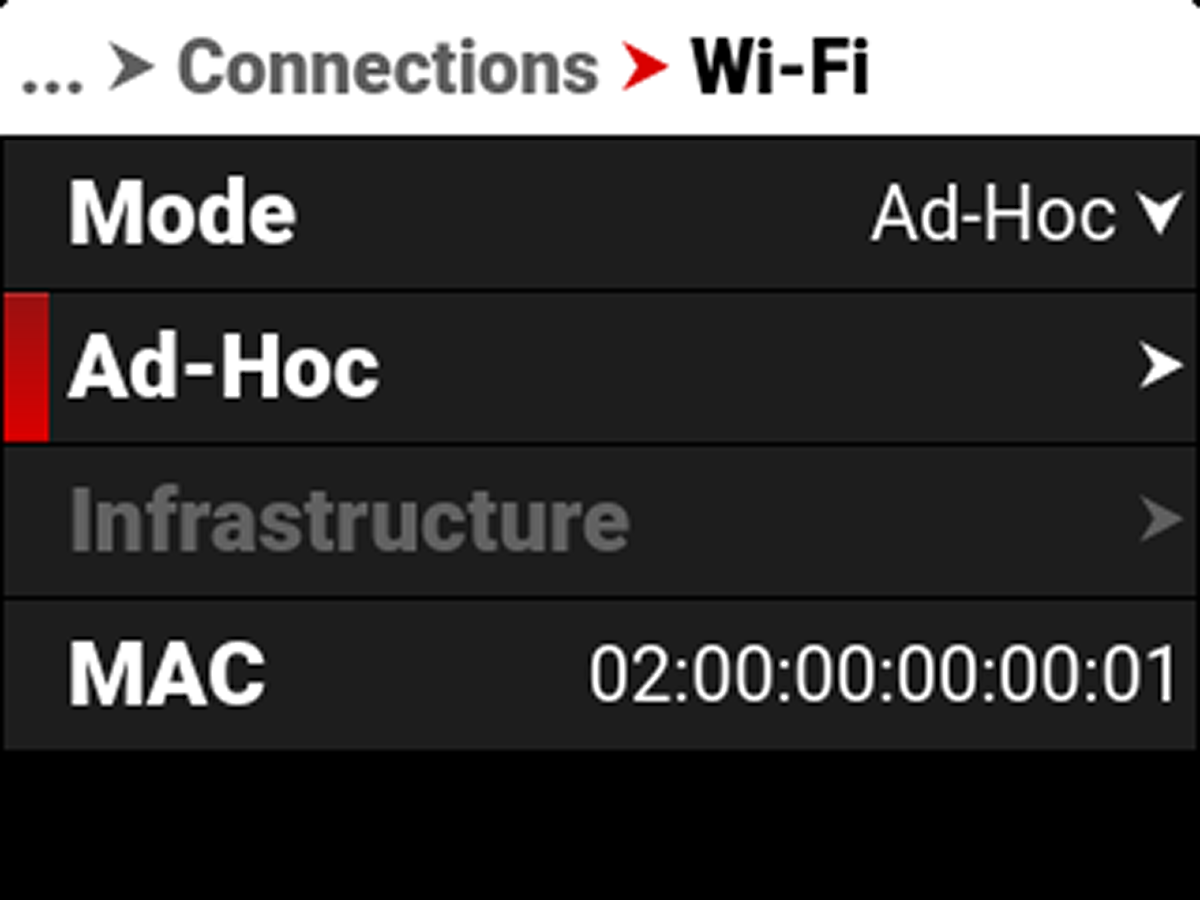

NOTE: The Ad-Hoc menu is enabled when the Wi-Fi Mode is set to Ad-Hoc.

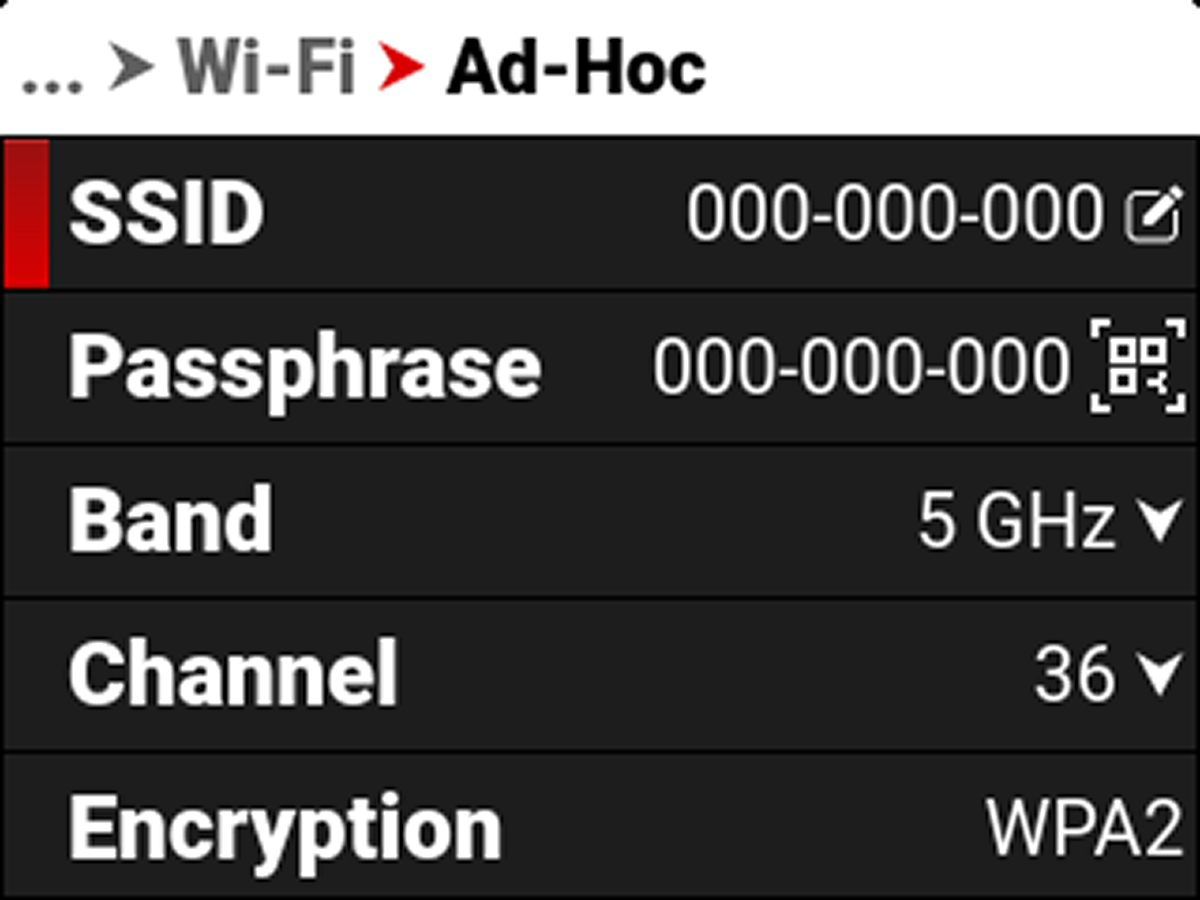

Use the Ad-Hoc menu to configure the Wi-Fi hot spot settings:
|
Item |
|
Details |
|---|---|---|
|
|
Enter the name of the Wi-Fi network the camera generates |
|
|
|
Enter the password for the Wi-Fi network |
|
|
|
Select the Wi-Fi frequency band |
|
|
|
Select the optimal channel for the Wi-Fi band |
|
|
|
Displays the encryption type |
|
|
|
Displays the connection status |
|
|
|
Displays the IP address |
|
|
|
Displays the Netmask |

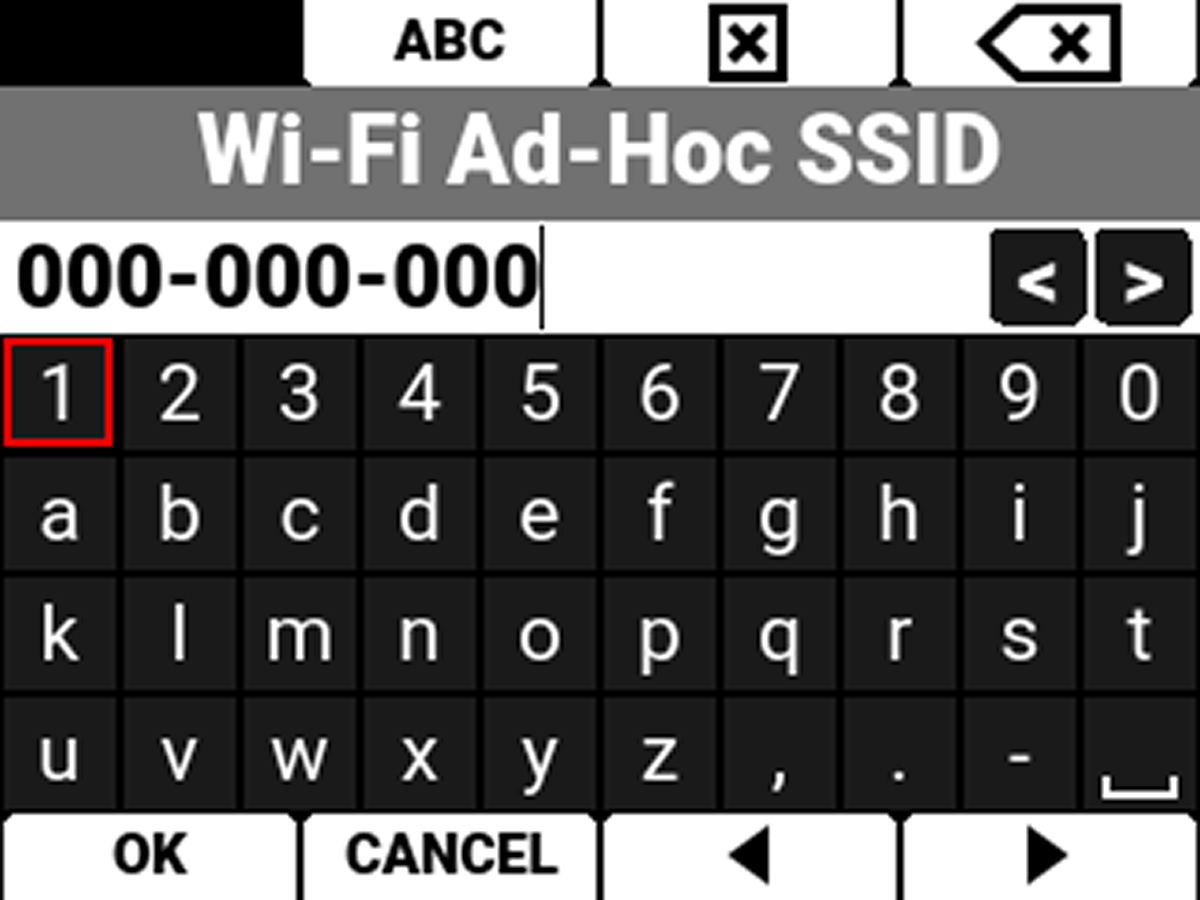

SSID
Use the keypad to enter the camera's Wi-Fi network name.

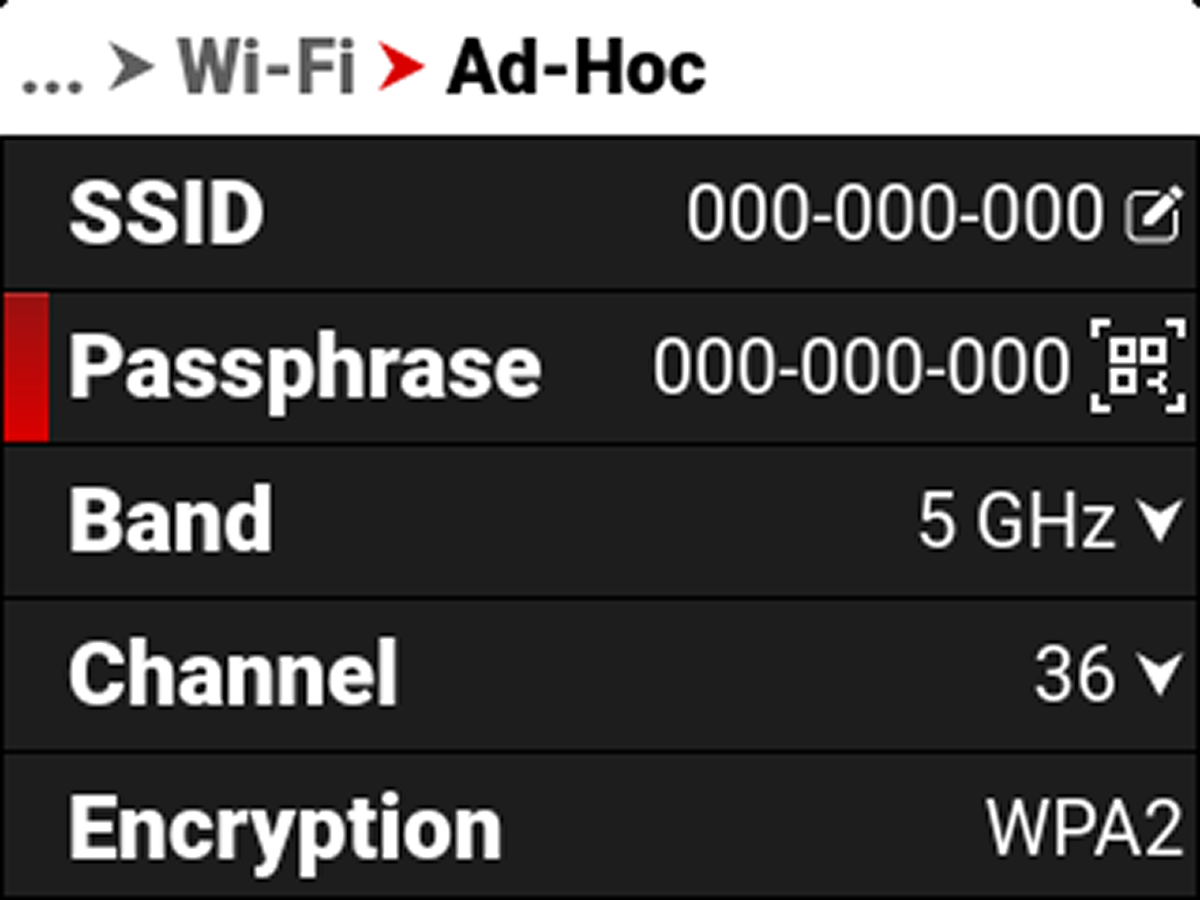

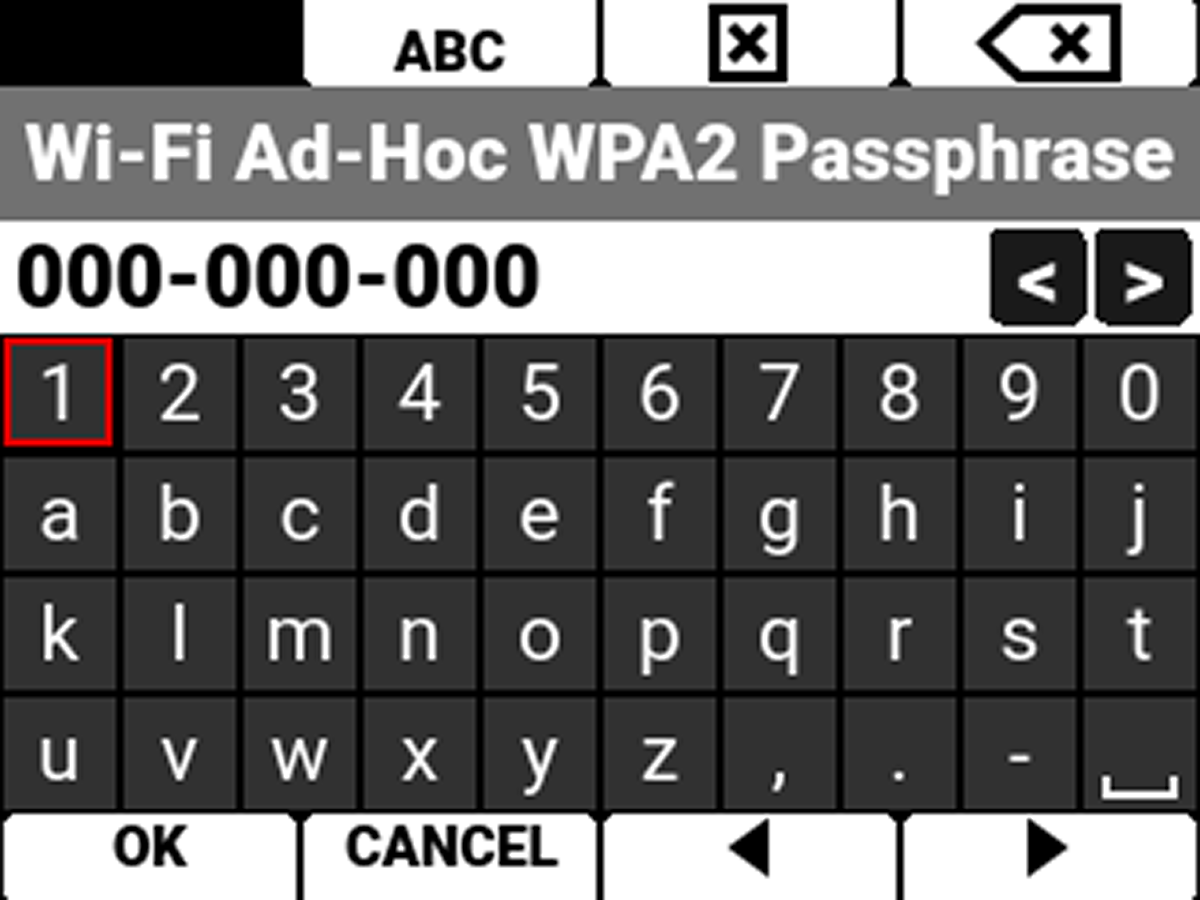

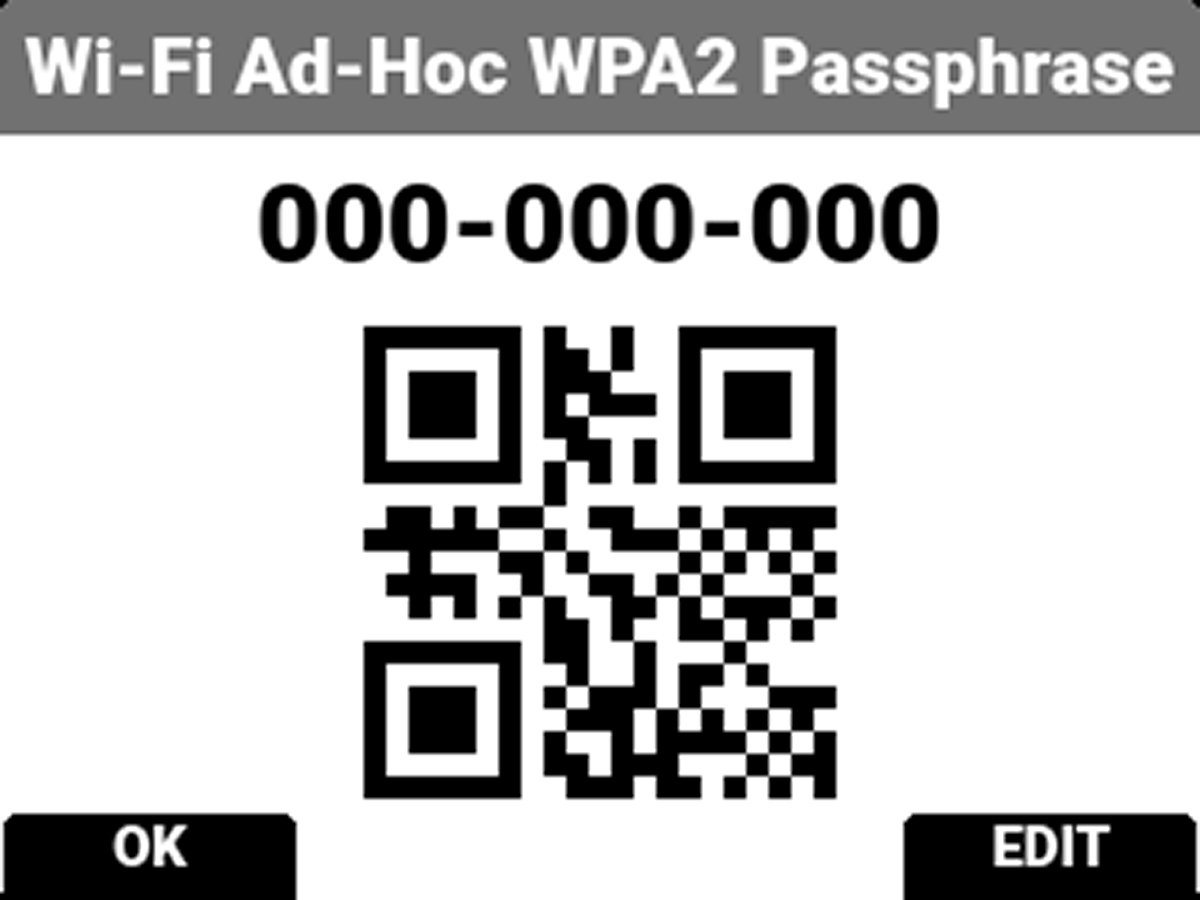

Passphrase
Use the keypad to enter the camera's Wi-Fi passphrase.

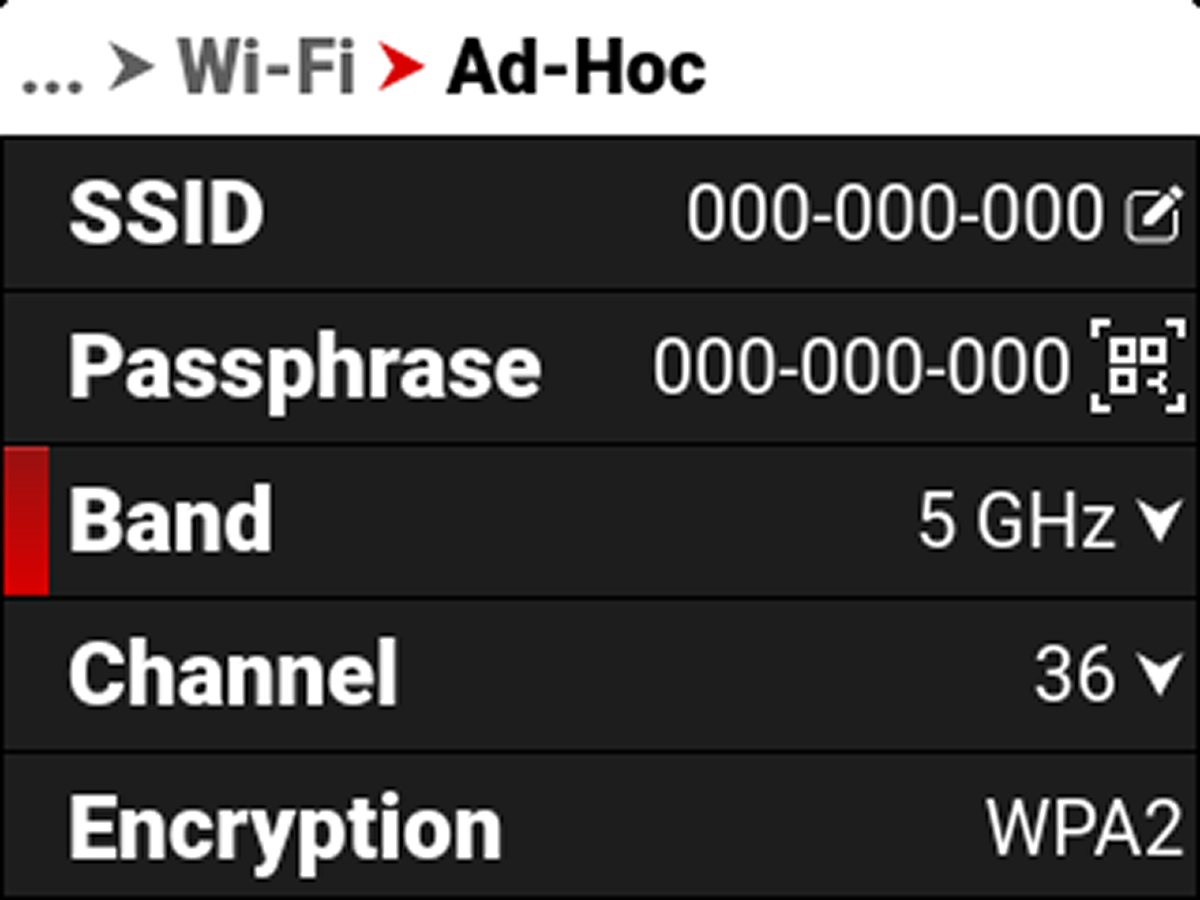

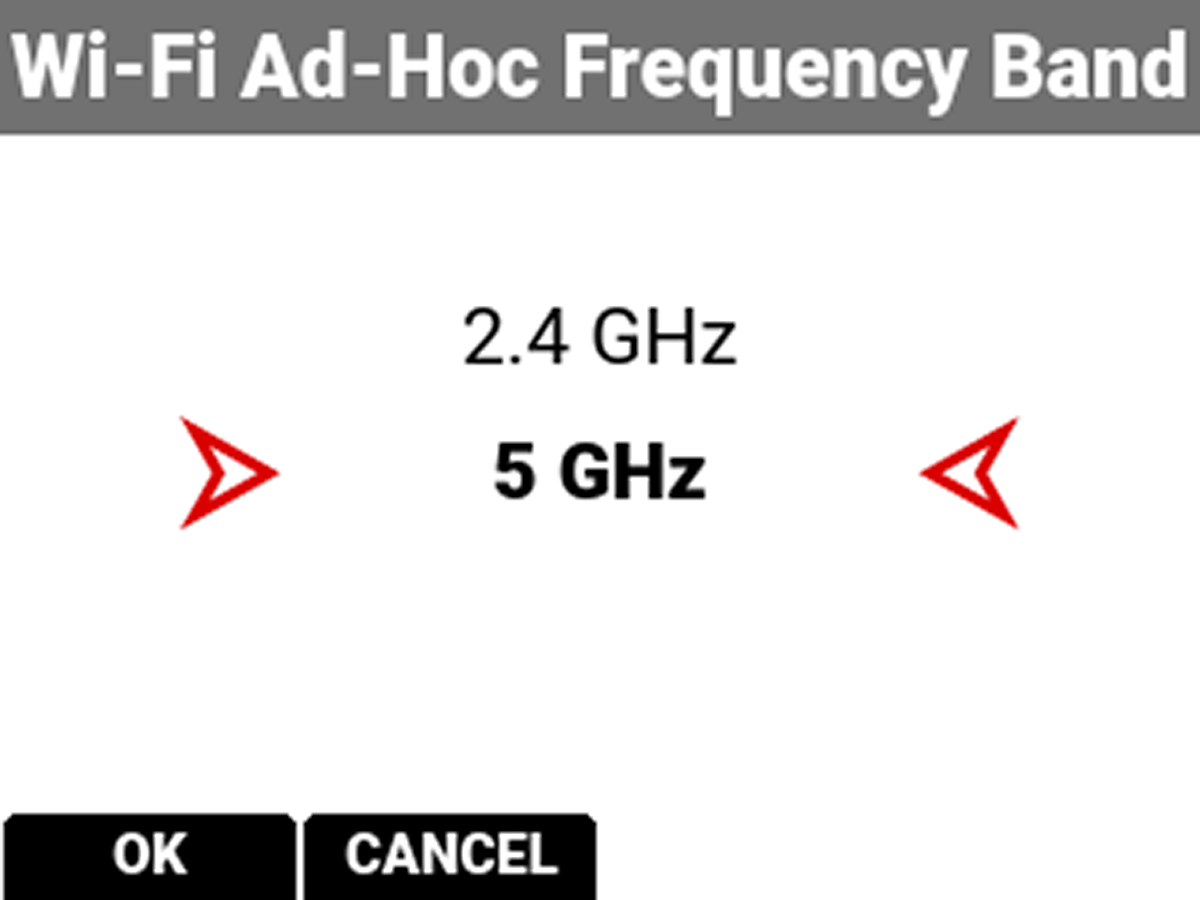

Band
Select the camera's Wi-Fi network frequency band.
-
Use 5 GHz for optimal wireless video streaming performance (default)
-
Use 2.4 GHz for extended range remote control (when not utilizing wireless video streaming)

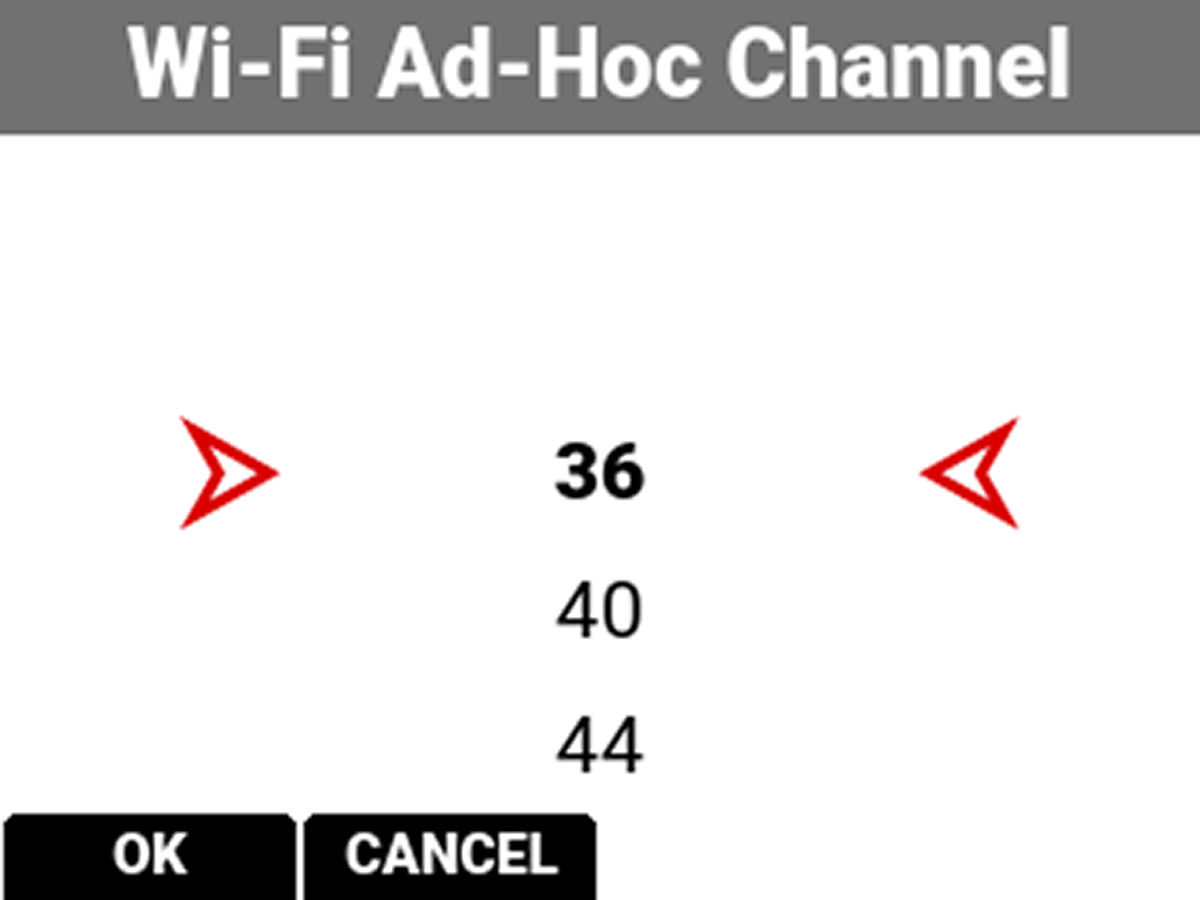

Channel
Select the optimal channel for the selected band, one which receives the least interference from the surrounding Wi-Fi signals.

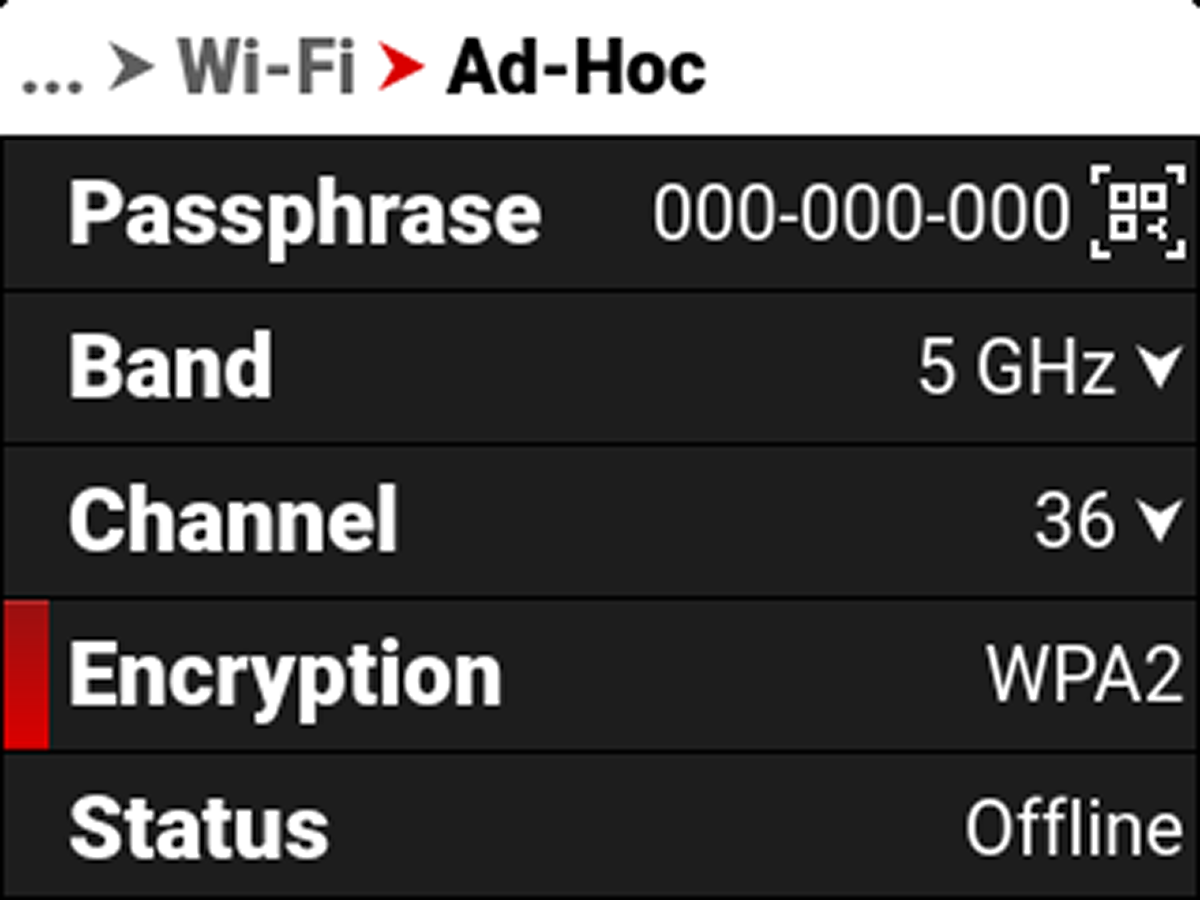

Encryption
The camera uses WPA2 security encryption.

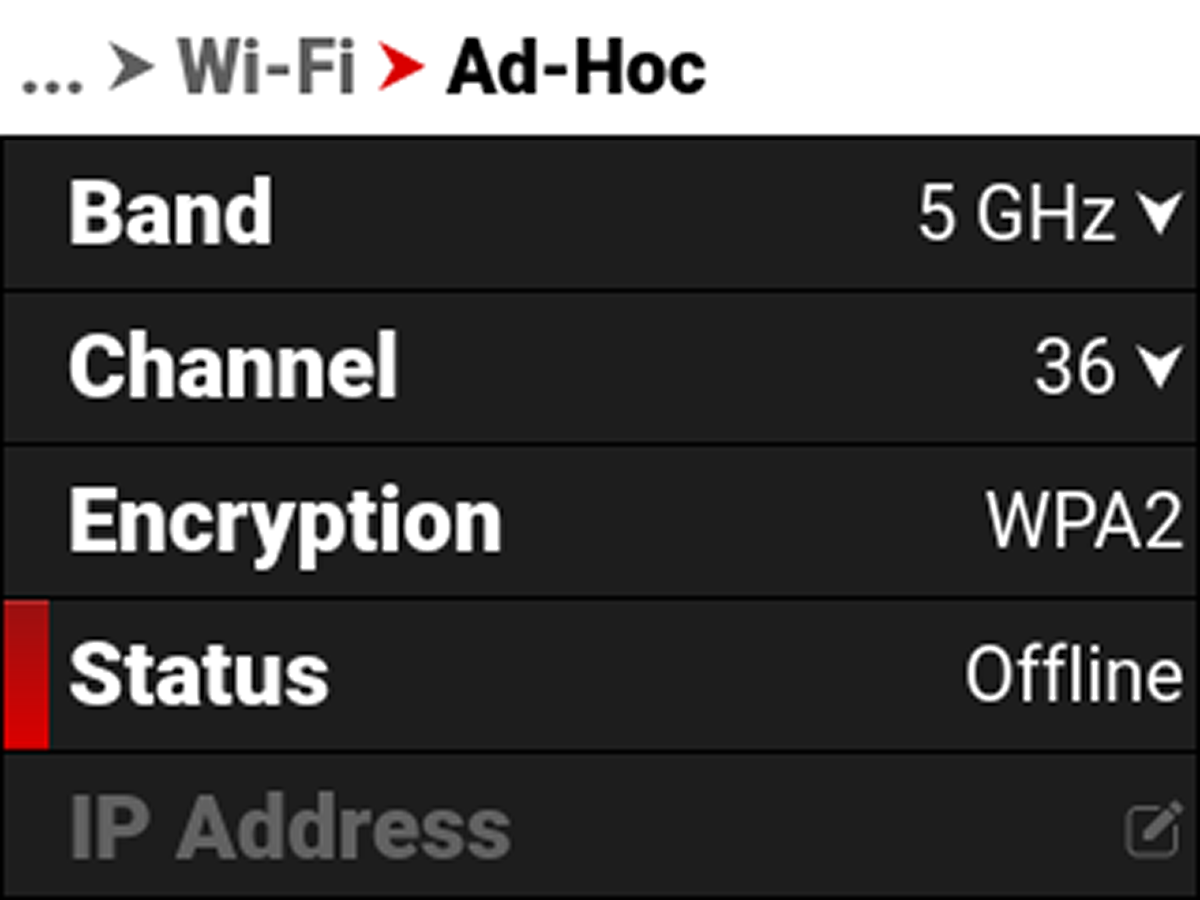

Status
Displays the camera's Ad-Hoc Wi-Fi connection status.
The Ad-Hoc status includes Offline and Online.
IP Address
When online and broadcasting a network, the camera displays an IP address.

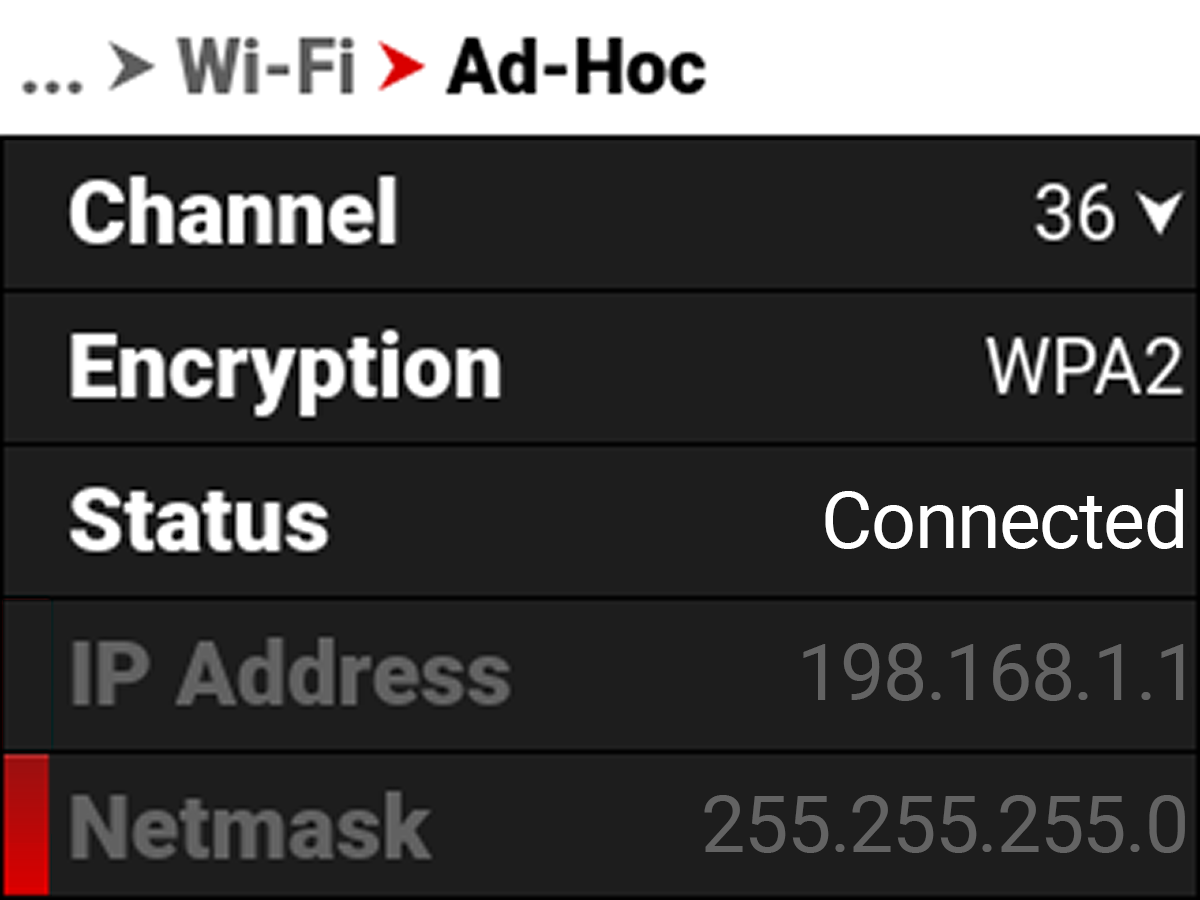

Netmask
When online and broadcasting a network, the camera displays the Netmask for the IP address.
