Infrastructure

Use Infrastructure to configure the camera to connect to an existing Wi-Fi network.

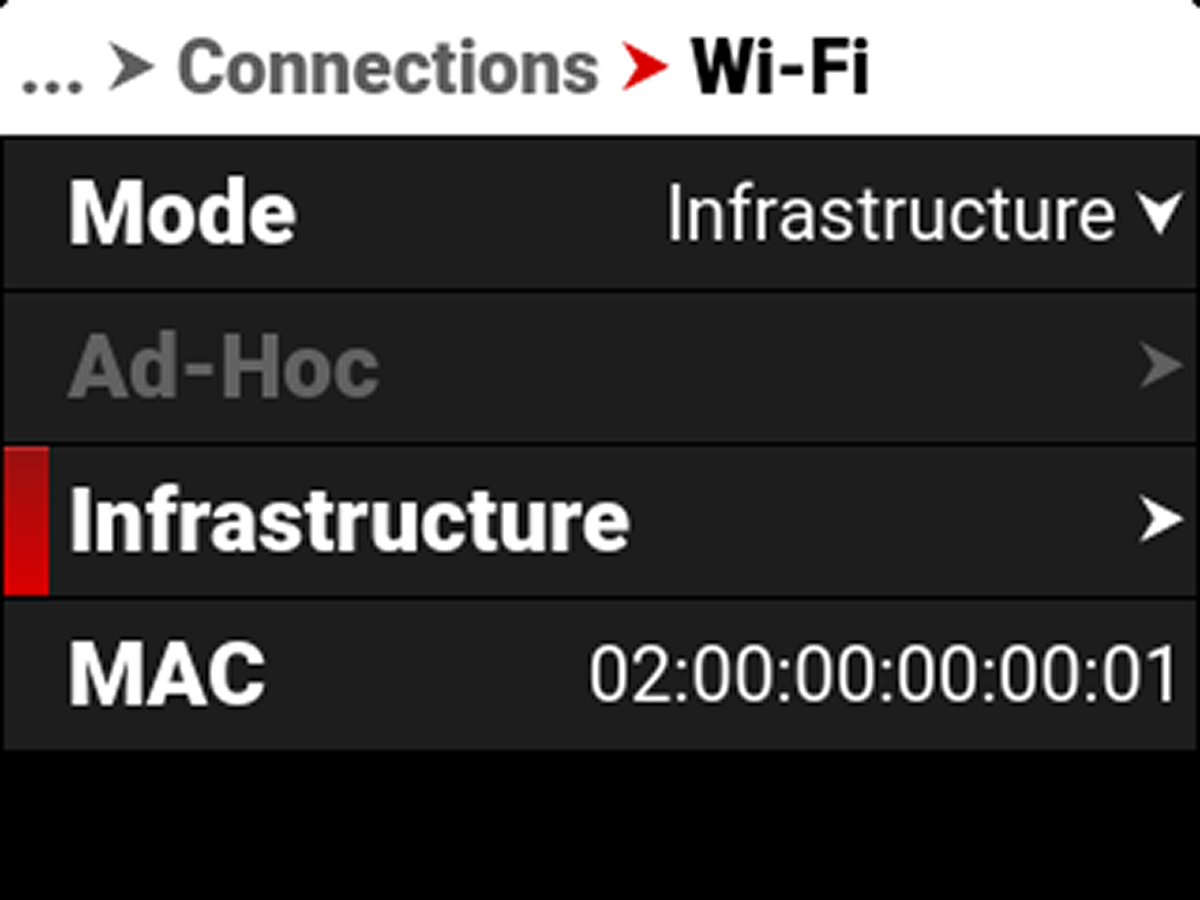

NOTE: The Infrastructure menu is enabled when the Wi-Fi Mode is set to Infrastructure. Refer to the Wi-Fi section for more information.

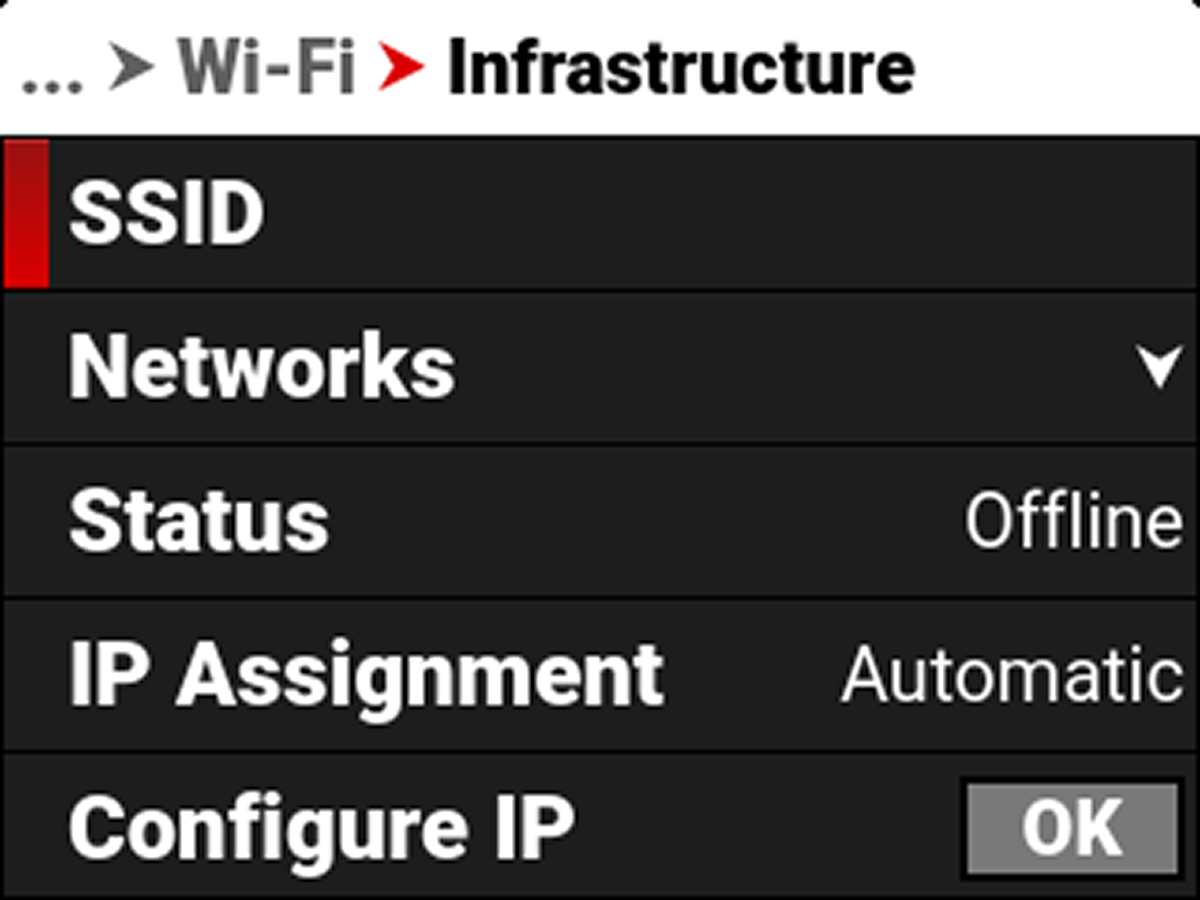

Use the Infrastructure menu to configure the Wi-Fi settings to connect to an existing Wi-Fi infrastructure:

Item		Details
SSID		Displays the name of the connected Wi-Fi network
Networks		Scan for, select, or enter the Wi-Fi network
Status		Displays the Wi-Fi connection status
IP Assignment		Displays the IP assignment method
Configure IP		Select the IP Assignment mode and manually enter IP, Netmask, and Gateway addresses
IP Address		View or enter the Wi-Fi network IP address
Netmask		View or enter the Wi-Fi network Netmask
Gateway		View or enter the Wi-Fi network Gateway

When a network is selected, the SSID displays the Wi-Fi network name (SSID).

Use Networks to select an existing network, scan for an available network, or to configure a new network.

CONNECT: The CONNECT button connects the camera to the selected network.
FORGET: The FORGET button erases the connection information for the selected network.
SCAN: The SCAN button searches for available networks.
OTHER: The OTHER button opens the OTHER NETWORKS screen where you can manually enter an SSID and a Passphrase.

Select a network to open the CONNECT screen. Select Passphrase to open the Passphrase screen and enter the desired network password:

Press the button under CONNECT to connect to the new network:

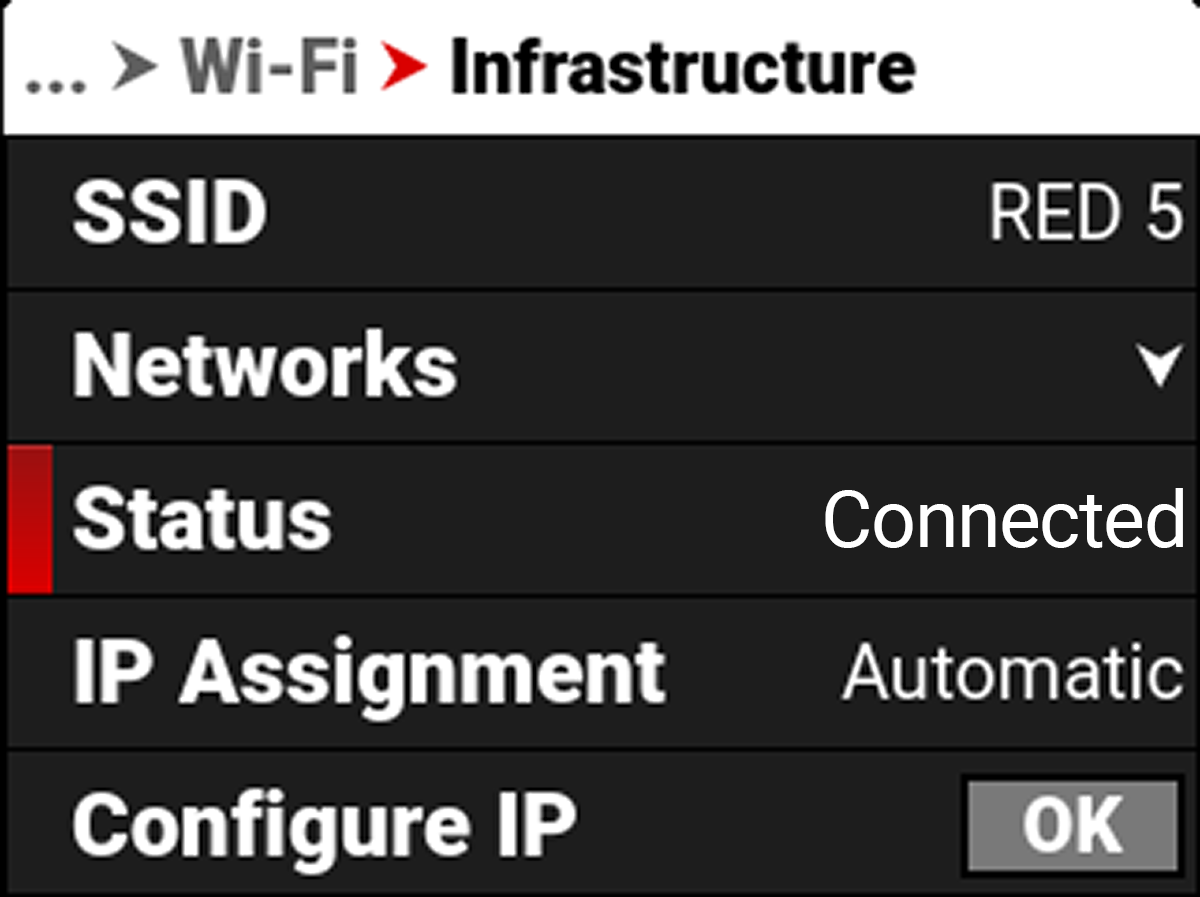

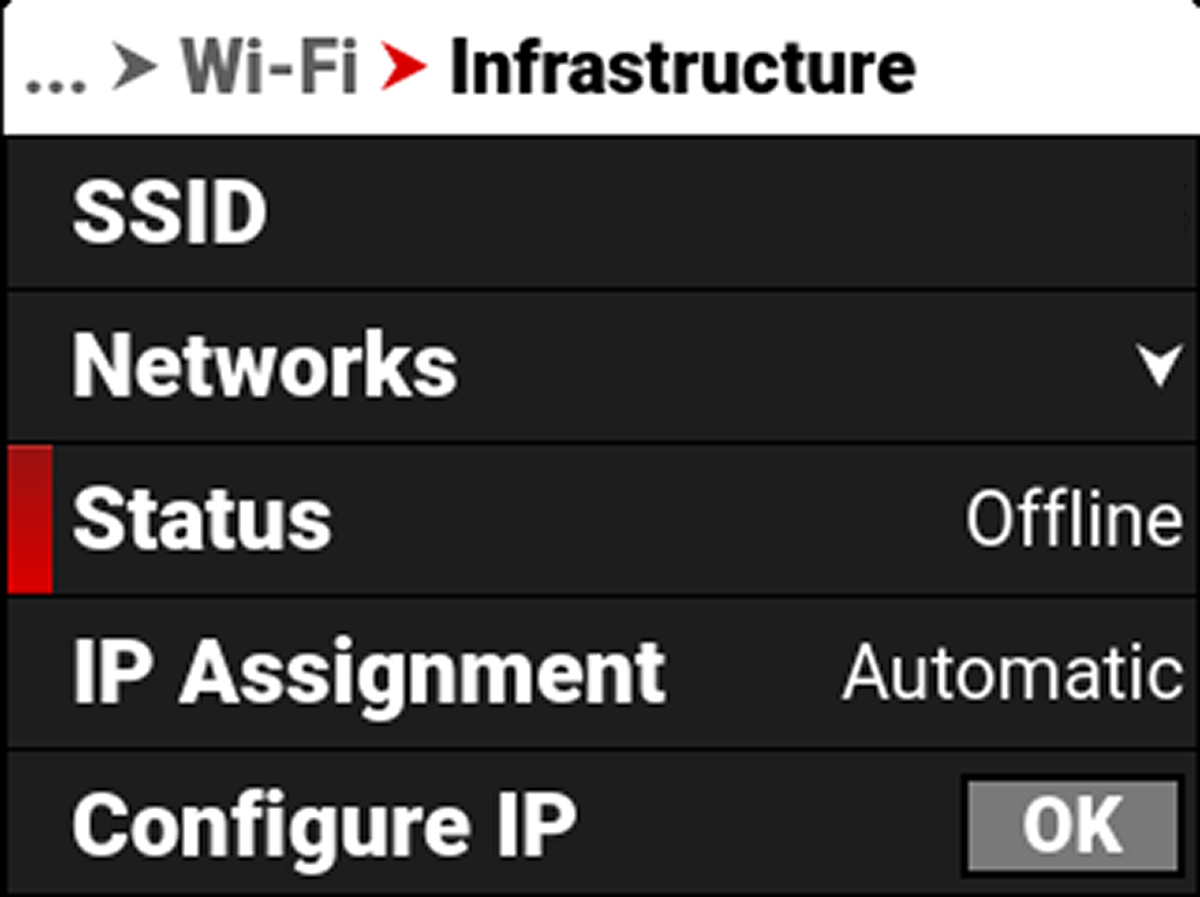

Displays the connection status of the camera to the selected Wi-Fi network.

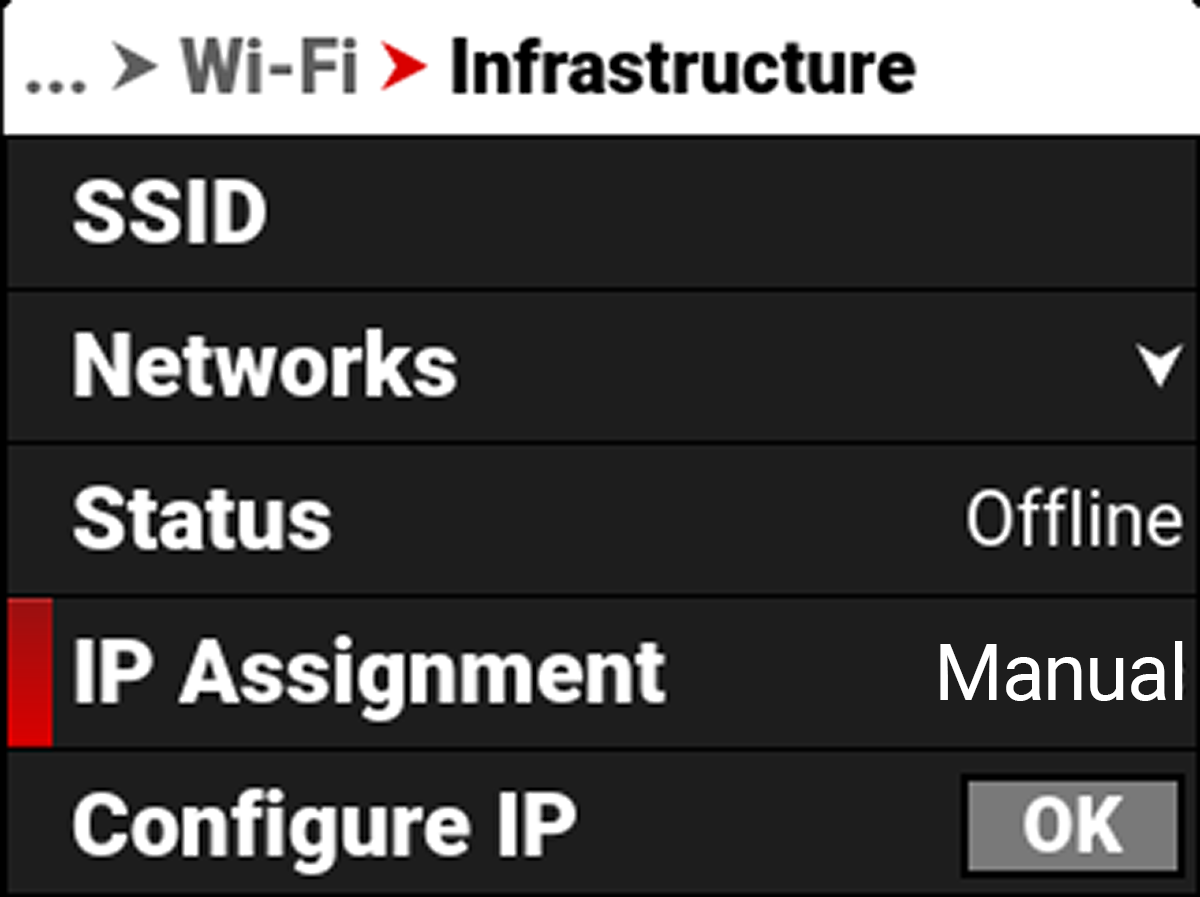

Displays the selected IP Assignment mode.

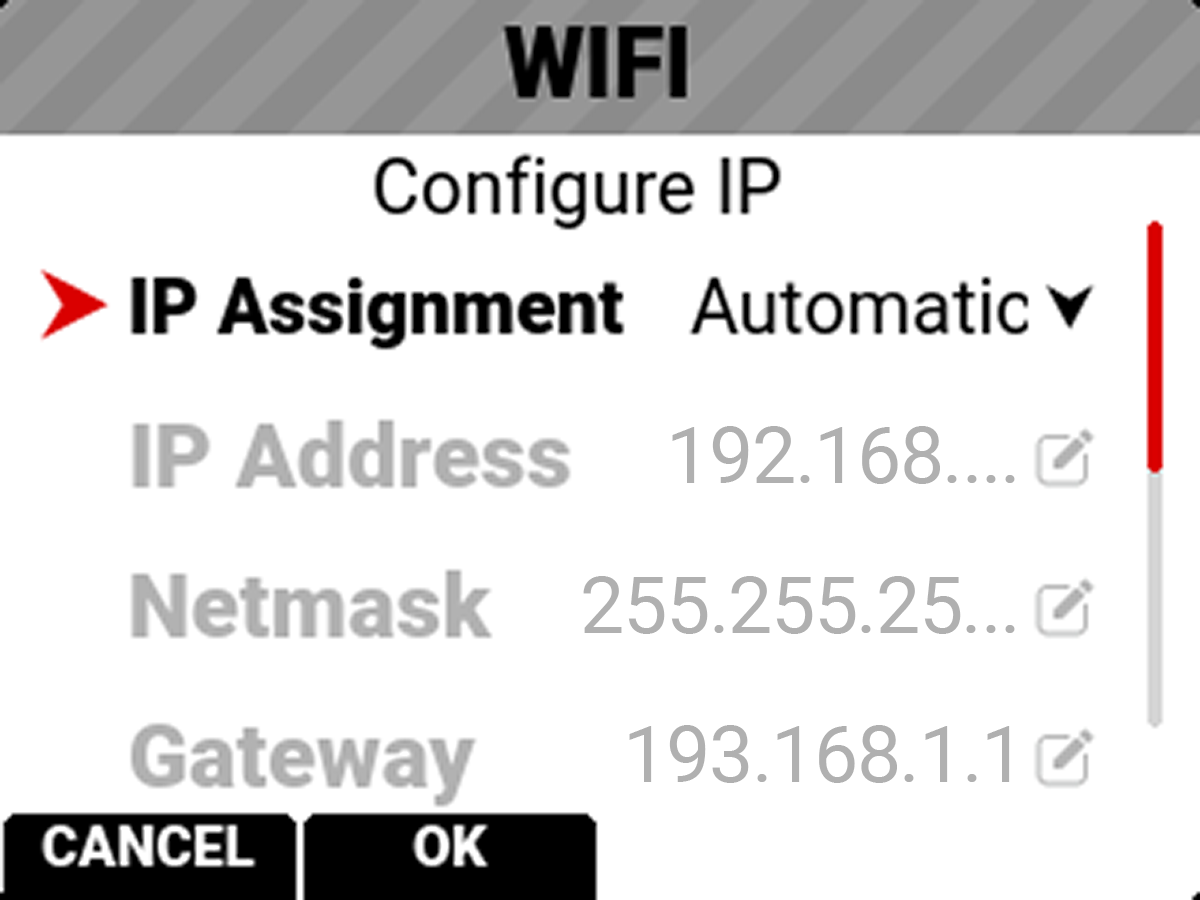

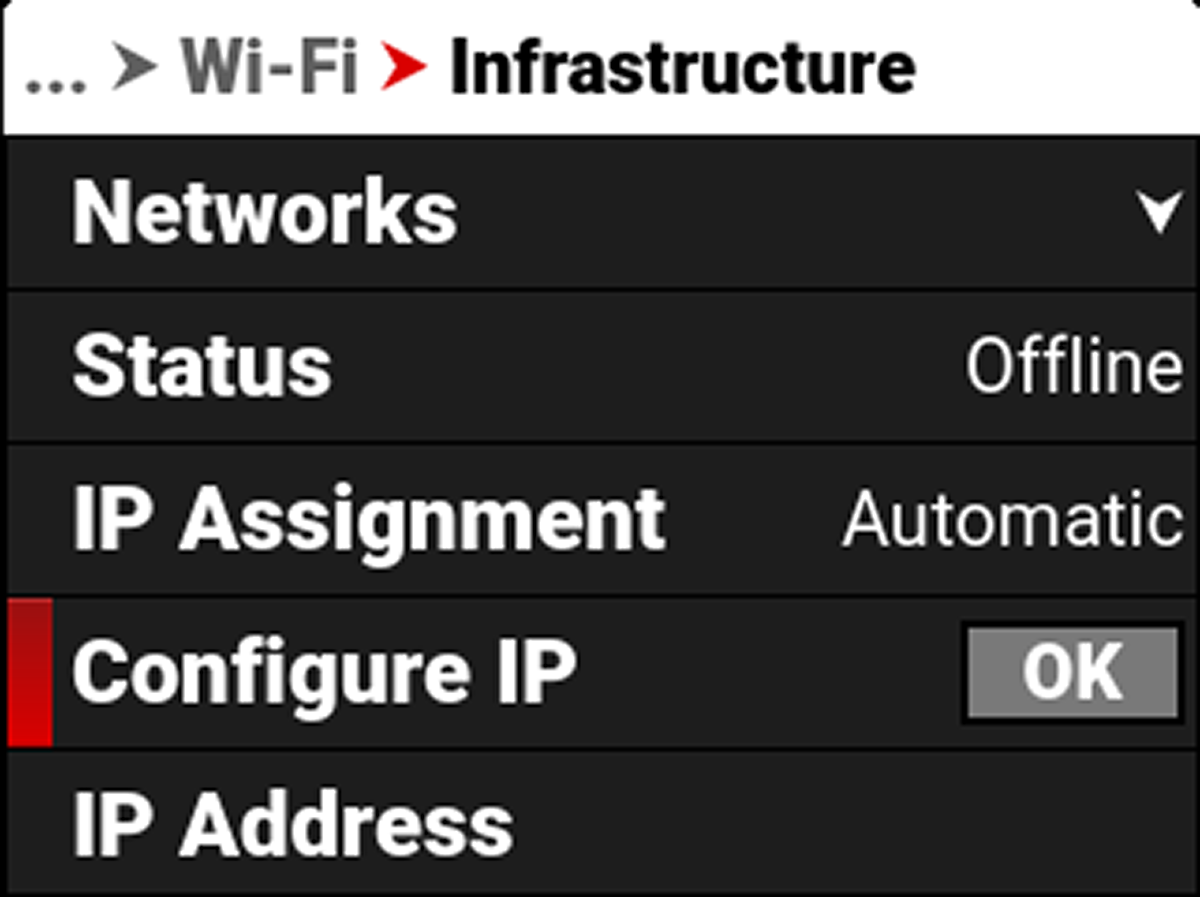

Use Configure IP to select the IP Assignment method, and to manually enter an IP address, Netmask address, and a Gateway (router) address.

When connected to a Wi-Fi network and Automatic IP Assignment is enabled, IP Address displays the Wi-Fi network IP address.

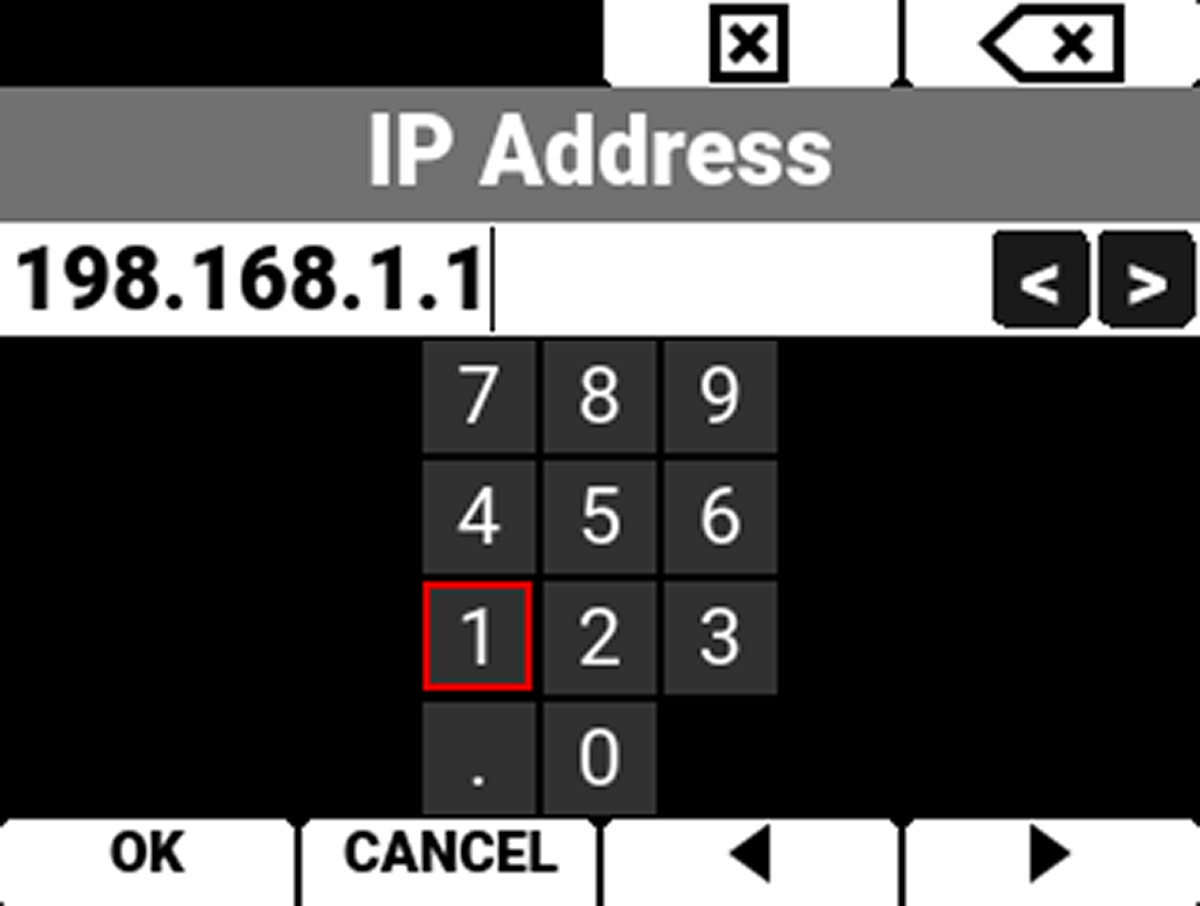

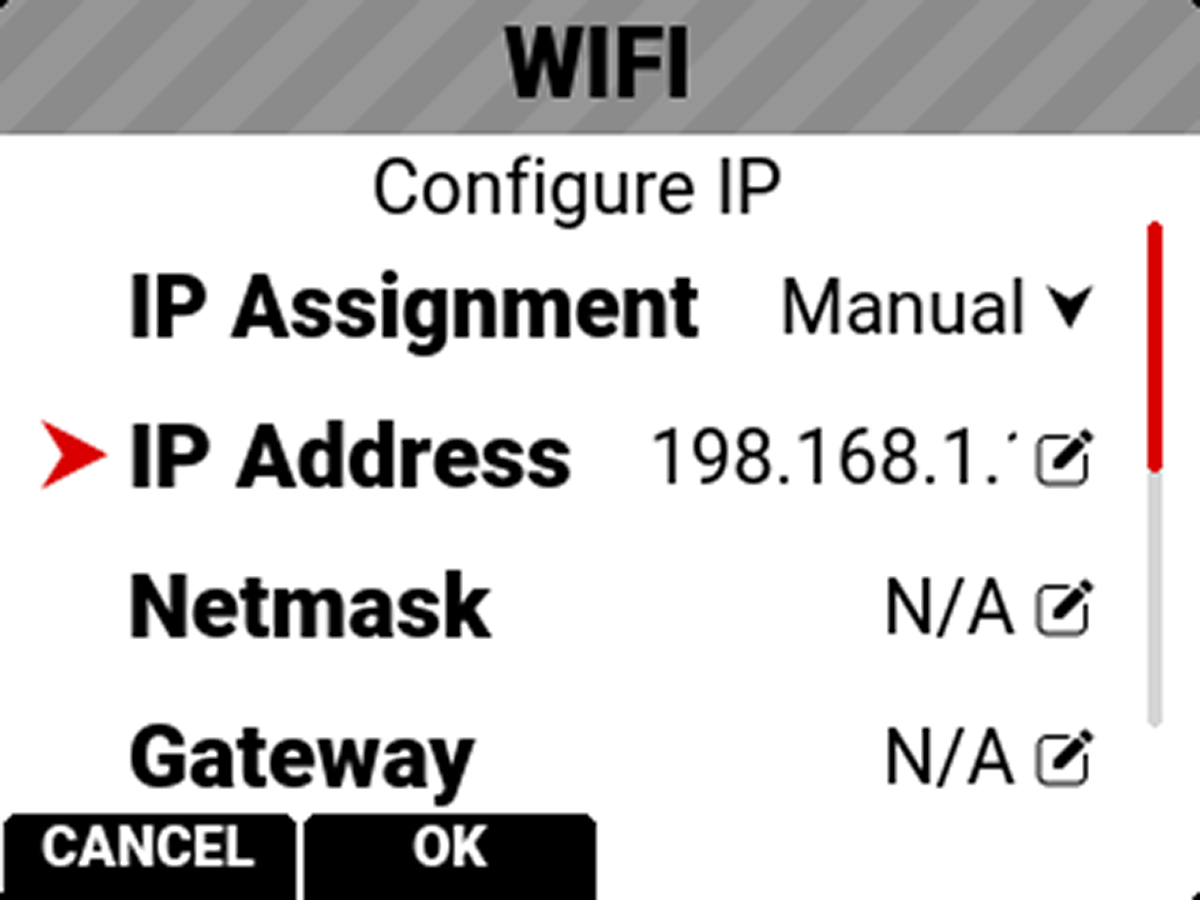

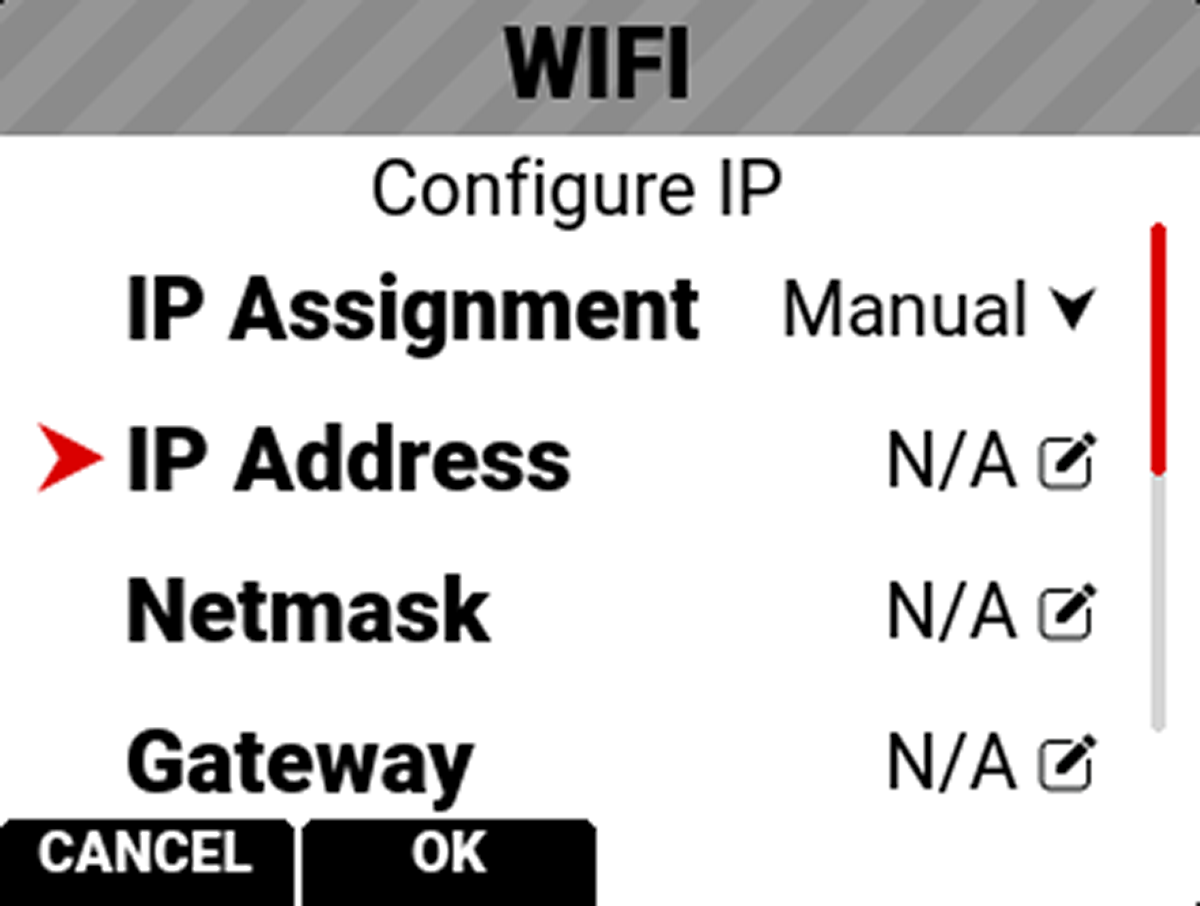

When Manual IP Assignment is enabled, you can manually enter a static IP address.

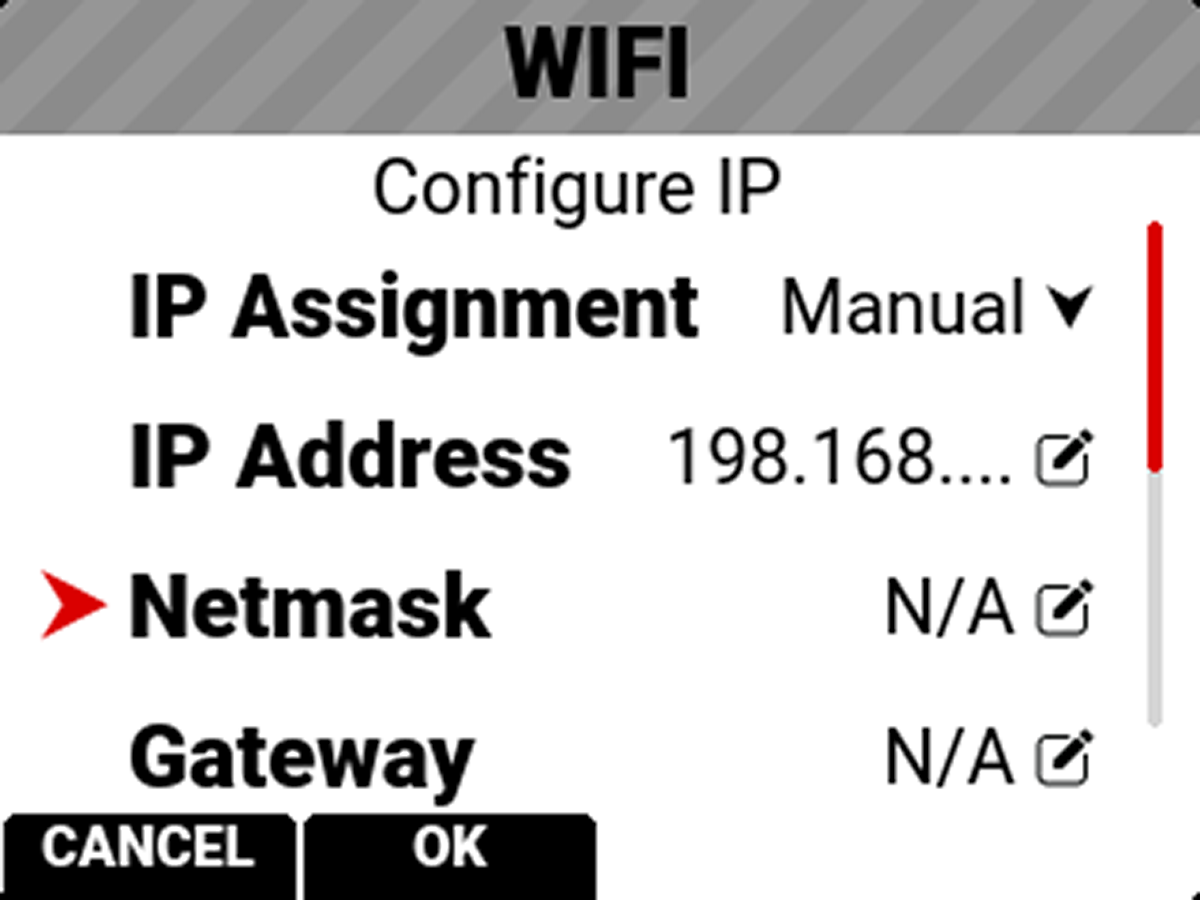

When connected to a Wi-Fi network and Automatic IP Assignment is enabled, Netmask displays the Wi-Fi network Netmask address.

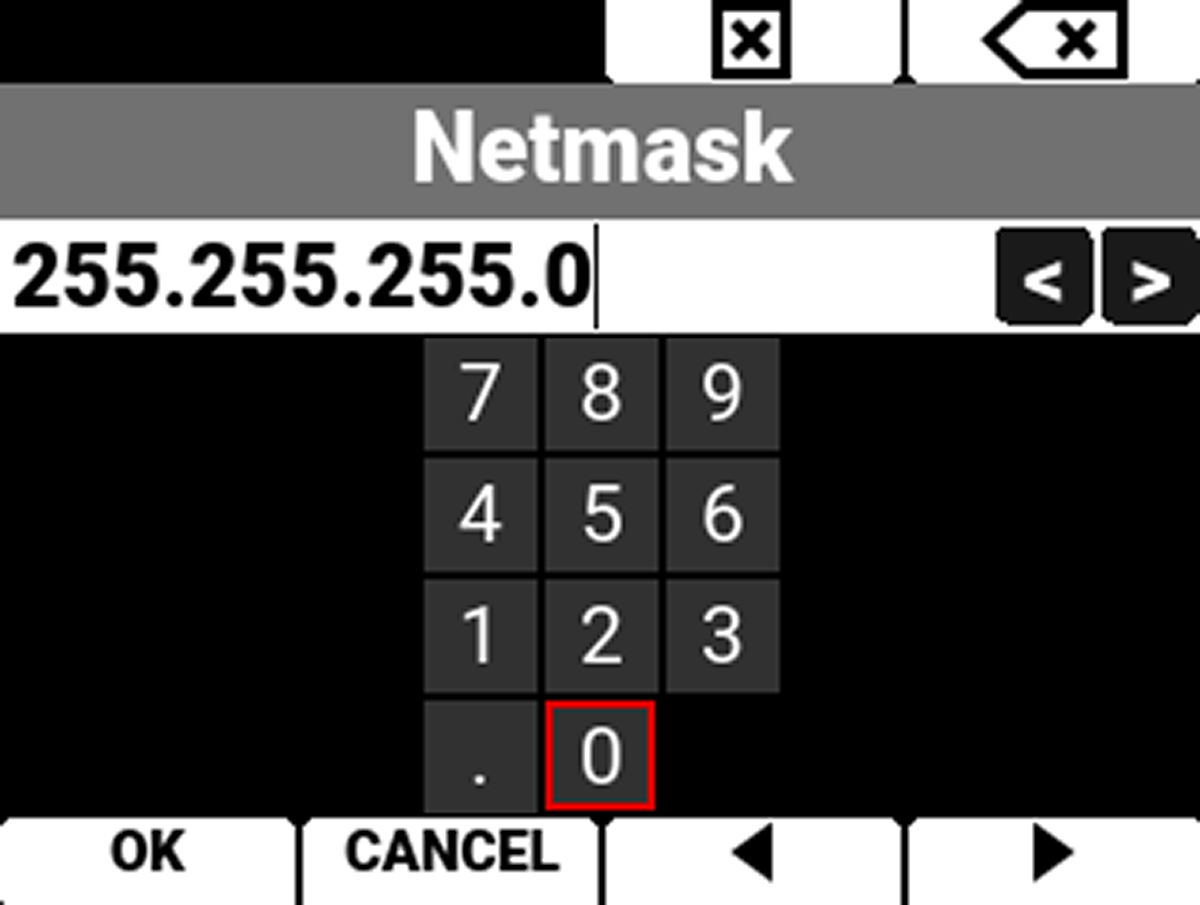

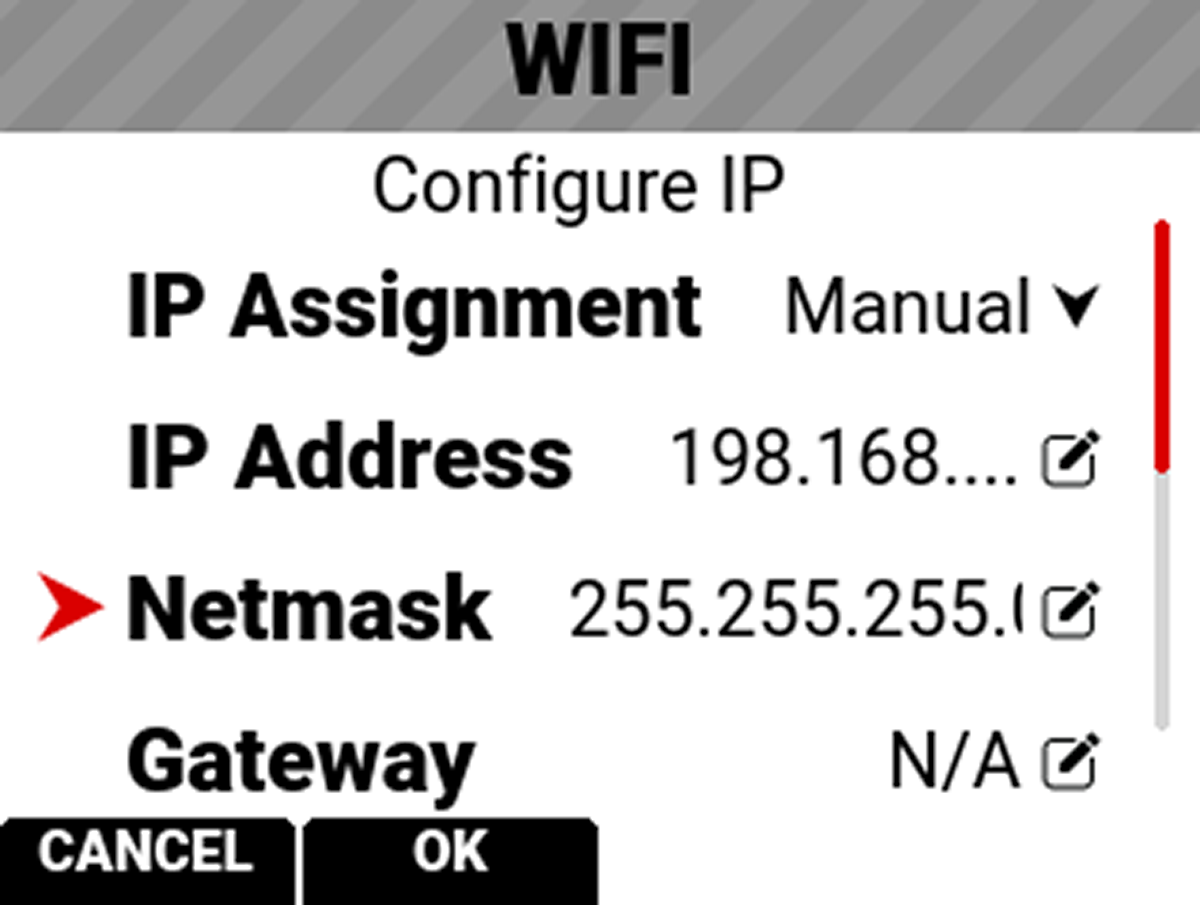

When Manual IP Assignment is enabled, you can manually enter a Netmask address.

When connected to a Wi-Fi network and Automatic IP Assignment is enabled, Gateway displays the Wi-Fi network Gateway address (router address).

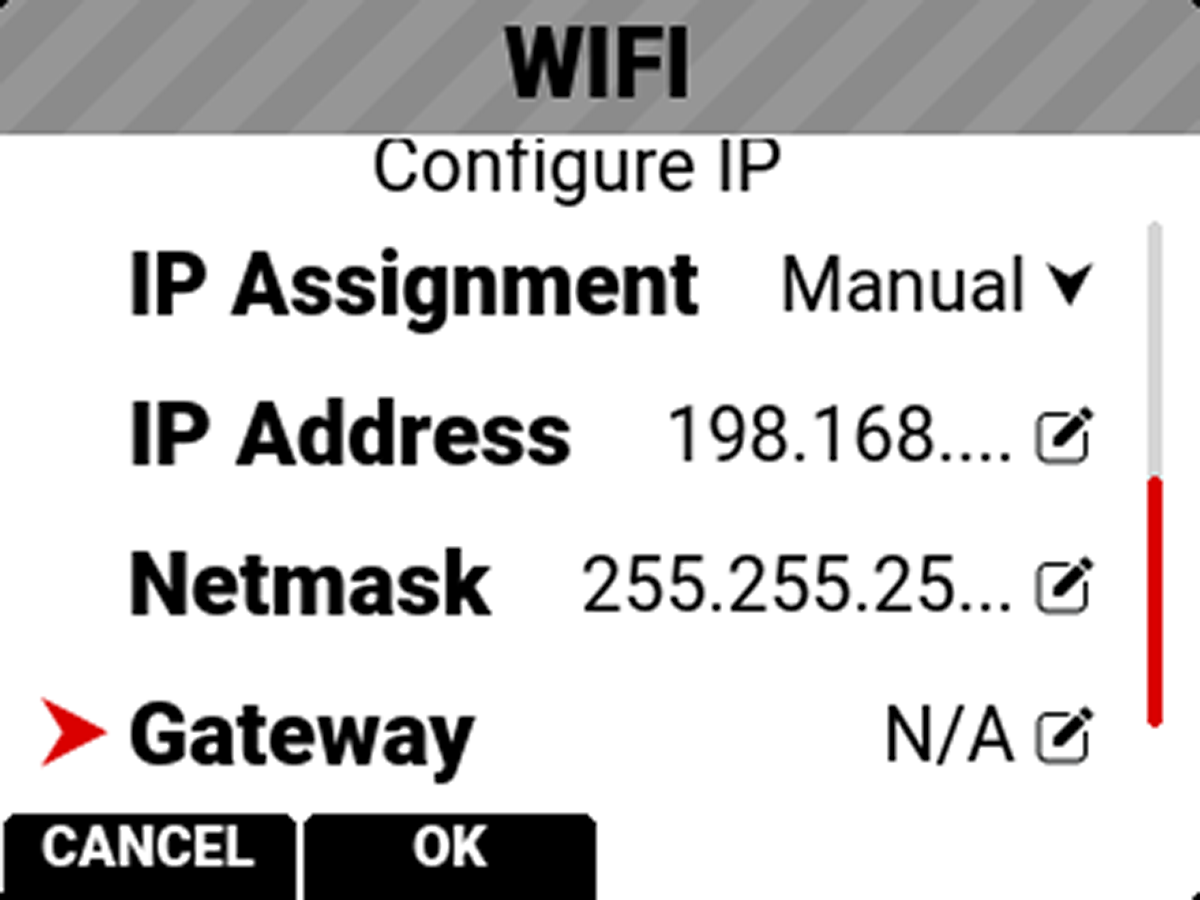

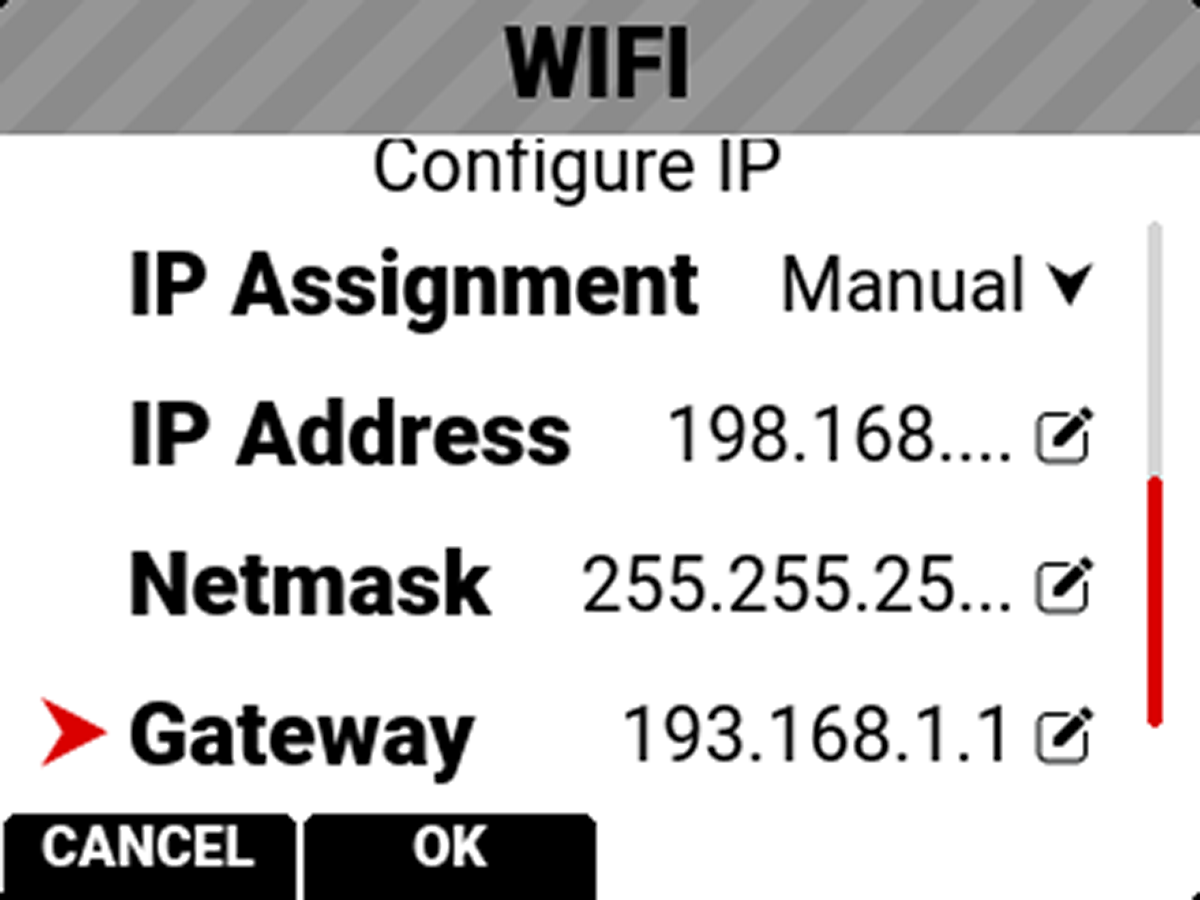

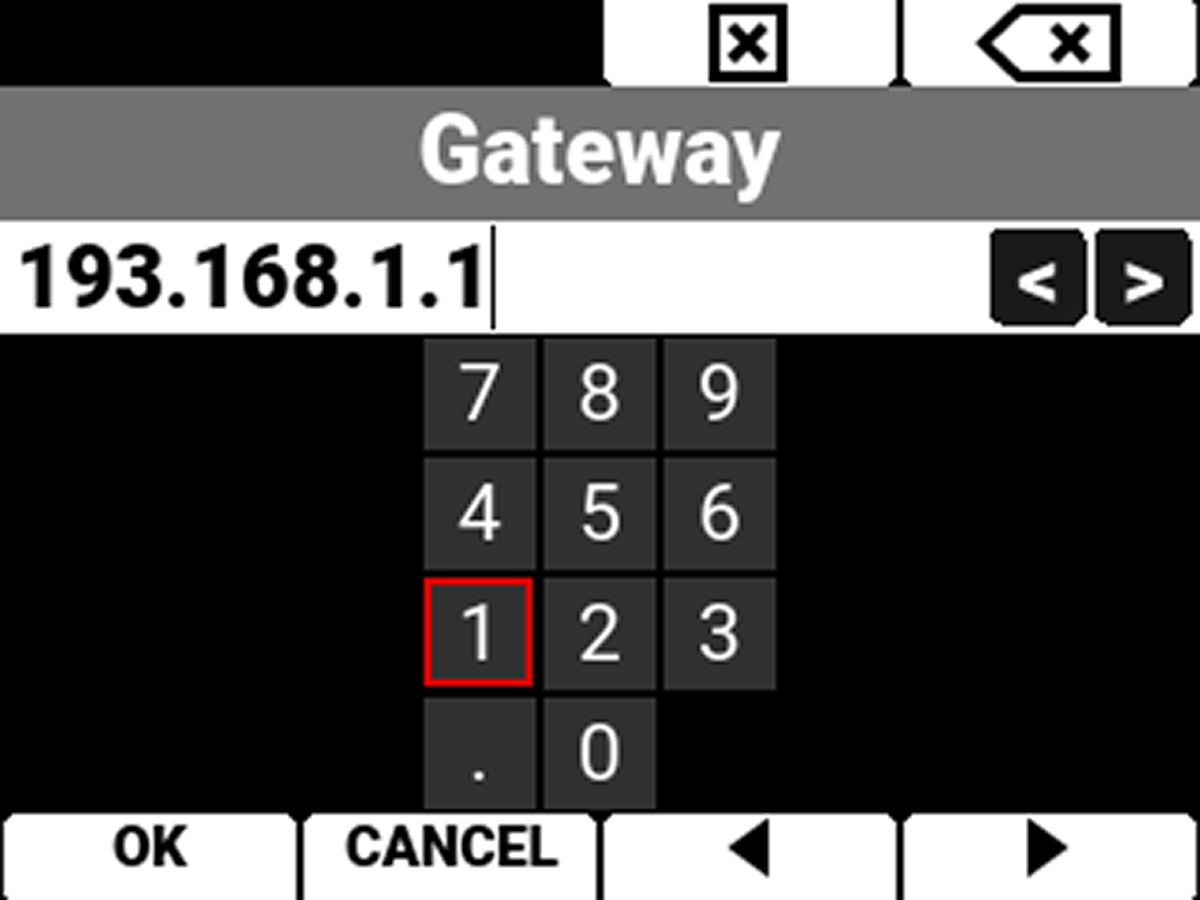

When Manual IP Assignment is enabled, you can manually enter a Gateway address.
