RED® Compact Chargers

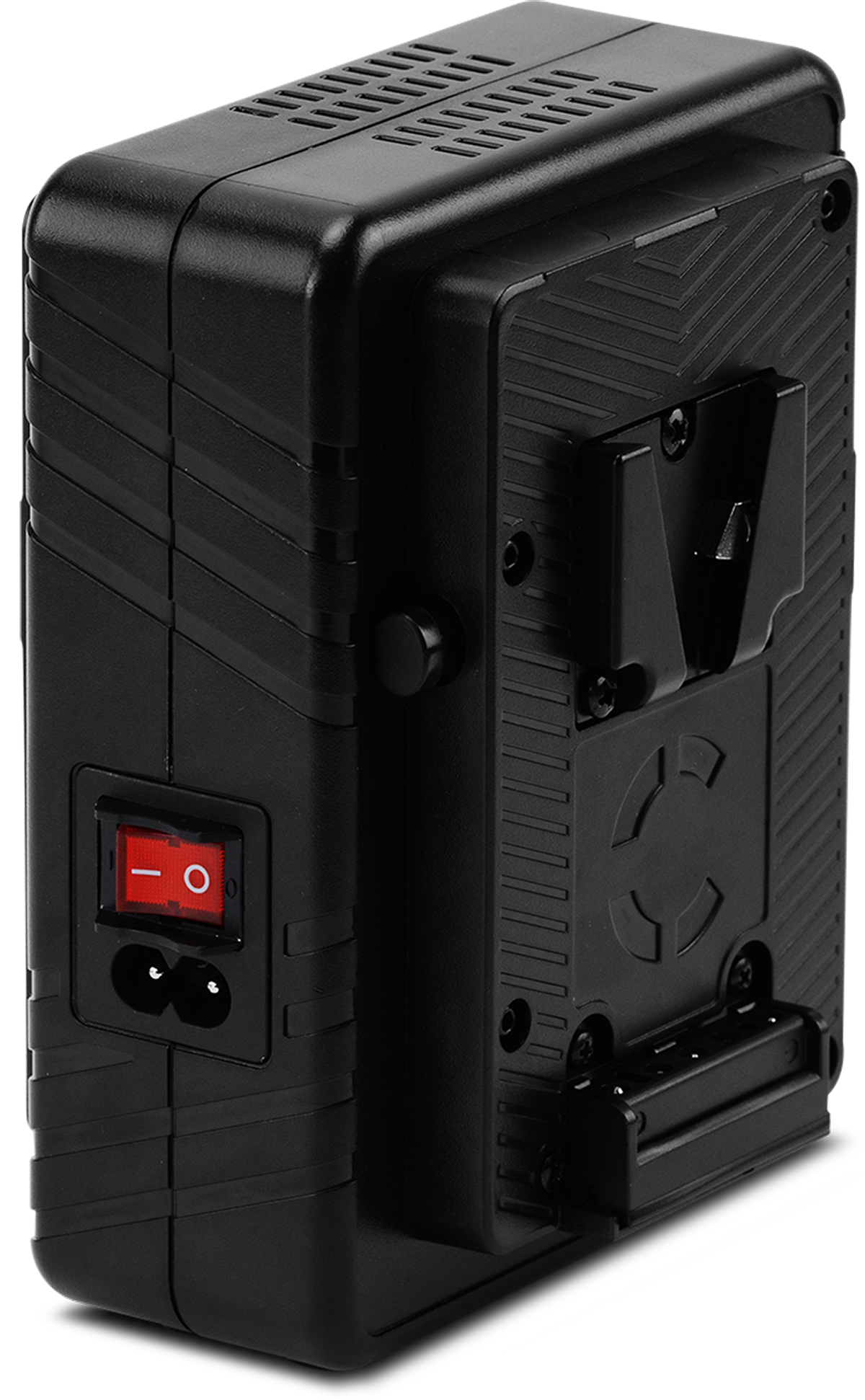

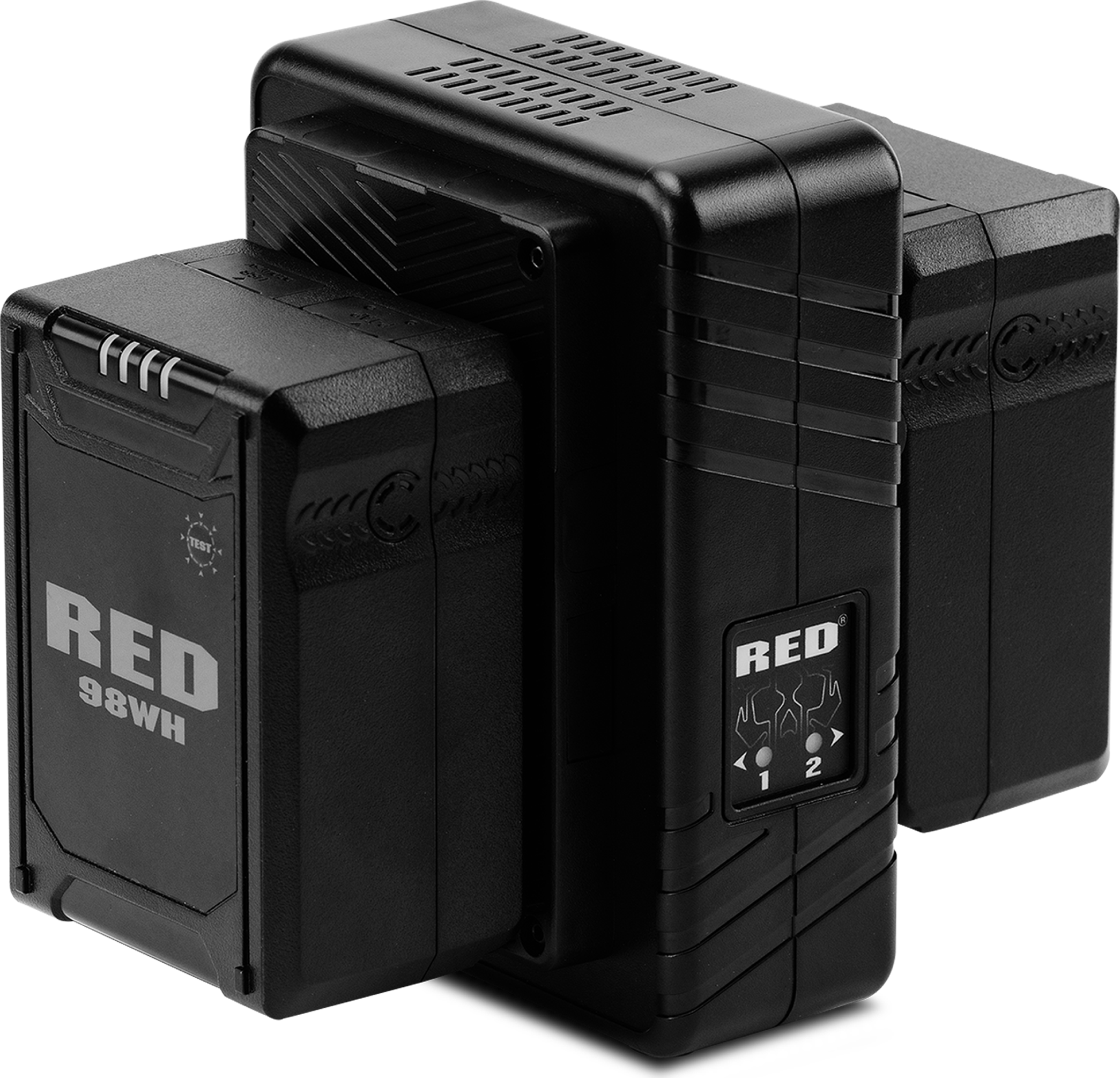

RED® Compact Dual V-Lock Charger
The optional RED Compact Dual V-Lock charger allows you to charge two REDVOLT MICRO-V batteries.
|
Item |
Details |
|---|---|
|
Input |
100 V - 240 V AC 50 Hz to 60 Hz |
|
Charge current |
One battery 3 Amps, two batteries 1.5 Amps |
|
Charging temperature |
32° F ~ 104° F (0° C ~ 40° C) |
|
Storage temperature |
68° F ~ 122° F (20° C ~ 50° C) |
|
Battery compatibility |
REDVOLT MICRO-V 14.7 V DC |
|
Weight |
Approximately 1 lb (453.5 g) |
|
Dimensions |
Height: 4.5 in. (114.3 mm) |
|
Width: 5.5 in. (139.7 mm) |
|
|
Depth: 3 in. (76.2 mm) |

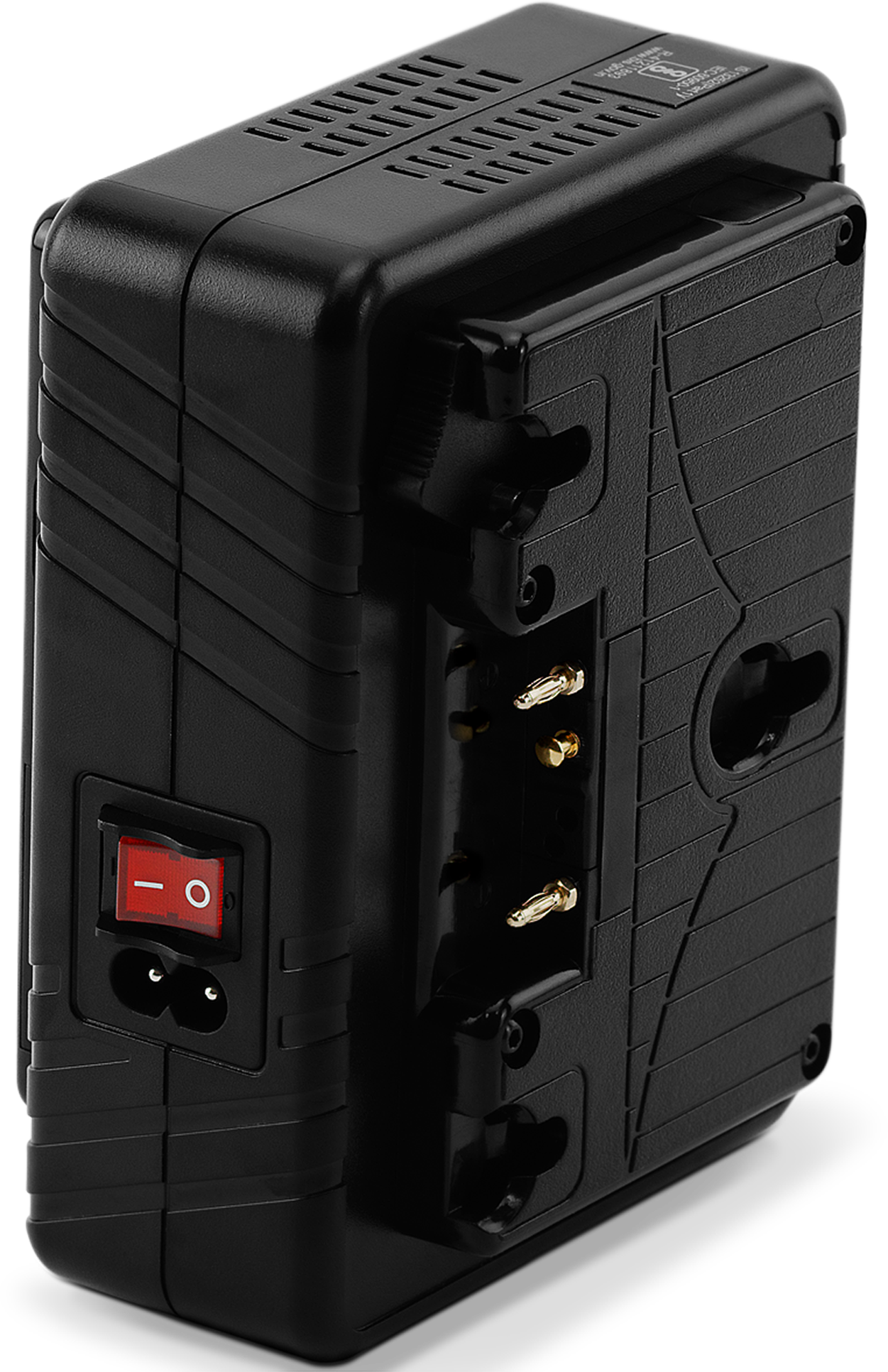

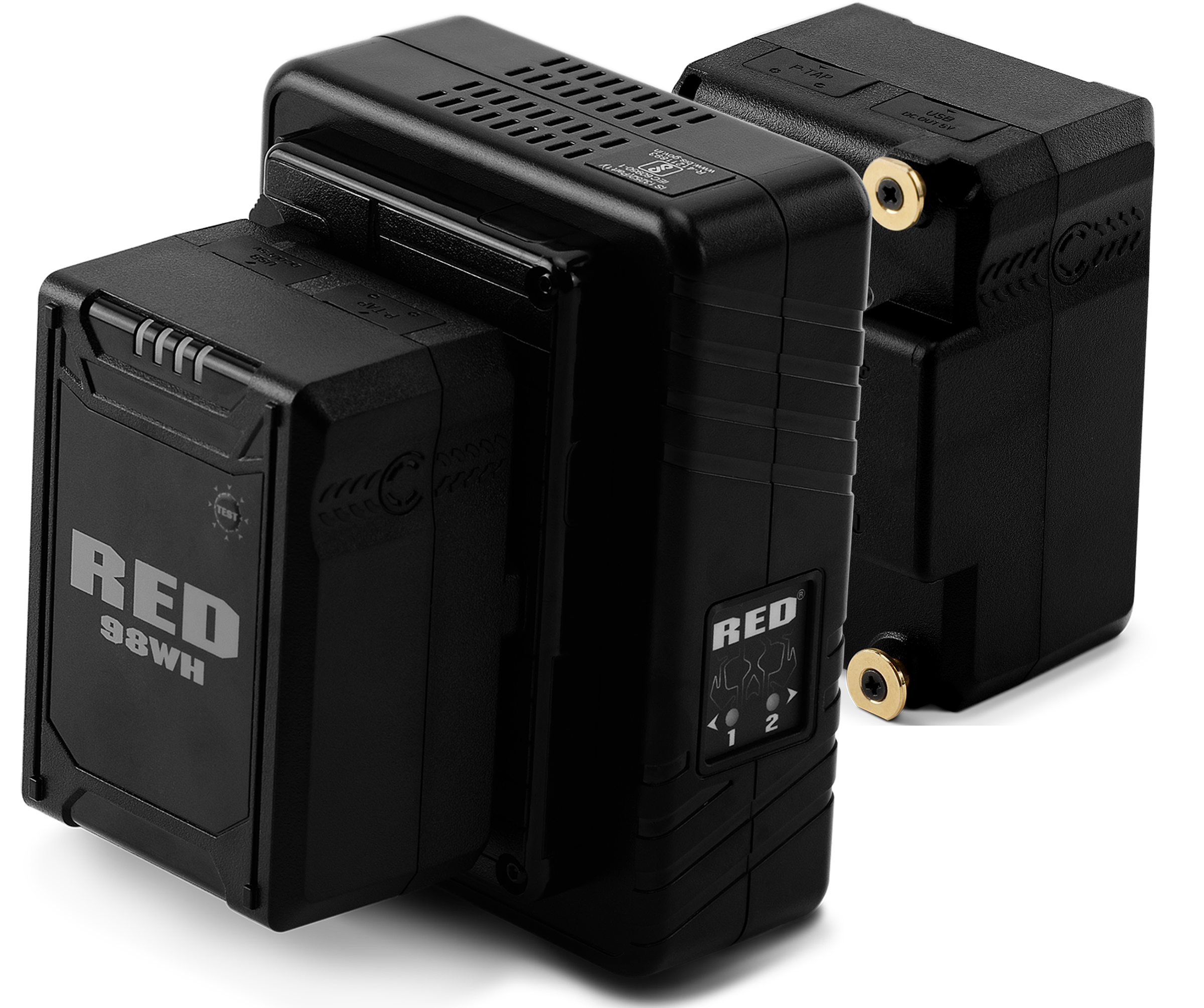

RED® Compact Dual Gold Mount Charger
The optional RED® Compact Dual Gold Mount charger allows you to charge two REDVOLT MICRO-G batteries.
|
Item |
Details |
|---|---|
|
Input |
100 V - 240 V AC 50 Hz to 60 Hz |
|
Charge current |
One battery 3 Amps, two batteries 1.5 Amps |
|
Charging temperature |
32° F ~ 104° F (0° C ~ 40° C) |
|
Storage temperature |
68° F ~ 122° F (20° C ~ 50° C) |
|
Battery compatibility |
REDVOLT MICRO-G 14.7 V DC |
|
Weight |
Approximately 1 lb (453.5 g) |
|
Dimensions |
Height: 4.5 in. (114.3 mm) |
|
Width: 5.5 in. (139.7 mm) |
|
|
Depth: 3 in. (76.2 mm) |
