REDVOLT Batteries
REDVOLT MICRO-V Battery

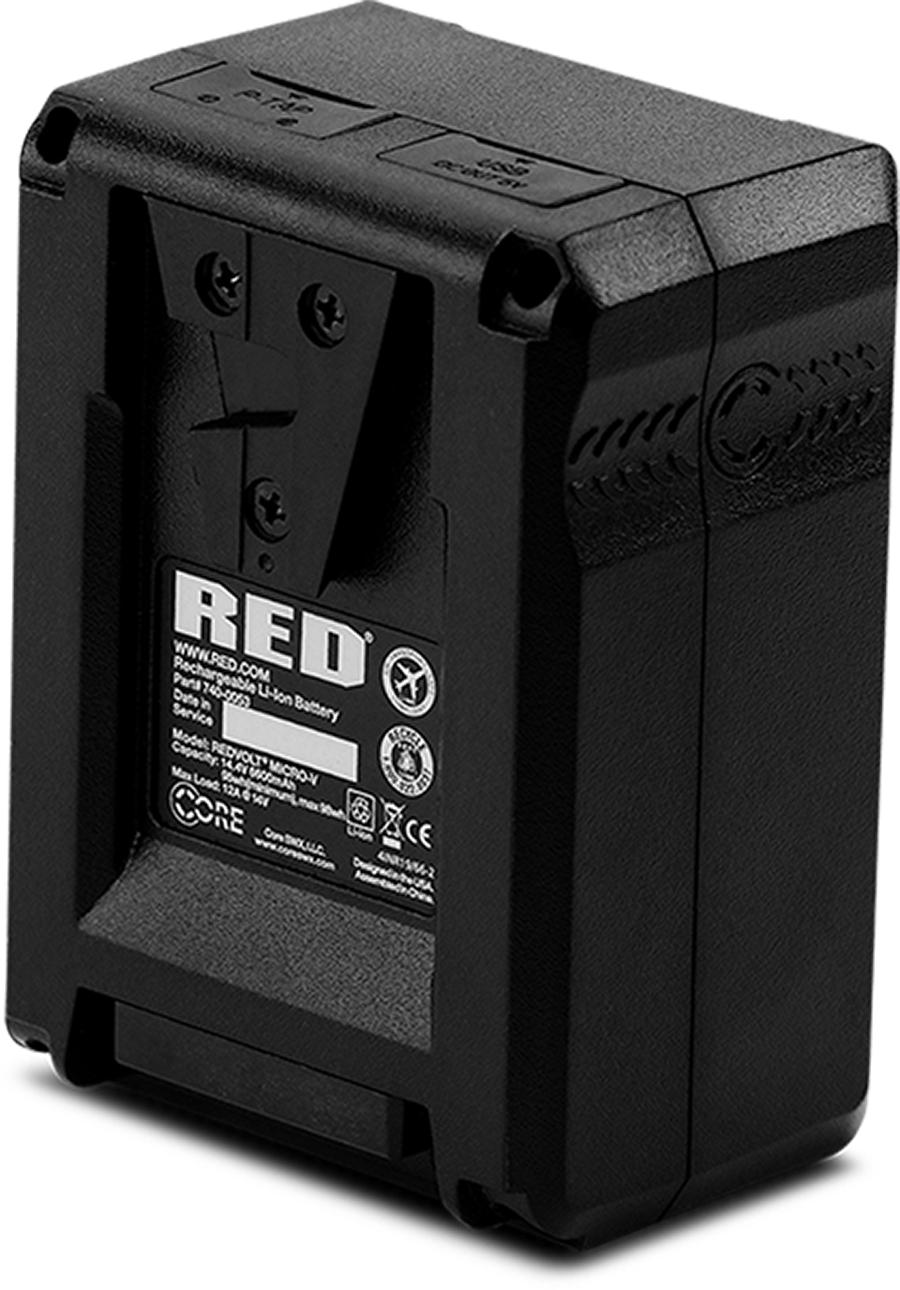

The REDVOLT MICRO-V 14.7 Volt V-Lock battery includes an LED charge level indicator, a P-tap port, and a USB power port.
|
Item |
Details |
|---|---|
|
Type |
Rechargeable Lithium-Ion Battery |
|
Capacity |
6600 mAh / 98 Wh |
|
Battery output |
14.8 V DC |
|
P-tap output |
12 V DC |
|
USB output |
5 V DC (3 Amps) |
|
Maximum load |
12 Amps at 14 V DC |
|
Operating temperature |
50° F ~ 113° F (10° C ~ 45° C) |
|
Charging temperature |
32° F ~ 104° F (0° C ~ 40° C) |
|
Storage temperature |
68° F ~ 122° F (20° C ~ 50° C) |
|
Charger |
RED Compact Dual V-Lock charger |
|
Weight |
Approximately 1.2 lb (544.3 g) |
|
Dimensions |
Height: 3.93 in. (99.8 mm) |
|
Width: 2.82 in. (71.6 mm) |
|
|
Depth: 1.94 in. (49.3 mm) |
Compatible Batteries
Compatible batteries are those that provide enough current (14.4 V with 8 A or greater) to power the RED V-RAPTOR, and that also fit the dimensions on the V-RAPTOR’s integrated Micro V-Lock plate.
RED chose the Micro V-Lock for the V-RAPTOR to keep its form-factor compact. As a result, not all V-Lock batteries are compatible with the camera.
NOTE:
- V-Lock batteries with a width greater than 2.95 in. (75 mm) are not compatible with the camera’s Micro V-Lock plate and will require the battery adapter.
- The camera can charge a battery that supports SMBus communication directly. To charge the battery, the camera must be powered off while connected to DC-IN power. You can also use the optional RED Compact Dual V-Lock charger.
REDVOLT Micro-G Battery

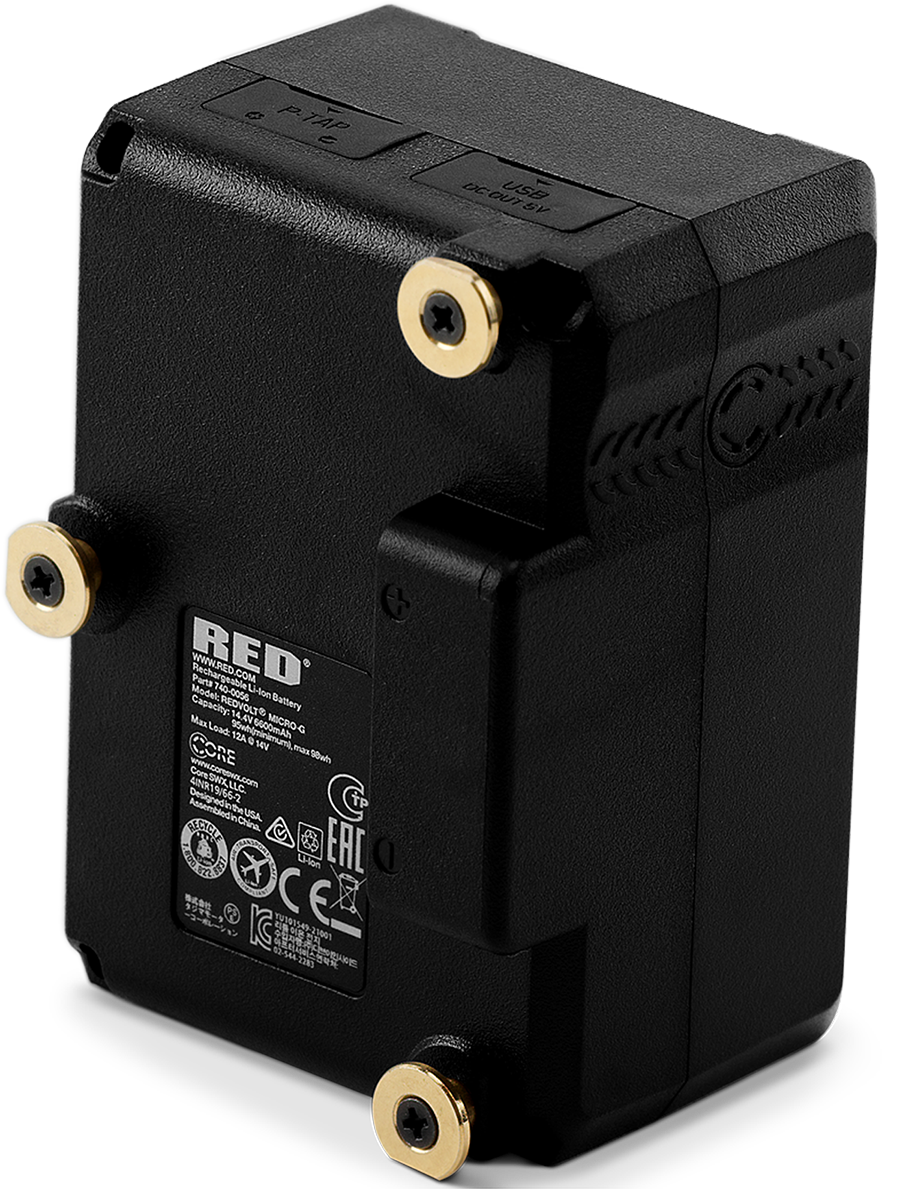

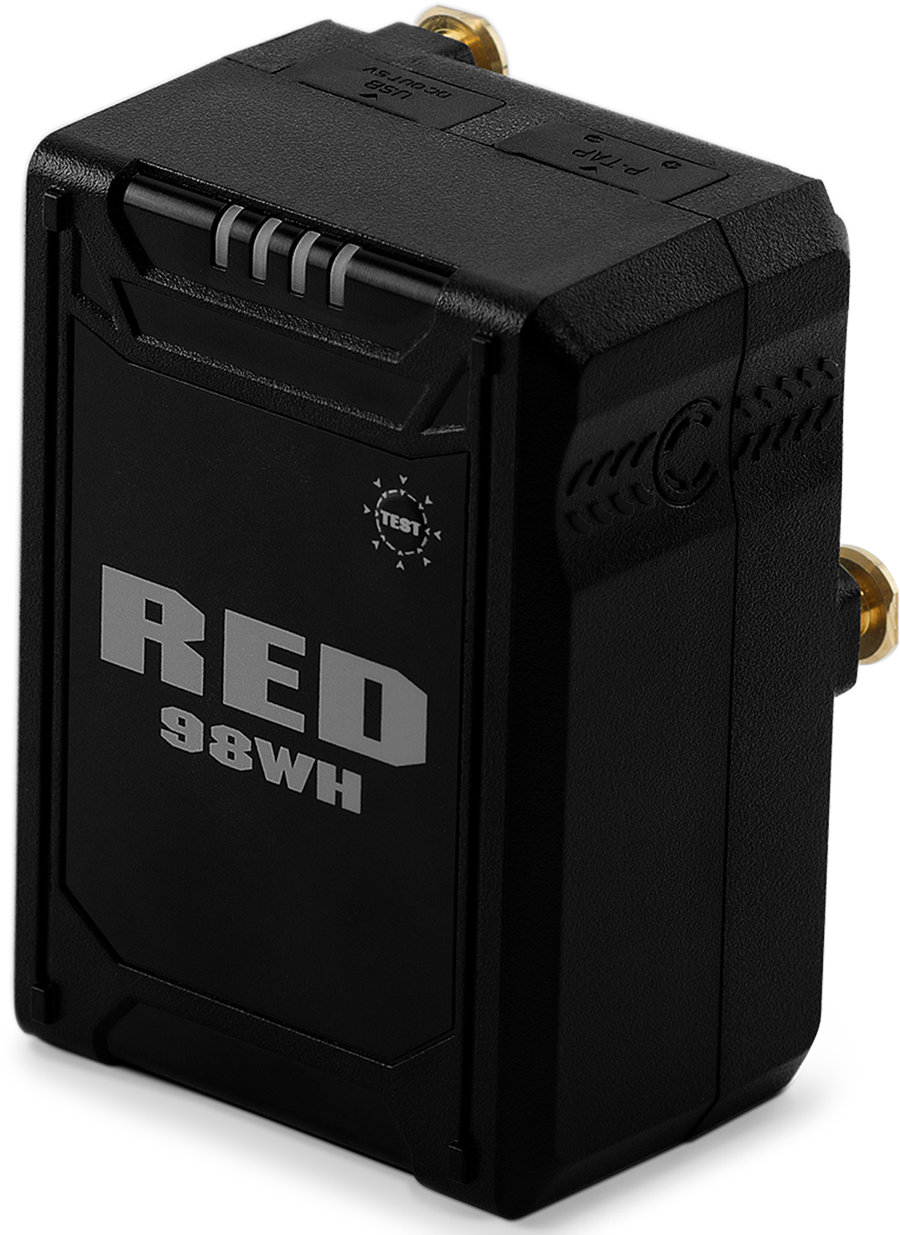

The REDVOLT Micro-G 14.7 Volt Gold Mount battery includes an LED charge level indicator, a P-tap port, and a USB power port. V-RAPTOR requires the V-RAPTOR™ Tactical Top Plate and Gold Mount Battery Adapter to allow you to use Gold Mount batteries (refer to V-RAPTOR™ Tactical Top Plate and Battery Adapter (V-Lock or Gold Mount) for more information).
|
Item |
Details |
|---|---|
|
Type |
Rechargeable Lithium-Ion Battery |
|
Capacity |
6600 mAh / 98 Wh |
|
Battery output |
14.8 V DC |
|
P-tap output |
12 V DC |
|
USB output |
5 V DC (3 Amps) |
|
Maximum load |
12 Amps at 14 V DC |
|
Operating temperature |
50° F ~ 113° F (10° C ~ 45° C) |
|
Charging temperature |
32° F ~ 104° F (0° C ~ 40° C) |
|
Storage temperature |
68° F ~ 122° F (20° C ~ 50° C) |
|
Charger |
RED Compact Dual Gold Mount charger |
|
Weight |
Approximately 1.2 lb (544.3 g) |
|
Dimensions |
Height: 3.93 in. (99.8 mm) |
|
Width: 2.82 in. (71.6 mm) |
|
|
Depth: 1.94 in. (49.3 mm) |
Use the optional RED Compact Dual Gold Mount charger for recharging the REDVOLT Micro-G batteries.
