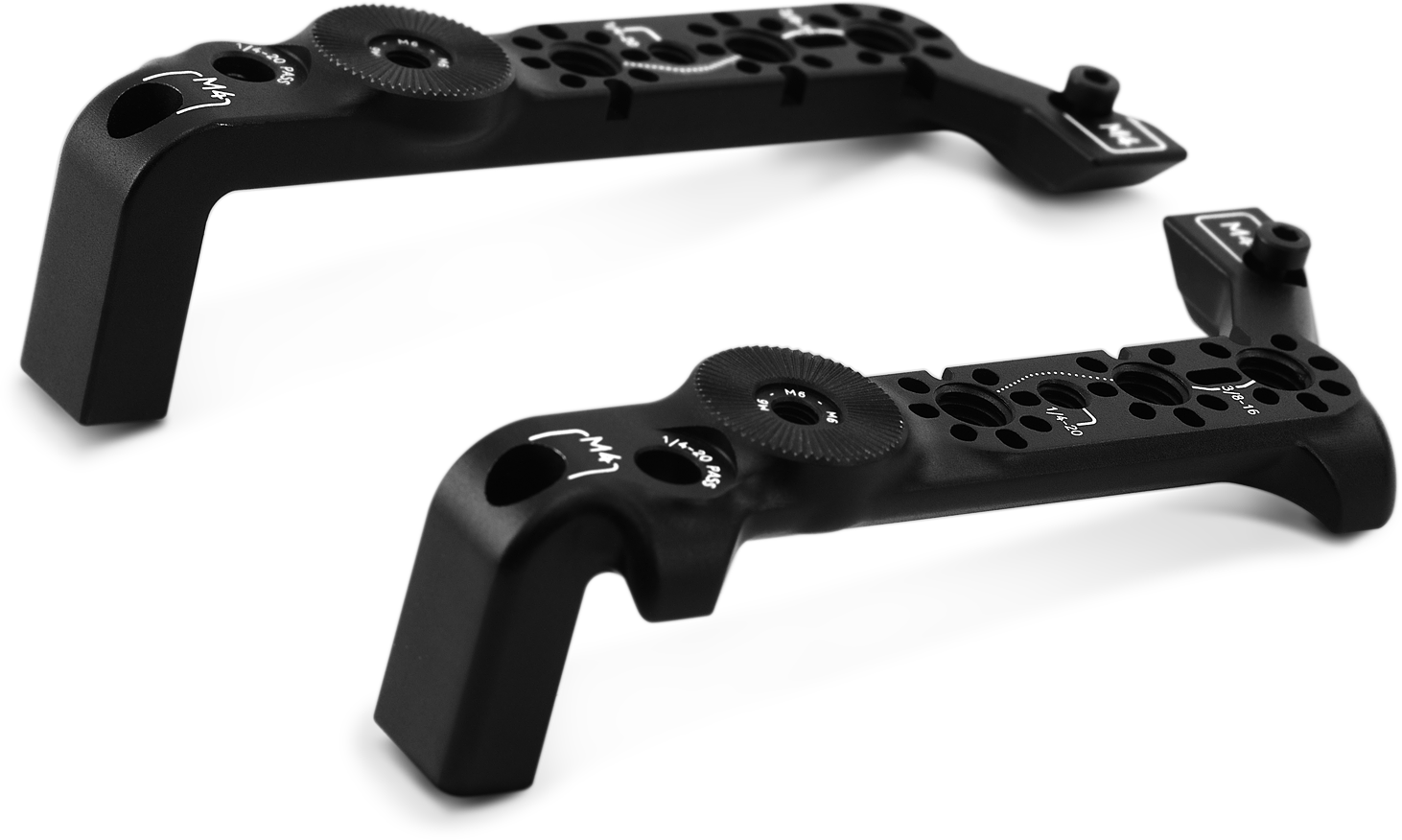

V-RAPTOR™ Side Ribs
The two V-RAPTOR Side Ribs (included in the V-RAPTOR Production Pack) provide additional side mounting points. The V-RAPTOR Tactical Top Plate and V-RAPTOR™ Quick Release Platform Pack are required before you can mount the V-RAPTOR Side Ribs to the camera.
Each rib provides:
- 3 x 3/8-16 mounting points
- 1 x ARRI rosette mounting point
- 1 x 1/4-20 pass-through to the camera body
- 1 x 1/4-20 mounting point
DIMENSIONS for EACH Rib
|
Height: |
133 mm |
|
Width: |
51.5 mm |
|
Depth: |
42.6 mm |
|
Weight total |
168.65 Grams |
|
Weight of tray |
72.67 Grams |
|
Material |
7075 Aluminum |
|
Mounting to V-RAPTOR |
2 x M4 captive mounting screw on V-Raptor Tactical Top Plate and Quick Release Platform Arca plate |
|
Side Rib mounting |
3 x 3/8-16 mounting points, 1 x ARRI rosette mounting points, 1 x 1/4-20 pass-through to camera body and 1 x 1/4-20 mounting point |
