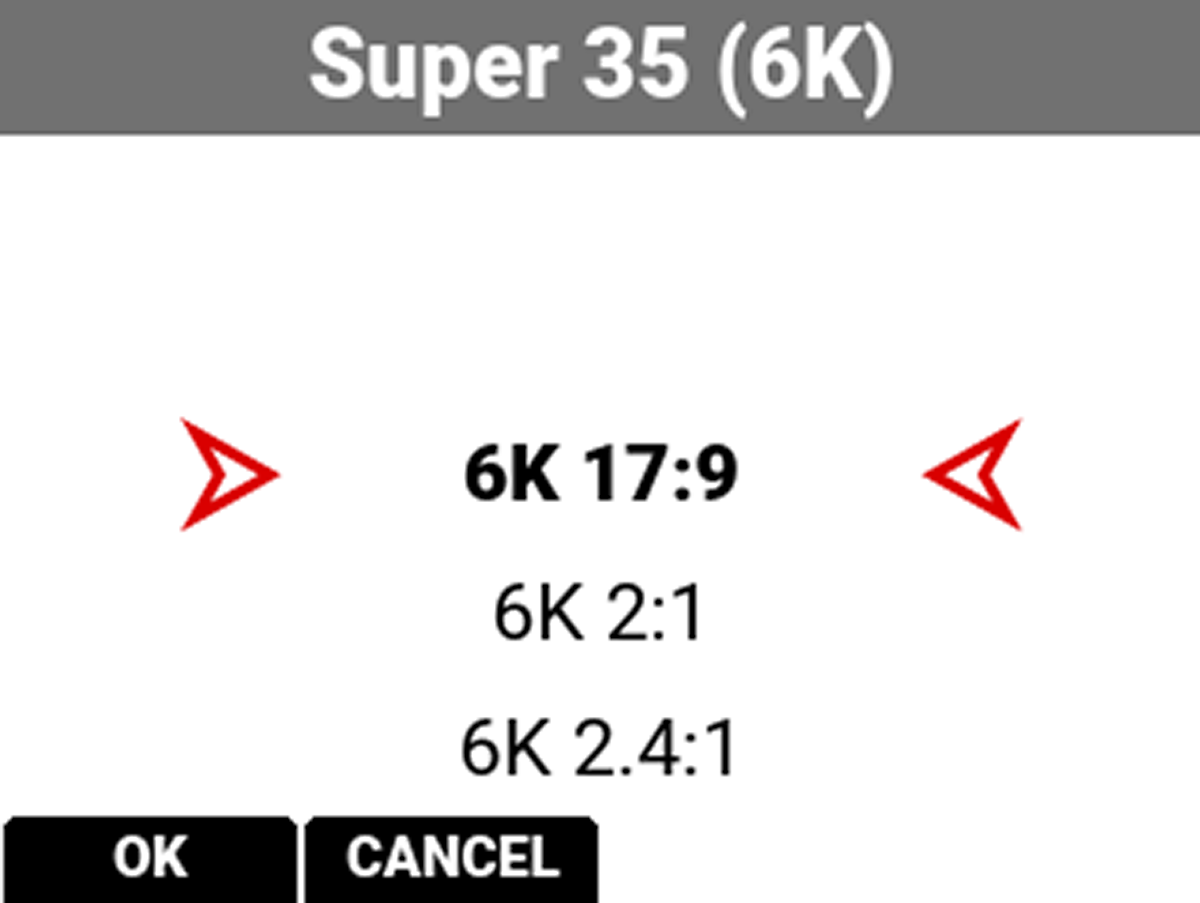

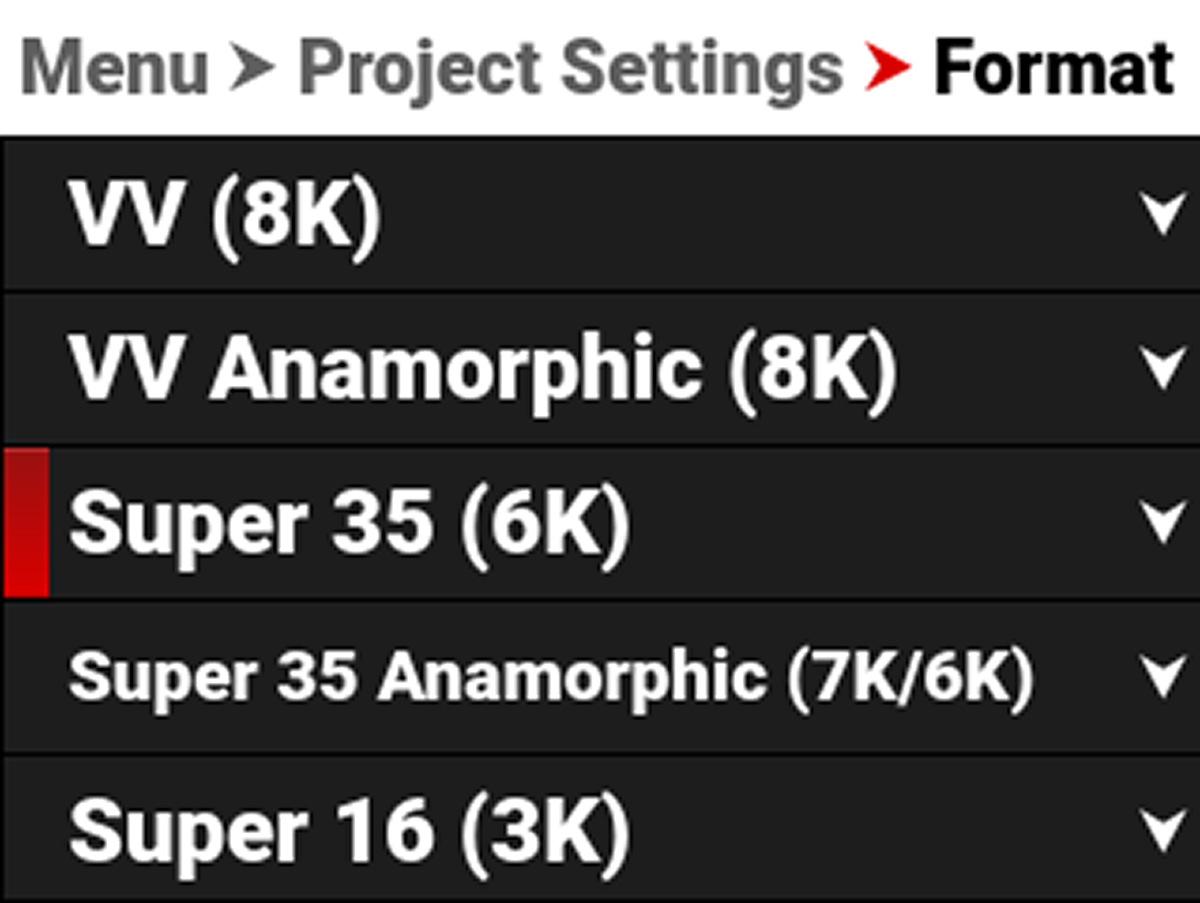

Super 35 (6K)
Use the Super 35 (6K) format setting to designate how much of the sensor the camera should use to capture images.
The available aspect ratios are determined by the selected resolution.
When you lower the resolution on the camera, only a portion of the sensor is used. The camera does not downscale from the 6K 17:9 format when recording RAW.
Super 35 (6K) Format Specifications
This table contains the dimensions of the sensor area in pixels and in millimeters used by each Super 35 (6K) format. These dimensions are close approximations.
The default format is 6K 17:9.
|
Format |
|
Dimension (Pixels) |
|
Dimensions (MM) |
|||
|---|---|---|---|---|---|---|---|
|
|
|
Width |
Height |
|
Width |
Height |
Diagonal |
|
6K 17:9 |
|
6144 |
3240 |
|
30.72 |
16.20 |
34.73 |
|
6K 2:1 |
|
6144 |
3072 |
|
30.72 |
15.36 |
34.35 |
|
6K 2.4:1 |
|
6144 |
2592 |
|
30.72 |
12.87 |
33.31 |
|
6K 16:9 |
|
5760 |
3240 |
|
28.80 |
16.20 |
33.04 |
|
6K 1:1 |
|
3240 |
3240 |
|
16.20 |
16.20 |
22.91 |
