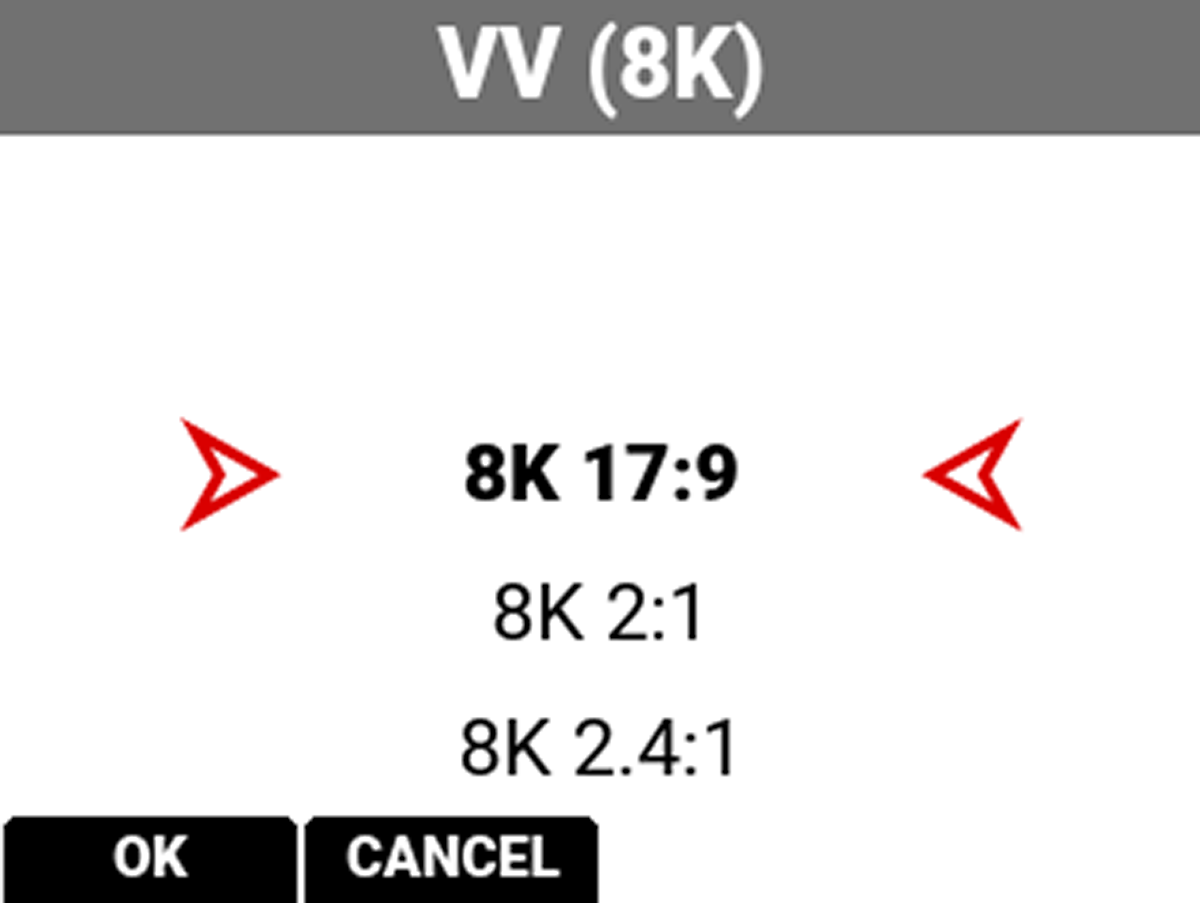

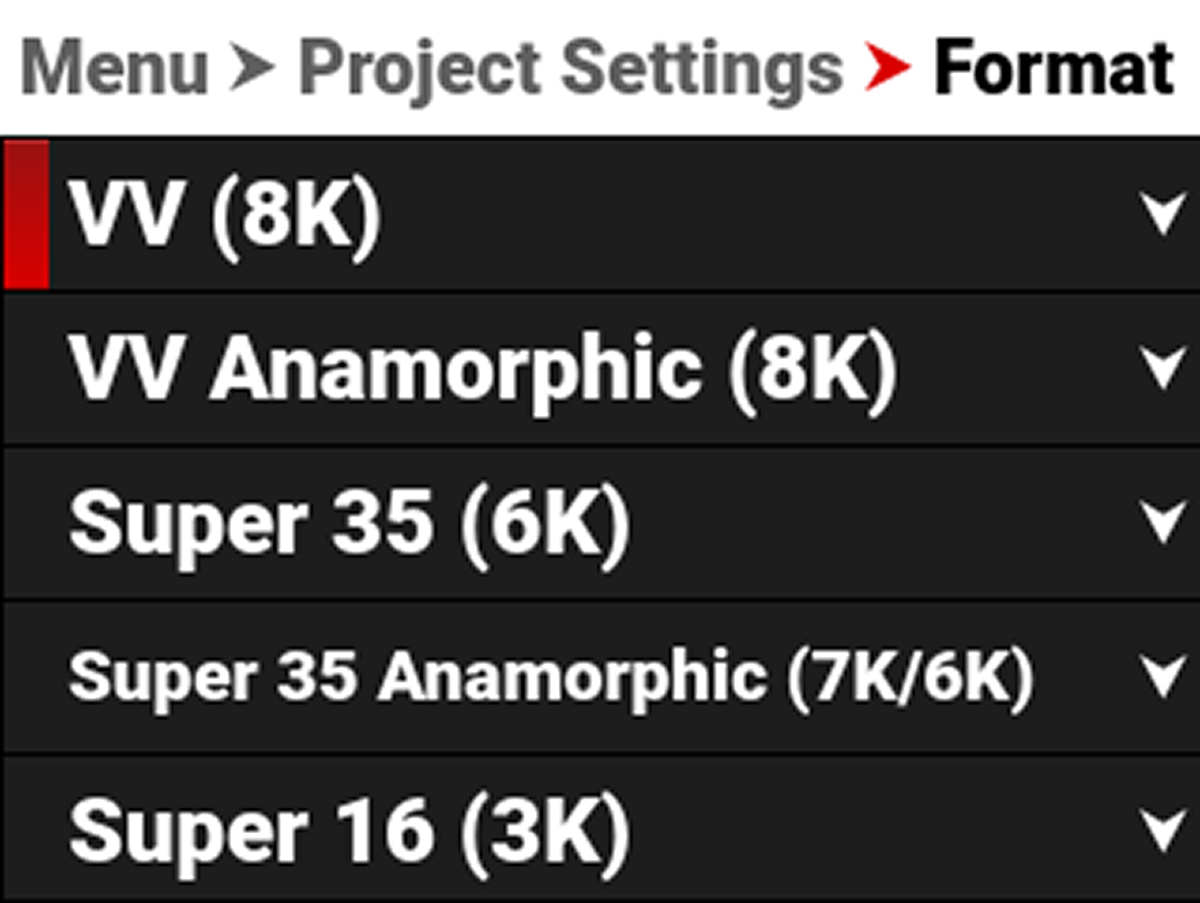

VV (8K)
Use the VV (8K) format setting to designate how much of the sensor the camera should use to capture images.
The available aspect ratios are determined by the selected resolution.
VV (8K) Format Specifications
This table contains the dimensions of the sensor area in pixels and in millimeters used by each VV (8K) format. These dimensions are close approximations.
The default format is 8K 17:9.
|
Format |
|
Dimension (Pixels) |
|
Dimensions (MM) |
|||
|---|---|---|---|---|---|---|---|
|
|
|
Width |
Height |
|
Width |
Height |
Diagonal |
|
8K 17:9 |
|
8192 |
4320 |
|
40.96 |
21.60 |
46.31 |
|
8K 2:1 |
|
8192 |
4096 |
|
40.96 |
20.48 |
45.79 |
|
8K 2.4:1 |
|
8192 |
3456 |
|
40.96 |
17.28 |
44.46 |
|
8K 16:9 |
|
7680 |
4320 |
|
38.40 |
21.60 |
44.06 |
|
8K 1:1 |
|
4320 |
4320 |
|
21.60 |
21.60 |
30.55 |
