Recording Frame Rate

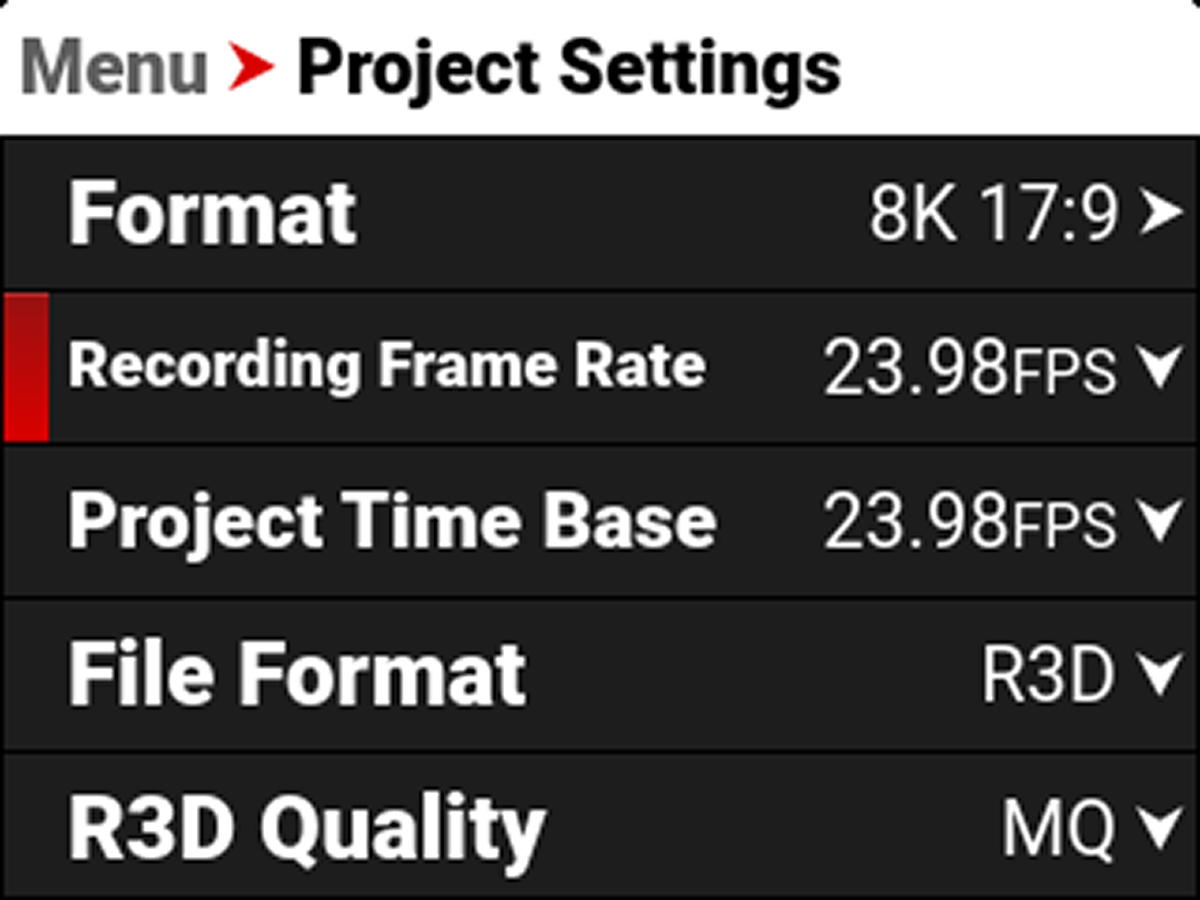

Use Recording Frame Rate to select the recording frame rate (also referred to as the capture frame rate).
The recording frame rate is the number of frames per second (FPS) that are recorded. The recording frame rate is different from the project time base, which is the rate at which the footage will be played back. Lower values than the project time base will result in under-cranking (fast motion playback) and values larger than the project time base will result in over-cranking (slow motion playback).

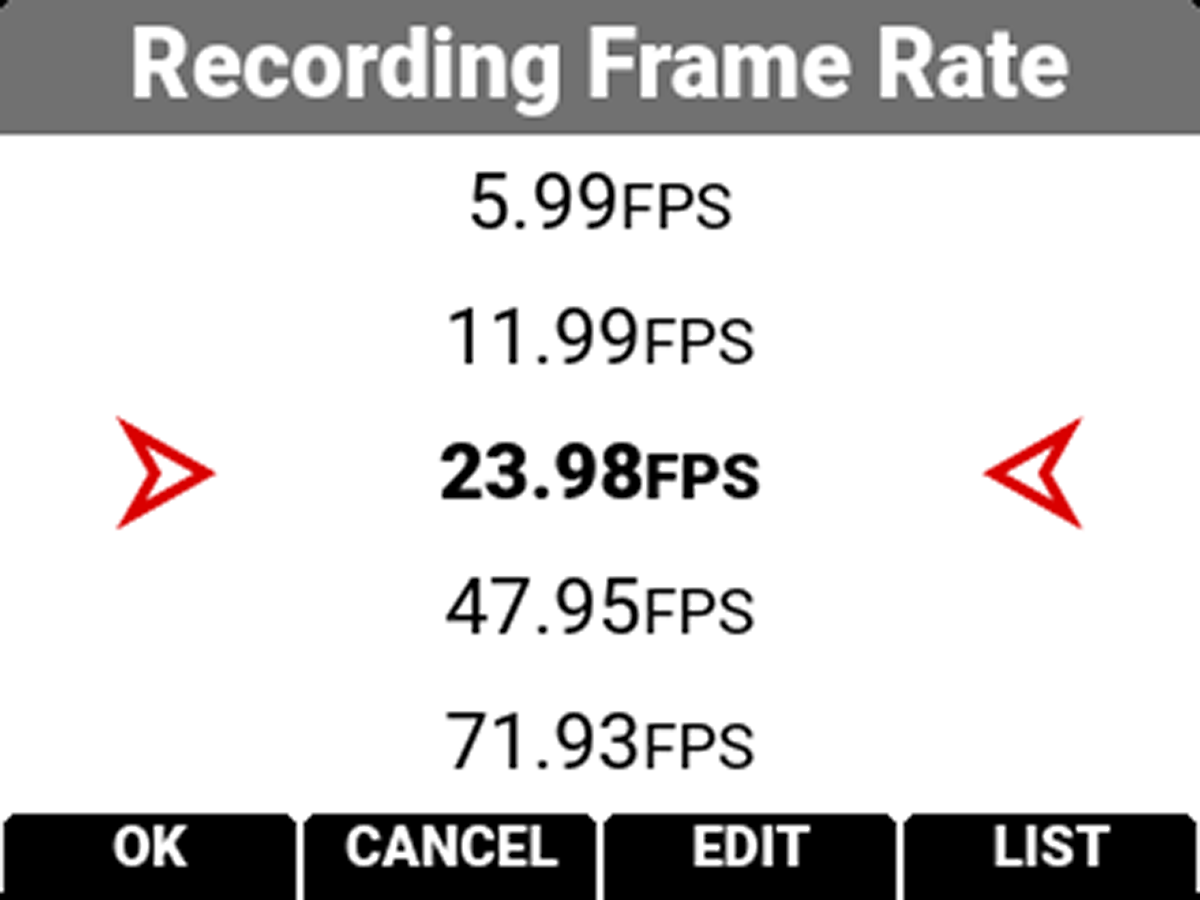

You can press the button under EDIT to change the Recording Frame Rate menu values manually.

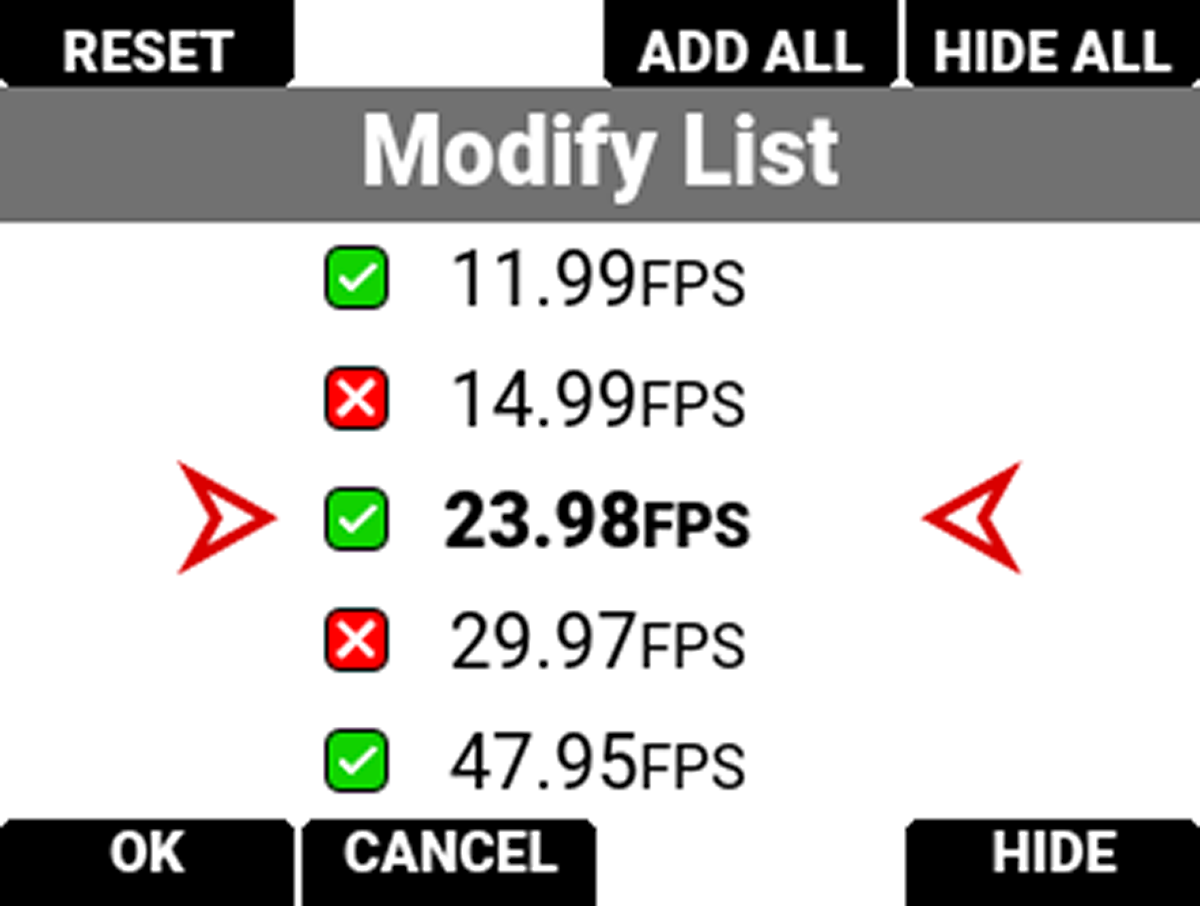

You can press the button under LIST to choose which values you want to display on the menu list.
The maximum frame rate for each format is determined by Project Time Base and Format.
When you select a Project Time Base, the camera automatically selects a matching Recording Frame Rate and an R3D Quality (when possible). You must change the Recording Frame Rate and R3D Quality after the Project Time Base to select a different setting.

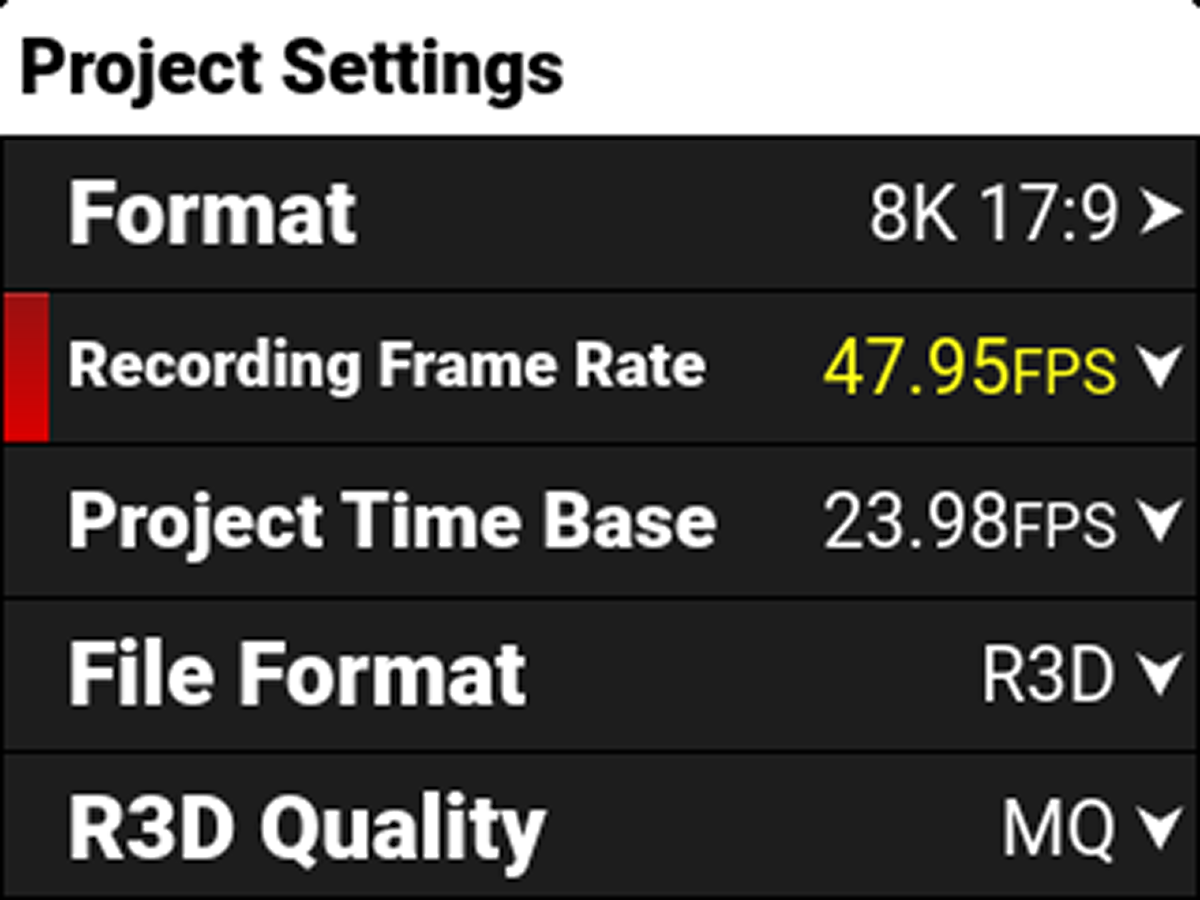

A Recording Frame Rate highlighted in yellow will result in playback occurring at a different frame rate than the original recording, and will record varispeed audio.
NOTE: Audio sync is not gauranteed when shooting varispeed.
Formats and Frame rates
This table lists the camera's maximum recording frame rates. These rates are based on a Project Time Base setting of 24 frames per second (24 FPS).
|
Format |
FPS |
|
Format |
FPS |
|
Format |
FPS |
|
Format |
FPS |
|---|---|---|---|---|---|---|---|---|---|---|
|
8K 17:9 |
120 |
|
6K 17:9 |
160 |
|
4K 17:9 |
240 |
|
2K 17:9 |
480 |
|
8K 2:1 |
126 |
|
6K 2:1 |
168 |
|
4K 2:1 |
253 |
|
2K 2:1 |
505 |
|
8K 2.4:1 |
150 |
|
6K 2.4:1 |
200 |
|
4K 2.4:1 |
300 |
|
2K 2.4:1 |
600 |
|
8K 16:9 |
120 |
|
6K 16:9 |
160 |
|
4K 16:9 |
240 |
|
2K 16:9 |
480 |
|
8K 1:1 |
120 |
|
6K 1:1 |
160 |
|
4K 1:1 |
240 |
|
2K 1:1 |
480 |
|
7K 17:9 |
140 |
|
5K 17:9 |
192 |
|
3K 17:9 |
320 |
|
4K 8:1 |
1000 |
|
7K 2:1 |
144 |
|
5K 2:1 |
202 |
|
3K 2:1 |
337 |
|
||
|
7K 2.4:1 |
175 |
|
5K 2.4:1 |
240 |
|
3K 2.4:1 |
400 |
|
||
|
7K 16:9 |
140 |
|
5K 16:9 |
192 |
|
3K 16:9 |
320 |
|
||
|
7K 1:1 |
140 |
|
5K 1:1 |
192 |
|
3K 1:1 |
320 |
|
||
