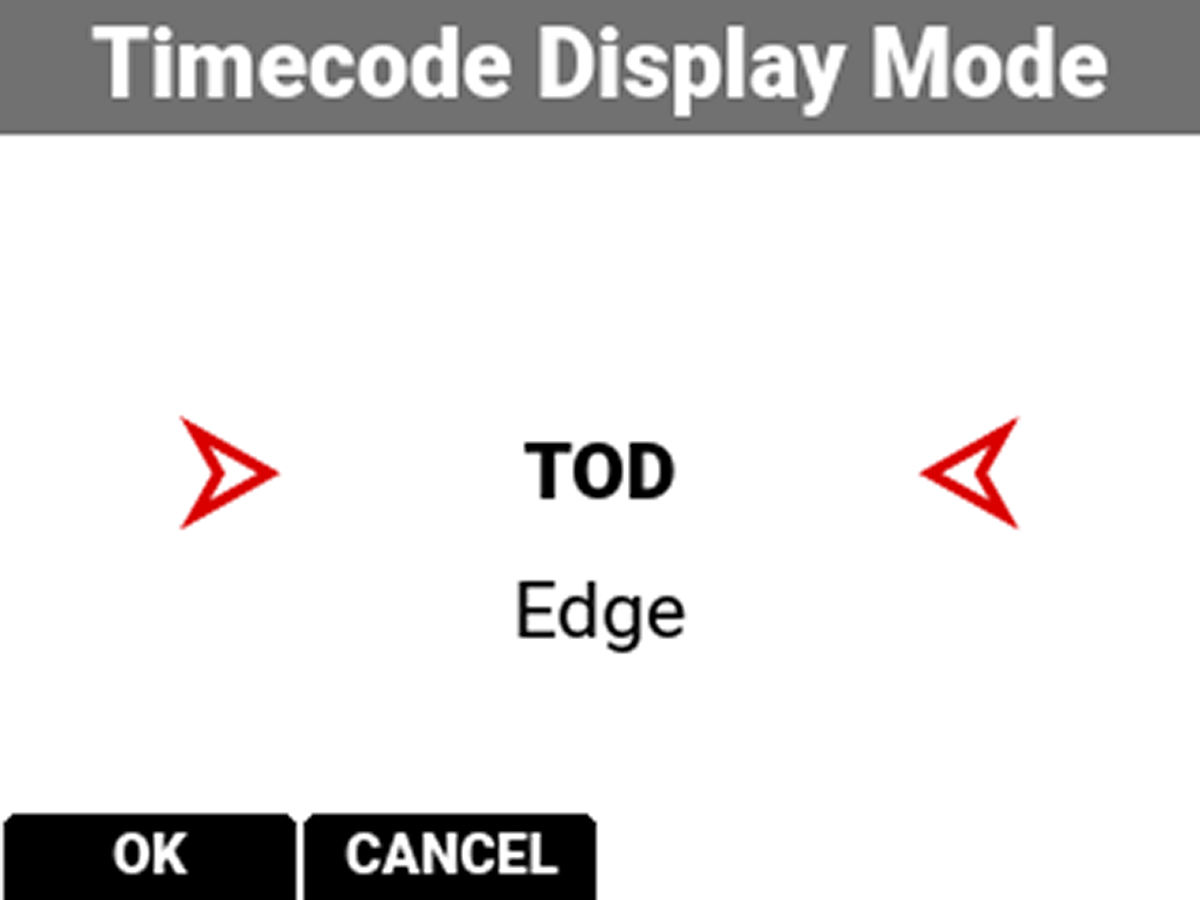

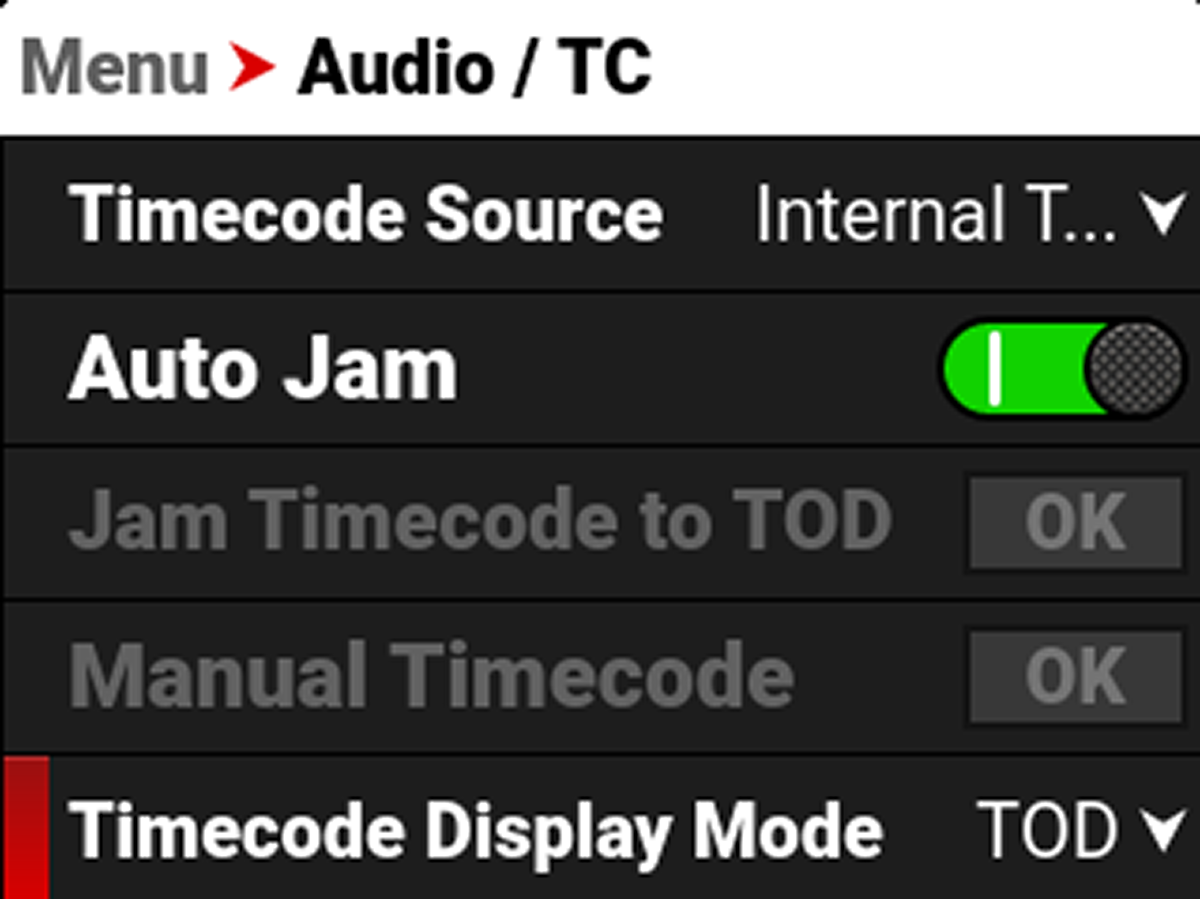

Timecode Display Mode

Use Timecode Display Mode to configure the Timecode display type that the camera applies to the recordings.

You can set the Timecode Display Mode as Time of Day (TOD) or Edge.

TOD Display Mode

Time of Day (TOD) display mode displays the Timecode as the time of day that the frame was recorded.

Edge Display Mode

Edge display mode displays the Timecode as the sequential recording time that has elapsed starting with the first frame.
