RED Monitor Interface Cable

The DSMC3™ RED® Touch 7.0" LCD monitor includes a custom RED Monitor Interface (RMI) cable that provides communication between the RMI and the monitor.

Where this cable attaches to the RMI and the monitor, there are special locking features that keep the cable from accidentally detaching.

NOTE: The RMI cable is attached to the monitor at an angle, as shown in the image.

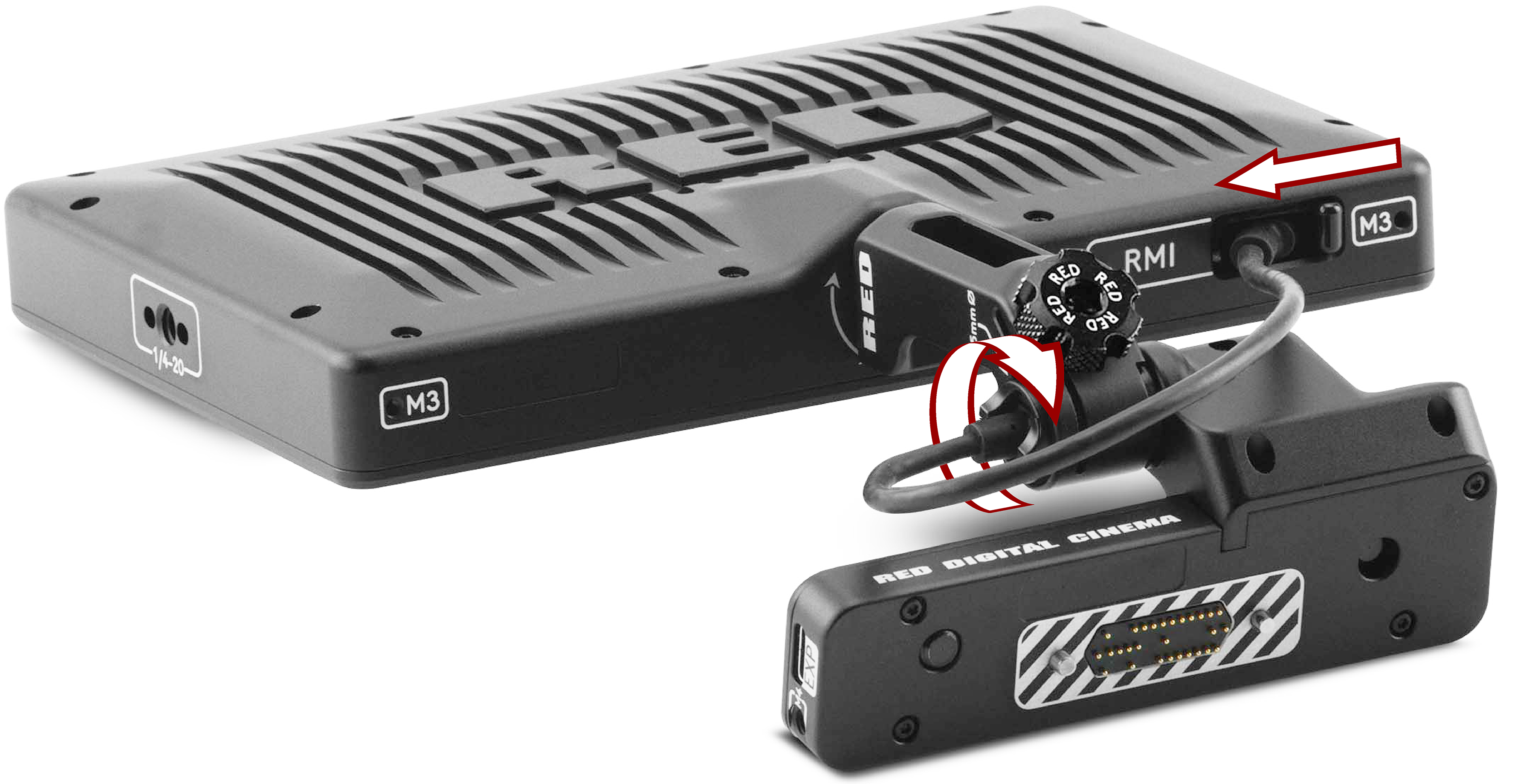

To unlock the cable locks, rotate the RMI cable lock and slide the monitor cable lock, as shown in the image:

NOTE: The USB-C-style DSMC3™ RMI cable is a custom-Pinned cable, which is not compatible with standard USB-C cable ports (including the rear camera USB-C port). The EXP ports on the RMI are for future use and are not currently supported.

Optional RED Monitor Interface (RMI) cables:

• 10" DSMC3™ RMI Cable
• 18" DSMC3™ RMI Cable
• 39" DSMC3™ RMI Cable
