Serial

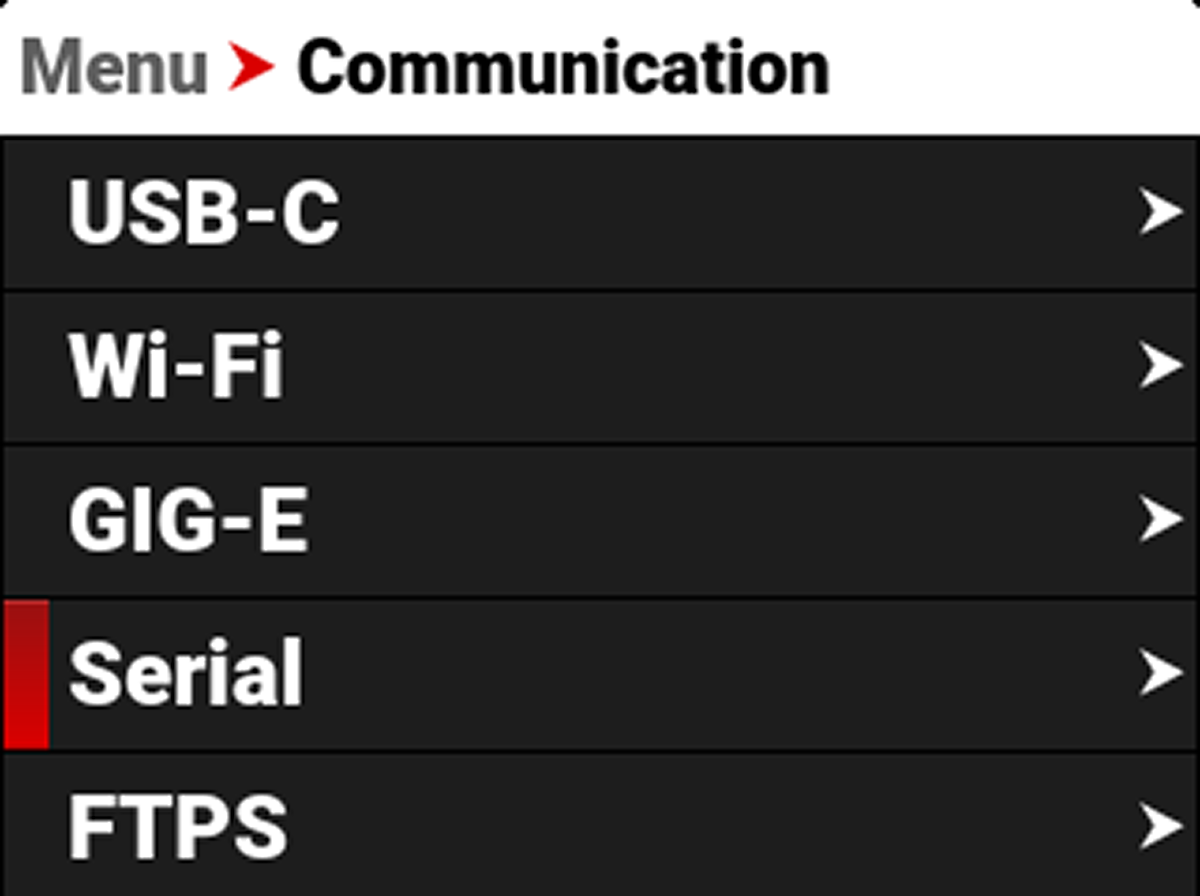

Use Serial to configure the serial connection to the CTRL (RS-232 Control)
The settings you can configure for the serial connection through the
|
Item |
|
Details |
|---|---|---|
|
|
Select the serial port baud rate |
|
|
|
Enter the IP address for the PPP protocol |

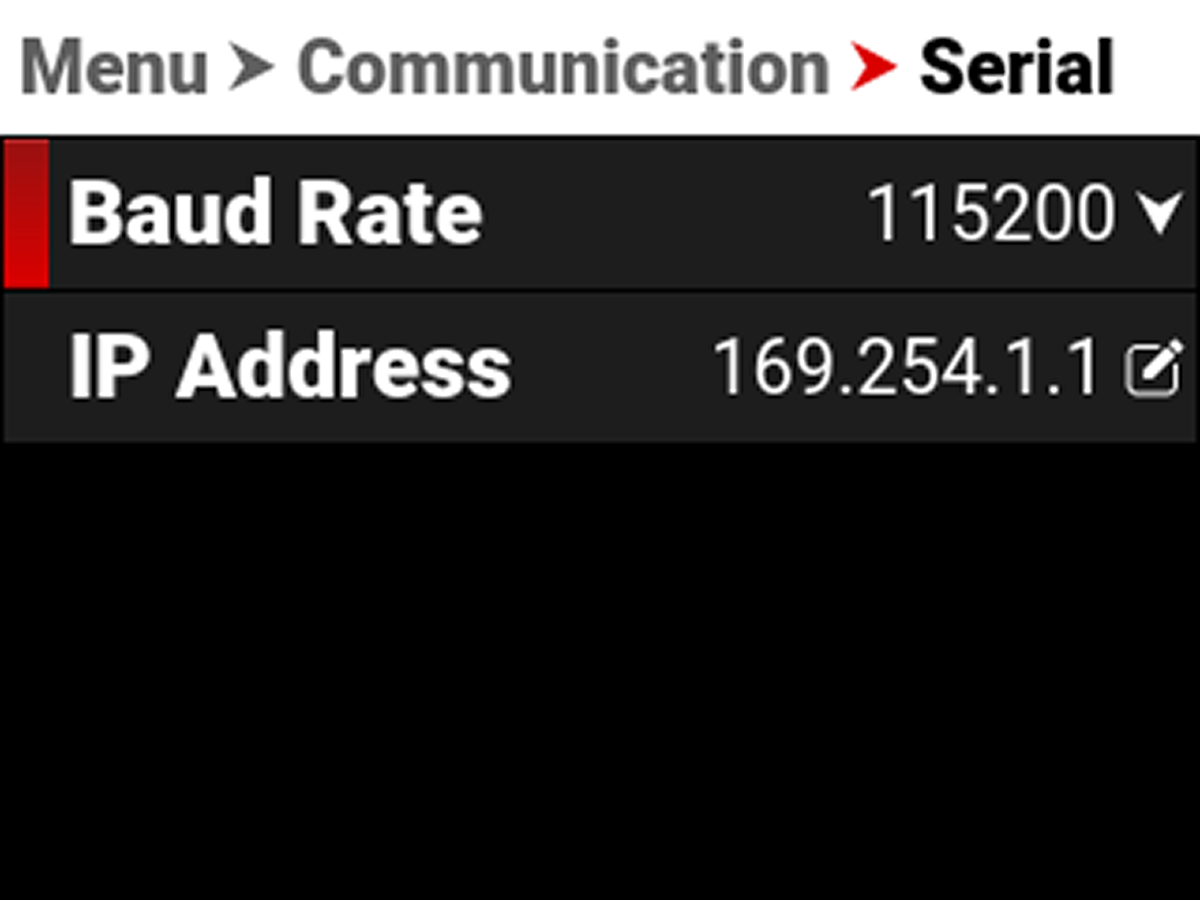

Baud Rate

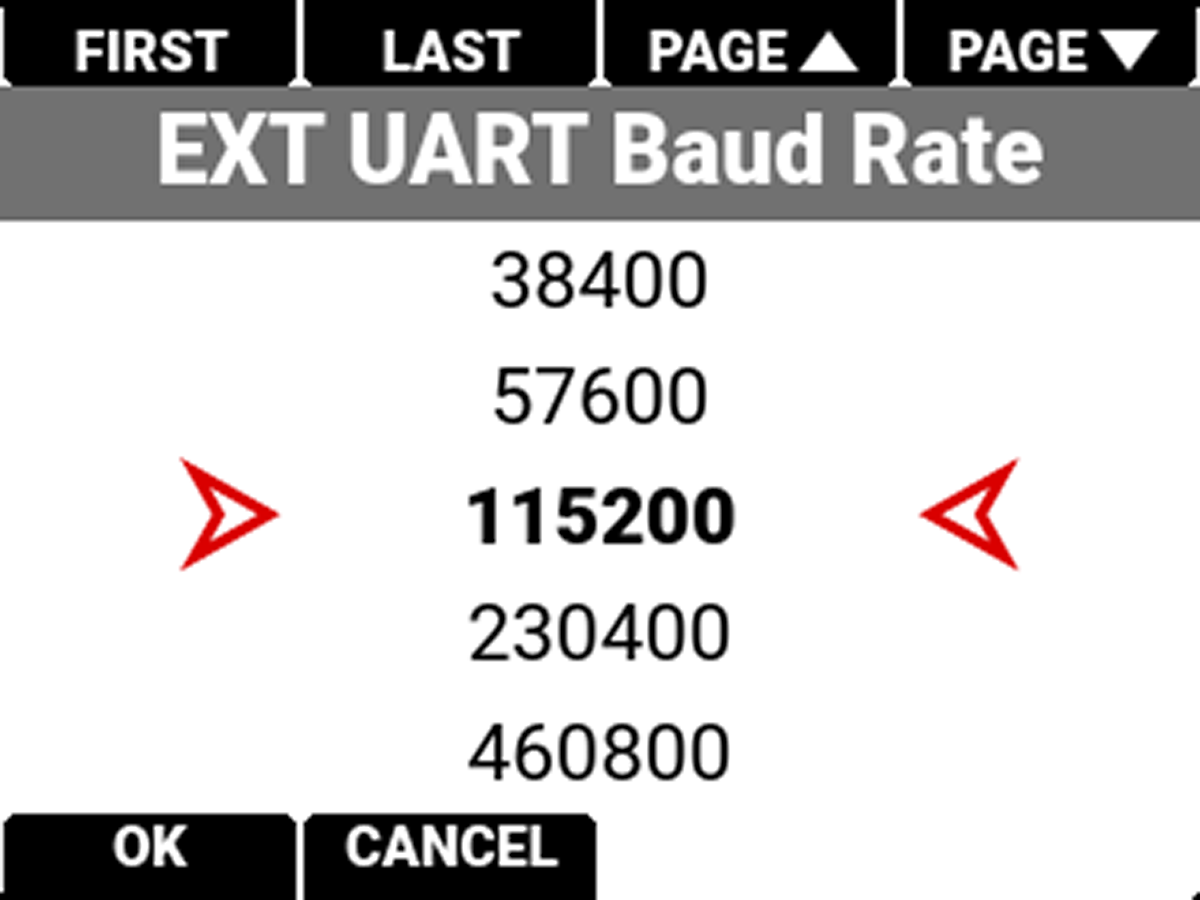

The Baud rate controls how fast data is transmitted over the serial connection. The higher the speed, the more likely that errors can occur. The Baud rates you can choose include:
|
Baud Rates |
||||||
|
9600 |
|
115200 (default) |
|
576000 |
|
1500000 |
|
19200 |
|
230400 |
|
921600 |
|
2000000 |
|
38400 |
|
460800 |
|
1000000 |
|
2500000 |
|
57600 |
|
500000 |
|
1152000 |
|
3000000 |

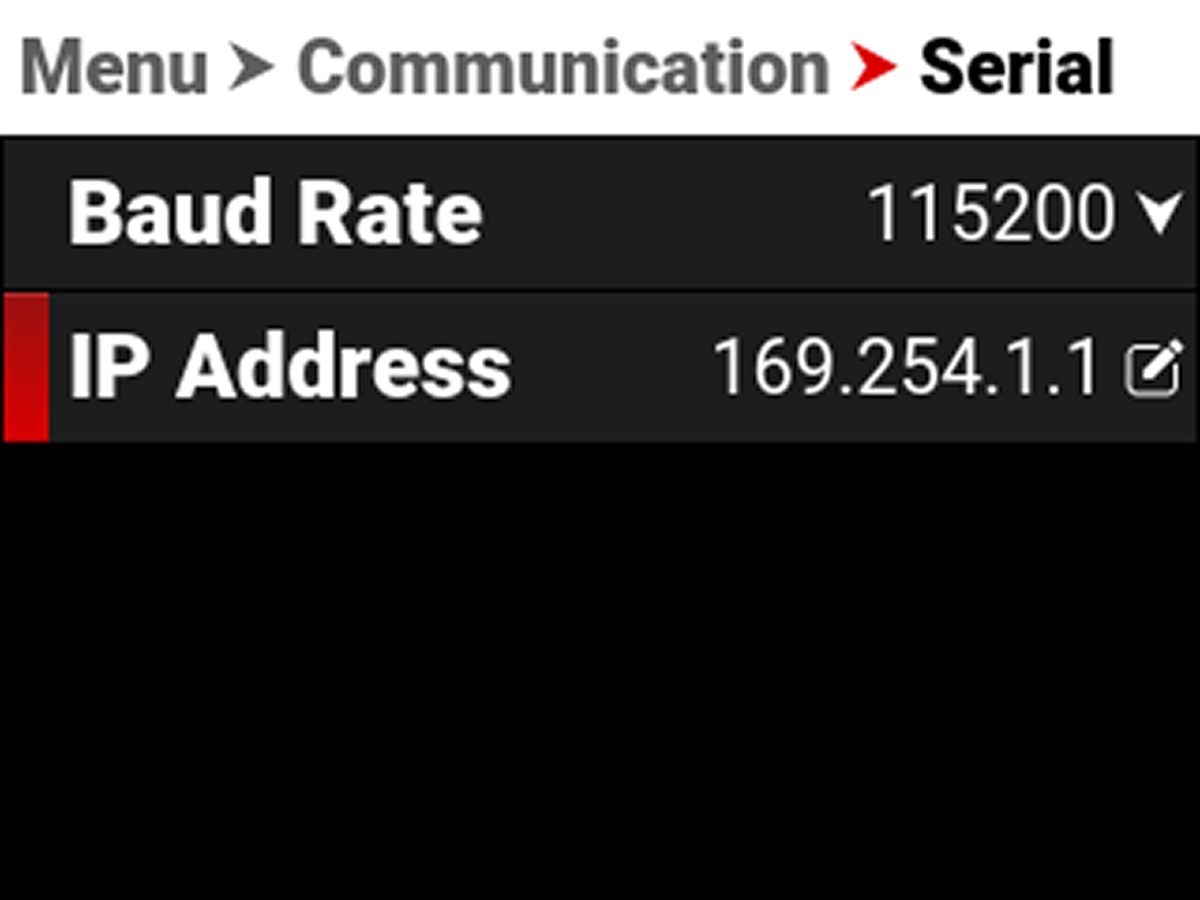

IP Address

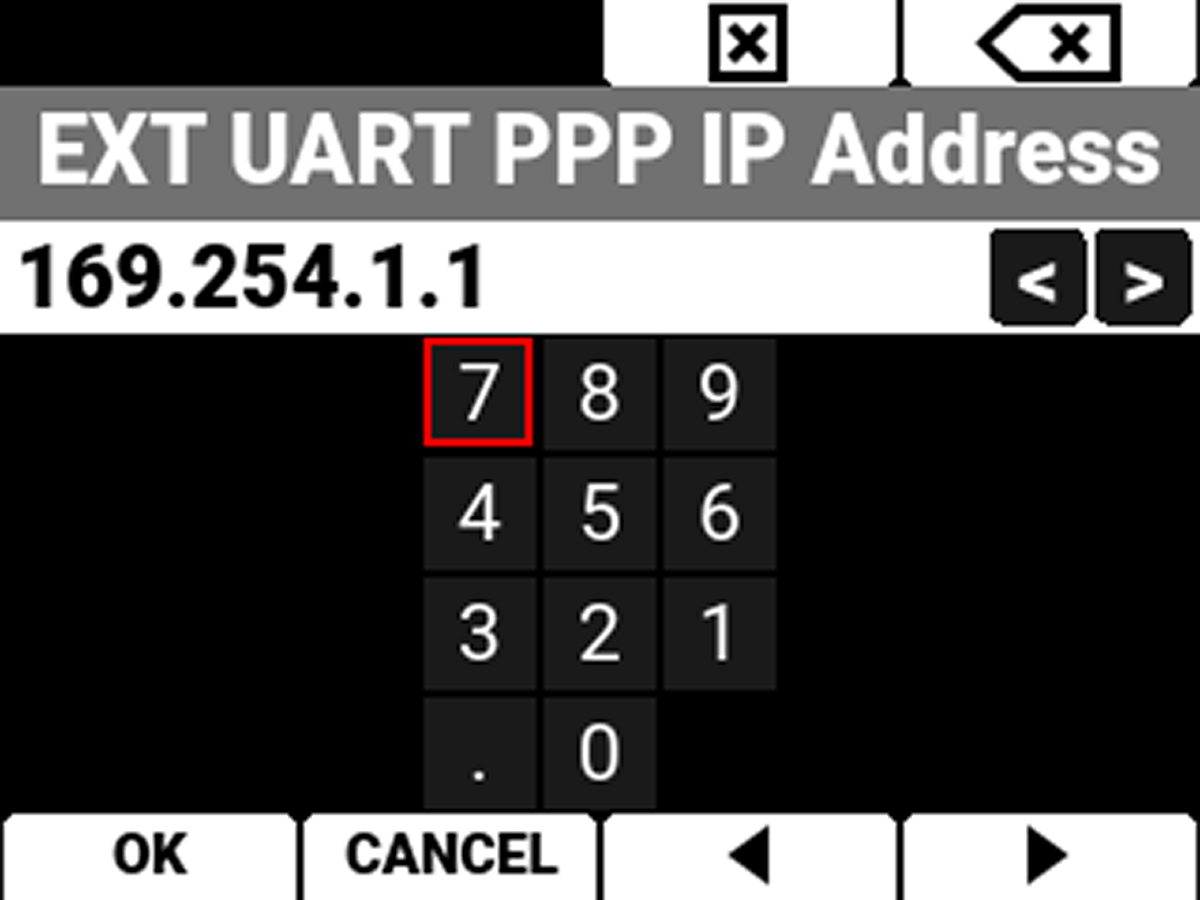

Use the keypad to enter the internet provider's IP address.
