3 A Aux-1 Power

The ODU 2-Pin 0B female connector supplies regulated (+) 12 V DC battery power when a high voltage battery is attached to the camera. The maximum sustained current draw is 3 Amps. This port is protected by a circuit breaker that automatically resets.

NOTE: This port is disabled when the camera is powered by a 14 V battery.

Front Face of the DC In Power Input Connector (Looking at the Camera)

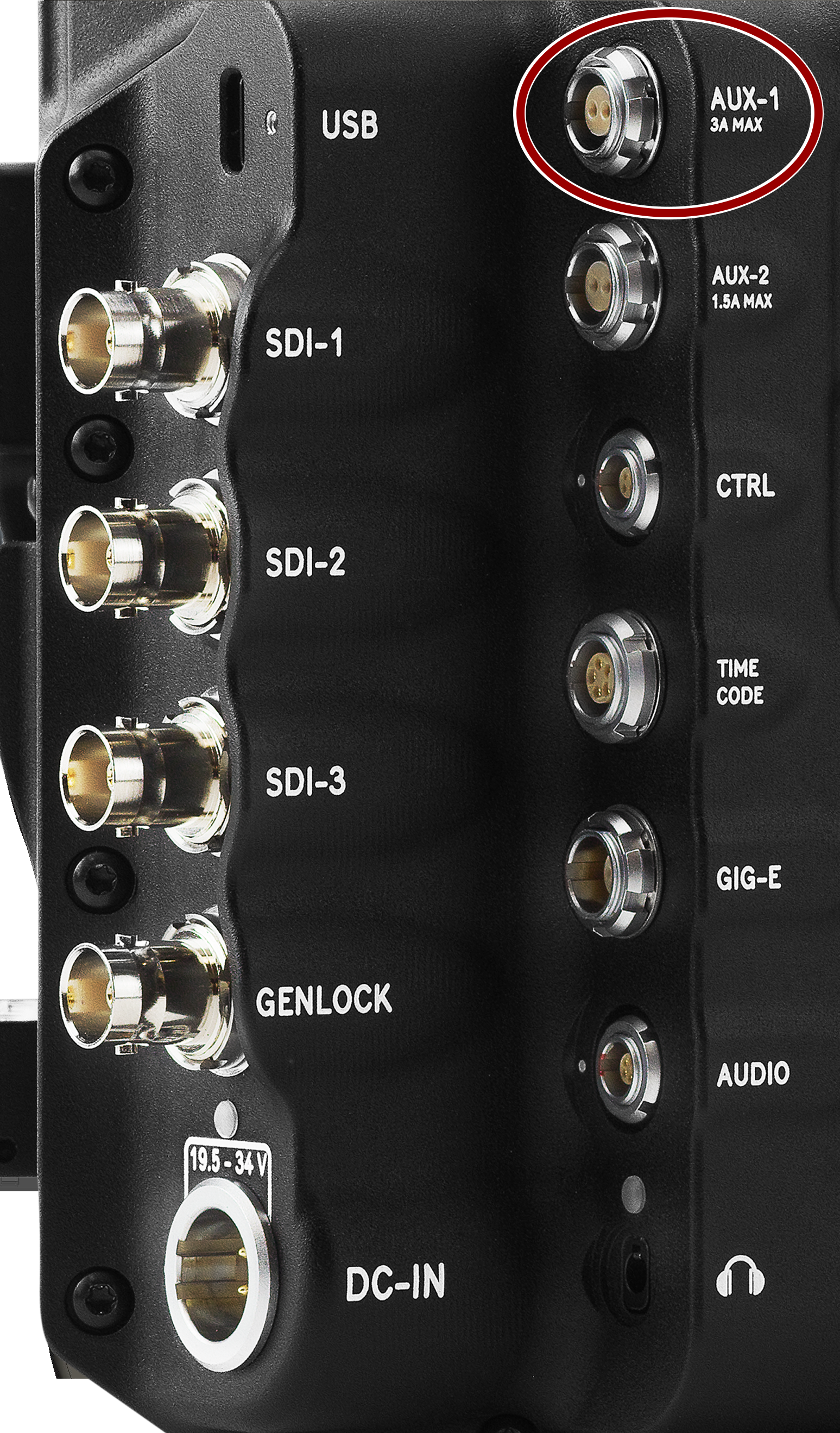

Figure: Front face of the AUX-1 female connector (looking at the back of the camera).

ODU 2-Pin 0B Female Connector

pin

signal

description

Direction

1

GROUND

Power return (camera ground)

In

2

Voltage output

Power output, +12 V DC regulated, 3 Amps

Out

NOTE: Mating connector is LEMO FGG.00.302.CLAD35Z.
