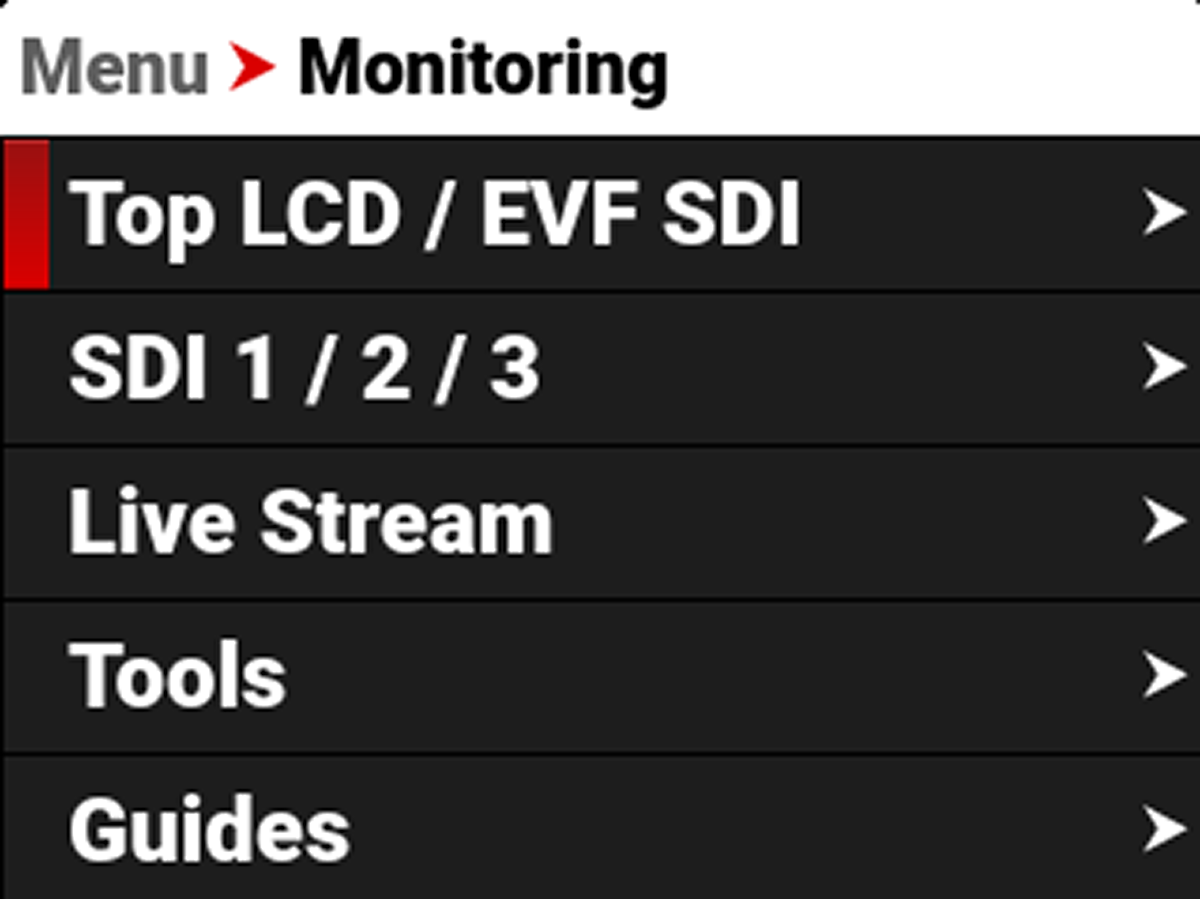

Top LCD

The Top LCD menu provides access to the top LCD features and the EVF SDI settings.

The Top LCD / EVF SDI settings you can configure include:

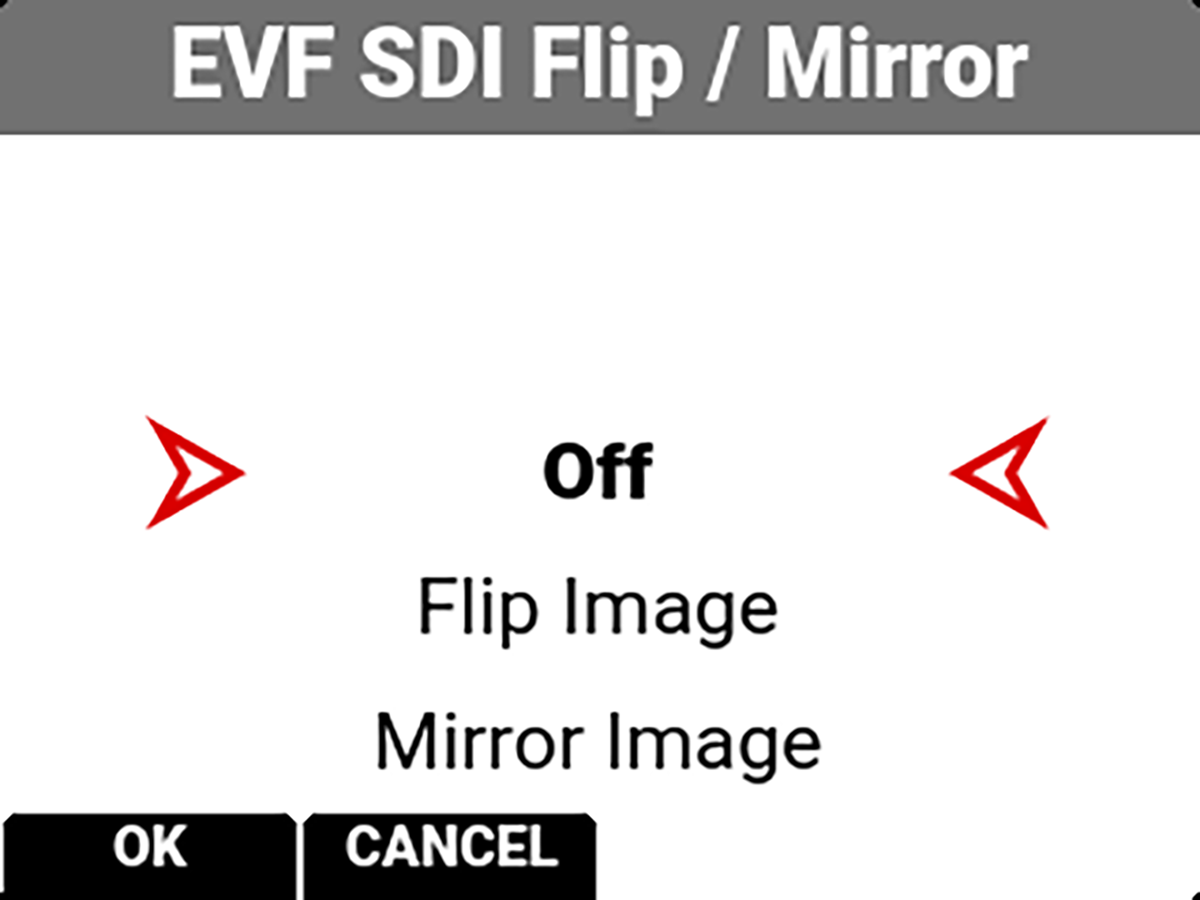

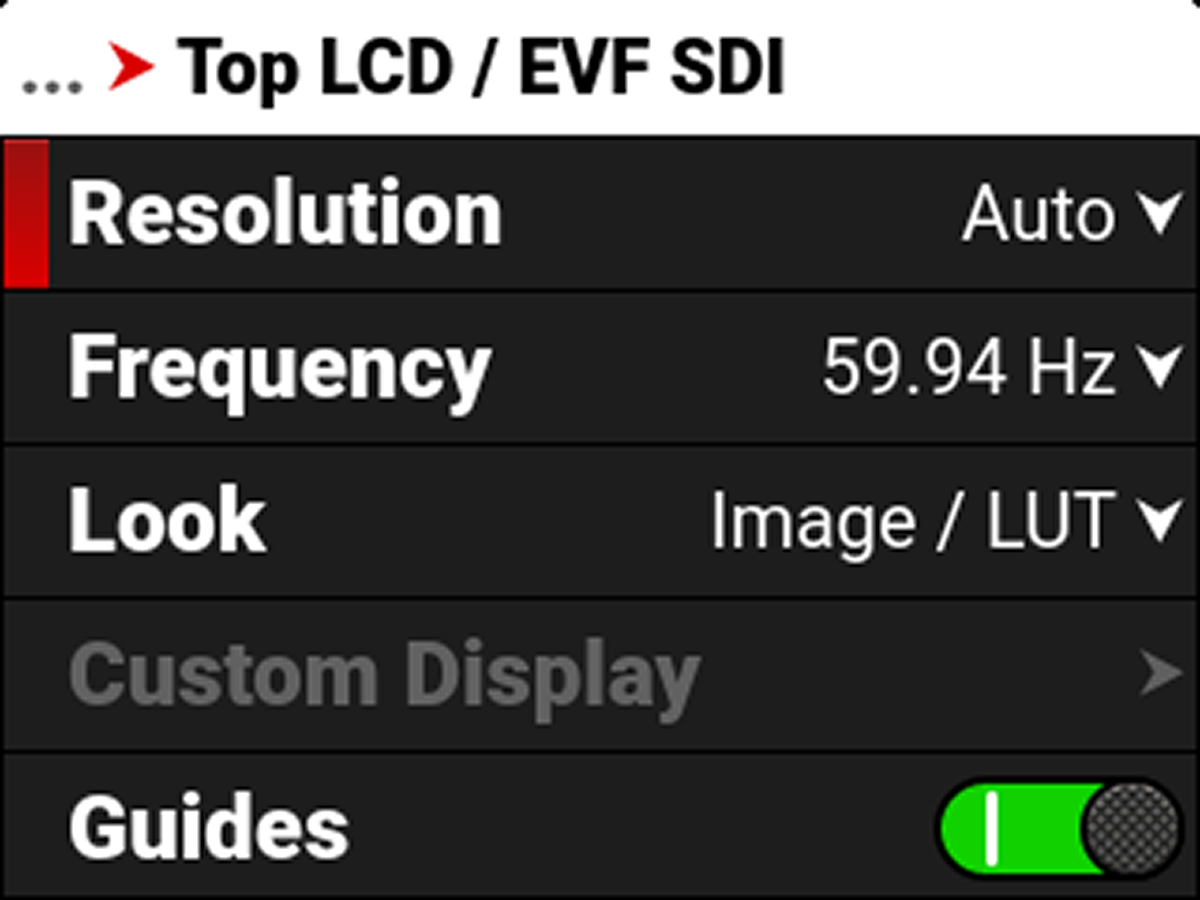

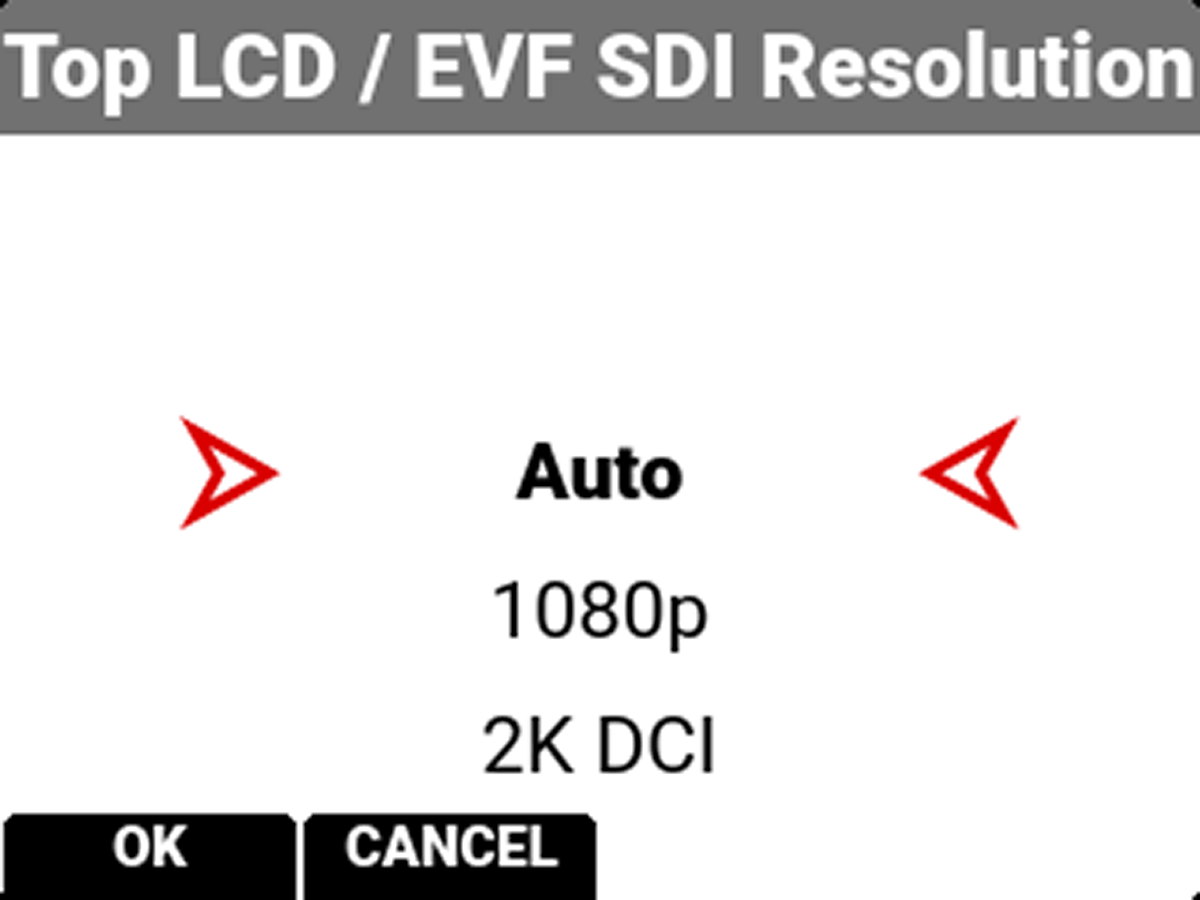

Resolution



You can select the resolution of the Top LCD and EVF SDI.

The selections include:

• Auto (default)

• 1080p

• 2K DCI



Frequency



You can select the frequency of the image sent to the Top LCD and EVF SDI port.

The selections include:

• 23.98

• 29.97

• 59.94 (default)

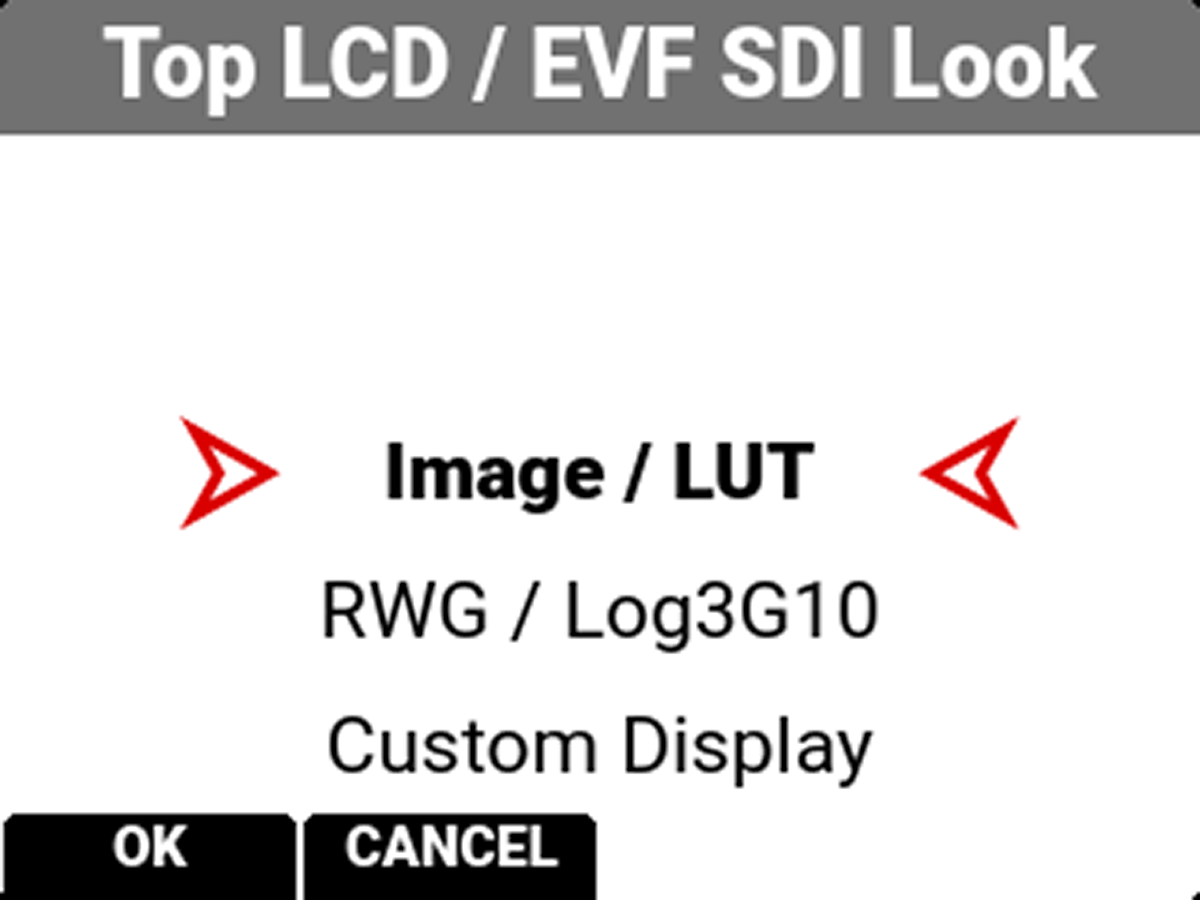

Look



You can select the look of the image preview signal sent to the Top LCD and EVF SDI.

The selections include:

• Image / LUT (default)

• REDWideGamutRGB / Log3G10

• Custom Display (enables the Custom Display menu)

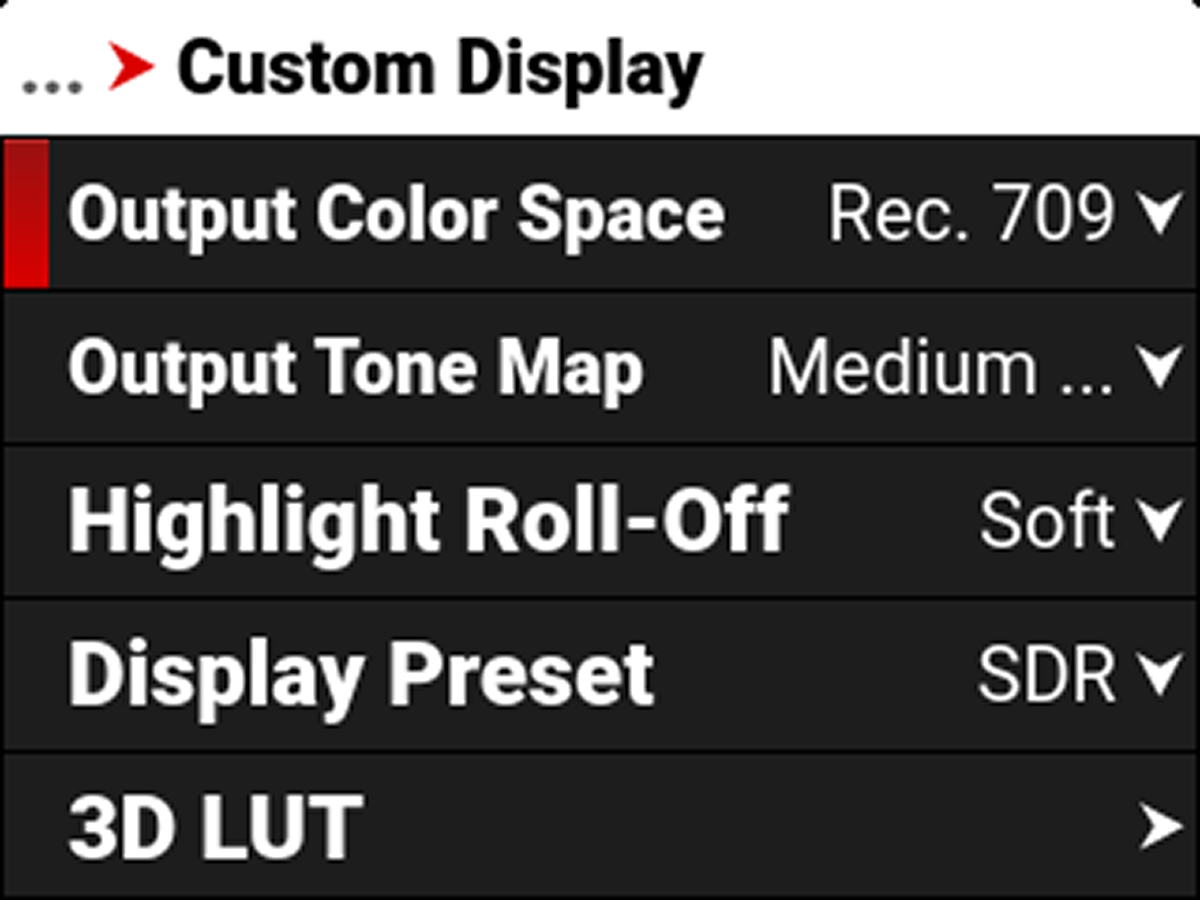

Custom Display



Use Custom Display to configure the Top LCD and EVF SDI independently of the camera's Image / LUT settings or other monitor output configurations.

Refer to Image / LUT Menu for more information about how to use the Image/LUT settings and menus.

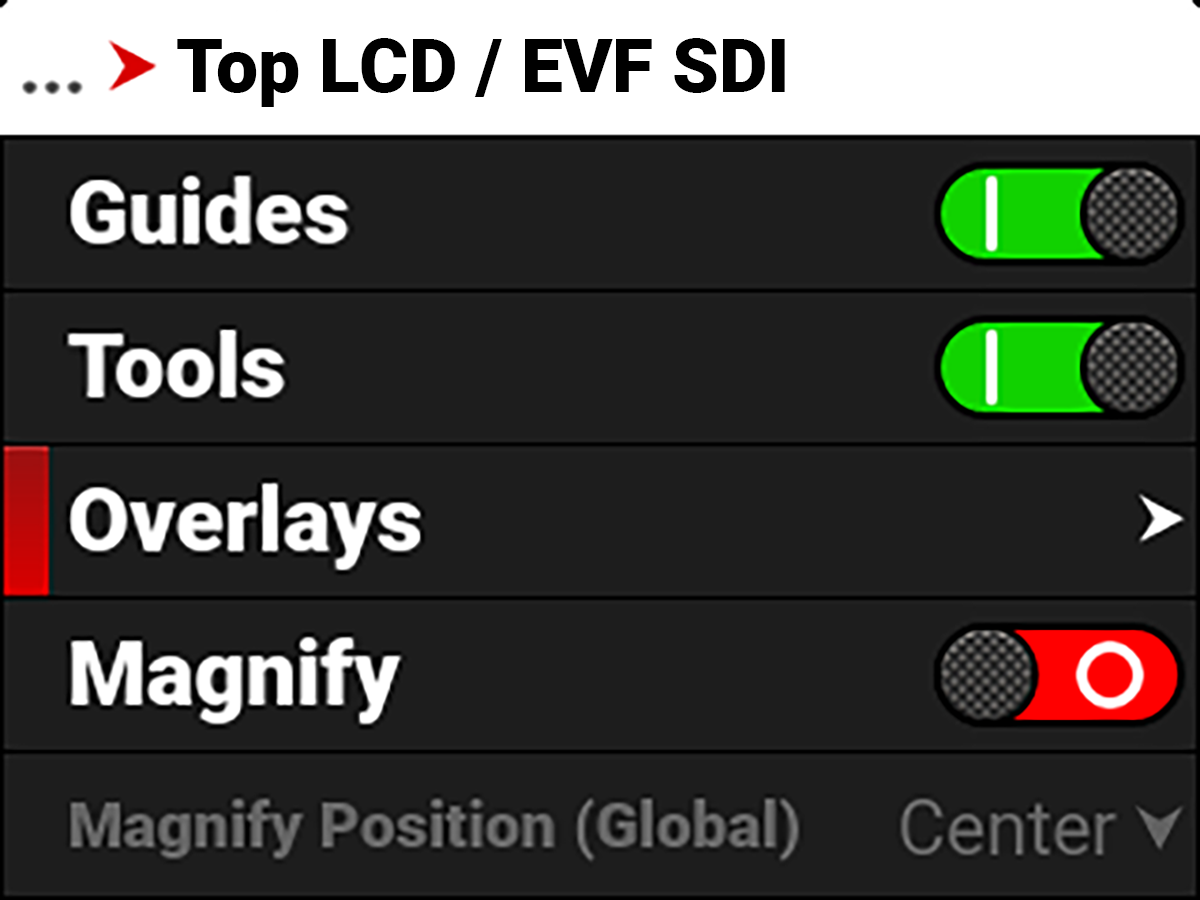

Guides

Use Guides to enable or disable the viewing of Top LCD and EVF SDI guides. Press SEL to toggle between enabled (default) and disabled.

Tools

Use Tools to enable or disable the viewing of Top LCD and EVF SDI tools. Press SEL to toggle between enabled (default) and disabled.

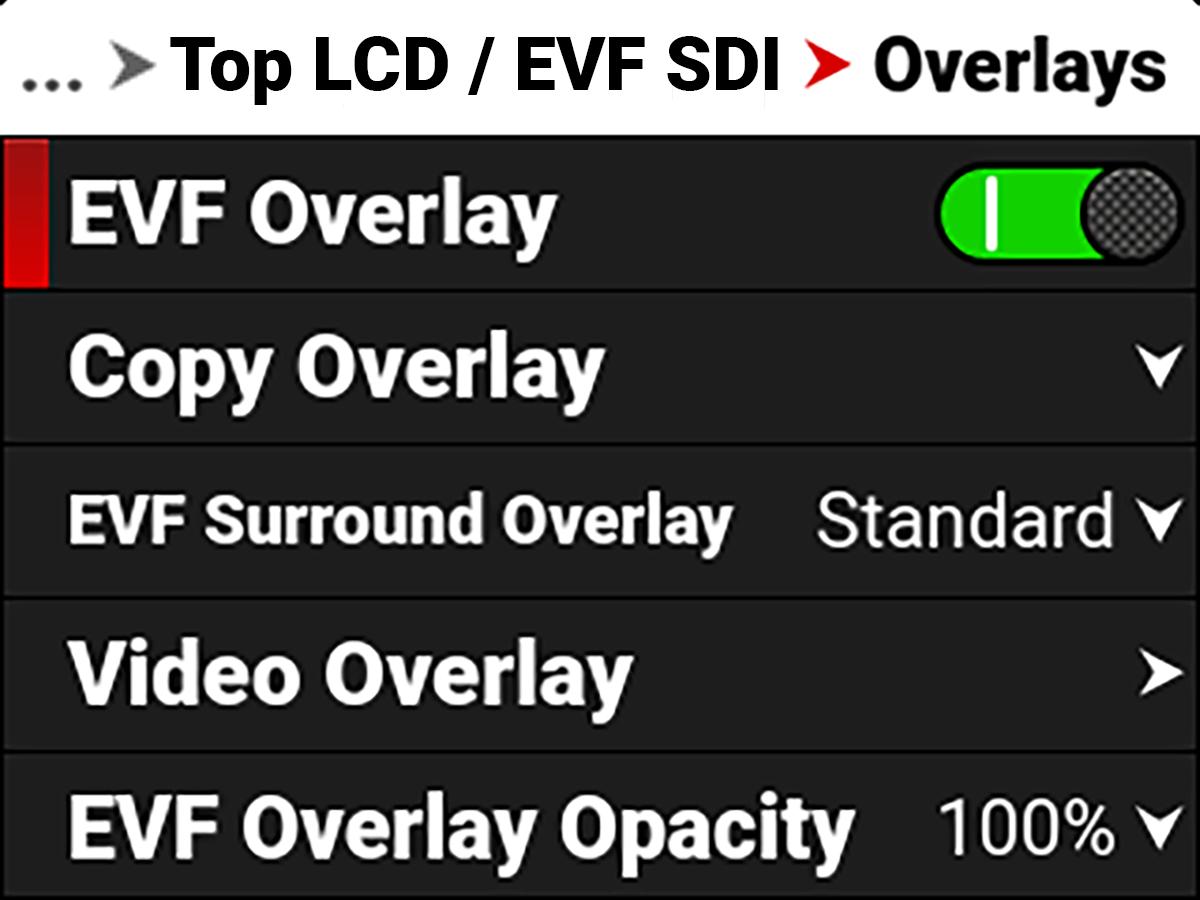

Overlays

Use Overlays to manage the Top LCD and EVF SDI overlay settings. These settings include:

The values you can display include:

Item	Details
None	Nothing is assigned
Horizon Level	Displays the horizon orientation (center locations only)
Horizon + Tilt Level	Displays the horizon orientation plus added tilt (center locations only)
Gyro Data	Displays the gyro readings
ISO	Displays the ISO setting
Shutter	Displays the shutter setting
Color Temperature	Displays the color temperature
Color Temperature and Tint	Displays the color temperature and tint
ND	Displays the ND setting
3D LUT	Displays the 3D LUT
Sensor Format	Displays the sensor format
Frame Rate	Displays the frame rate
Record Indicator	Red indicator when recording
Focal Length	Displays the lens focal length
Focus Distance	Displays the lens focus distance
Lens Information	Displays the lens information
Aperture	Displays the aperture setting
Camera Name	Displays the camera name
Clip Name	Displays the clip name
Slate Camera ID	Displays the slate camera ID
Slate Camera Position	Displays the slate camera position
Slate Camera Operator	Displays the slate camera operator
Slate Scene	Displays the slate scene
Slate Shot	Displays the slate shot
Slate Take	Displays the slate take
Slate Production	Displays the slate production
Slate Director	Displays the slate director
Slate DoP	Displays the slate DoP
Slate Unit	Displays the slate unit
Monitor Source	Displays the source of the monitored image
Media Time Remaining	Displays the media time remaining
Media Percentage Remaining	Displays the percentage of media remaining
Battery Time Remaining	Displays the battery time remaining
Battery Percentage Remaining	Displays the battery percentage remaining
Active Input Voltage	Displays the active input voltage

Size

Use Size to select the size of the displayed values on the EVF video overlay.

EVF Overlay Opacity

Use EVF Overlay Opacity to select the opacity of the EVF overlay.

The settings you can select range from 100% (default) to 0%.

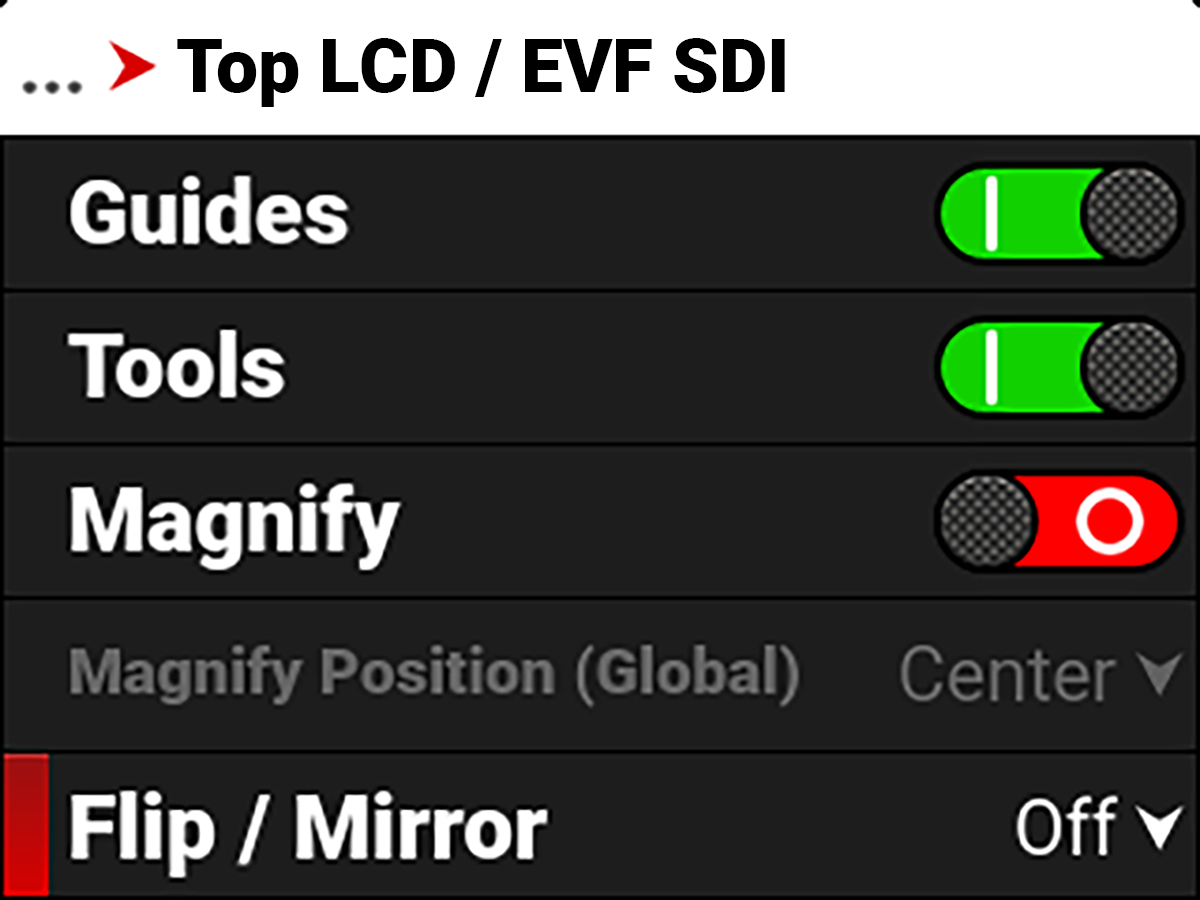

Magnify

Use Magnify to enable or disable Top LCD and EVF SDI monitor magnification. Press SEL to toggle between enabled and disabled (default).

Magnify Position



Use Magnify Position to globally select the area of the Top LCD and EVF SDI image you want to magnify.

The selections include:

•  Left	•  Upper Middle	•  Upper Right
•  Upper Left	•  Center (default)	•  Lower Right
•  Lower Left	•  Lower Middle	•  Right
