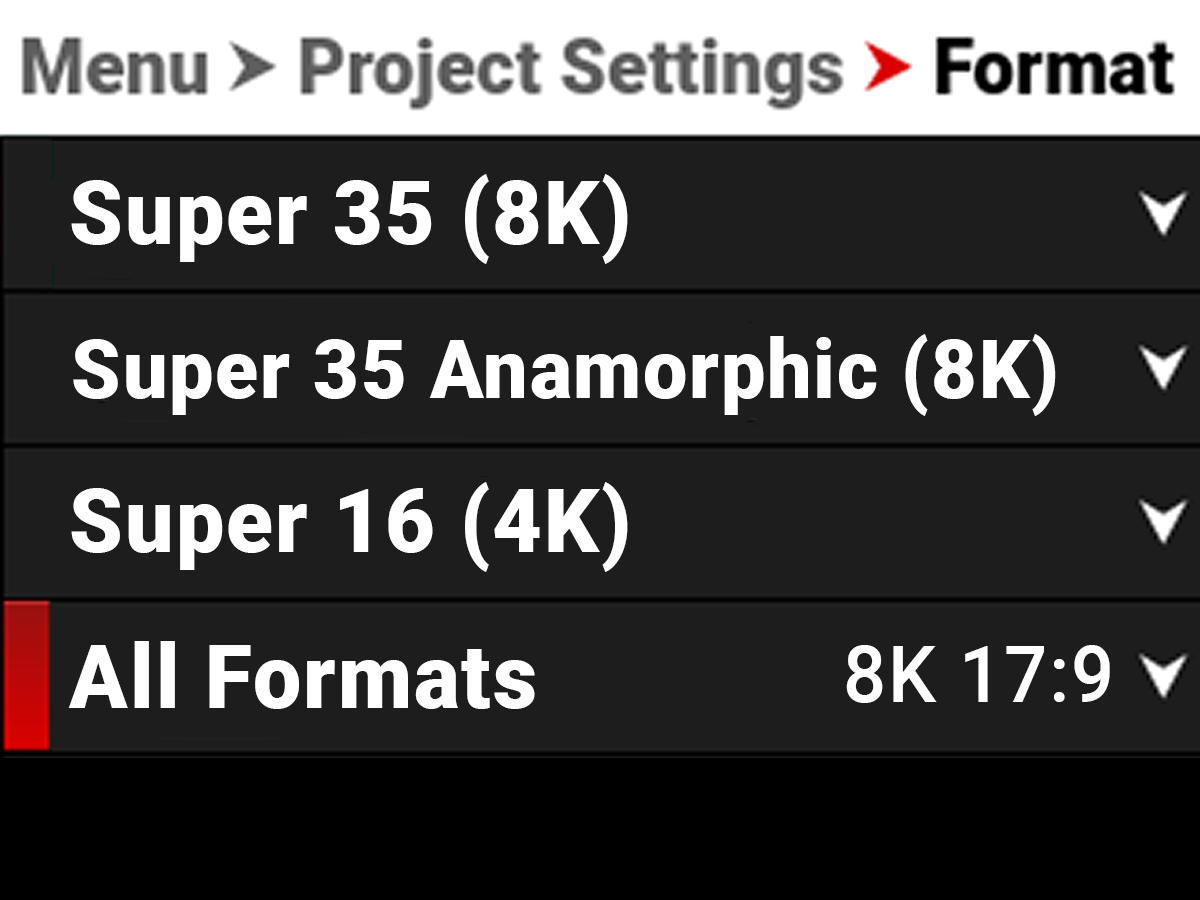

All Formats

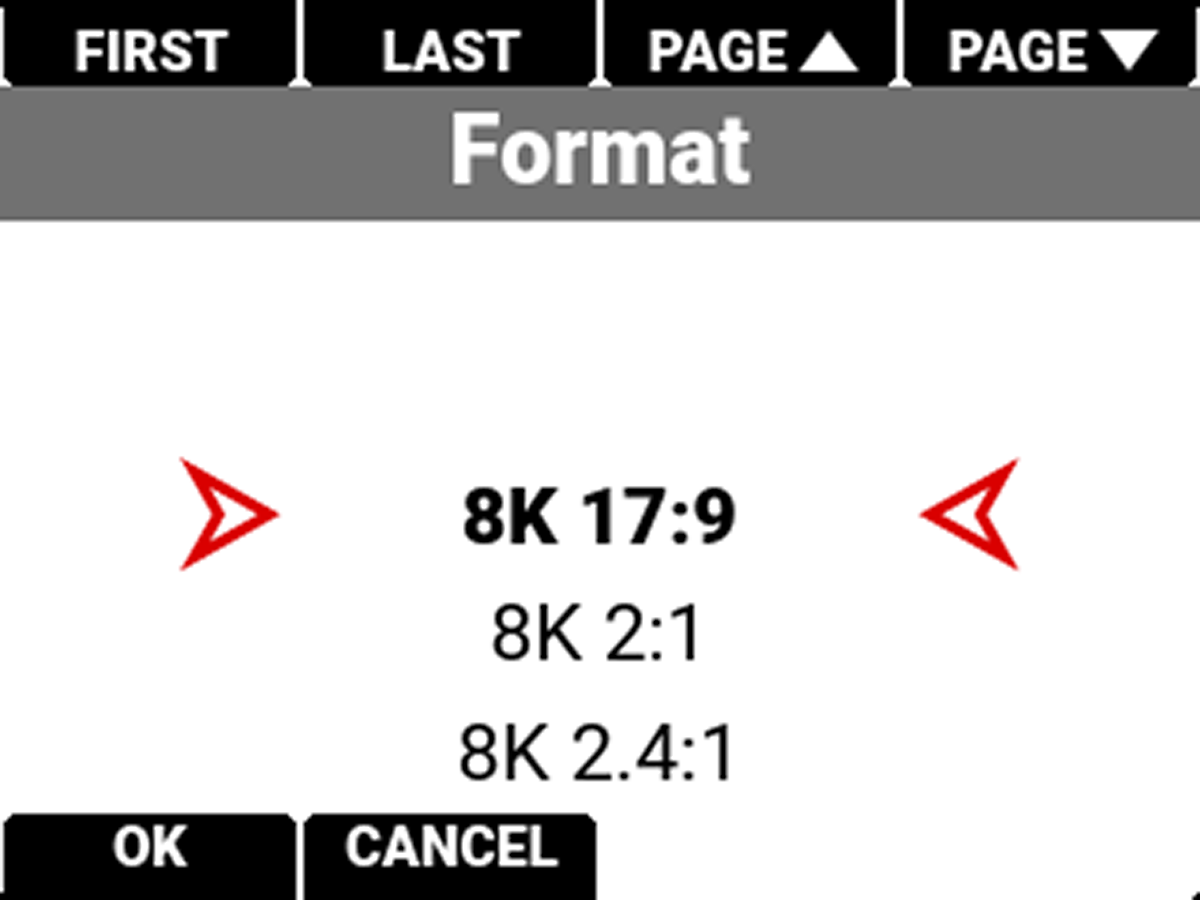

Use the All Formats setting to select from all of the possible formats to designate how much of the sensor the camera should use to capture images.
The available aspect ratios are determined by the selected resolution.
When you lower the resolution on the camera, only a portion of the sensor is used. The camera does not downscale from the 8K 17:9 format when recording RAW.
Format Specifications
This table contains the dimensions of the sensor area in Pixels and in Millimeters used by all of the camera formats. These dimensions are close approximations. The default setting is 8K 17:9.
|
Format |
|
Dimension (Pixels) |
|
Dimensions (MM) |
|||
|---|---|---|---|---|---|---|---|
|
|
|
Width |
Height |
|
Width |
Height |
Diagonal |
|
8K 17:9 |
|
8192 |
4320 |
|
26.21 |
13.82 |
29.64 |
|
8K 2:1 |
|
8192 |
4096 |
|
26.21 |
13.11 |
29.31 |
|
8K 2.4:1 |
|
8192 |
3456 |
|
26.21 |
11.06 |
28.45 |
|
8K 16:9 |
|
7680 |
4320 |
|
24.58 |
13.82 |
28.20 |
|
8K 1:1 |
|
4320 |
4320 |
|
13.82 |
13.82 |
19.55 |
|
8K 3:2 1.8x |
|
6480 |
4320 |
|
20.74 |
13.82 |
24.92 |
|
8K 4:3 2x |
|
5760 |
4320 |
|
18.43 |
13.82 |
23.04 |
|
8K 6:5 2x |
|
5184 |
4320 |
|
16.59 |
13.82 |
21.59 |
|
8K 1:1 2x |
|
4320 |
4320 |
|
13.82 |
13.82 |
19.55 |
|
8K 4:3 1.8x |
|
5760 |
4320 |
|
18.43 |
13.82 |
23.04 |
|
8K 3:2 1.6x |
|
6480 |
4320 |
|
20.74 |
13.82 |
24.92 |
|
8K 16:9 1.5x |
|
7680 |
4320 |
|
24.58 |
13.82 |
28.20 |
|
8K 17:9 1.3x |
|
8192 |
4320 |
|
26.21 |
13.82 |
29.64 |
|
8K 16:9 1.3x |
|
7680 |
4320 |
|
24.58 |
13.82 |
28.20 |
|
8K 17:9 1.25x |
|
8192 |
4320 |
|
26.21 |
13.82 |
29.64 |
|
7K 17:9 |
|
7168 |
3780 |
|
22.94 |
12.10 |
25.93 |
|
7K 2:1 |
|
7168 |
3584 |
|
22.94 |
11.47 |
25.65 |
|
7K 2.4:1 |
|
7168 |
3002 |
|
22.94 |
9.68 |
24.90 |
|
7K 16:9 |
|
6720 |
3780 |
|
21.50 |
12.10 |
24.67 |
|
7K 1:1 |
|
3780 |
3780 |
|
12.10 |
12.10 |
17.11 |
|
6K 17:9 |
|
6144 |
3240 |
|
19.66 |
10.37 |
22.23 |
|
6K 2:1 |
|
6144 |
3072 |
|
19.66 |
9.83 |
21.98 |
|
6K 2.4:1 |
|
6144 |
2592 |
|
19.66 |
8.29 |
21.34 |
|
6K 16:9 |
|
5760 |
3240 |
|
18.43 |
10.37 |
21.15 |
|
6K 1:1 |
|
3240 |
3240 |
|
10.37 |
10.37 |
14.66 |
|
5K 17:9 |
|
5120 |
2700 |
|
16.38 |
8.64 |
18.52 |
|
5K 2:1 |
|
5120 |
2560 |
|
16.38 |
8.19 |
18.32 |
|
5K 2.4:1 |
|
5120 |
2160 |
|
15.36 |
8.64 |
17.62 |
|
5K 16:9 |
|
4800 |
2700 |
|
15.36 |
8.64 |
17.62 |
|
5K 1:1 |
|
2700 |
2700 |
|
8.64 |
8.64 |
12.22 |
|
4K 17:9 |
|
4096 |
2160 |
|
13.11 |
6.91 |
14.82 |
|
4K 2:1 |
|
4096 |
2048 |
|
13.11 |
6.55 |
14.65 |
|
4K 2.4:1 |
|
4096 |
1728 |
|
13.11 |
5.53 |
14.23 |
|
4K 16:9 |
|
3840 |
2160 |
|
12.29 |
6.91 |
14.10 |
|
4K 1:1 |
|
2160 |
2160 |
|
6.91 |
6.91 |
9.78 |
|
4K 8:1 |
|
4096 |
512 |
|
13.11 |
1.64 |
13.21 |
|
3K 17:9 |
|
3072 |
1620 |
|
9.83 |
5.18 |
11.11 |
|
3K 2:1 |
|
3072 |
1536 |
|
9.83 |
4.92 |
10.99 |
|
3K 2.4:1 |
|
3072 |
1296 |
|
9.83 |
4.15 |
10.67 |
|
3K 16:9 |
|
2880 |
1620 |
|
9.83 |
5.18 |
11.11 |
|
3K 1:1 |
|
1620 |
1620 |
|
5.18 |
5.18 |
7.33 |
|
2K 17:9 |
|
2048 |
1080 |
|
6.55 |
3.46 |
7.41 |
|
2K 2:1 |
|
2048 |
1024 |
|
6.55 |
3.28 |
7.33 |
|
2K 2.4:1 |
|
2048 |
864 |
|
6.55 |
2.76 |
7.11 |
|
2K 16:9 |
|
1920 |
1080 |
|
6.14 |
3.46 |
7.05 |
|
2K 1:1 |
|
1080 |
1080 |
|
3.46 |
3.46 |
4.89 |
