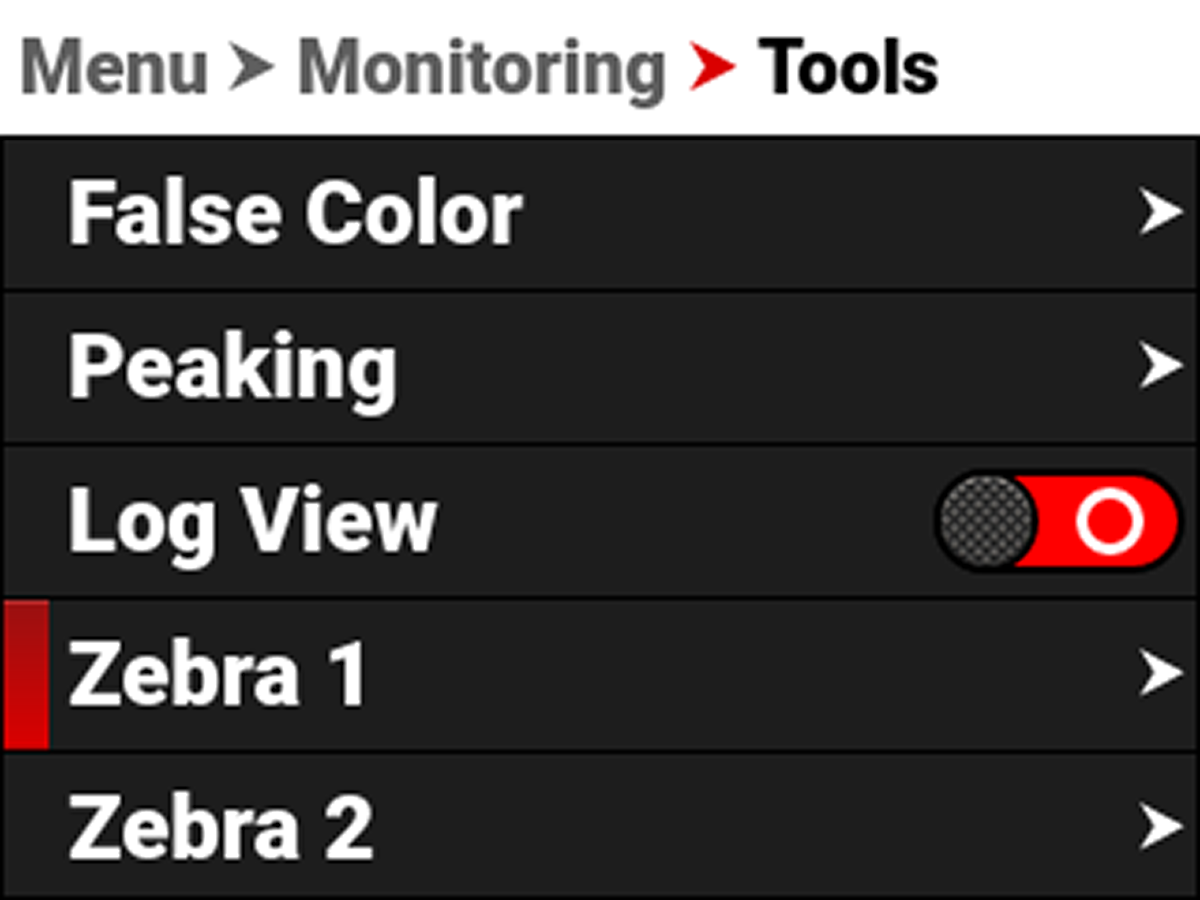

Zebra 1
Use Zebra 1 to display one set of diagonal stripes to indicate highlight exposure levels. For more information, refer to Zebra Modes.
Zebra 1 is disabled by default.
The Zebra 1 mode includes:
|
Item |
Details |
|---|---|
|
Enable |
Enables red zebra stripes to indicate highlight exposure |
|
Low IRE |
Sets the lower threshold for the indicator |
|
High IRE |
Sets the higher threshold for the indicator |

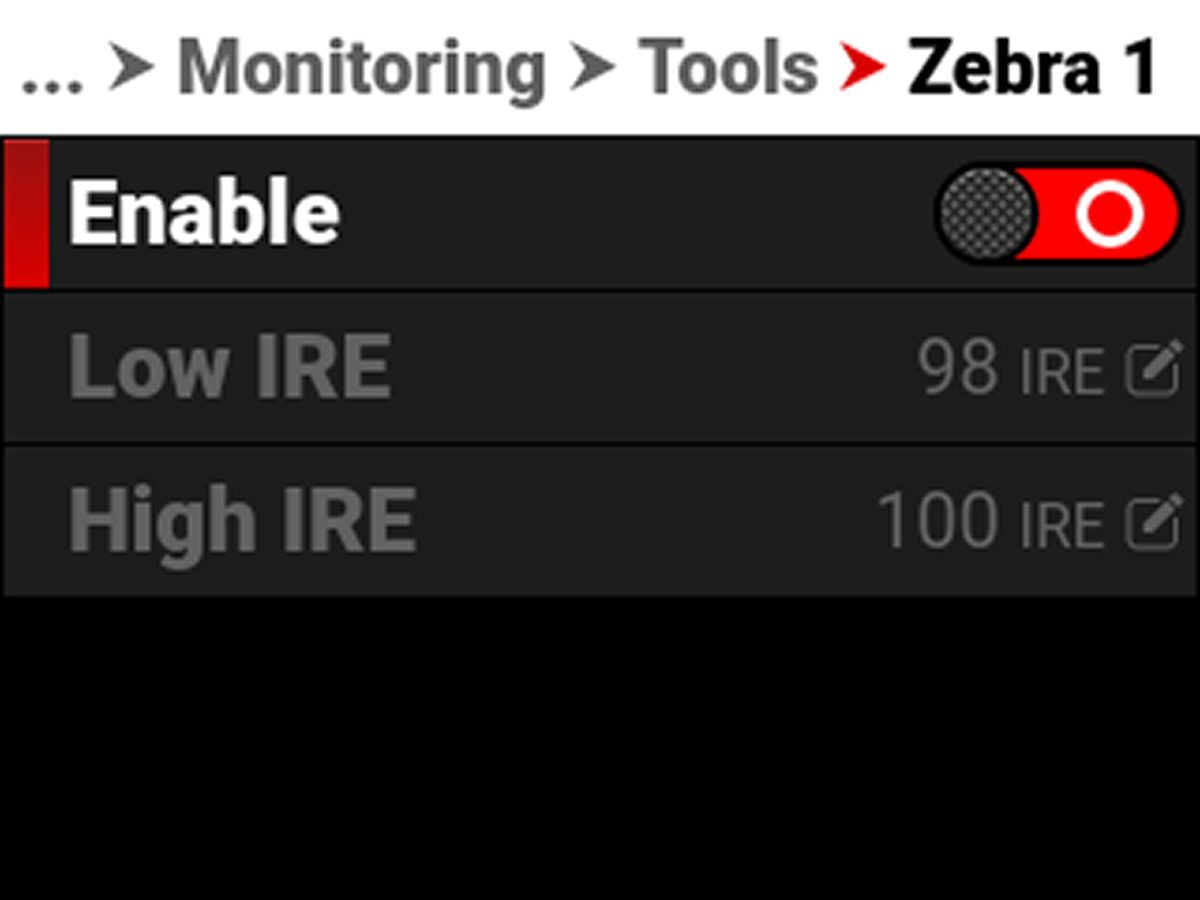

Enable
The Enable toggle switch allows you to enable or disable the Zebra 1 stripes.

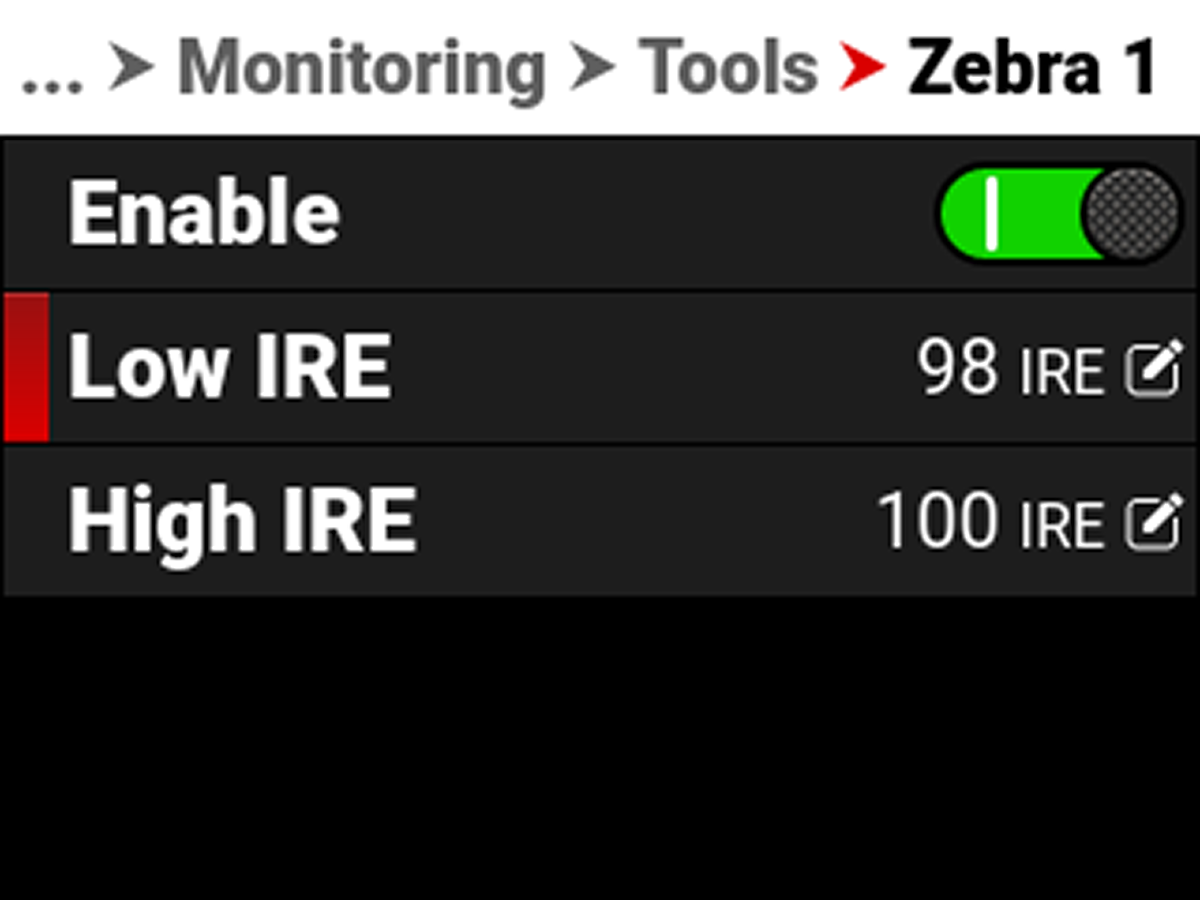

Low IRE

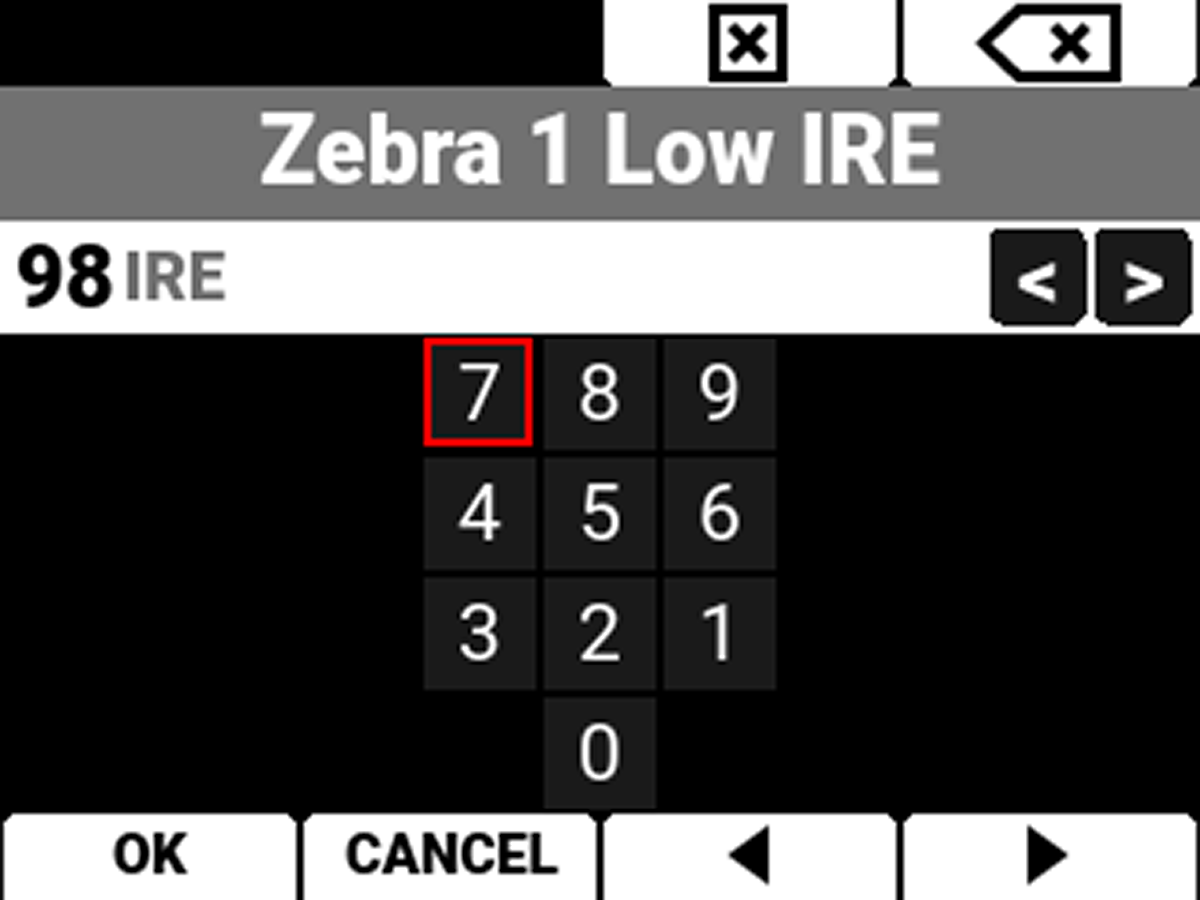

Provides a keypad that allows you to set the low threshold for the Zebra stripe. The default setting is 98 IRE.
High IRE
Provides a keypad that allows you to set the high threshold for the Zebra stripe. The default setting is 100 IRE.
|
Normal View |
Zebra 1 View |
|
|
|
|
