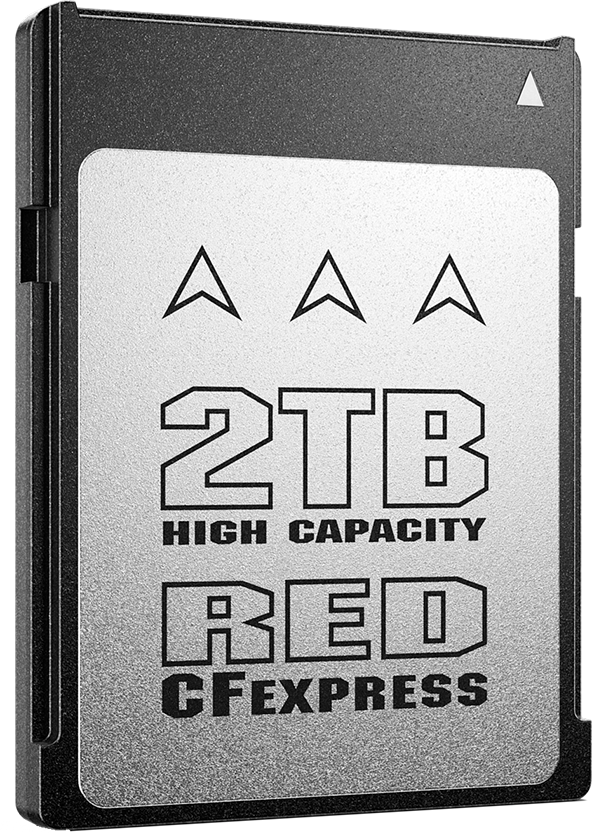

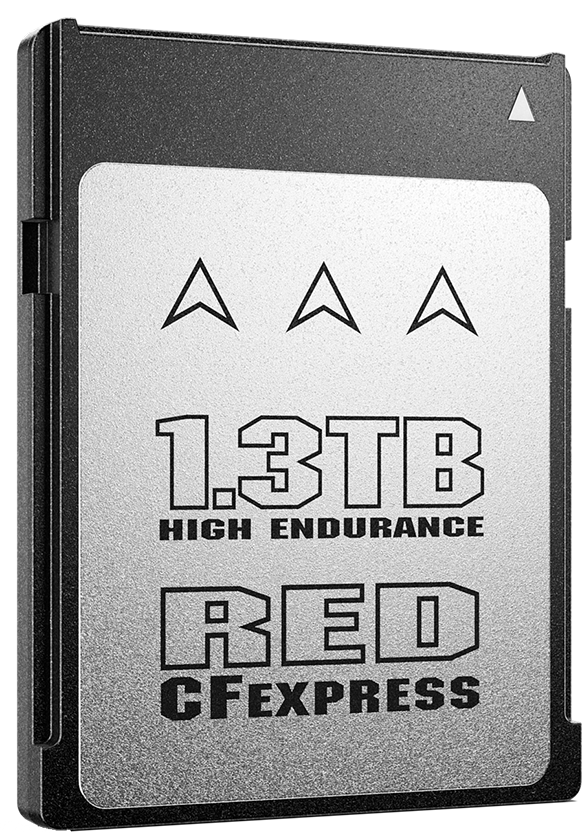

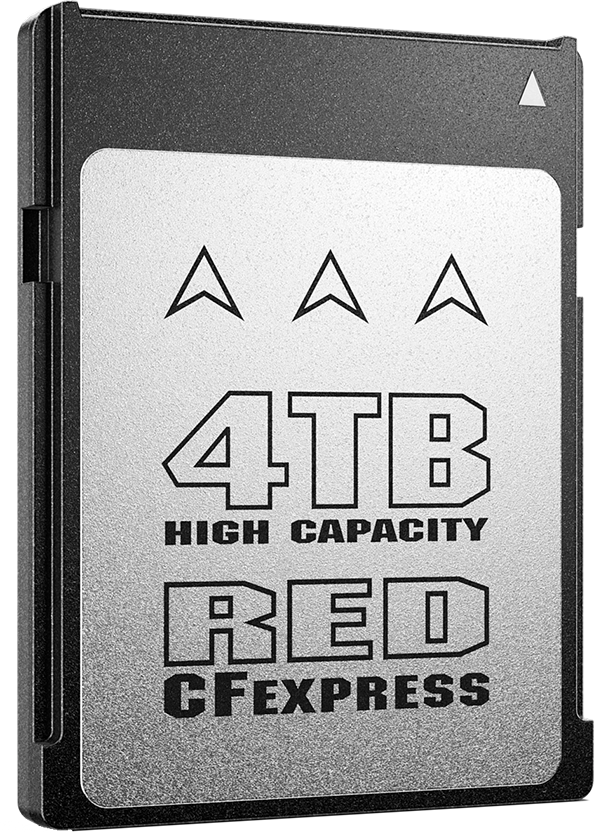

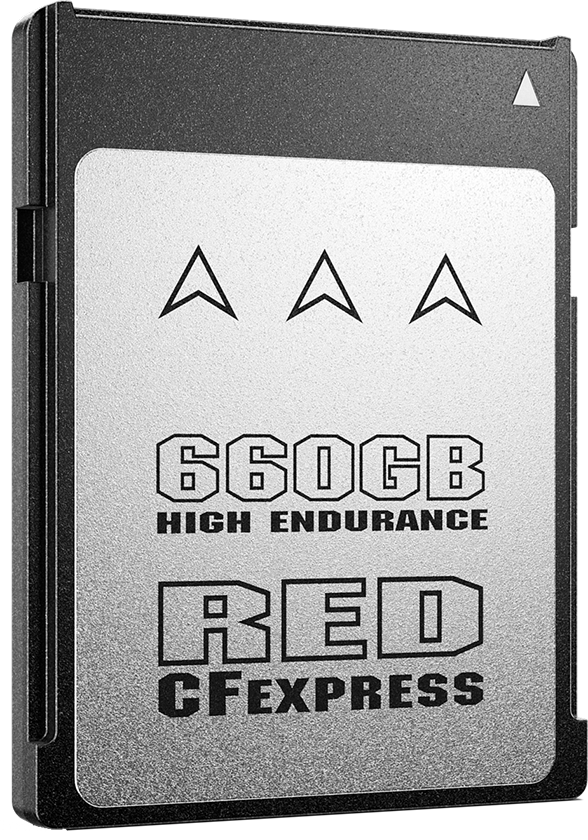

CFexpress Type B Media
The RED CFexpress Type B Media provides the camera with 660 gigabyte, 1.3, 2, and 4 terabyte recording options.
The 2 TB and 660 GB cards use the same hardware as do the 1.3 TB and 4 TB. The differences come from the software and firmware, which configure the media differently to prioritize different feature sets. The 2 TB and 4 TB prioritize capacity while still providing excellent durability under normal use. The 660 GB and 1.3 TB are in an overprovisioned configuration of the same media to prioritize extended write cycles and improved thermal performance for constant writing and re-writing of data. The underlying hardware is identical.
|
Item |
|
Details |
|---|---|---|
|
Type |
|
CFexpress Type B Media |
|
Capacity - 660 GB High Endurance |
|
660,138,909,696 bytes |
|
Capacity - 1.3 TB High Endurance |
|
1,331,512,536,141 bytes |
|
Capacity - 2 TB High Capacity |
|
2,048,480,824,832 bytes |
|
Capacity - 4 TB High Capacity |
|
4,096,961,649,664 bytes |
|
Operating temperature |
|
14° F to 158° F (-10° C to 70° C) |
|
Operating humidity |
|
5% to 95%, non-condensing |
|
Storage temperature |
|
-4° F to 185° F (-20° C to 85° C) |
|
Shock resistance (operating) |
|
50 g |
|
Vibration resistance (operating) |
|
15 g at 10 Hz to 2000 Hz |
|
Weight |
|
Approximately 0.25 oz (7.1 g) |
|
Dimensions |
|
Height: 1.52 in. (38.5 mm) |
|
|
Width: 1.17 in. (29.6 mm) |
|
|
|
Depth: 0.15 in. (3.8 mm) |

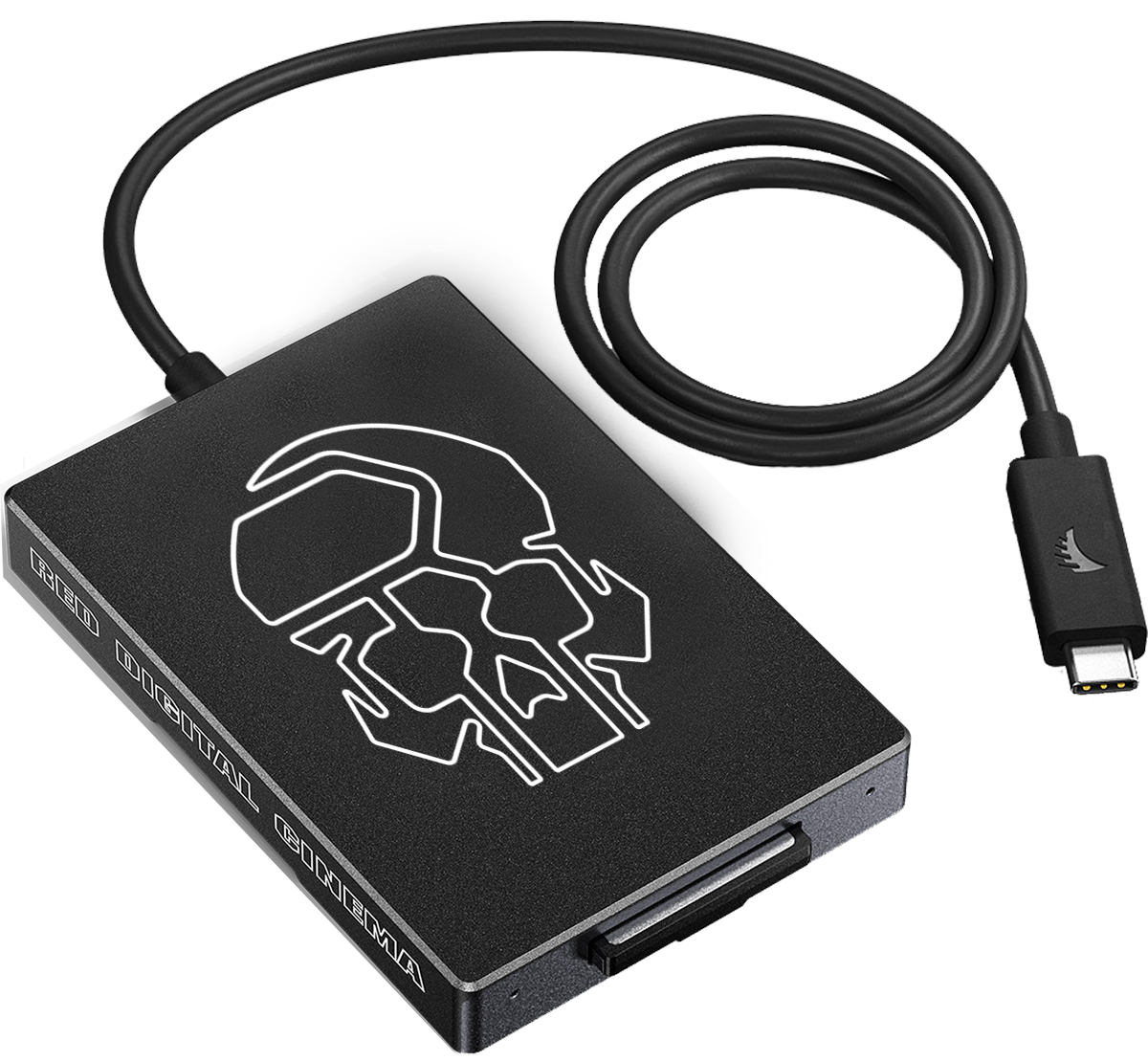

RED® CFexpress Type B Reader
The RED CFexpress Type B Card Reader provides a fast USB-C connection with the capability of write-protect.

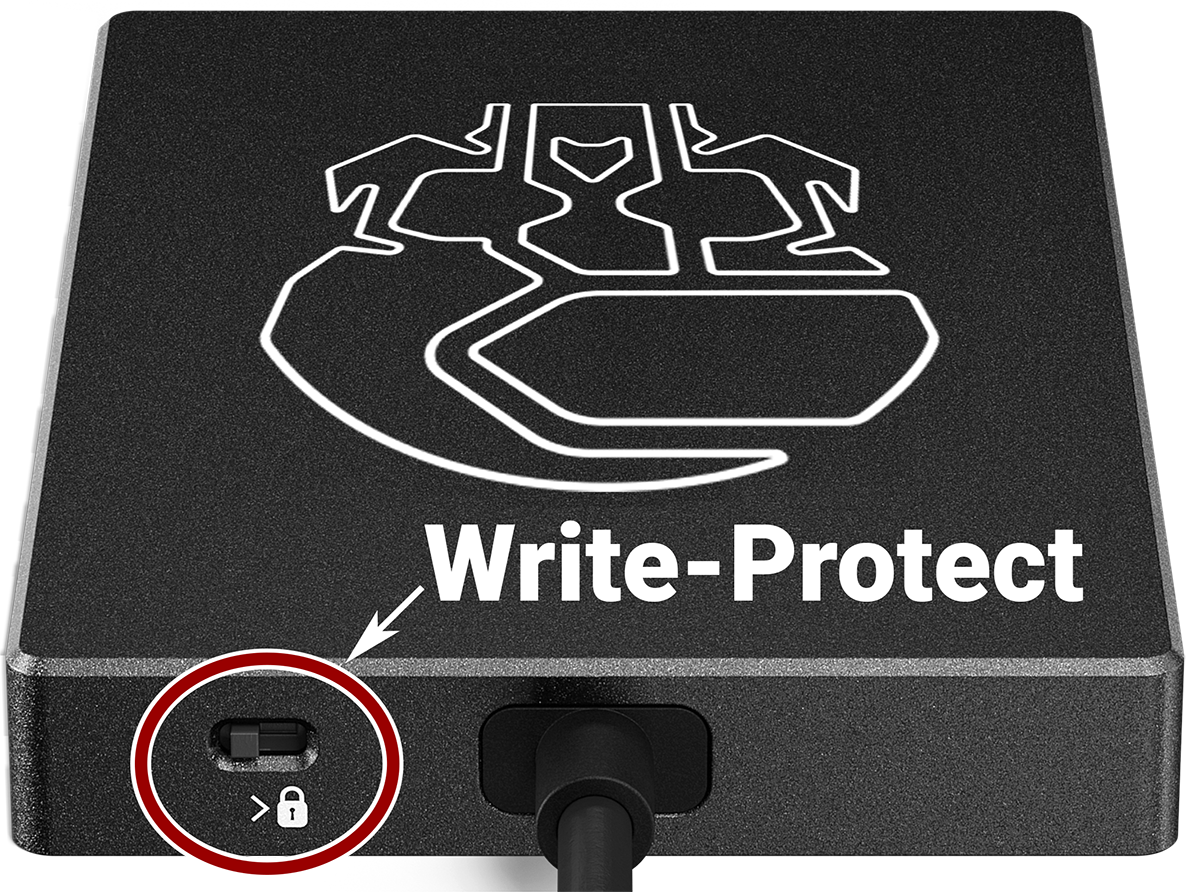

Set the Write-Protect switch to the Lock position to prevent connected devices from adding any unwanted data to your CFexpress Type B card.
The RED CFexpress Type B Card Reader provides a fast USB-C connection with the capability of write-protect.
Set the Write-Protect switch to the Lock position to prevent connected devices from adding any unwanted data to your CFexpress Type B card.
|
Item |
Details |
|---|---|
|
Media read |
CFexpress Type B |
|
Interface |
USB-C 3.2 cable to CFexpress Type B |
|
Power |
USB bus power |
|
Cable |
USB-C 3.2 cable type A to C adapter |
|
Weight |
Approximately 4.2 oz (120 g) |
|
Dimensions |
Height: 3.74 in. (95 mm) |
|
Width: 2.56 in. (65 mm) |
|
|
Depth: 0.47 in. (12 mm) |
