Headphone Page

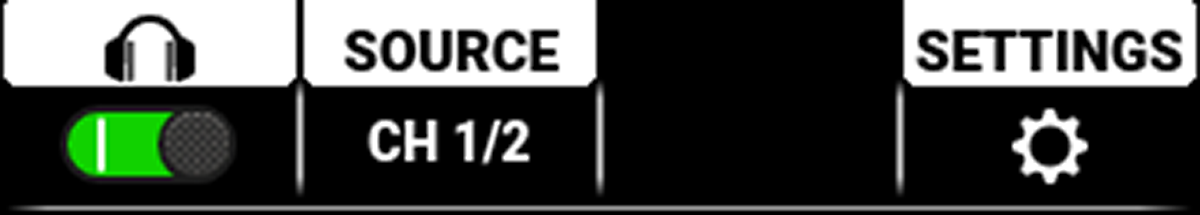

Top Bar

The Headphone top bar allows you to enable/disable the headphone port output, to select the source of the headphone output (internal channels 1 and 2 or external channels 3 and 4), and to quickly access the Audio /TC menu.

• Press the button above the headphone icon to enable or disable the headphone audio

• Press the button above SOURCE to open the list of channels to monitor (Ch 1/2 or Ch 3/4)

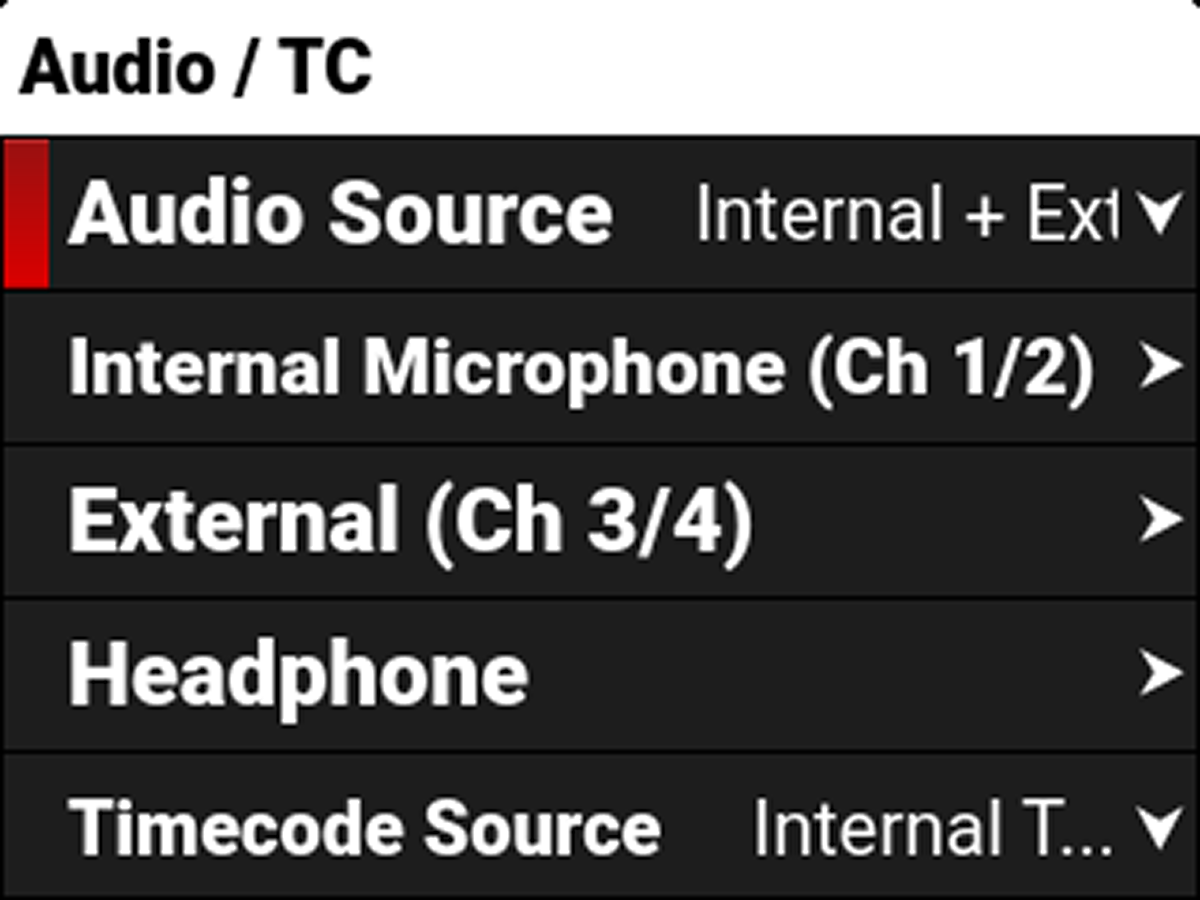

• Press the button above SETTINGS to open the Audio / TC menu

Refer to the Audio / TC Menu section for more information about the audio features.

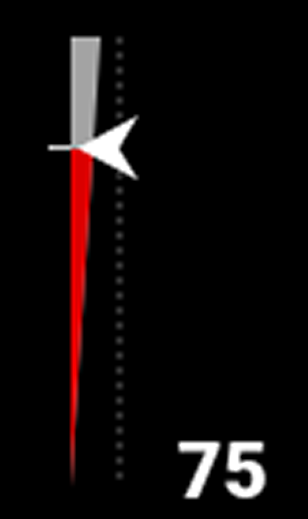

Level Indicator

The audio level indicator moves up and down to indicate the changes in the headphone level adjustments. The level measured in decibels is displayed below the level indicator.

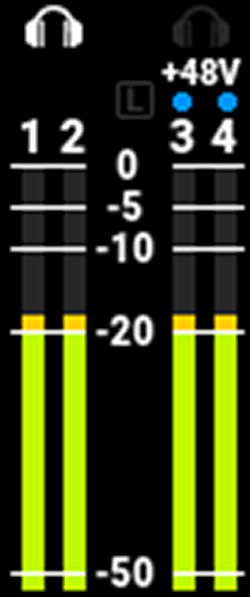

VU Meter

The VU meter displays the headphone indicators, the limiter indicator, the +48 V phantom power indicator, the audio channel numbers, and the audio signal levels.

Bottom Bar

The headphone bottom bar allows you to adjust the headphone volume.

• Press the button below VOL▼ to reduce the headphone volume

• Press the button below VOL▲ to increase the headphone volume

Refer to the Audio / TC Menu section for more information about the headphone features.
