Super 35 Anamorphic (8K)

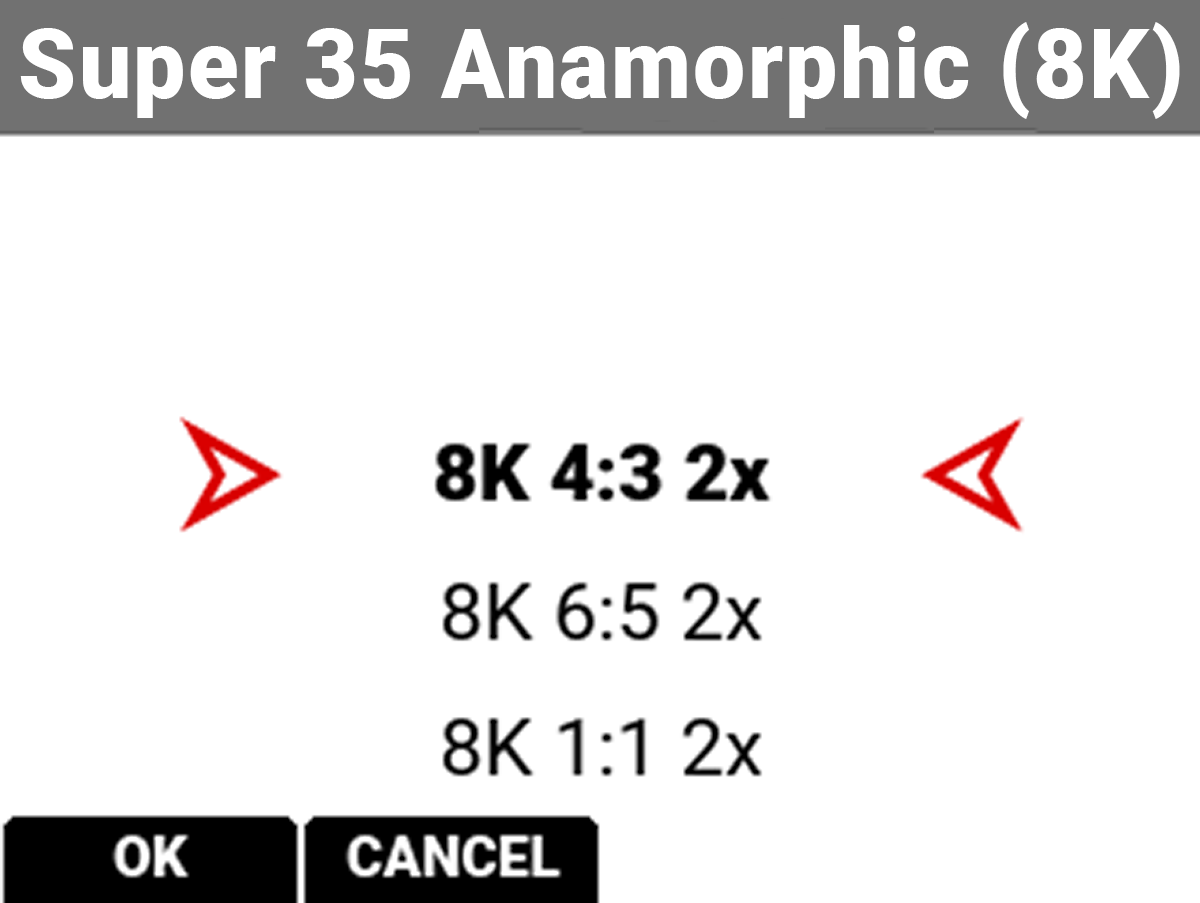

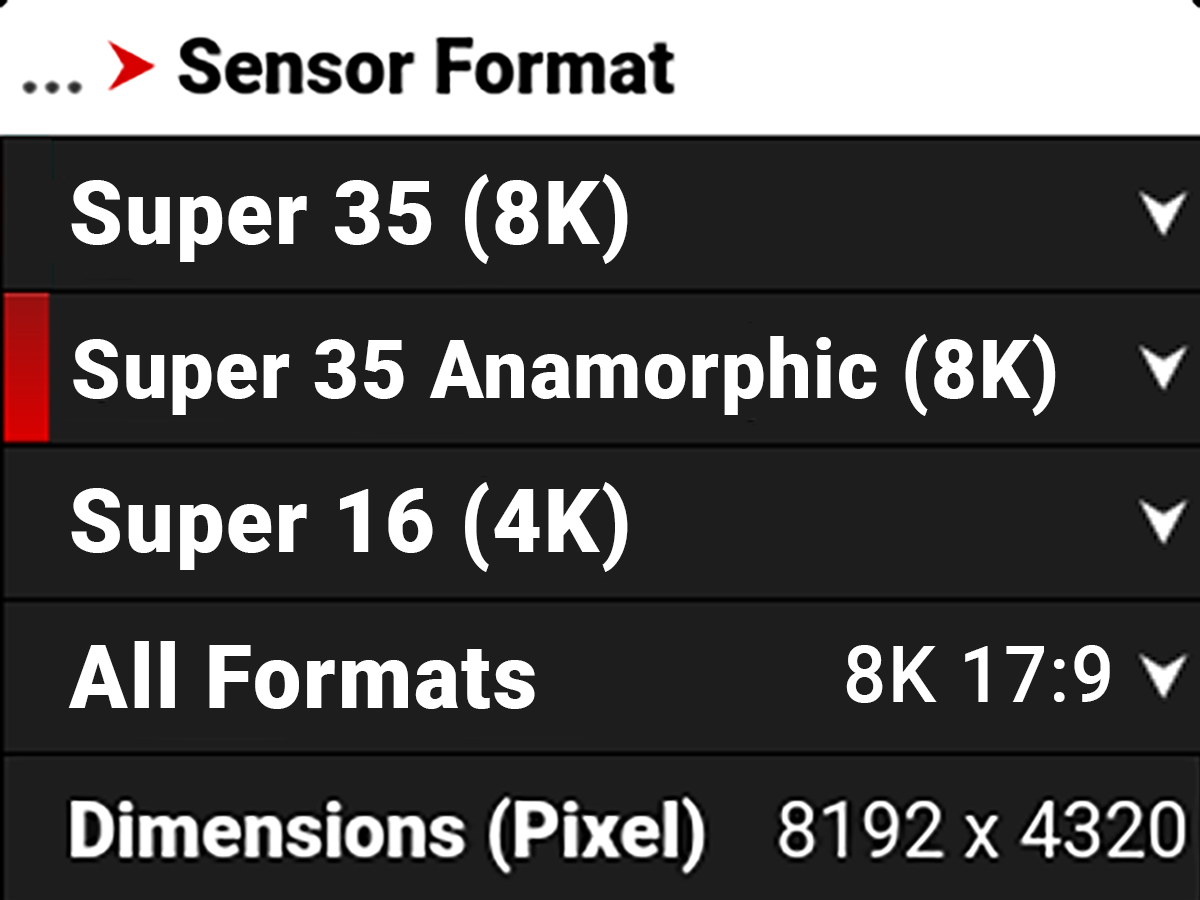

Use the Super 35 Anamorphic (8K) sensor format setting to designate how much of the sensor the camera should use to capture anamorphic images with the appropriate de-squeeze ratio.
The available aspect ratios are determined by the selected resolution.
When you lower the resolution on the camera, only a portion of the sensor is used. The camera does not downscale from the format when recording RAW.
Super 35 Anamorphic (8K) Sensor Format Specifications
This table contains the dimensions of the sensor area in pixels and in millimeters used by each Super 35 Anamorphic (8K) sensor format. These dimensions are close approximations.
The default format is 8K 4:3 2x.
|
Sensor |
|
Dimension (Pixels) |
|
Dimensions (MM) |
|||
|---|---|---|---|---|---|---|---|
|
|
|
Width |
Height |
|
Width |
Height |
Diagonal |
|
8K 4:3 2x |
|
5760 |
4320 |
|
18.43 |
13.82 |
23.04 |
|
8K 6:5 2x |
|
5184 |
4320 |
|
16.59 |
13.82 |
21.59 |
|
8K 1:1 2x |
|
4320 |
4320 |
|
13.82 |
13.82 |
19.55 |
|
8K 3:2 1.8x |
|
6480 |
4320 |
|
20.74 |
13.82 |
24.92 |
|
8K 4:3 1.8x |
|
5758 |
4320 |
|
18.43 |
13.82 |
23.04 |
|
8K 3:2 1.6x |
|
6480 |
4320 |
|
20.74 |
13.82 |
24.92 |
|
8K 16:9 1.5x |
|
7680 |
4320 |
|
24.58 |
13.82 |
28.20 |
|
8K 17:9 1.3x |
|
8192 |
4320 |
|
26.21 |
13.82 |
29.64 |
|
8K 16:9 1.3x |
|
7680 |
4320 |
|
24.58 |
13.82 |
28.20 |
|
8K 17:9 1.25x |
|
8192 |
4320 |
|
26.21 |
13.82 |
29.64 |
