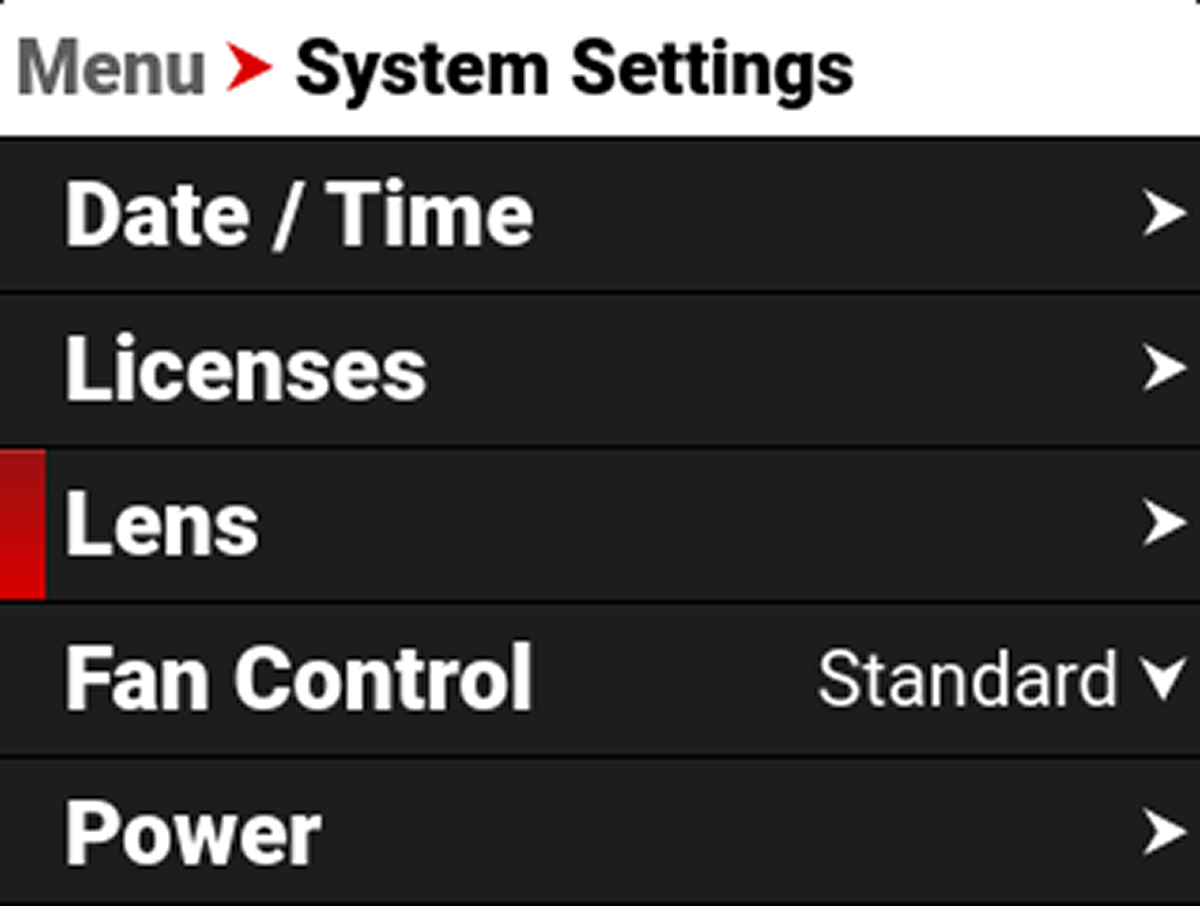

Lens
Use Lens to view information about the attached lens.

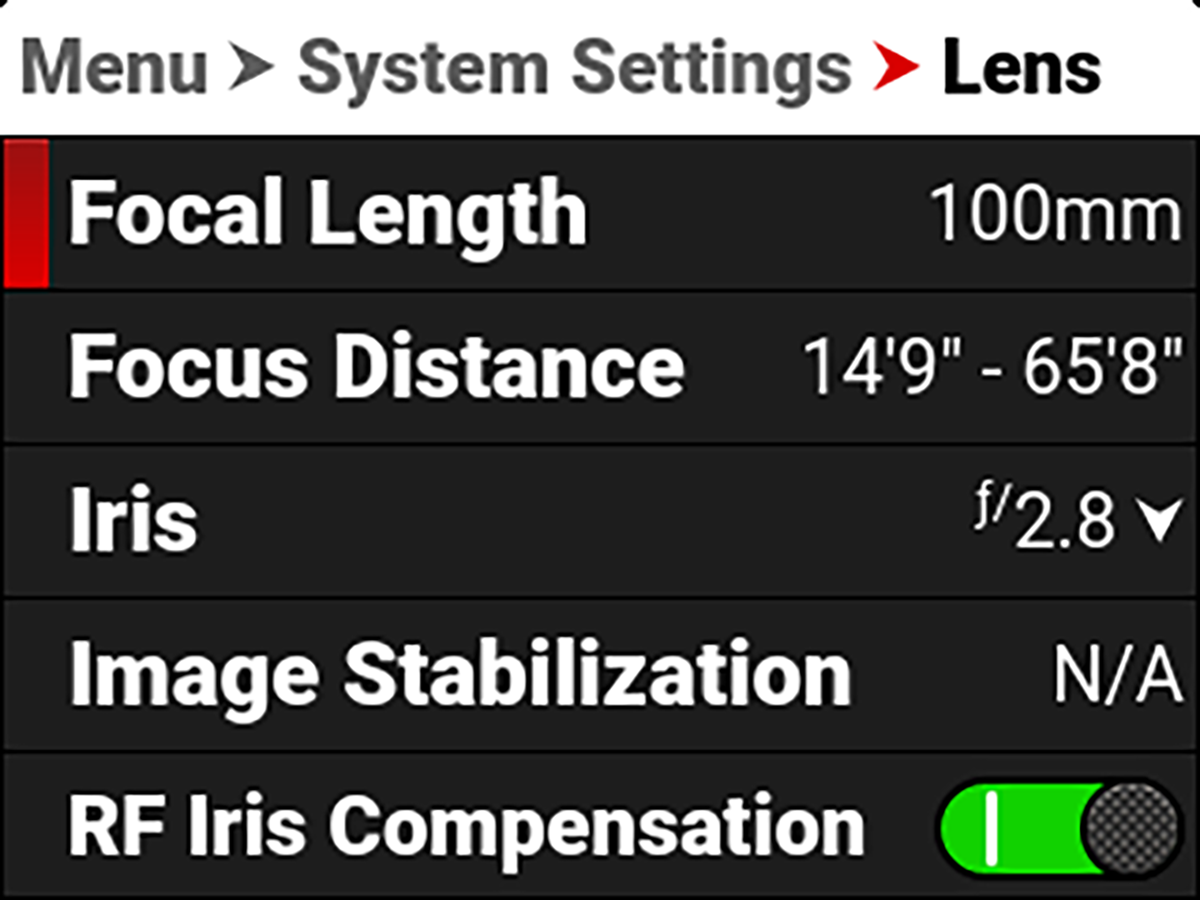

The information you can view from Lens includes:
|
Item |
|
Details |
|---|---|---|
|
Focal Length |
|
Displays the lens focal length value |
|
Focus Distance |
|
Displays the lens focal distance value |
|
Iris |
|
Lens Iris menu |
|
Image Stabilization |
|
Displays the lens image stabilization status |
|
i/ Data |
|
Displays Cooke /i data brand, serial number, and owner |
|
RF Iris Compensation |
|
Disable RF Iris Compensation to eliminate iris fluttering during zooming |
|

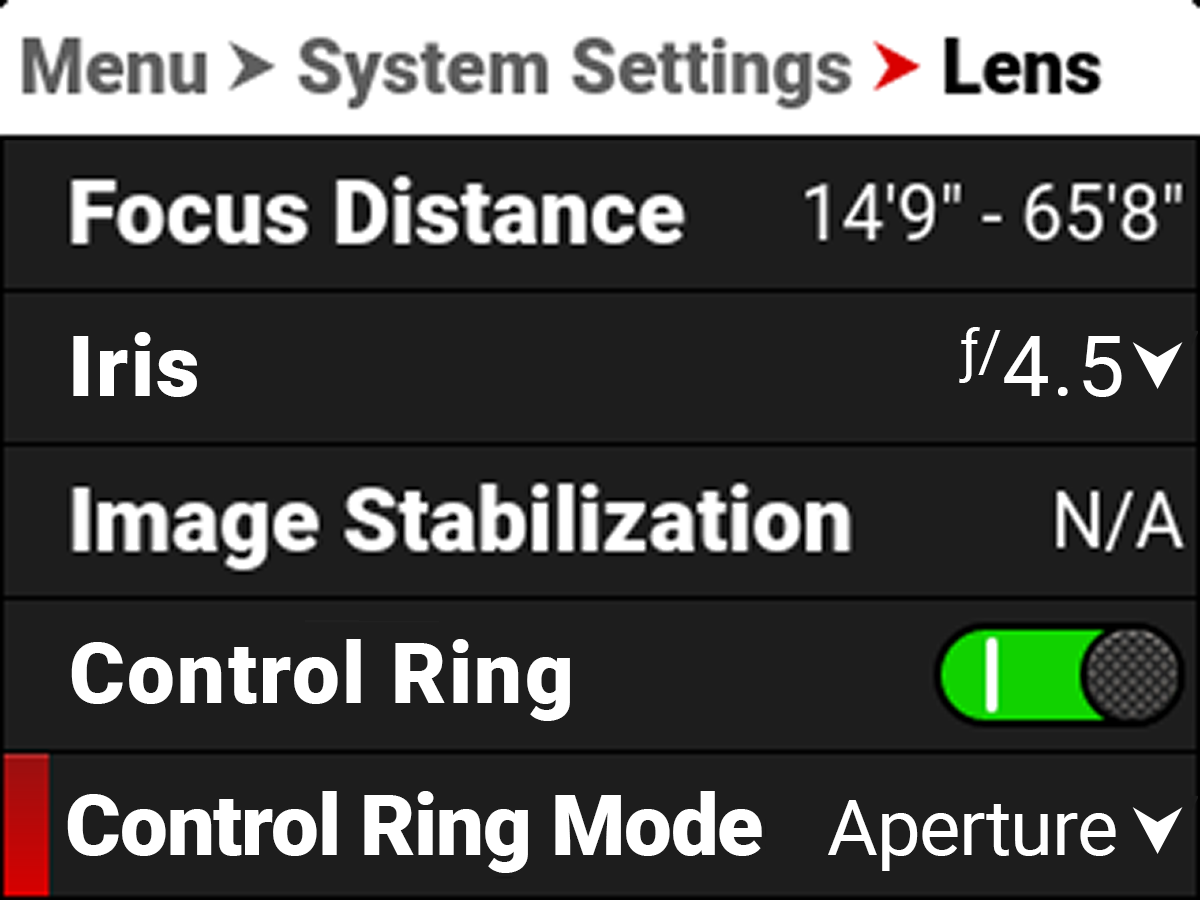

Control Ring |
|
Enable or disable the control ring |
|
Control Ring Mode |
|
Select the function the control ring performs |

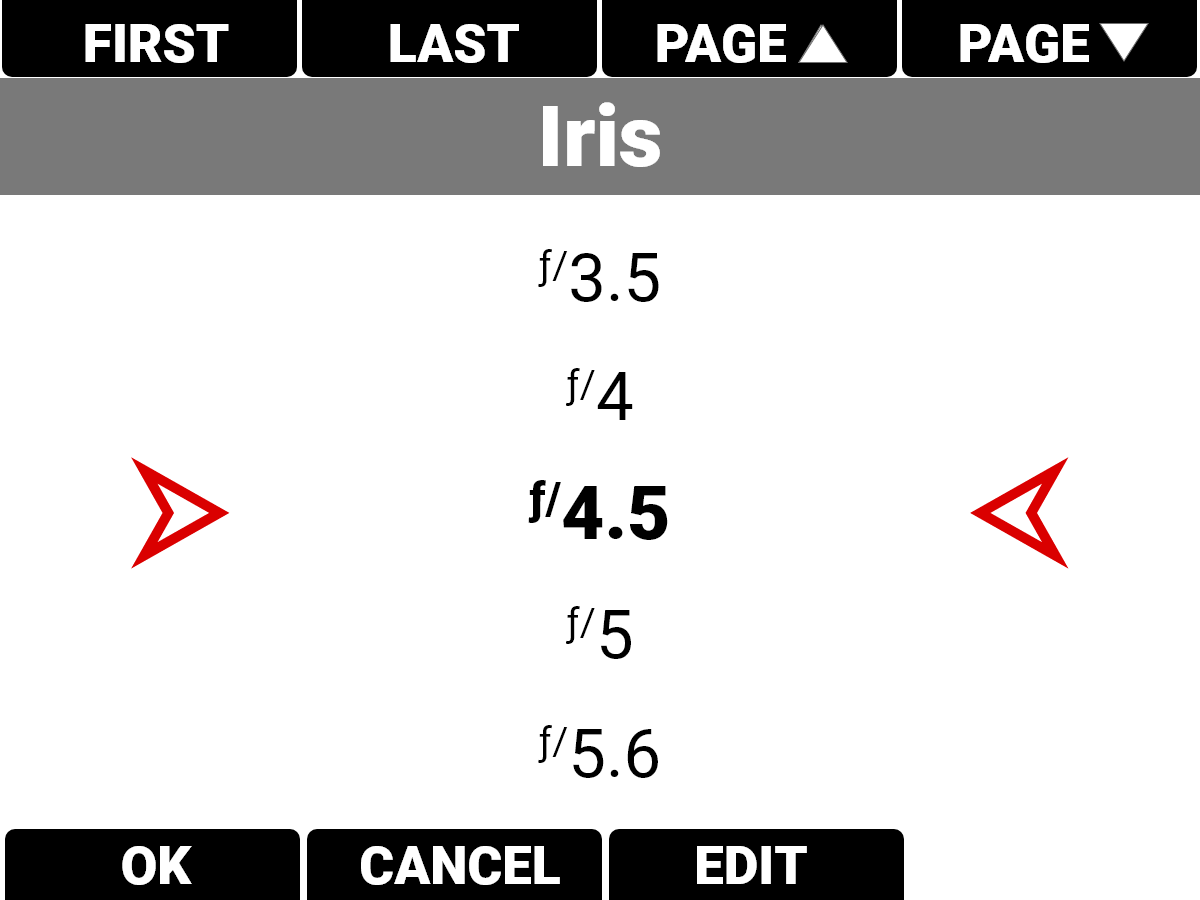

Iris
Use the Iris menu to select the camera lens f-stop. Press the button below Edit to open the keypad and enter the f-stop manually.

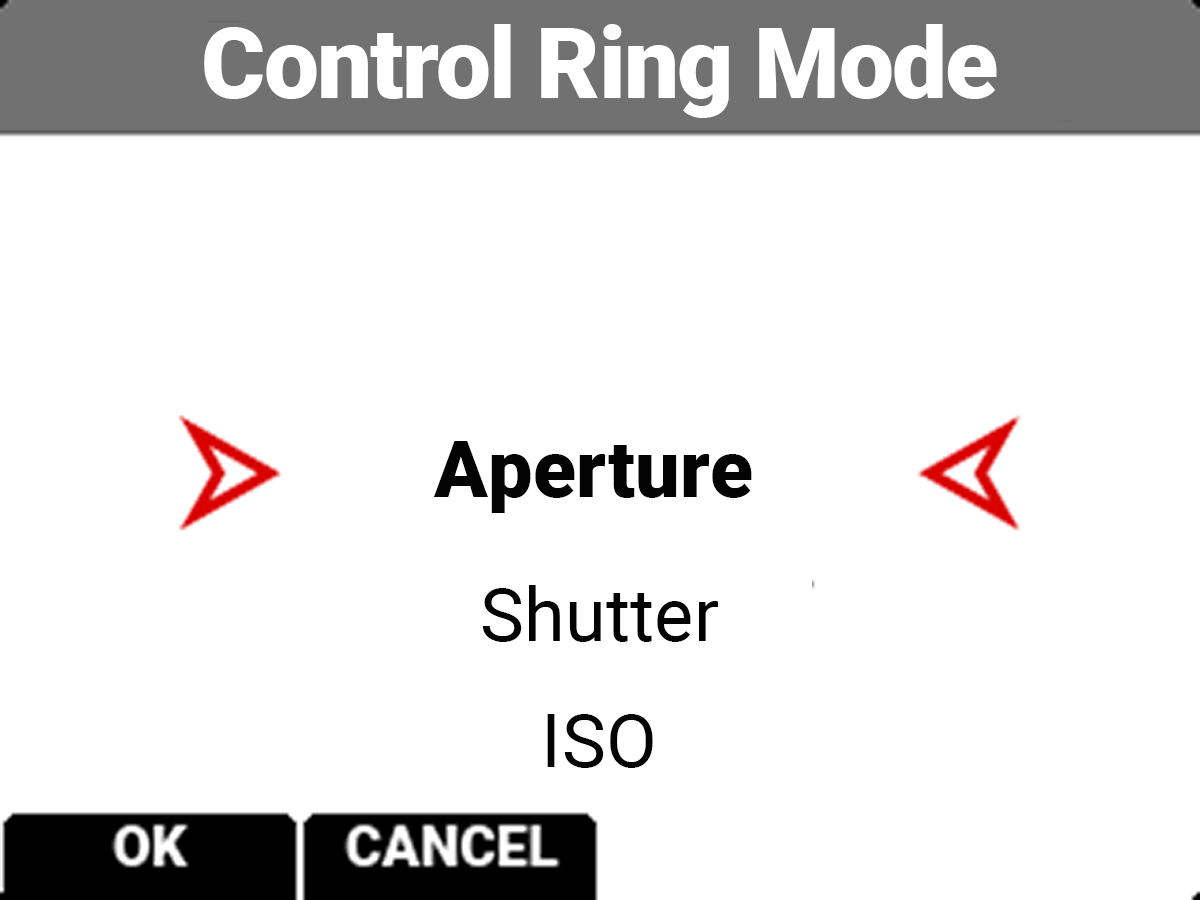

Control Ring Mode
When the Control Ring feature is supported by the lens and is enabled, you can select the camera setting you want to use the Control Ring to adjust.
The modes you can select include Aperture (Iris, default), Shutter, ISO, White Balance, LCD Magnify, SDI Magnify, LCD+ SDI Magnify, False Color Cycle, Peaking Cycle, and Tools Cycle.
