Power

This section includes:

The camera accepts power through a DC-IN port and through an attached battery. The camera cannot accept power through USB, D-Tap/P-Tap, or BNC ports.

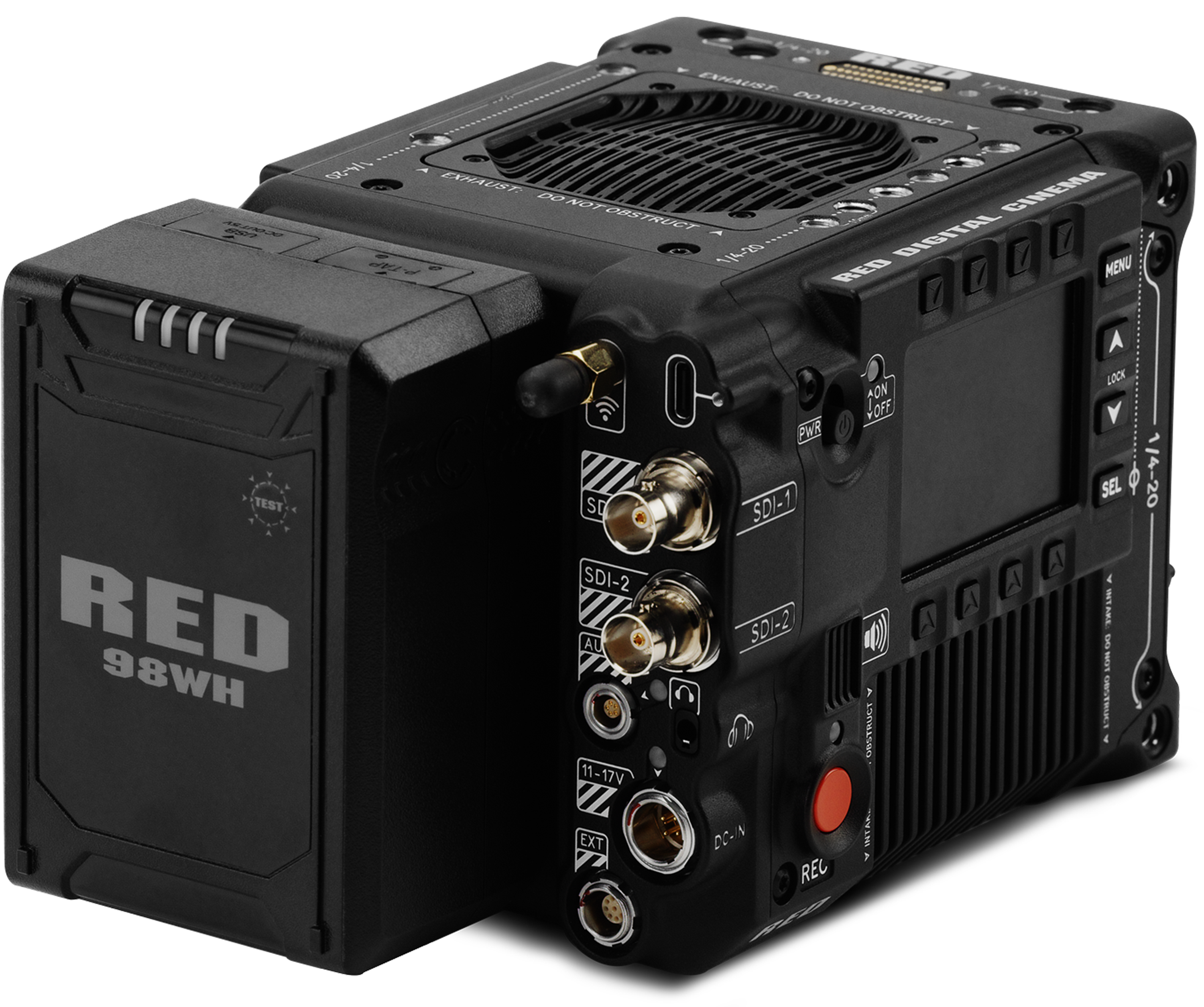

Attaching the Battery

Insert a compatible V-Lock battery (refer to REDVOLT Batteries) in the battery slot. Slide the battery until it clicks.

The camera can charge the battery while it is attached to the camera, the camera is off, and the DC power adaptor is connected. The DC Power LED blinks amber until communication is established with the battery. The LED is solid amber when communication is established and the battery is charging. The LED is green when communication is not established (incompatible battery) and the battery is not charging.

NOTE: Incompatible batteries will not charge on the camera.

Removing the Battery

  1. While holding the attached battery, press the Eject Button.
  1. Slide the battery out.
