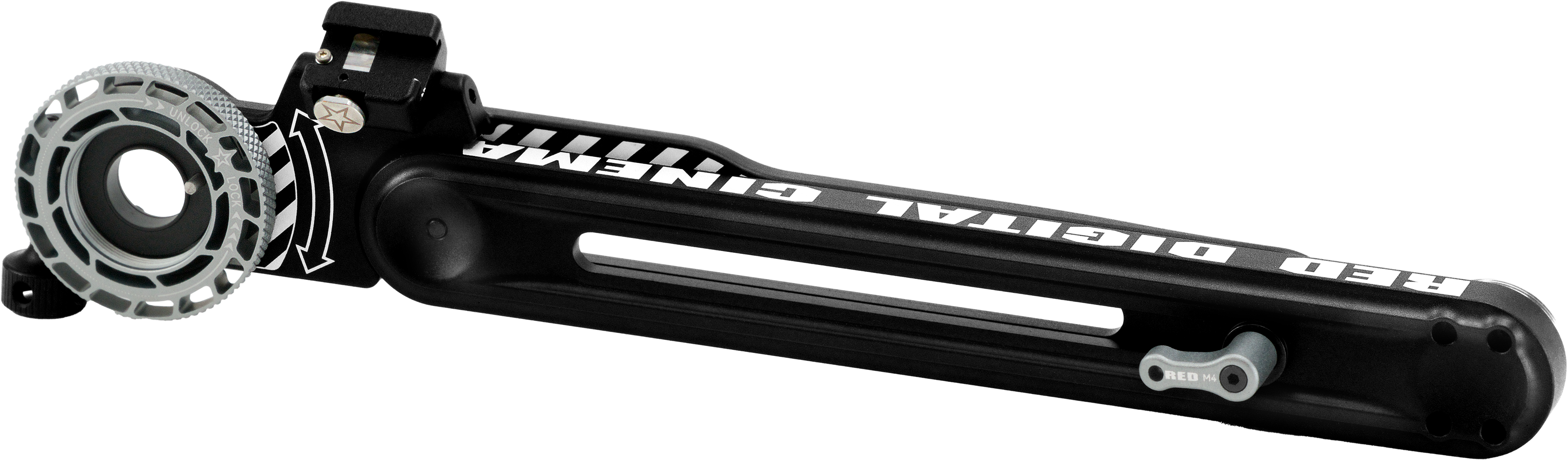

RED® EVF Extension Arm
RED® designed the RED® EVF Extension Arm to seamlessly attach to the RED® EVF Mount, and to provide a greater range of adjustability and configuration for the RED® Compact EVF and DSMC2® RED® EVF (OLED) when the operator is using the camera on tripods or dollies. The Extension Arm provides a range from 10 to 15 inches (25 to 37 cm) when fully extended, and it supports standard eyepiece levelers that use EL-3 style mounting.
NOTE: The RED Compact EVF, DSMC3™ Adapter A and RED EVF Mount sold separately.
|
Item |
Details |
|---|---|
|
Dimensions |
Length 11.6" x Width 1.4" x Height 2.5" |
|
Weight |
0.76 lb |
|
Material |
Aluminum |
|
Camera Mounting |
Locking wheel |
|
EVF Mounting |
Locking wheel |
|
Arm Range |
10 to 15 inches (25 to 37 cm) |
|
Operating Temperature |
32° F to 104° F (0° C to 40° C) |
|
Storage Temperature |
–4° F to 122° F (–20° C to 50° C) |
|
Operating Humidity |
0% to 85%, non-condensing |
|
Storage Humidity |
0% to 85%, non-condensing |
