Super 35 Anamorphic (6K)

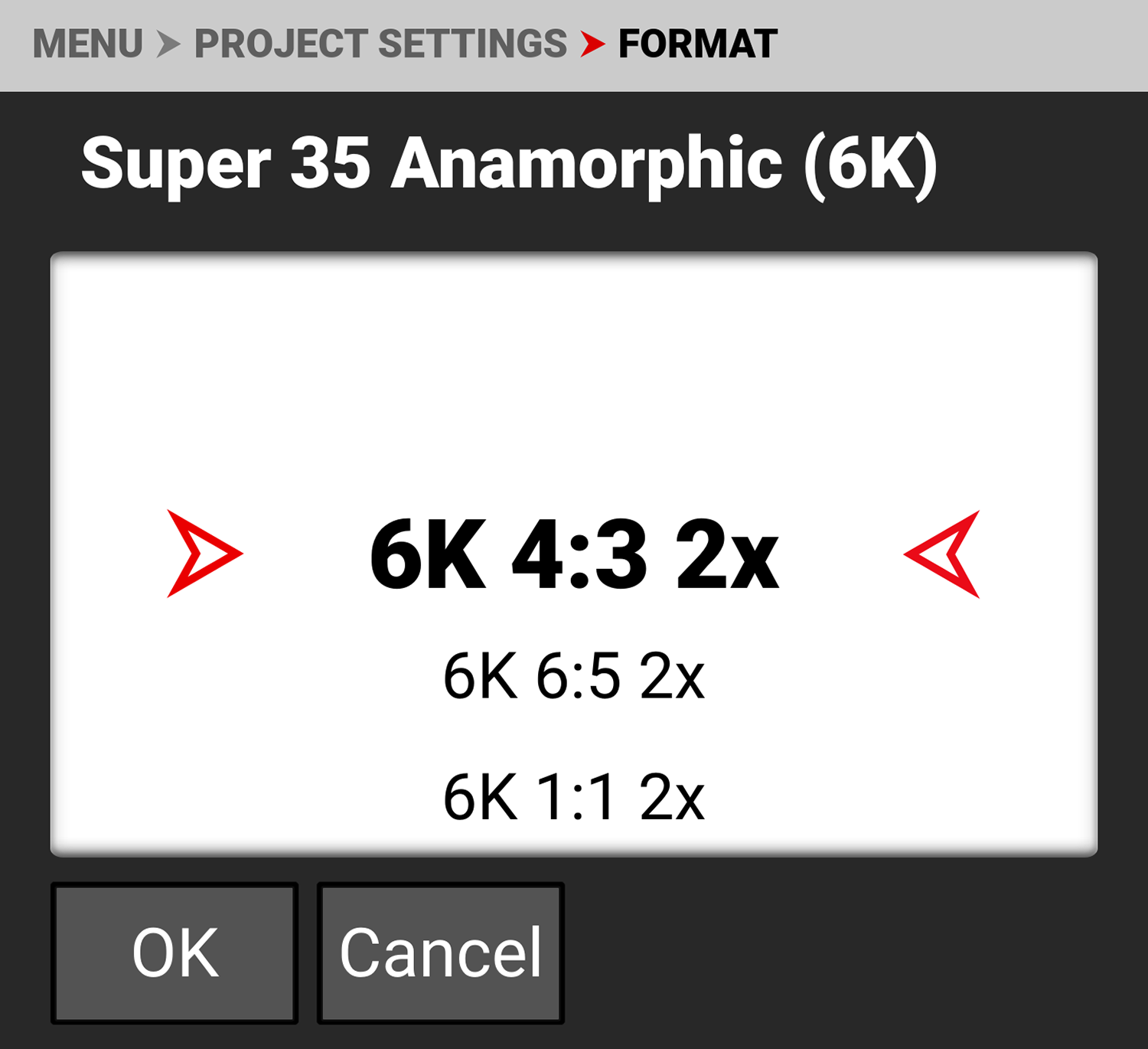

Use the Super 35 Anamorphic Format setting to designate how much of the sensor the camera should use to capture images.
The available aspect ratios are determined by the selected resolution.
When you lower the resolution on the camera, only a portion of the sensor is used. The camera does not downscale from the 6K 17:9 format when recording RAW.
Super 35 Anamorphic (6K) Format Specifications
This table contains the effective dimensions of the sensor area in Pixels and in Millimeters used by each Super 35 Anamorphic (6K) format.
The default setting is 6K 4:3 2x.
|
Format |
|
Dimension (Pixels) |
|
Dimension De-squeezed |
|
Dimensions (MM) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
Width |
Height |
|
Width |
Height |
|
Width |
Height |
Diagonal |
|
6K 4:3 2x |
|
4320 |
3240 |
|
8640 |
3240 |
|
19.01 |
14.26 |
23.76 |
|
6K 6:5 2x |
|
3888 |
3240 |
|
7776 |
3240 |
|
17.11 |
14.26 |
22.27 |
|
6K 1:1 2x |
|
3240 |
3240 |
|
6480 |
3240 |
|
14.26 |
14.26 |
20.17 |
|
6K 3:2 1.8x |
|
4860 |
3240 |
|
8748 |
3240 |
|
21.38 |
14.26 |
25.70 |
|
6K 4:3 1.8x |
|
4320 |
3240 |
|
7776 |
3240 |
|
19.01 |
14.26 |
23.76 |
|
6K 3:2 1.6x |
|
4860 |
3240 |
|
7776 |
3240 |
|
21.38 |
14.26 |
25.70 |
|
6K 16:9 1.5x |
|
5760 |
3240 |
|
8640 |
3240 |
|
25.34 |
14.26 |
29.08 |
|
6K 17:9 1.3x |
|
6144 |
3240 |
|
8192 |
3240 |
|
27.03 |
14.26 |
30.56 |
|
6K 17:9 1.25x |
|
6144 |
3240 |
|
7680 |
3240 |
|
27.03 |
14.26 |
30.56 |
