Top LCD

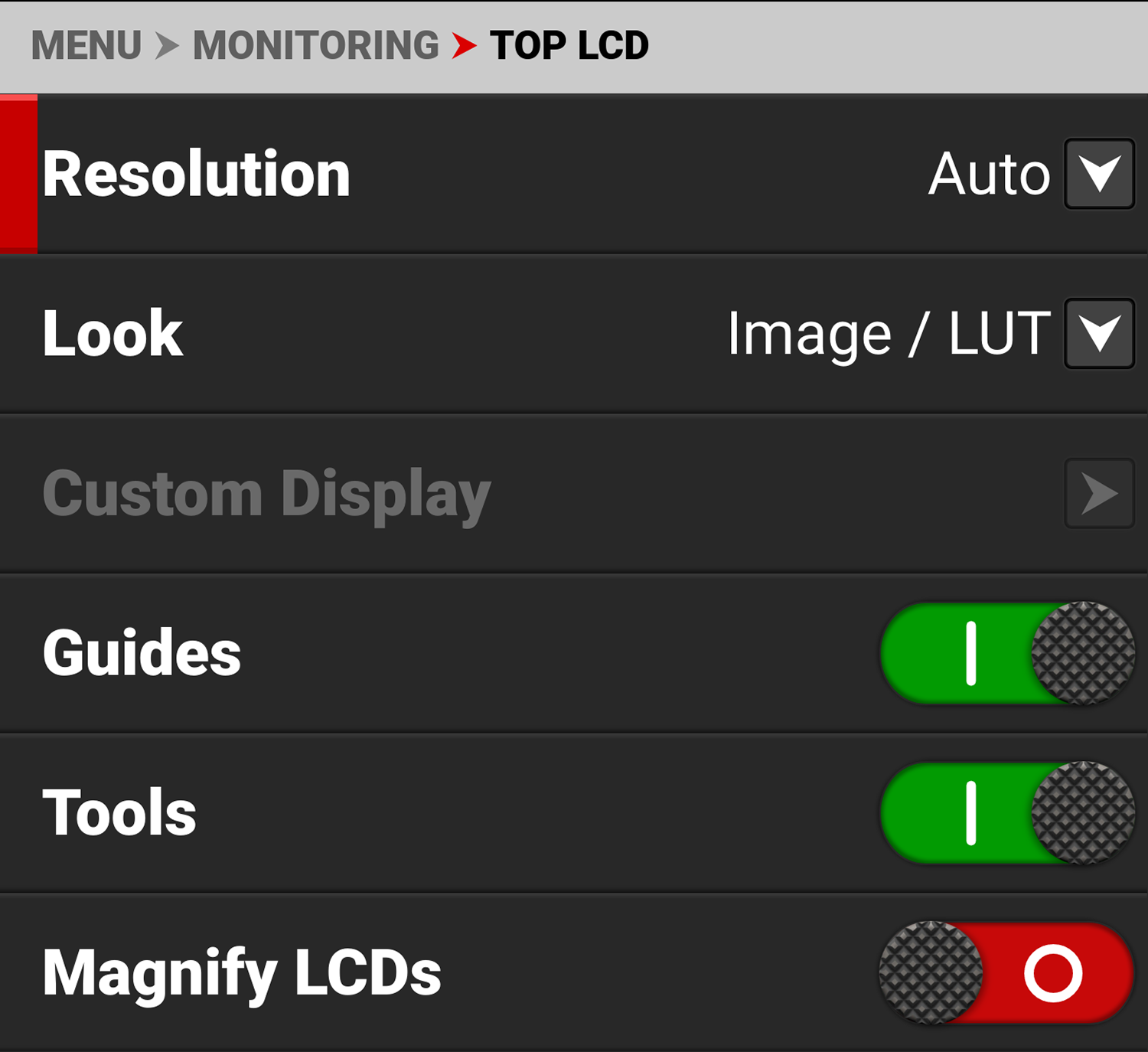

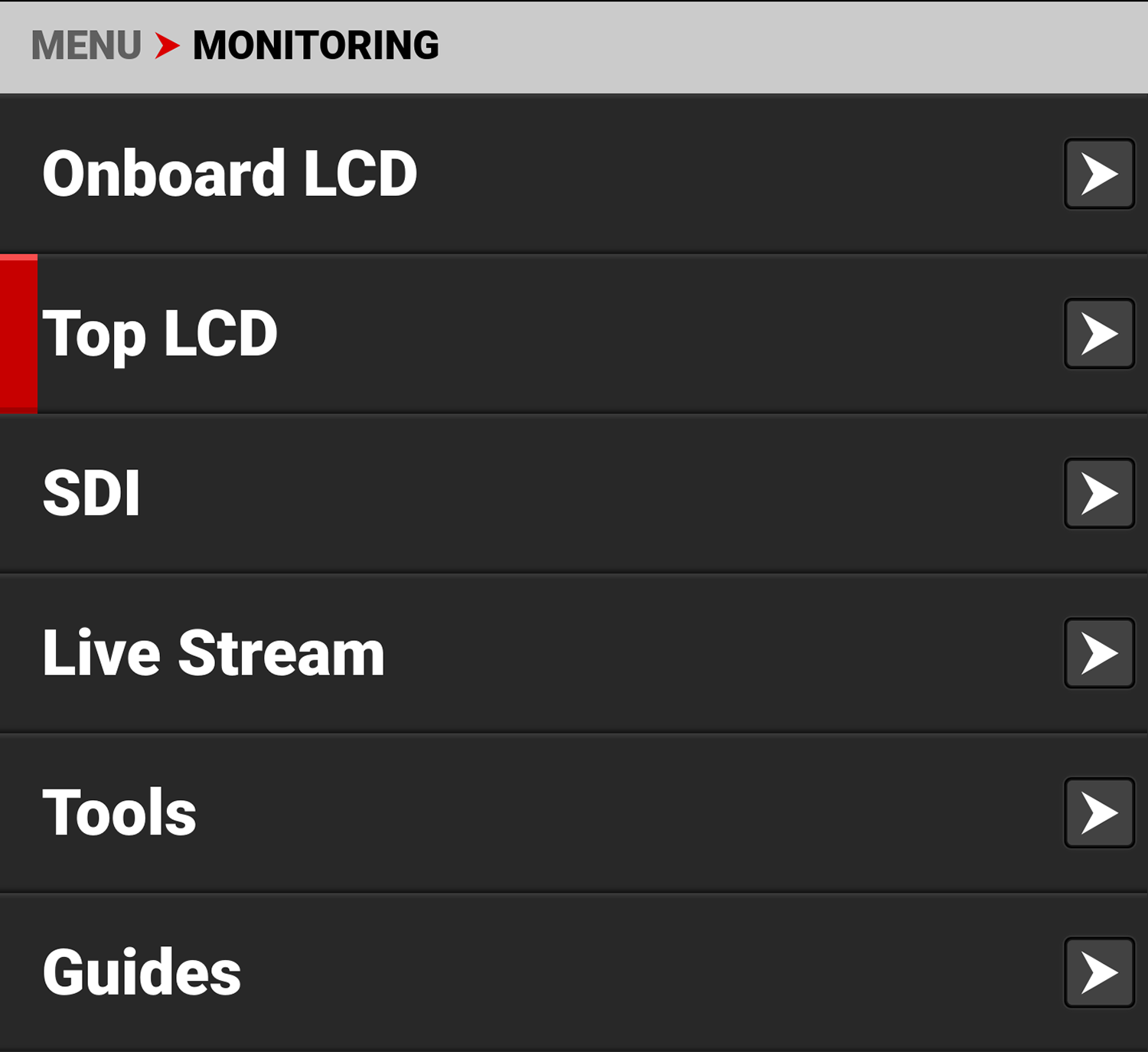

Use Top LCD to configure the DSMC3™ RED® Touch 7.0" LCD settings.
The LCD settings you can configure include:
|
Items |
Details |
|---|---|
|
Adjust the RED® Touch 7.0" LCD resolution |
|
|
Select the Image / LUT, RWG, Log3G10, or a Custom Display image preview |
|
|
Configure the Custom Display settings when enabled |
|
|
Enable or disable the camera guides |
|
|
Enable or disable the camera tools |
|
|
Enable or disable LCD magnification |
|
|
Select the LCD magnification area position |
|
|
Enable or disable the prism finder mode (horizontally flip the LCD) |
Resolution

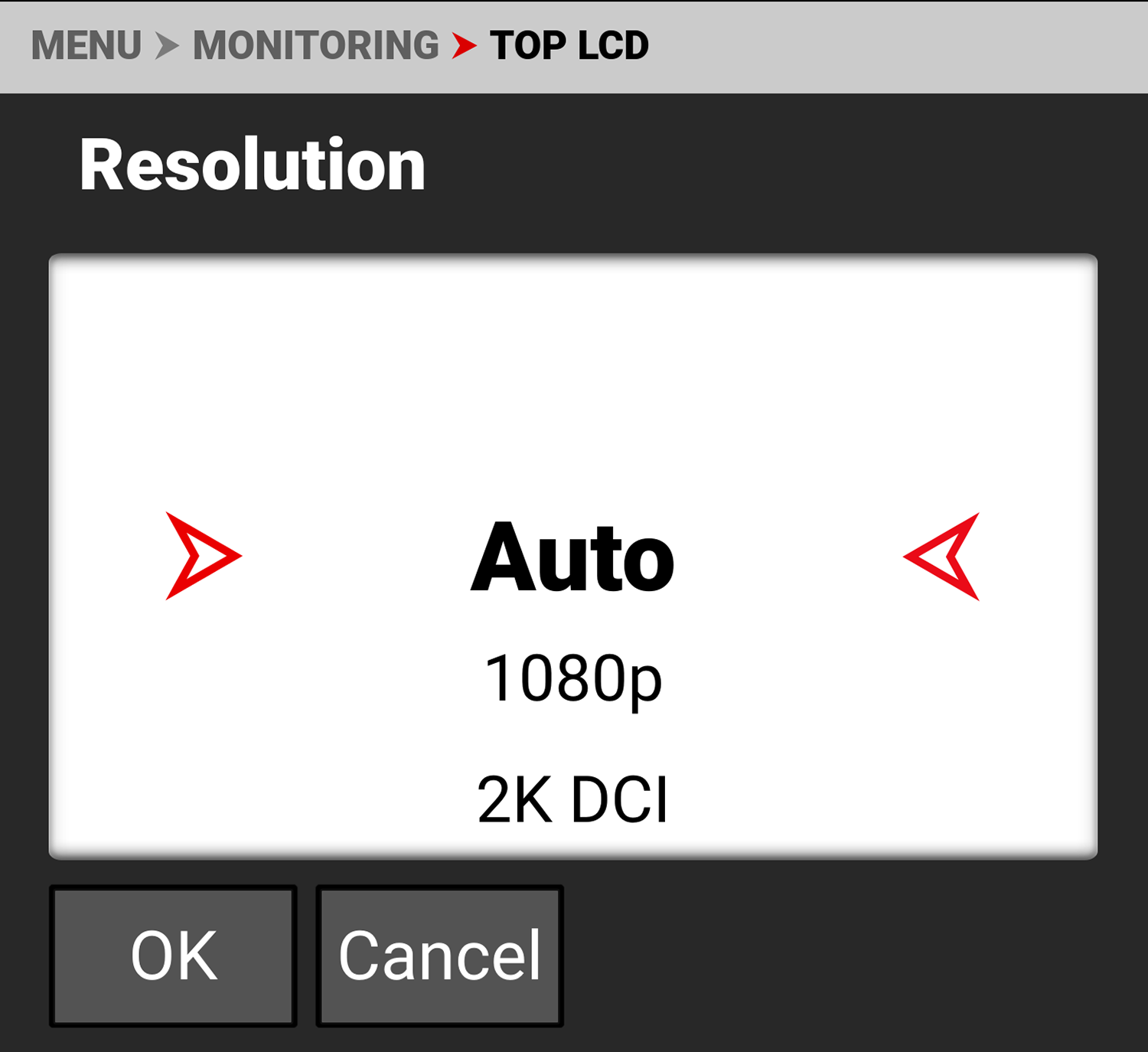

You can select the resolution of the Top LCD.
The selections include:
- Auto (default)
- 1080p
- 2K DCI
Look
|
|

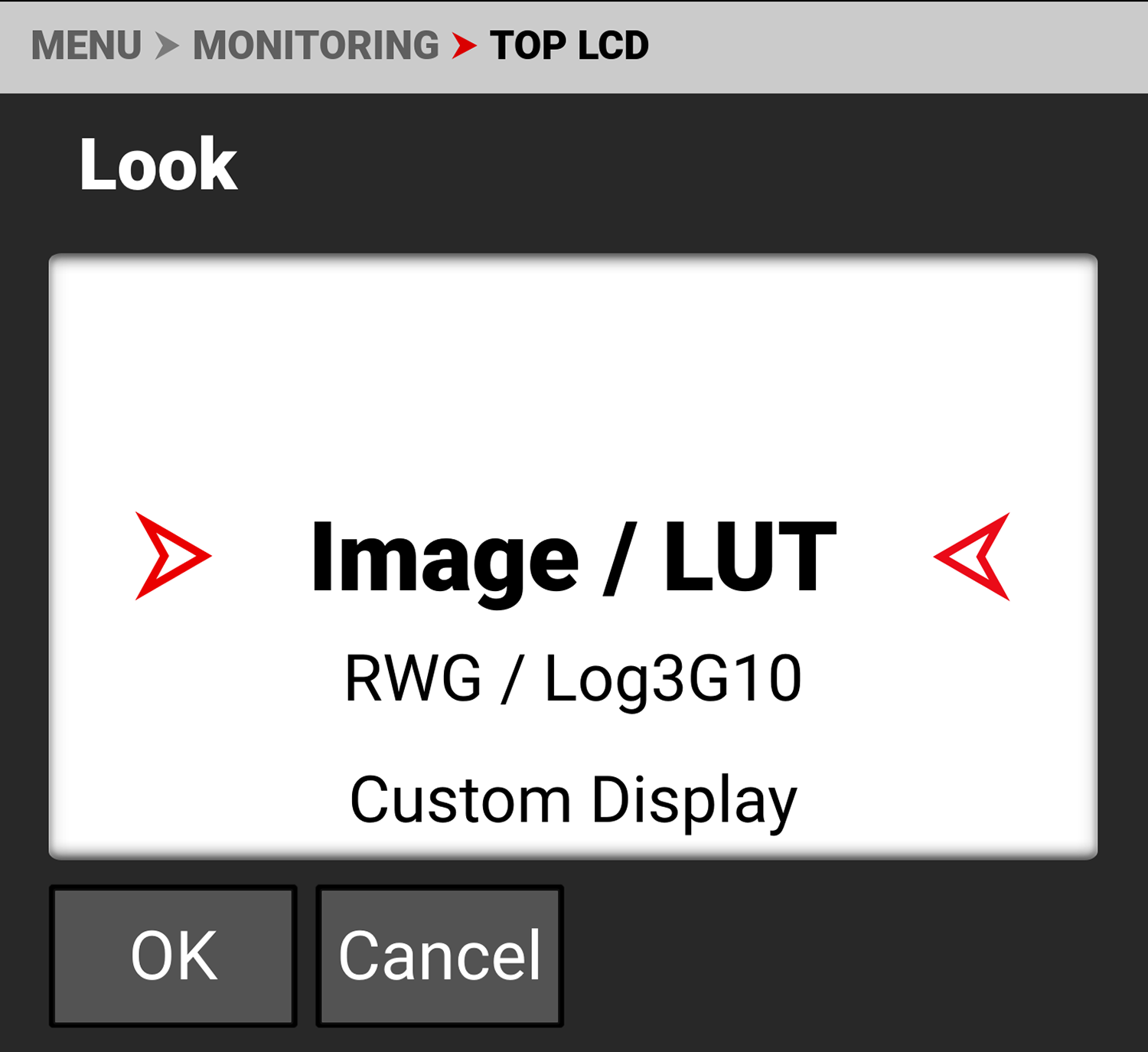

You can select the look of the image preview signal sent to the Top LCD. The selections include: • Image / LUT (default) • REDWideGamutRGB / Log3G10 • Custom Display (enables the Custom Display menu) |
Custom Display
|
|

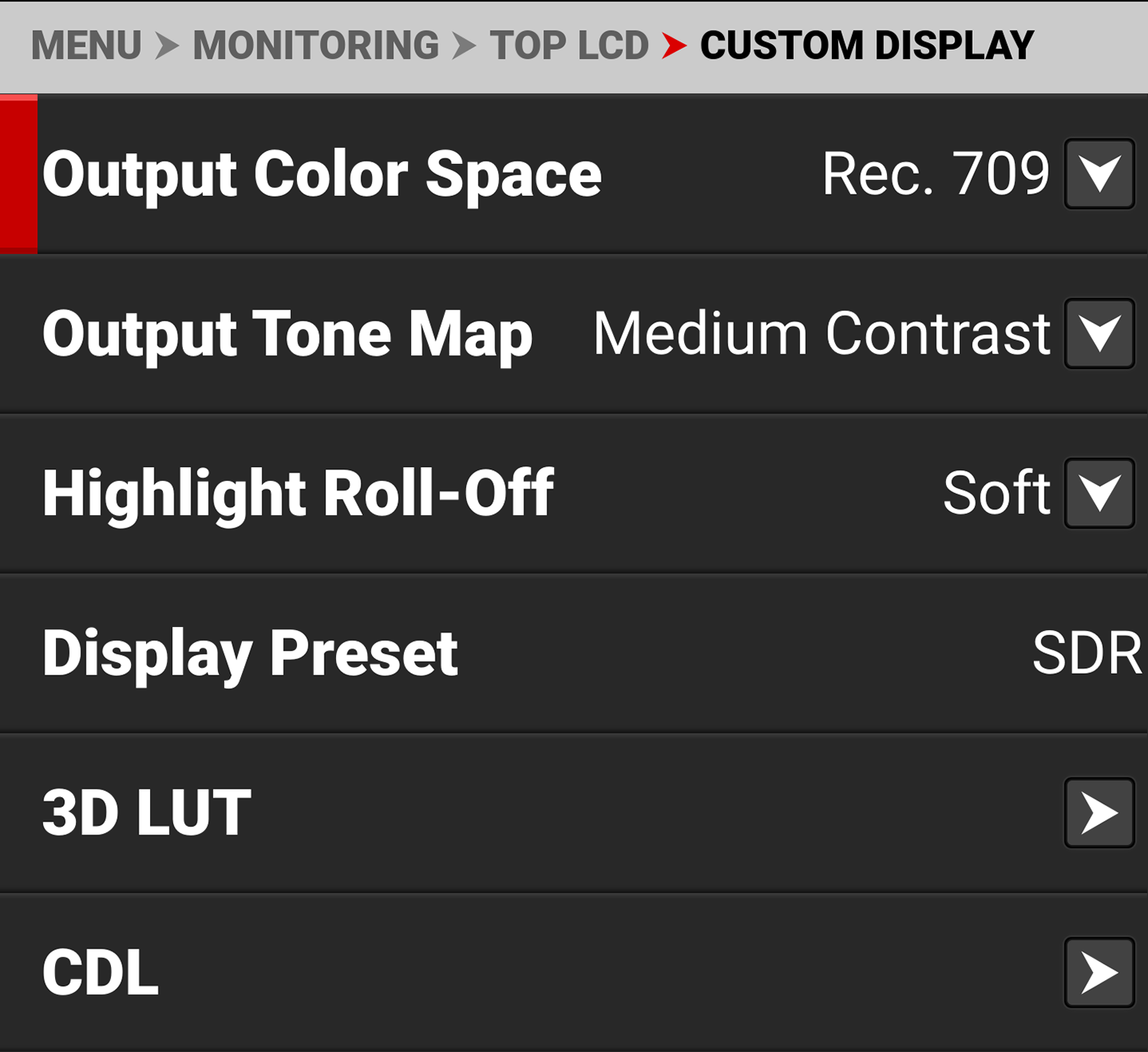

Use Custom Display to configure the Top LCD independently of the camera's Image / LUT settings or other monitor output configurations. Refer to Image / LUT Menu for more information about the Image/LUT settings and menus. |
Guides
Use the toggle to enable (default) or disable the camera guides.
Tools
Use the toggle to enable (default) or disable the camera tools.
Magnify LCDs

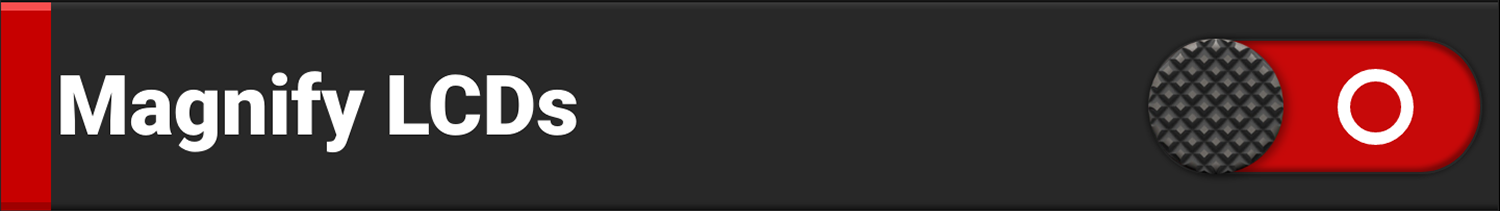

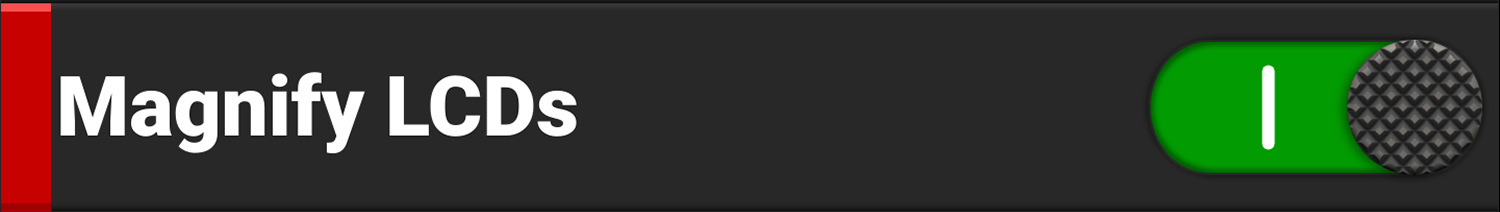

Use the toggle to enable or disable (default) LCD magnification.
Magnify Position (Global)
Use Magnify Position (Global) to select the position of the magnified area for all LCD magnification.
Use Magnify Position to globally select the area of the image you want to magnify.
The selections include:
|
• Left |
• Upper Middle |
• Upper Right |
|
• Upper Left |
• Center (default) |
• Lower Right |
|
• Lower Left |
• Lower Middle |
• Right |
Prism Finder Mode

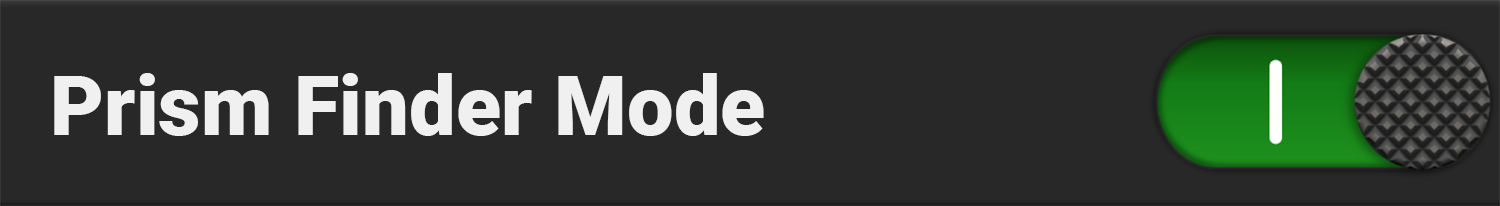

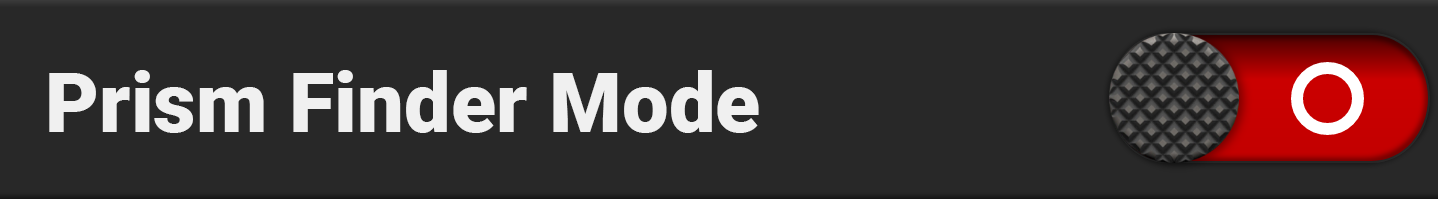

Use the toggle to enable or disable (default) the LCD flip view.
