USB-C Apple Configuration

The KOMODO-X offers a USB-C 3.0 protocol connection that provides communication support for Apple devices.

Connecting to An Apple Device

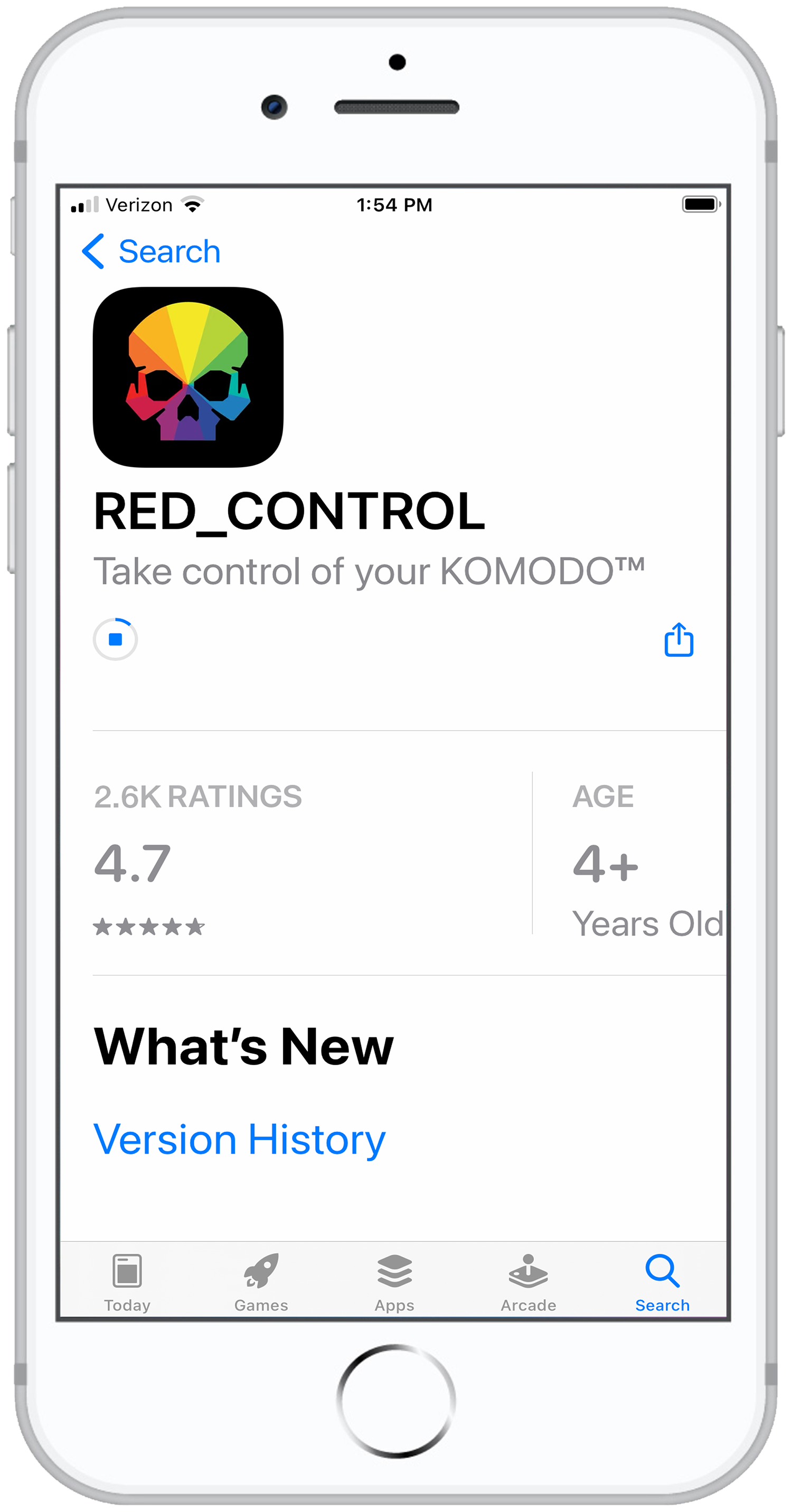

  1. From the Apple store, download the RED Control Apps to the Apple device.

Note: Scroll to the bottom of the user agreement to accept the agreement.



  1. Connect the Apple device to the camera with a USB-C cable. If the "Trust This Computer?" message displays, skip to step 6.

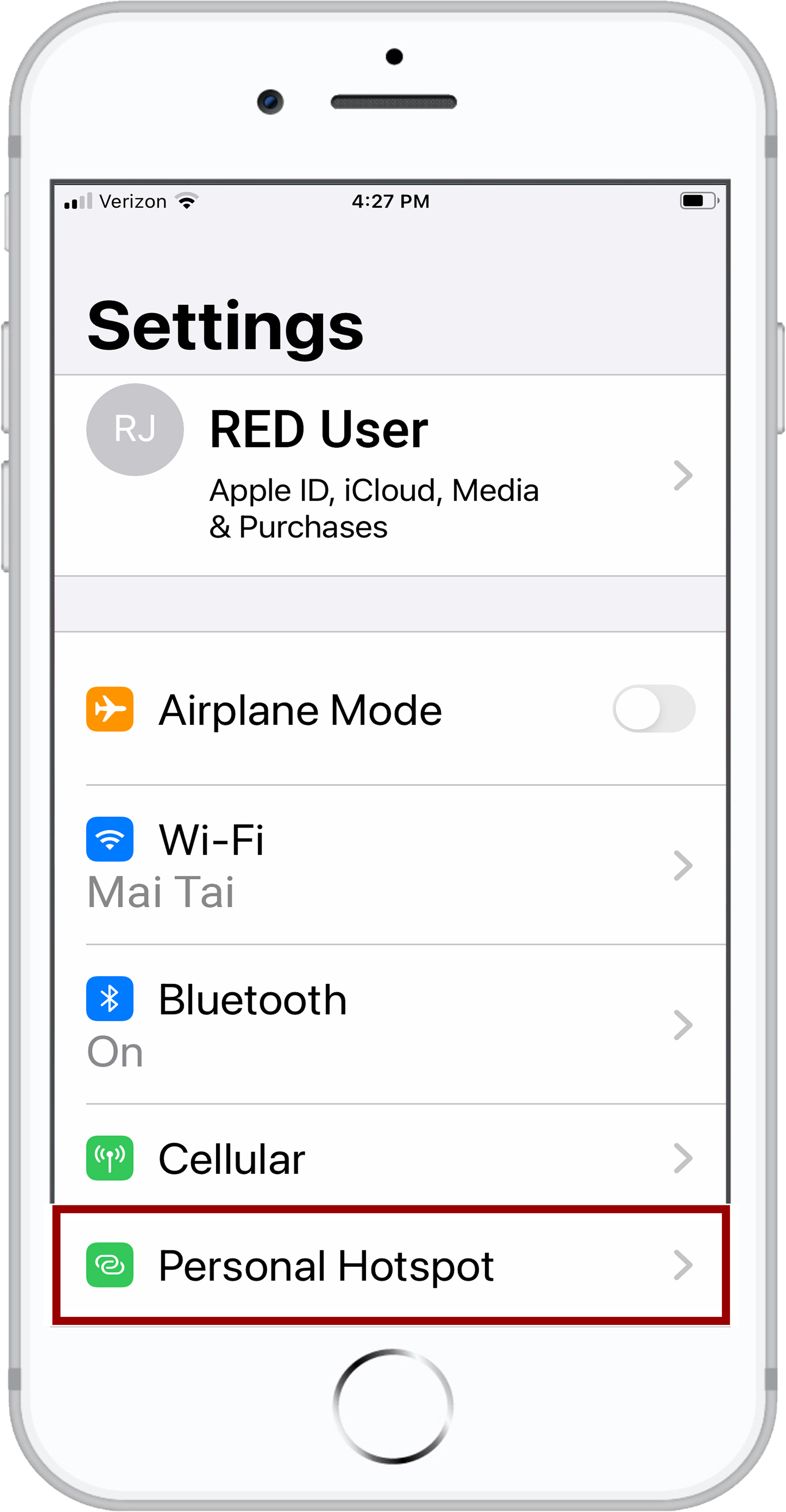

  1. Open the Apple device settings by tapping the Settings icon.



  1. Select Personal Hotspot.

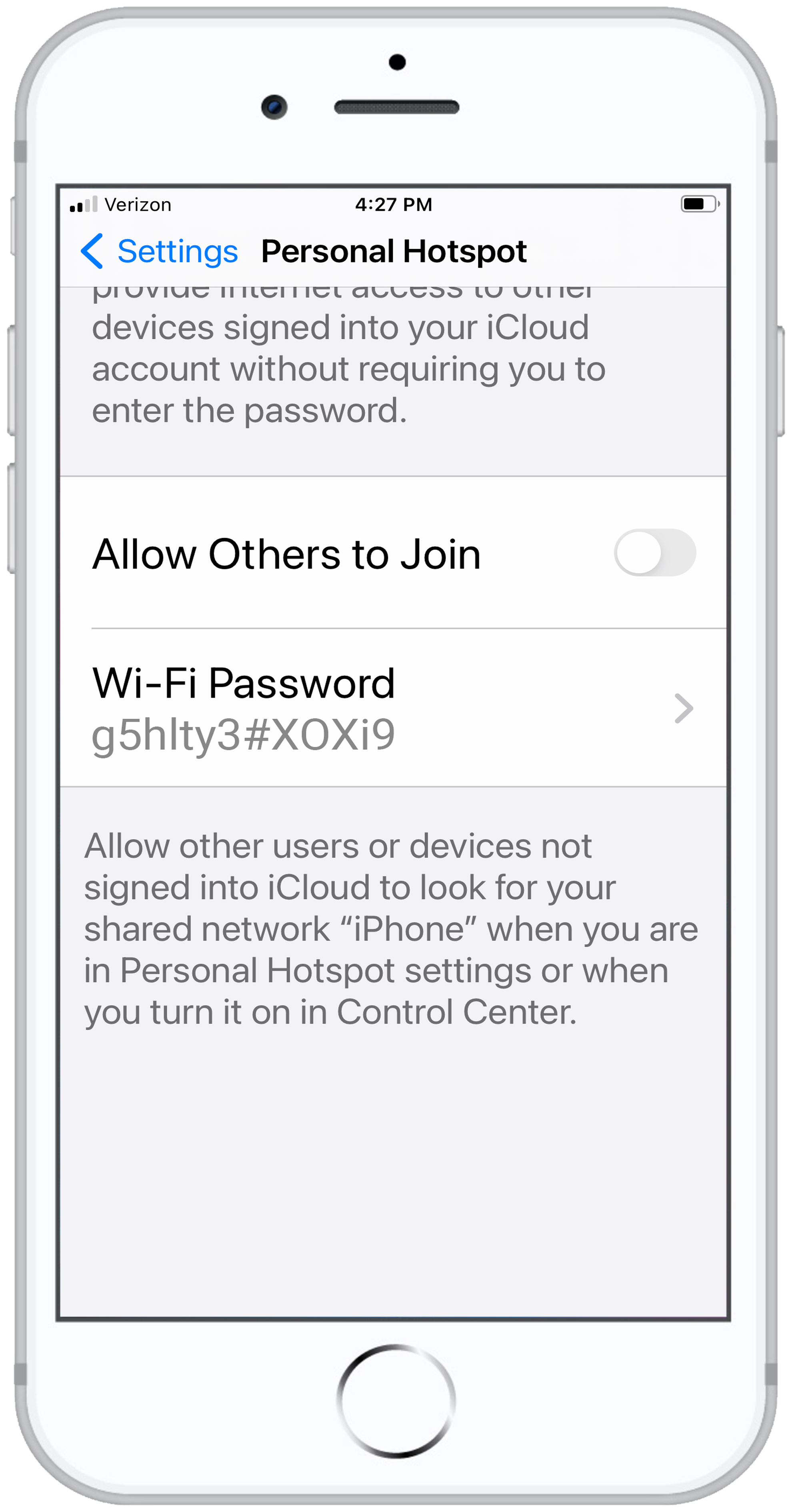

  1. Allow others to join.

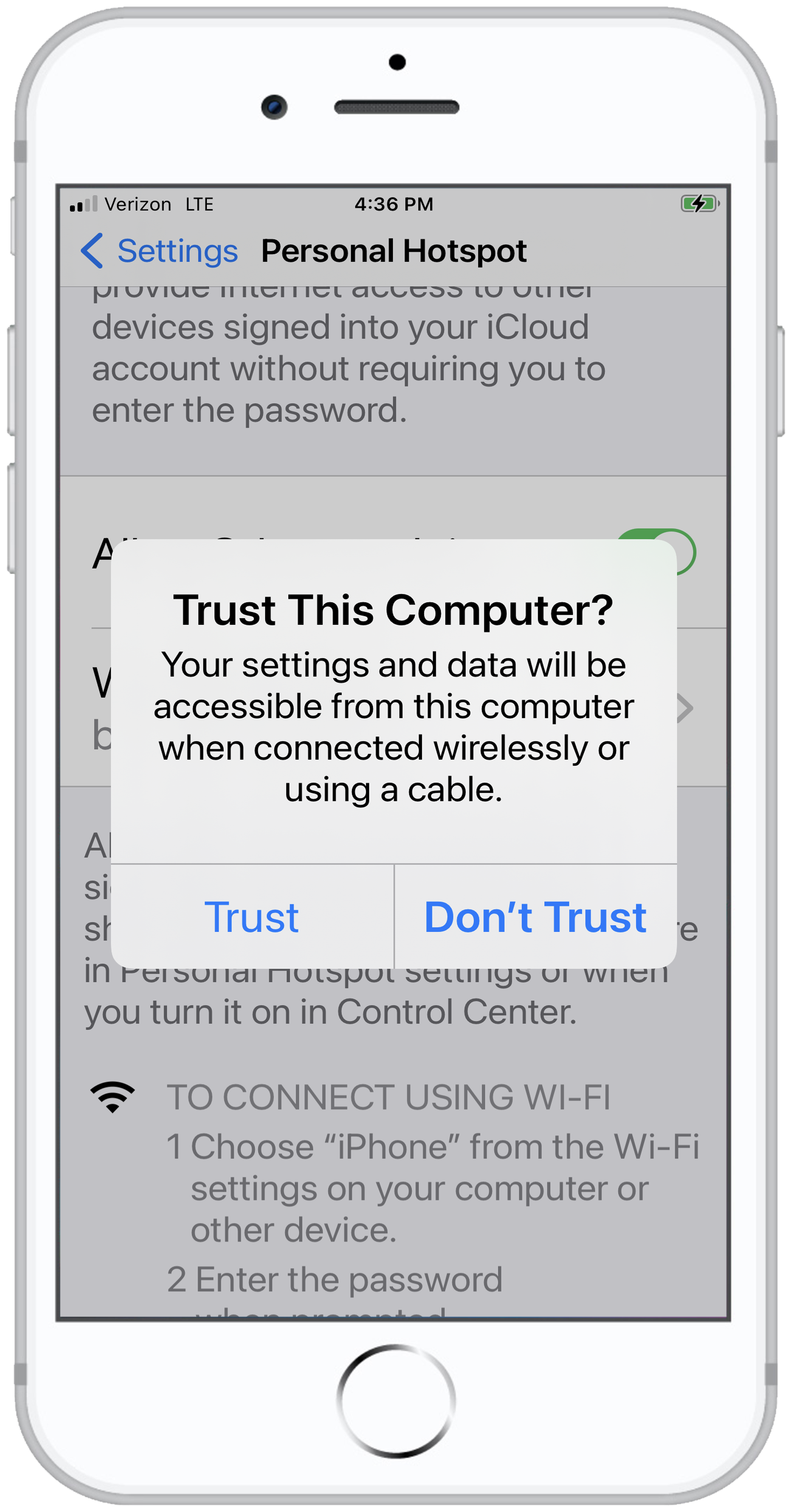

  1. The Apple device prompts you to acknowledge that you trust the computer (camera).

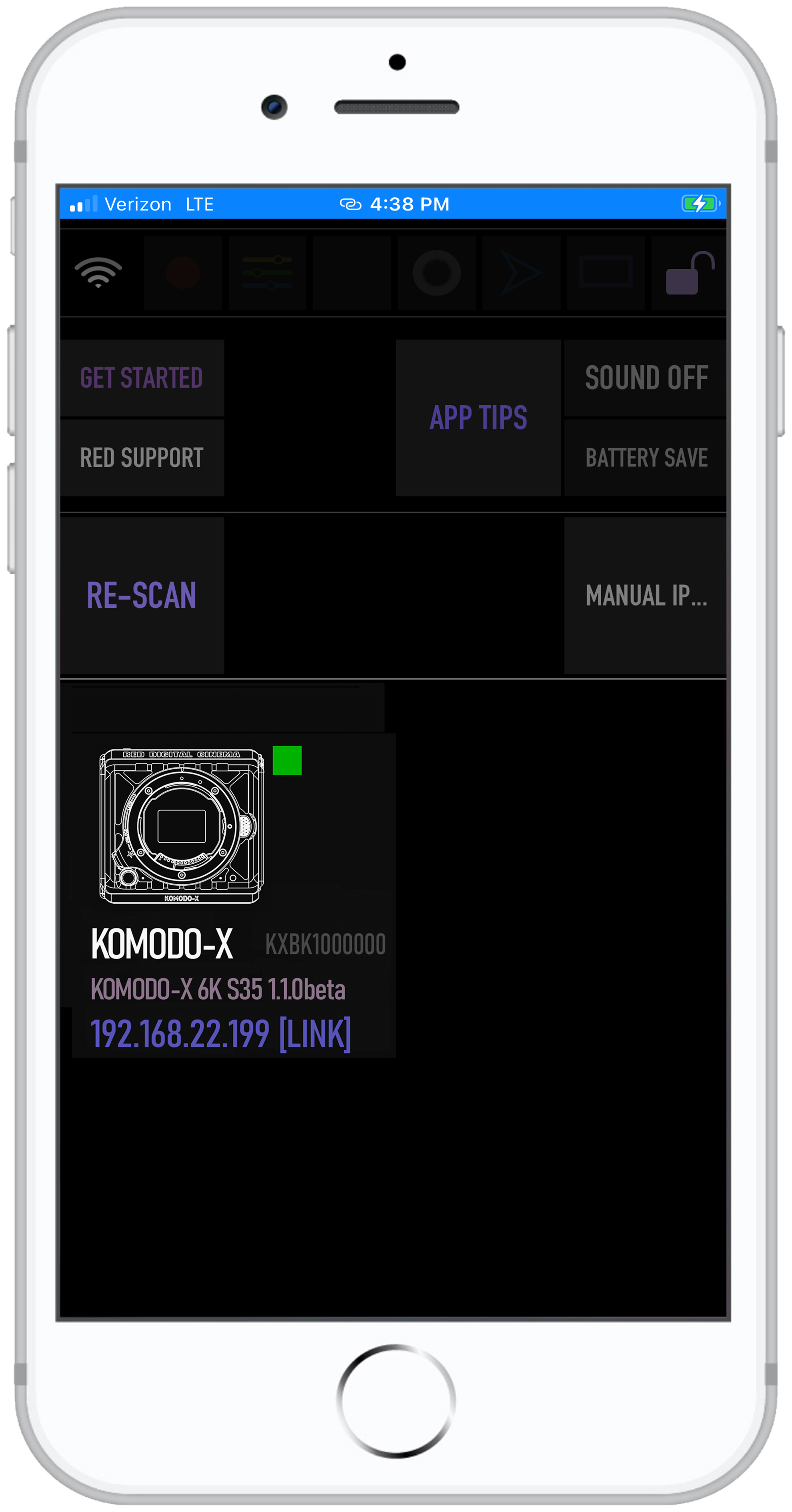

  1. From the Apple device, tap the RED Control icon to open the RED Control app.

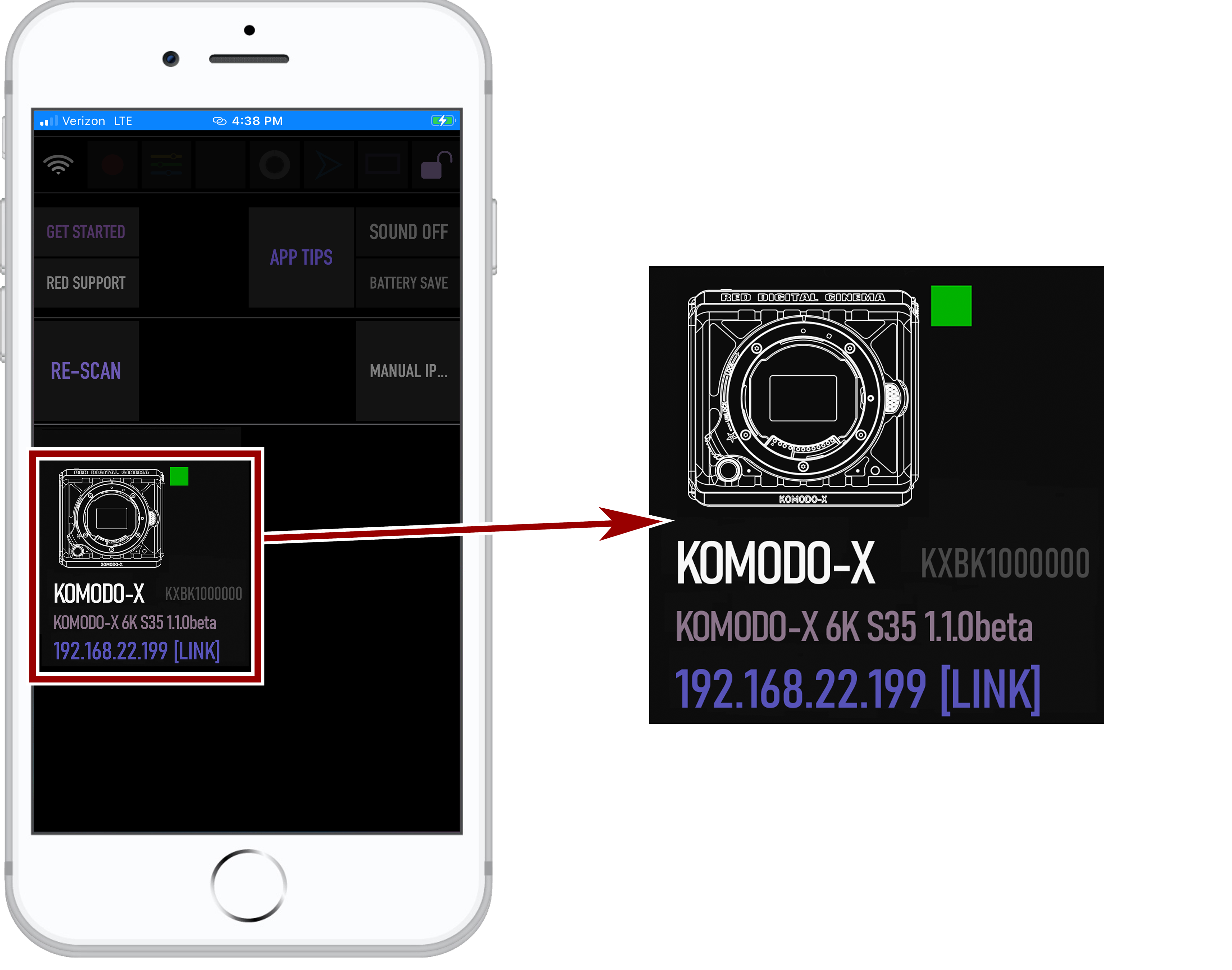

The RED Control app displays the camera connection icon. The word LINK is visible after the IP address.

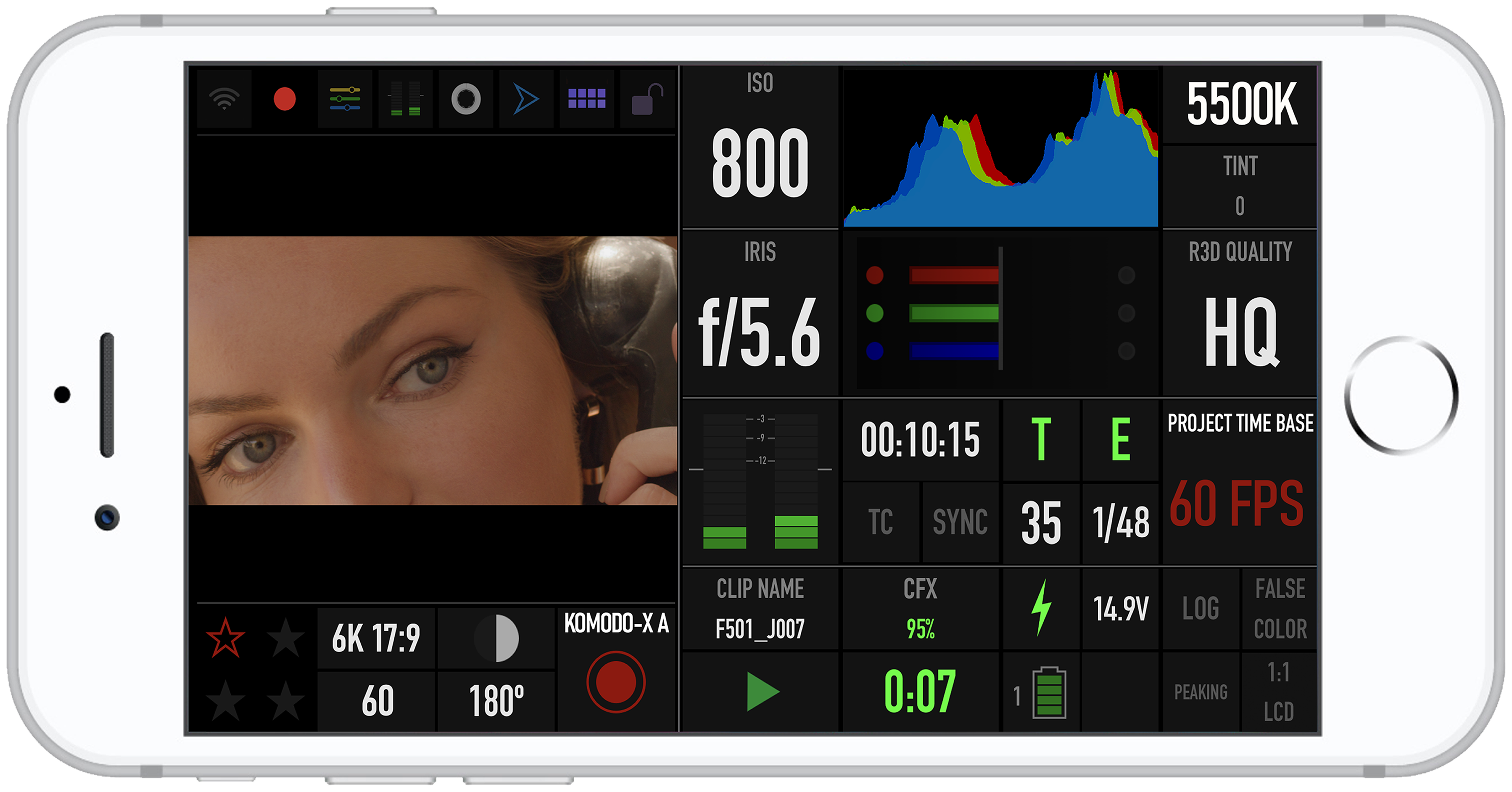

  1. Tap the icon to open the RED Control app tools for the connected camera.

From here you can use the RED Control Apps to monitor and control the camera.
