DC-Input

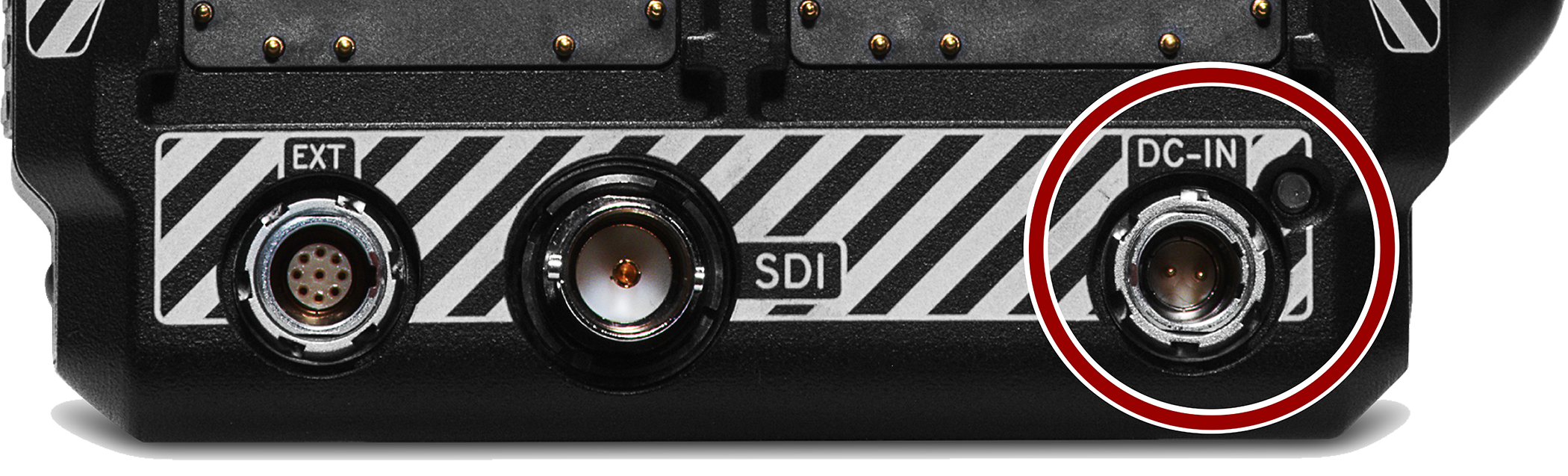

The DC-IN port is located on the back of the camera body.
Connect the 2-pin 0B ODU DC power Adaptor plug to this port to provide the camera with continuous DC power. The RED power Adaptor provides DC power to operate the camera and to recharge the attached Batteries.
NOTE: The camera cannot charge batteries while it is turned on.
Specifications
The 2-pin 0B connector accepts unregulated (+) 7 to 17 Volts (V) Direct Current (DC) power.
The power consumption guidelines are:
- The camera uses between 20 Watts and 24 Watts of power in its basic configuration
- Additional power may be necessary based on ambient temperature and changes to camera firmware in future updates (up to an additional 5 Watts)
- Up to an additional 8 Watts might be required for additional accessories attached to the top pogo port and the EXT port
- Maximum power consumption is not expected to exceed 37 Watts

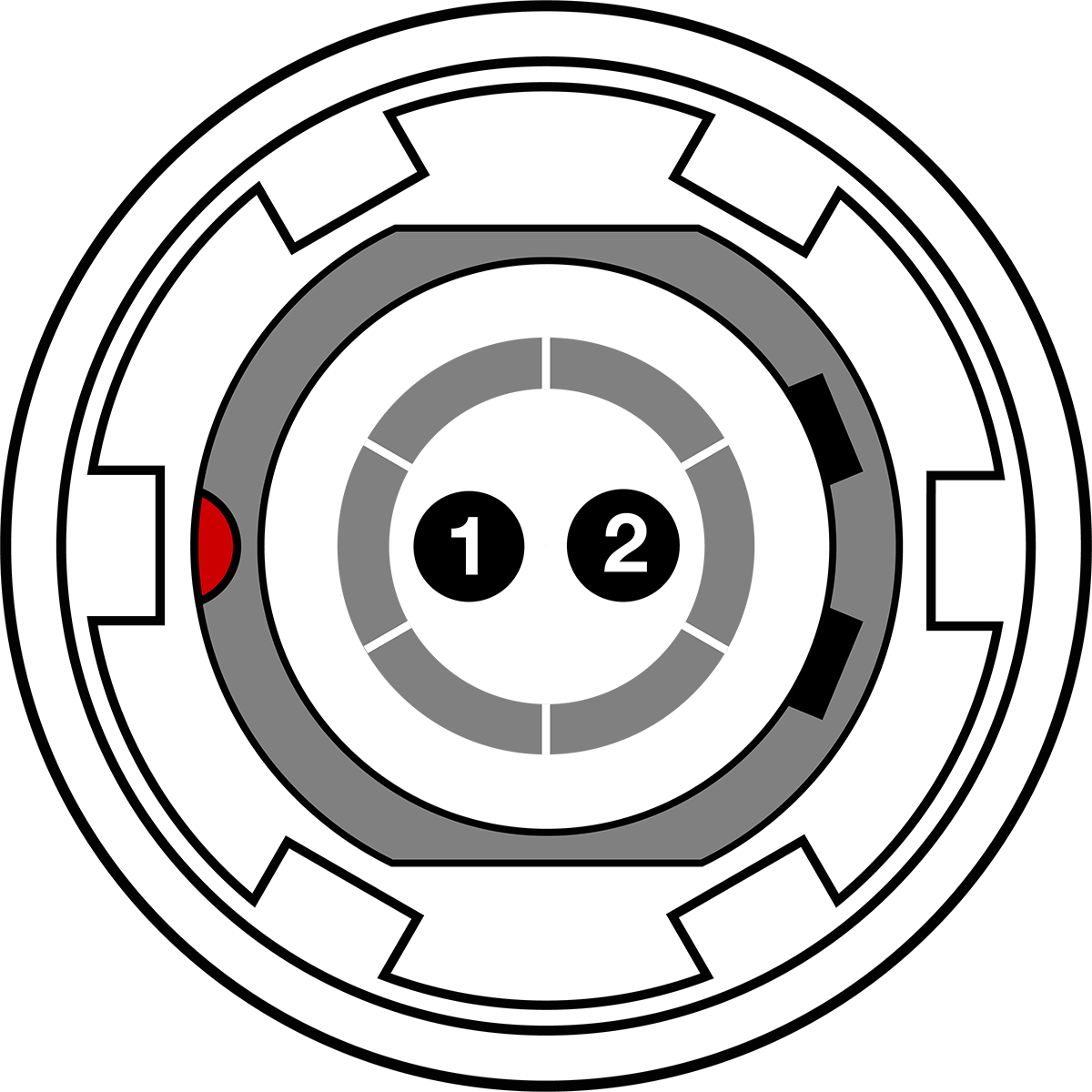

Figure: Front Face of DC-IN Port (looking at the back of the camera)
NOTE: The required mating connector is a 2-pin 0B Straight Plug Connector (ODU, part# SX0LCX-P02LJG0-0001).
ODU 0B 2-Pin Connector
|
PIN |
|
SIGNAL |
|
Description |
|
Direction |
|---|---|---|---|---|---|---|
|
1 |
|
7 to 17 Volts DC |
|
Power to the camera and batteries |
|
In |
|
2 |
|
GROUND |
|
Common ground |
|
N/A |
