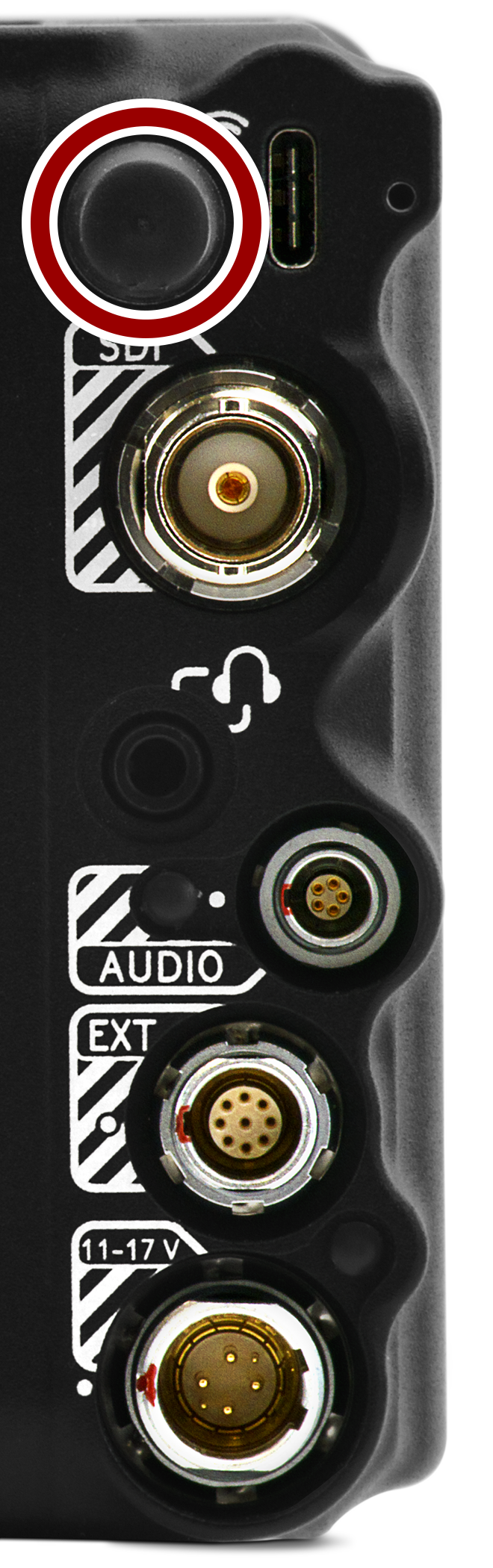

Female RP SMA Port

The female RP SMA connector provides an attachment for the male RP SMA Wi-Fi antenna.

Front Face of the DC In Power Input Connector (Looking at the Camera)

Figure: Front face of the female RP SMA port (looking at the back of the camera).

NOTE: Mating connector is a Wi-Fi antenna with a standard male RP SMA connector.
