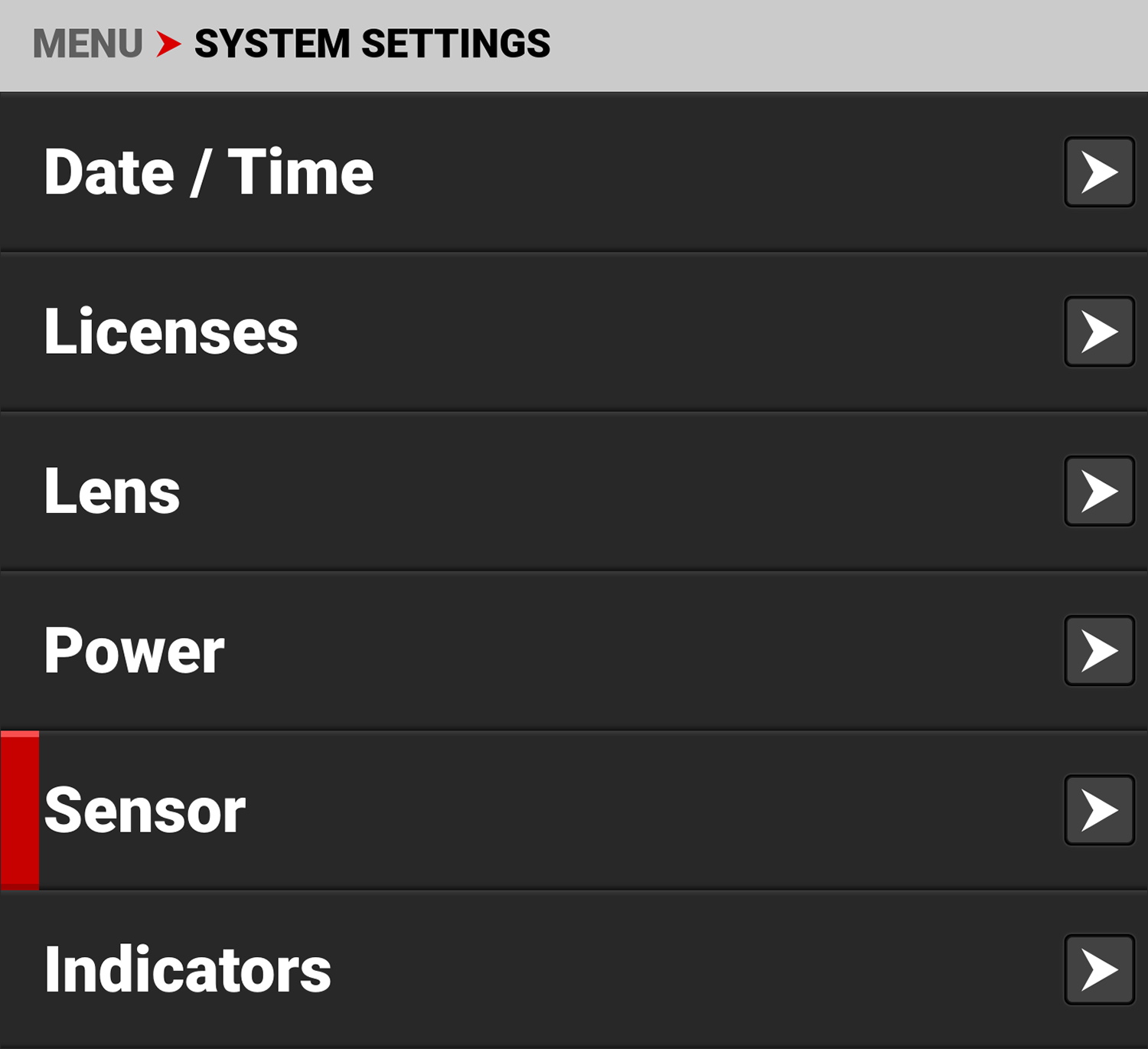

Sensor
Use Sensor to shift the sync signal.

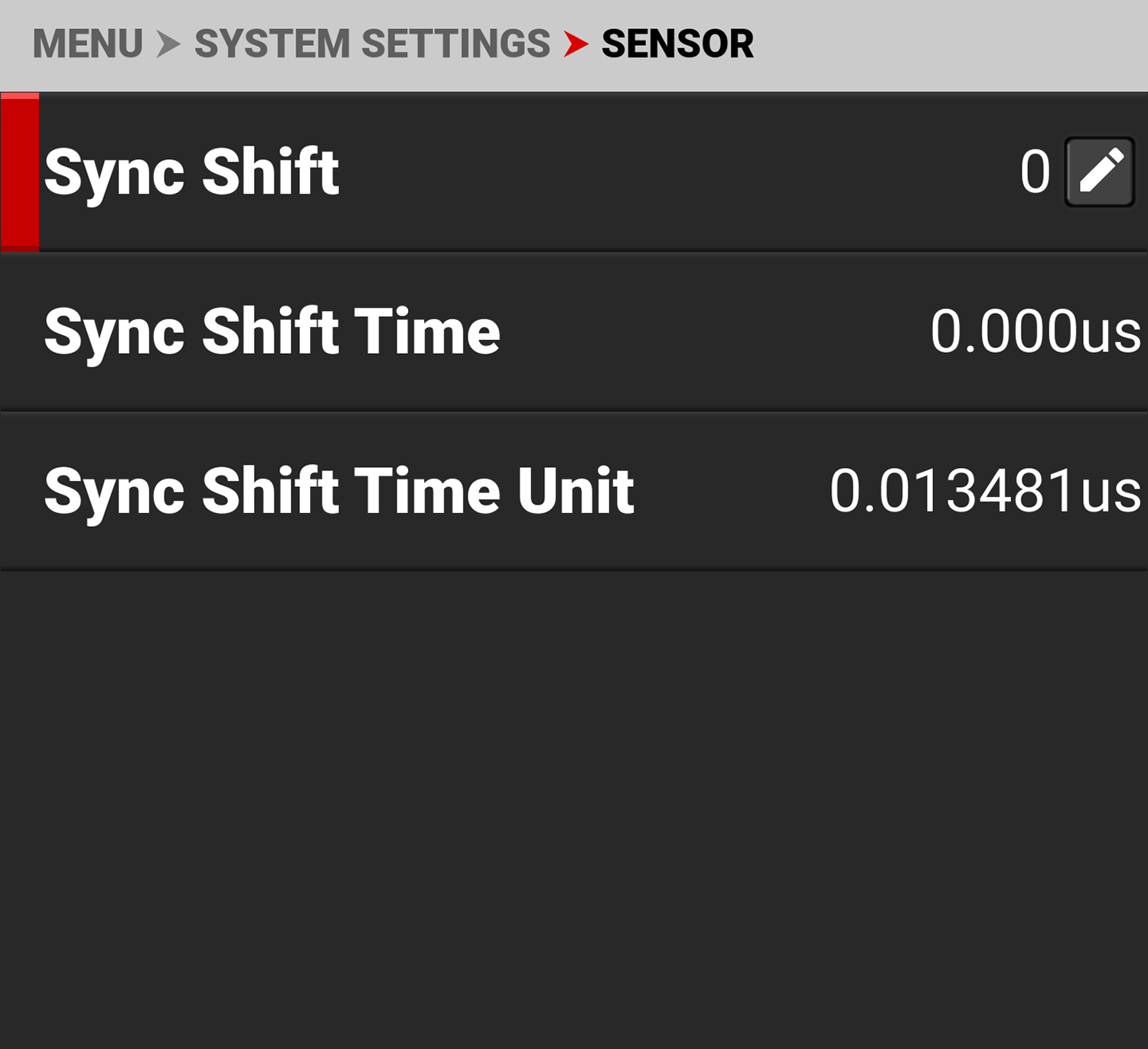

The Sensor menu includes:
|
Item |
|
Details |
|---|---|---|
|
|
Enter the desired amount of sync shift |
|
|
Sync Shift Time |
|
Displays the Sync Shift time in microseconds (μs) |
|
Sync Shift Time Unit |
|
Displays the units of microseconds (μs) used for the Sync Shift setting |
Sync Shift

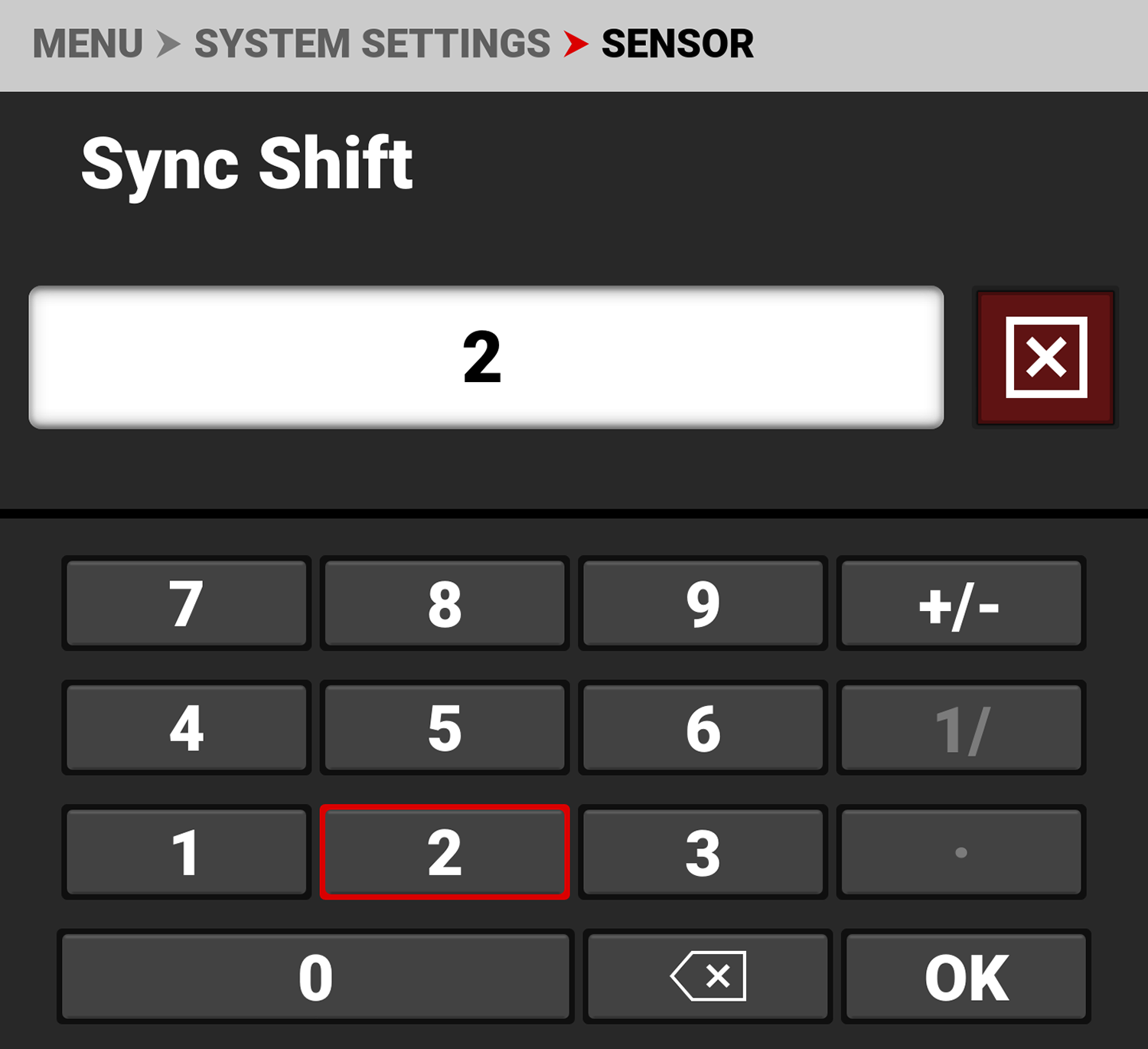

Use Sync Shift to open the keypad and enter the number of Sync Shift Time Units you want to offset the sensor from the external sync signal. Use this setting to resolve synchronization issues on set such as when working with LED Volumes.
In this example, the Sync Shift is 2 x 0.013481 microseconds ≃ 0.026 microseconds.
