Monitoring Tools

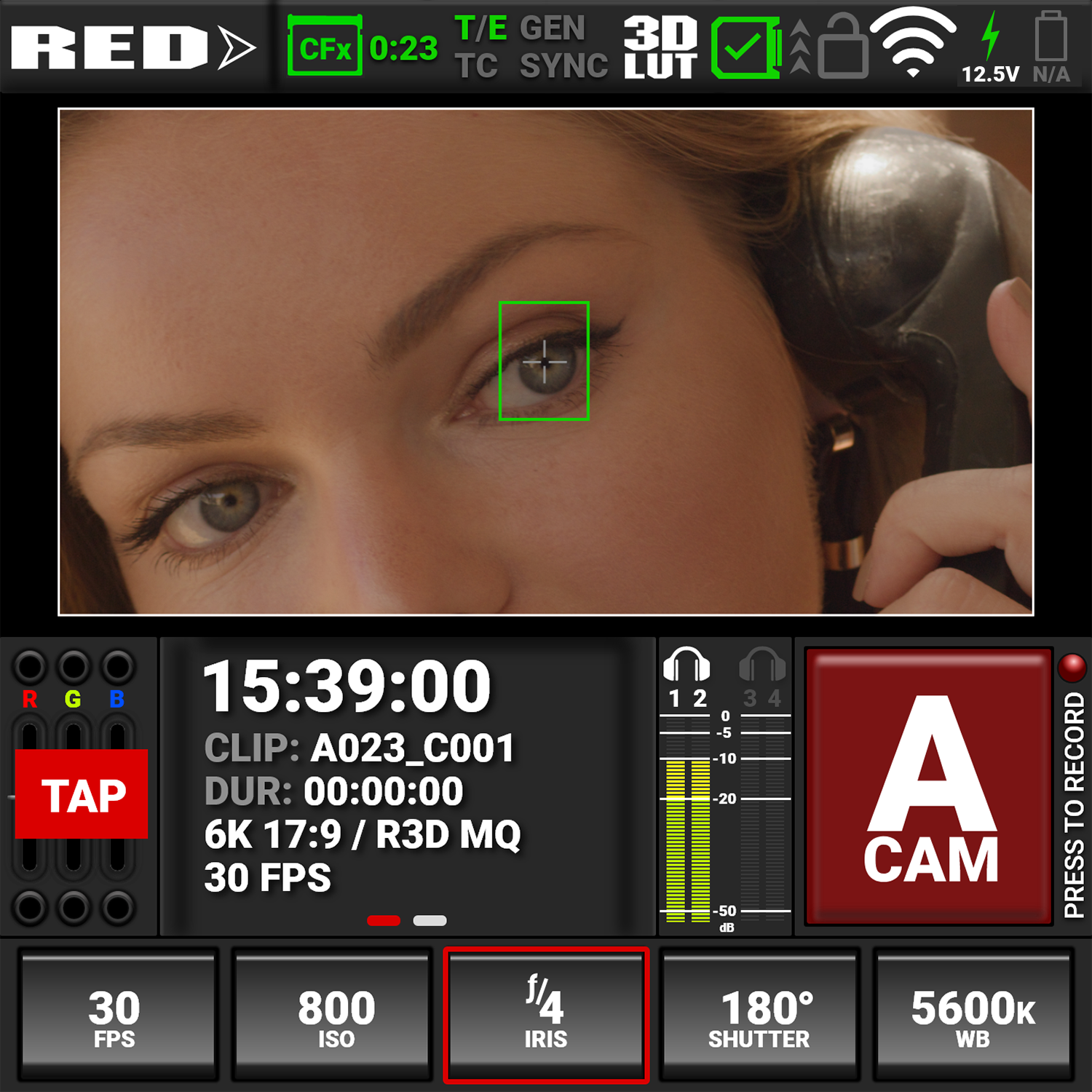

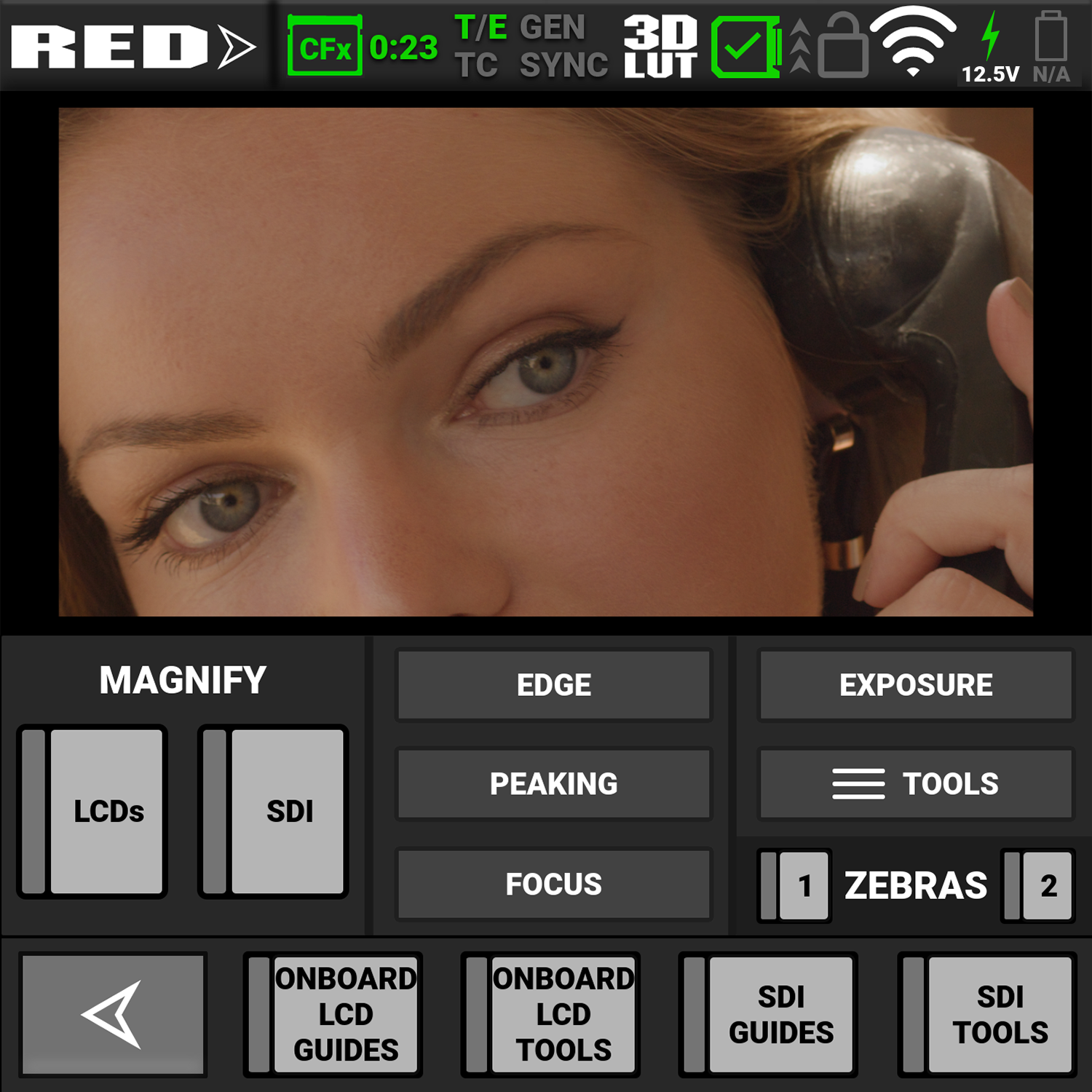

Open the Monitoring tools by tapping on the Exposure section of the Onboard LCD home page.



Return to the Onboard LCD home page by tapping the arrow button

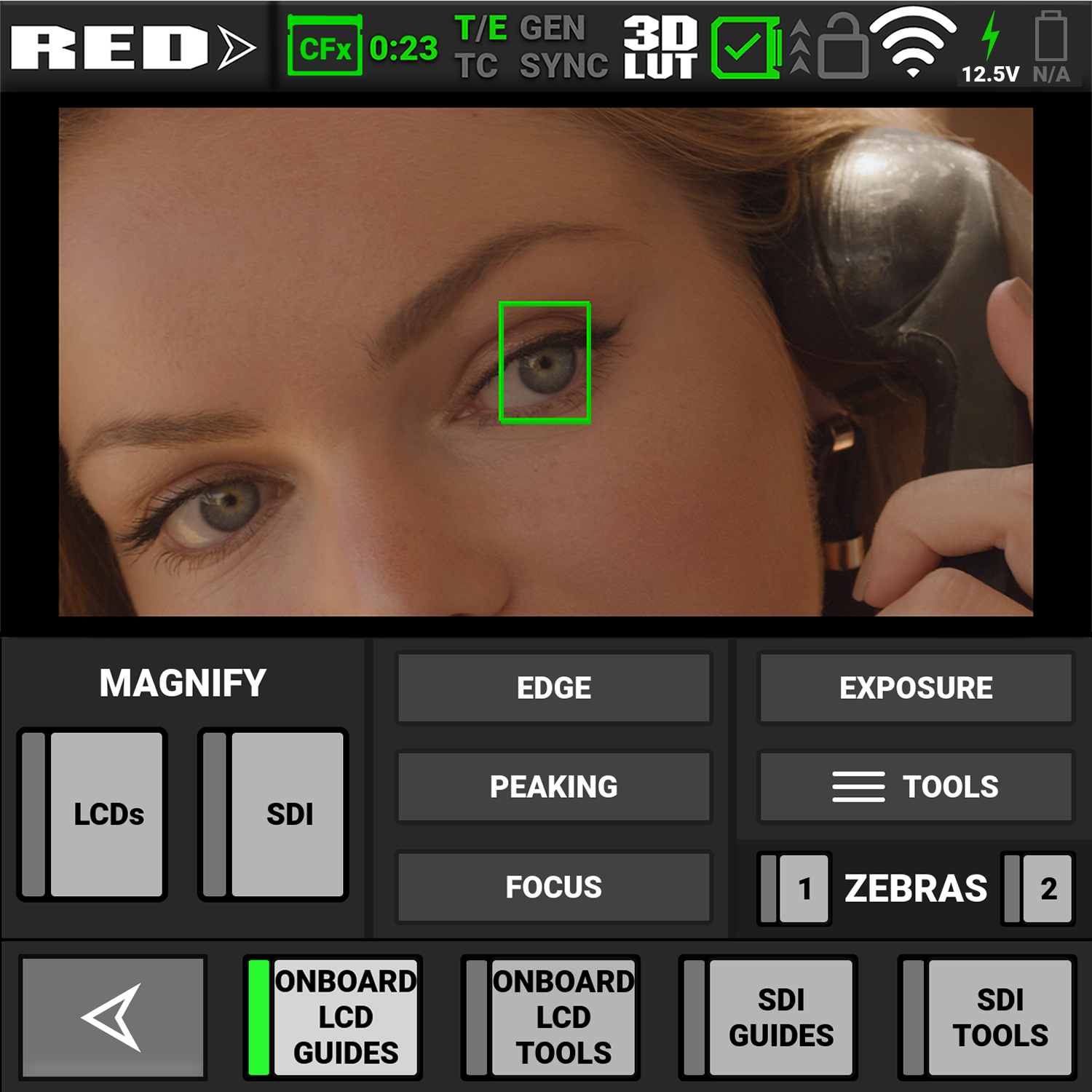

The Monitoring tools provide an easy way to toggle many of the monitoring features on and off.

When the features are selected, the buttons indicate the selection.

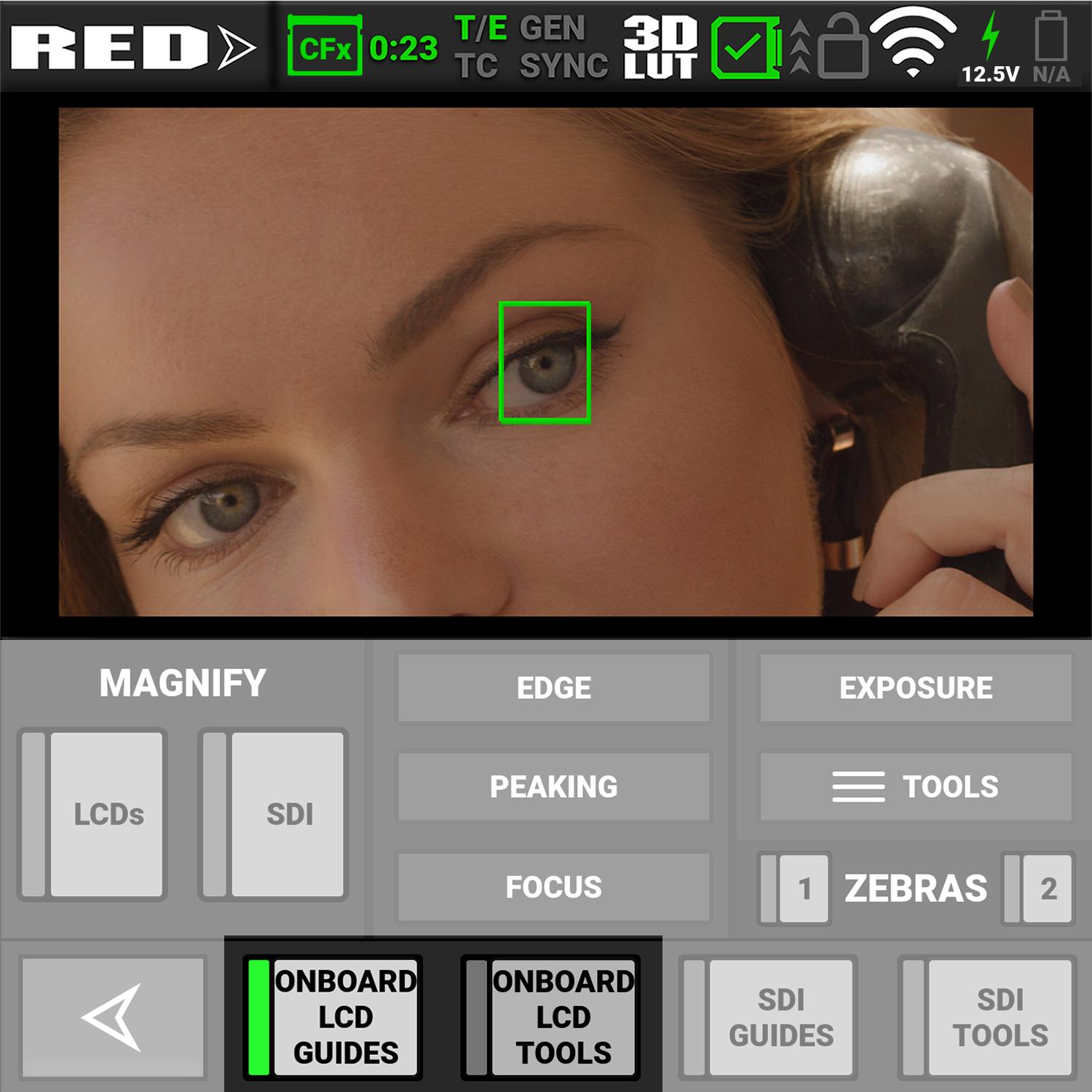

Onboard LCD Switches

The Onboard LCD switches allow you to view or hide the enabled LCD monitor Guides and Tools on the Onboard LCD screen.

When the switches are selected, the gray bar turns green on the left side of the switch.

The Onboard LCD Guides switch displays the Monitoring Guides (frame guides and center guide) on the Onboard LCD.

The Onboard LCD Tools switch displays the Monitoring Tools (false color, peaking, zebra) on the Onboard LCD and on Live Stream.

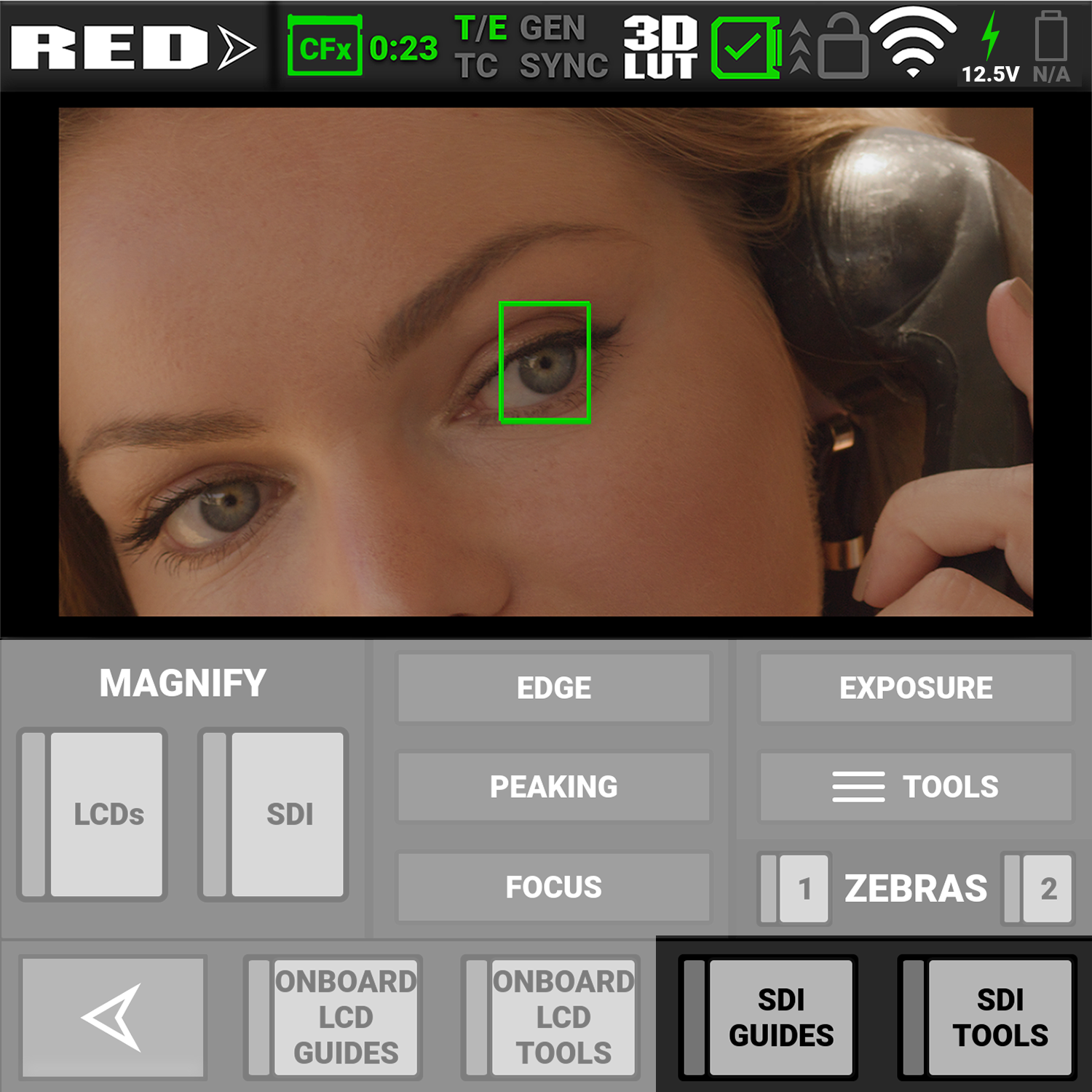

SDI Switches

The SDI switches allow you to view or hide the enabled SDI monitor Guides and Tools on the Onboard LCD screen.

When the switches are selected, the gray bar turns green on the left side of the switch.

The SDI Guides switch displays the Monitoring Guides (frame guides and center guide) on the SDI output.

The SDI Tools switch displays the Monitoring Tools (false color, peaking, zebra) on the SDI output.

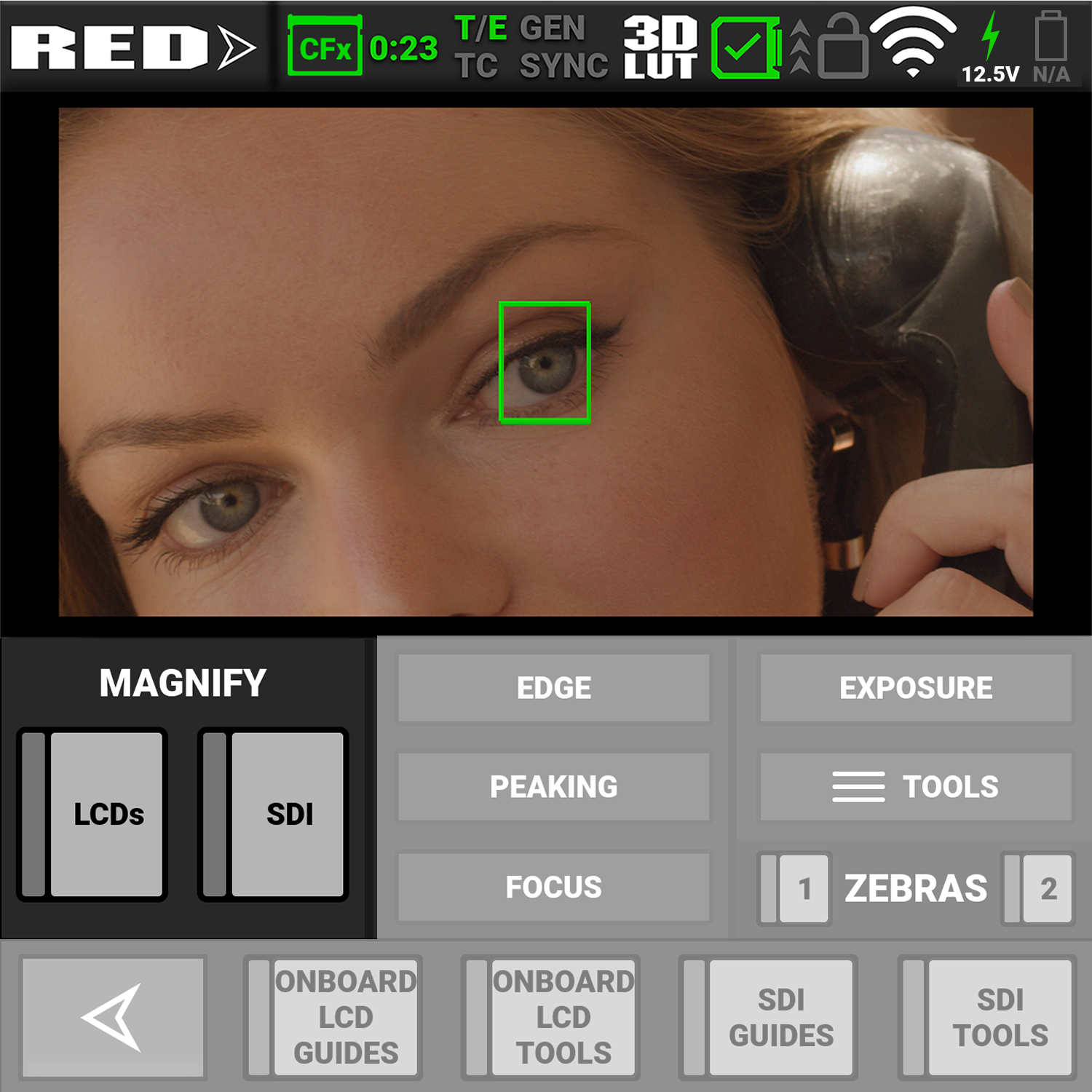

Magnify

The Magnify section allows you to enable or disable magnification on the camera's LCDs (Onboard LCD and Top LCD) and the SDI monitor output. When the switches are selected, the gray bar turns green on the left side of the switch.

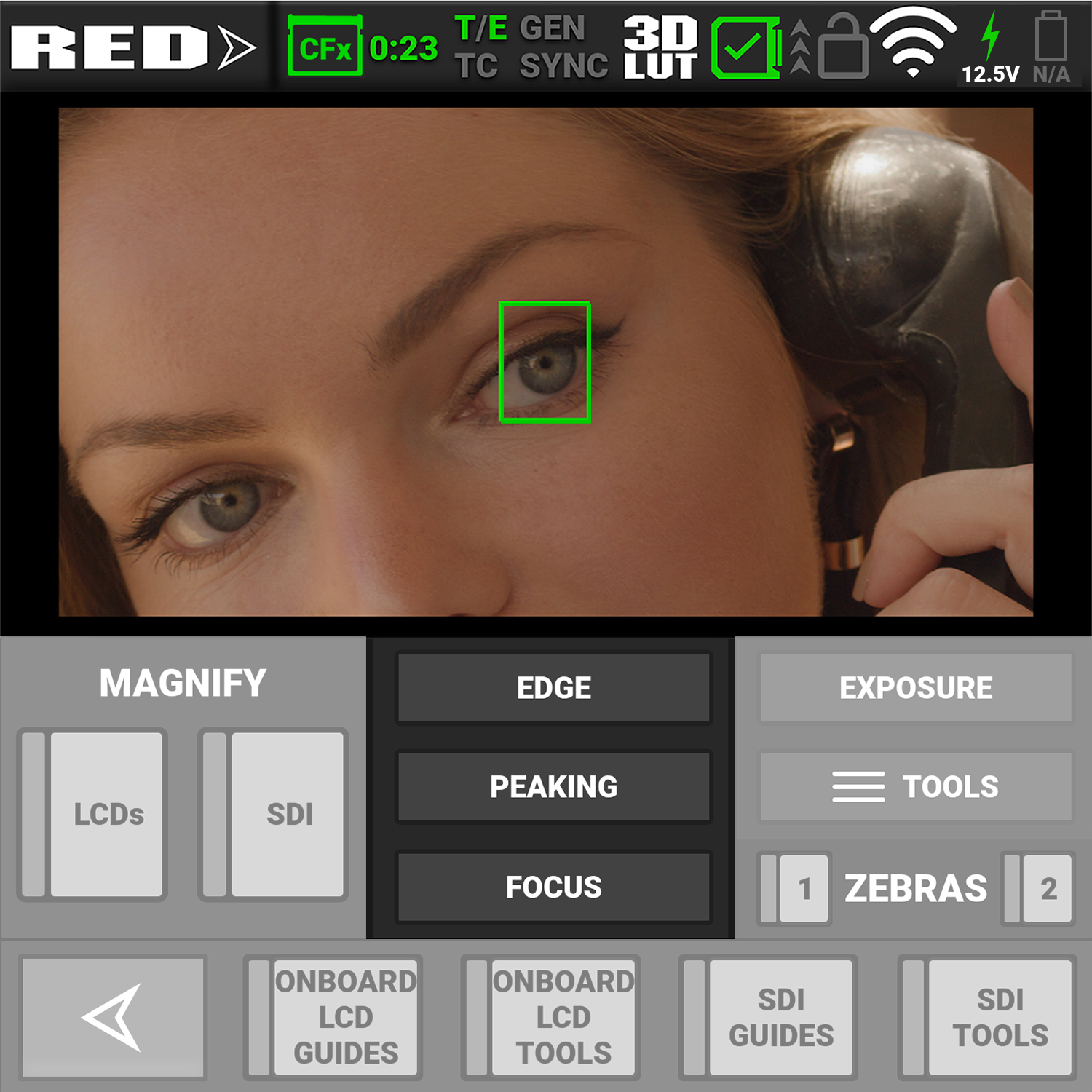

Focus

The Focus section allows you to enable or disable one of the focus tools. The focus tool button you select will turn red.

For information about using the Focus tools, refer to Tools.

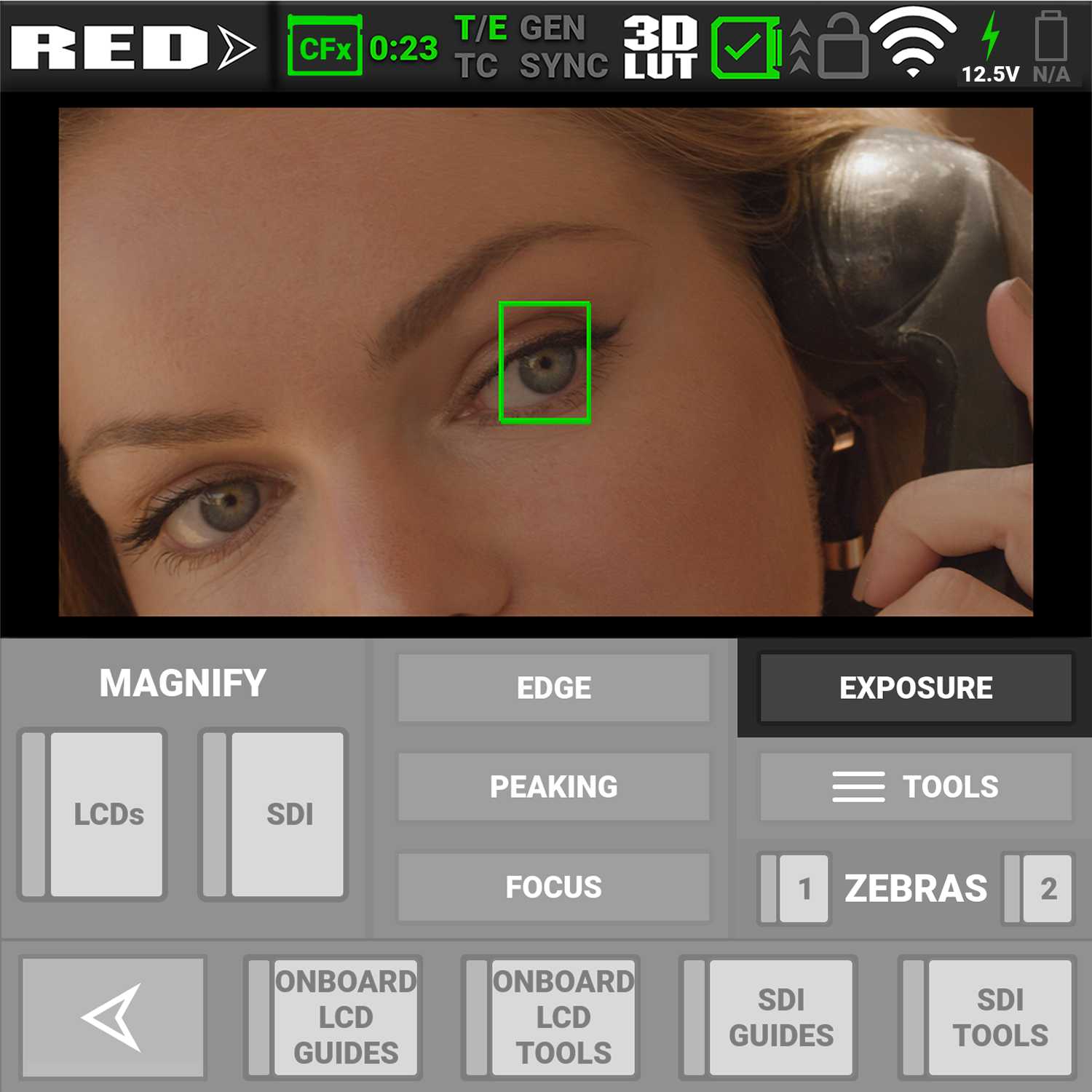

Exposure

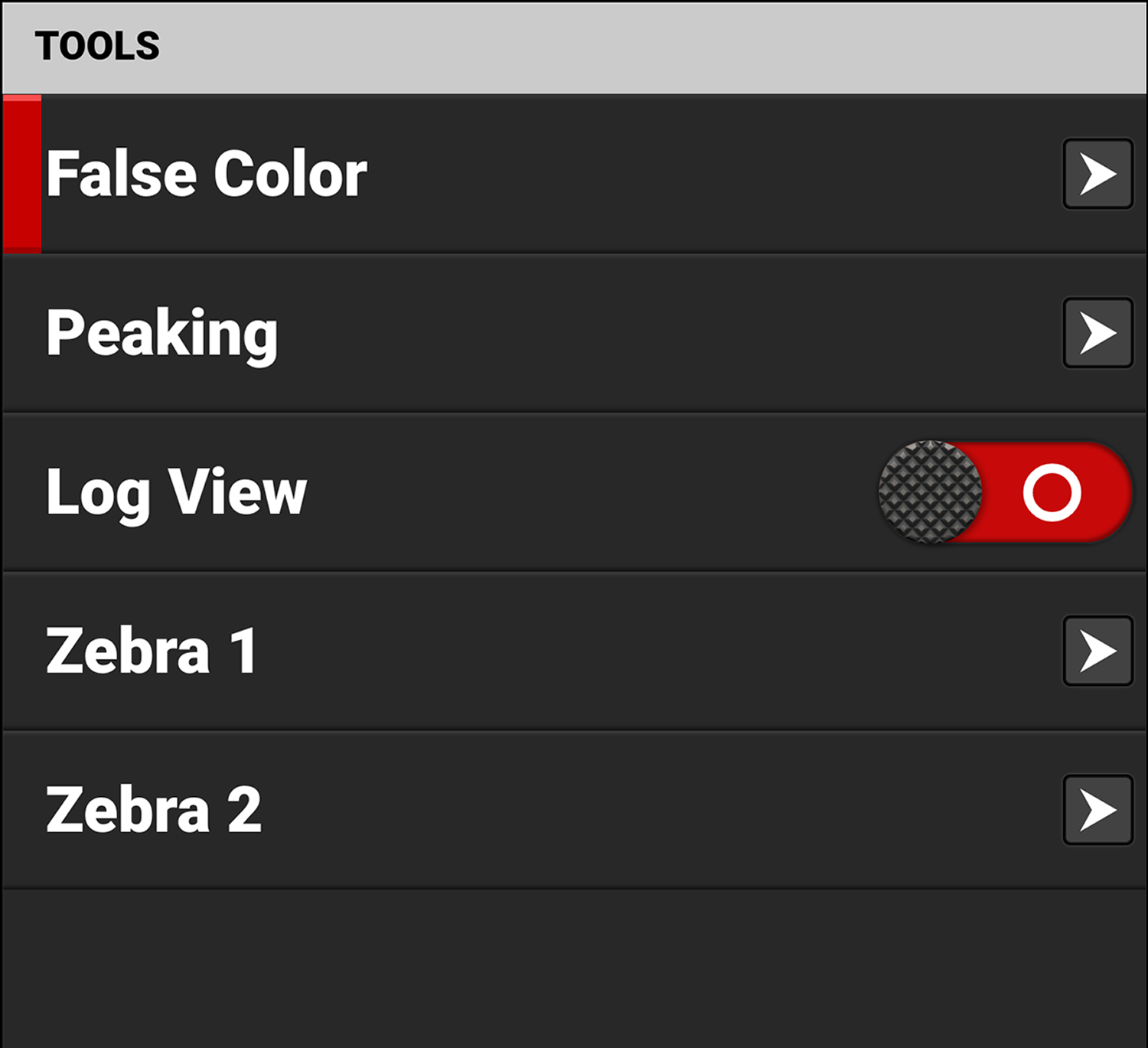

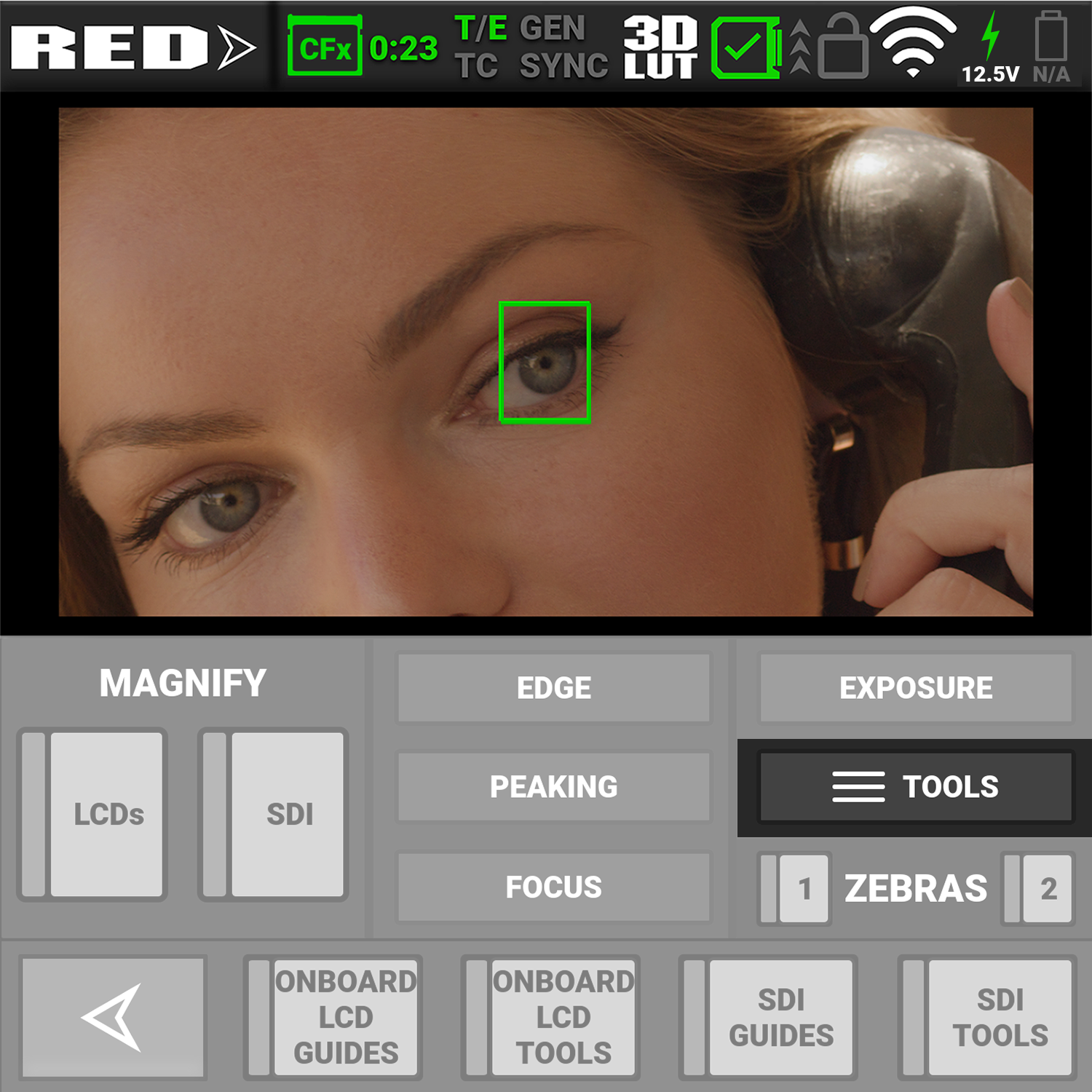

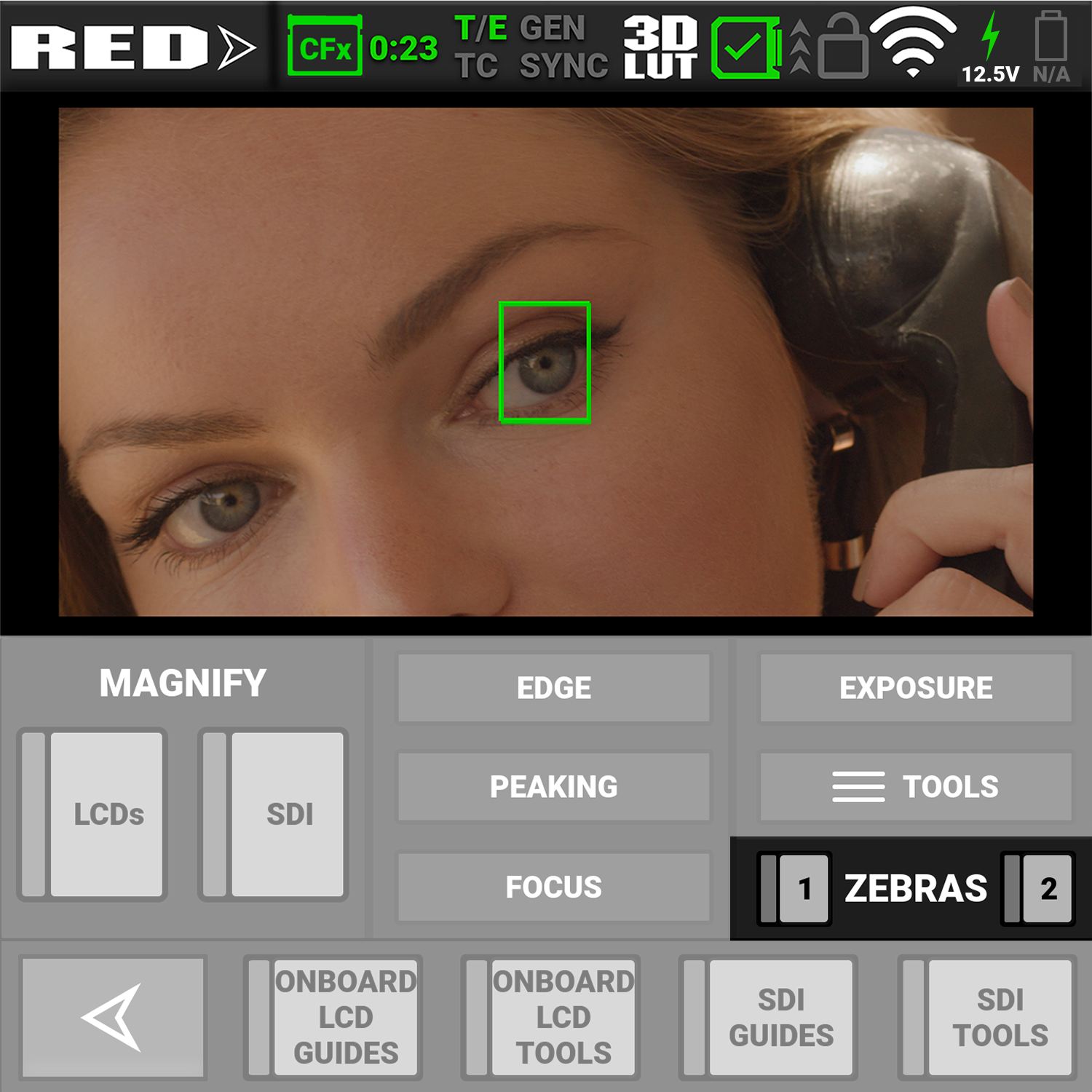

The Exposure section allows you to enable or disable one of the exposure tools. The Exposure tool button you select will turn red.

For information about using the Exposure tools, refer to Tools.
