GPO Function

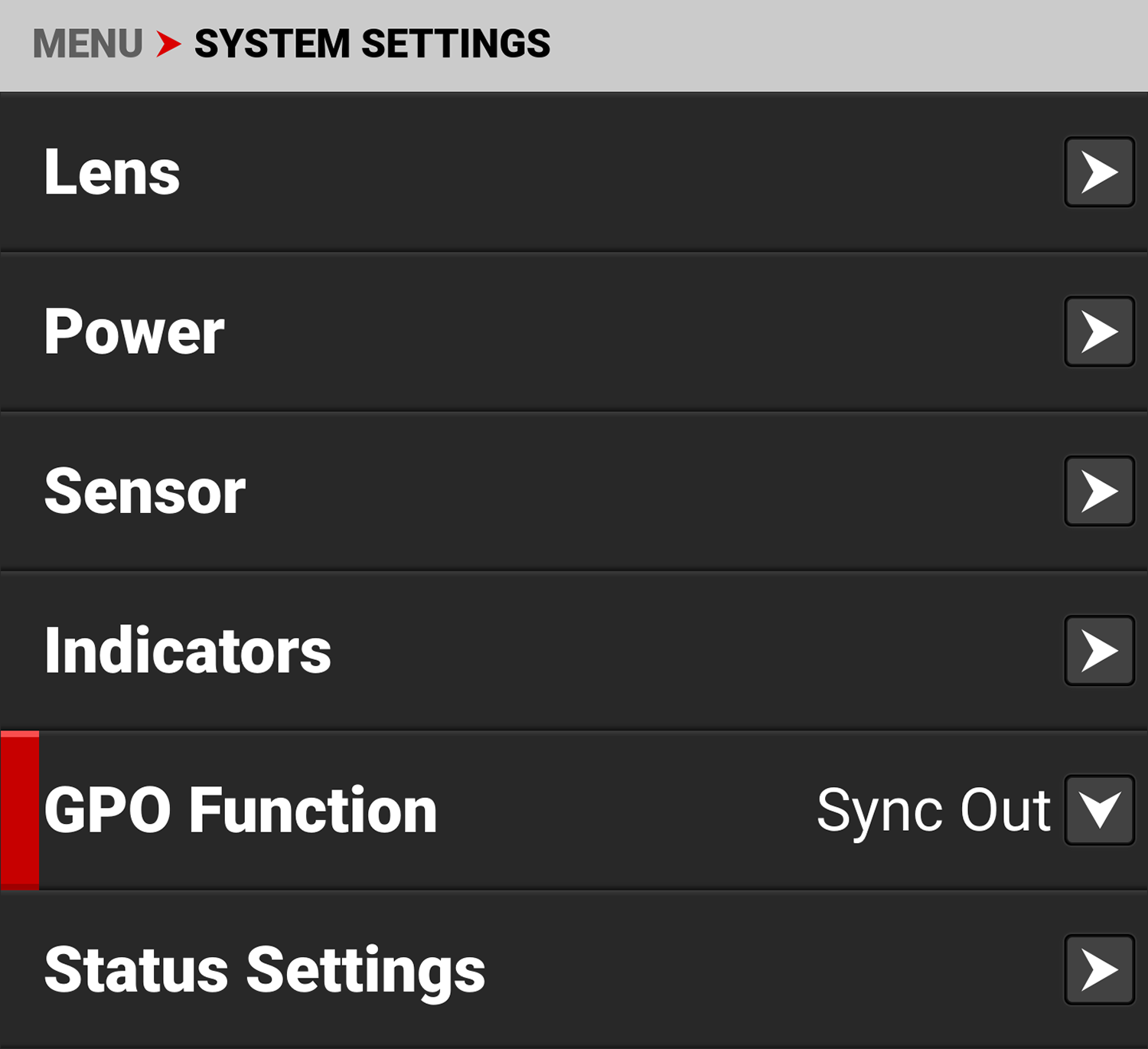

Use the GPO Function menu to select the GPO function of the Extension port.

Date/Time Date/Time

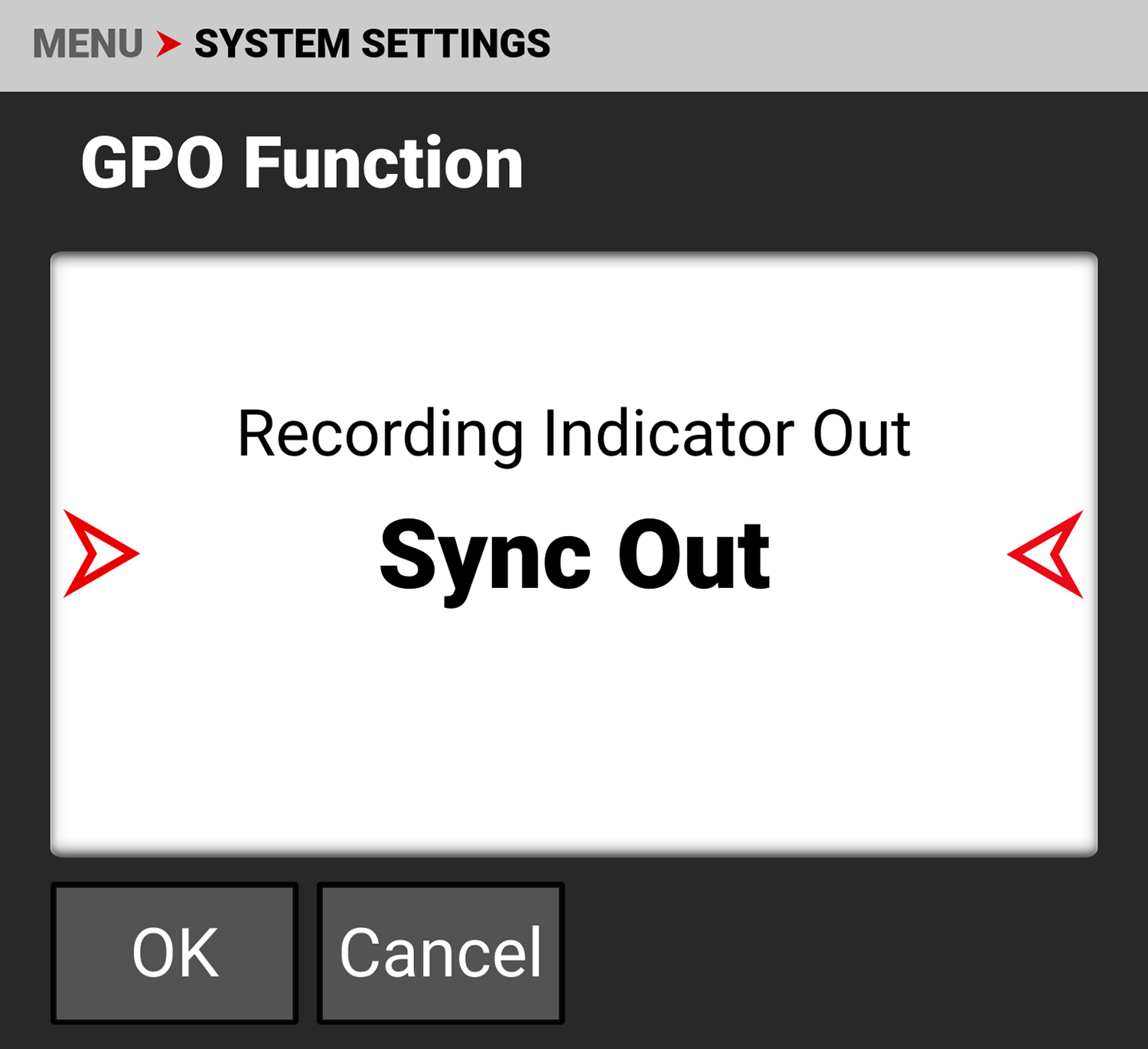

You can select the following GPO functions for the Extension port:

  • Recording Indicator Out
  • Sync Out

Recording Indicator Out

The Recording Indicator Out function sends a signal out of the Extension port GPO pin when the camera is recording.

Sync Out

The Sync Out function sends a Sync signal out of the Extension port GPO pin.

For more information, refer to Extension Port.
