Audio Port
|

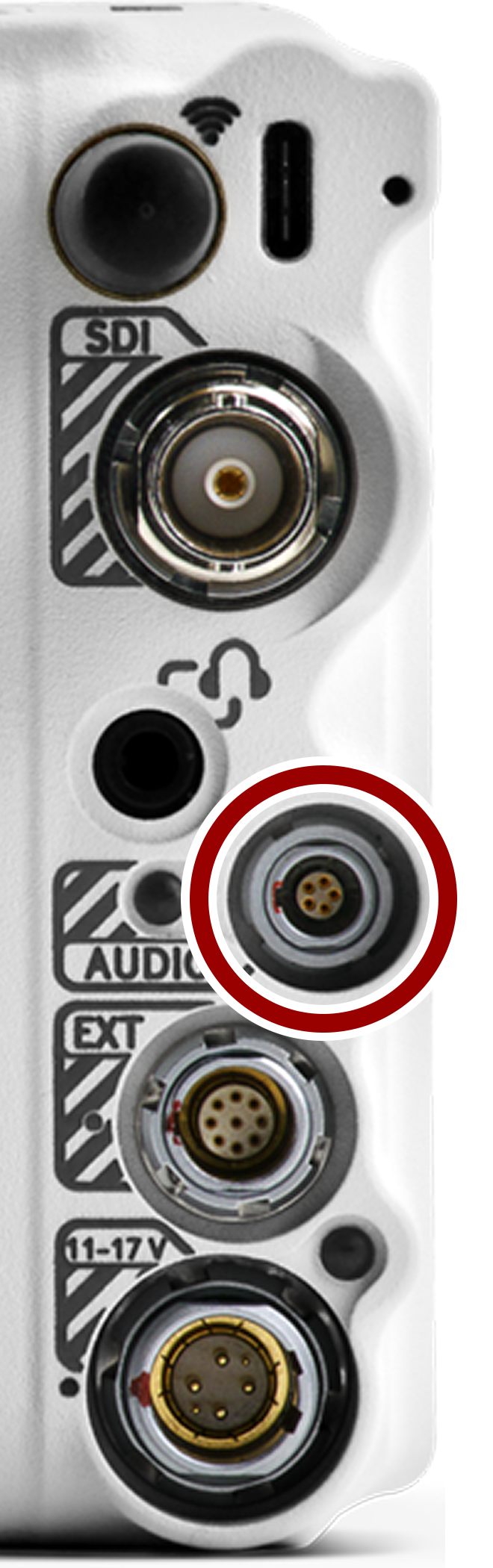

The female LEMO 5-Pin 00B audio connector accepts 2-channel audio, Line, Mic, and +48V Phantom Power.
Figure: Front face of the female 5-Pin 00B audio connector (looking at the back of the camera). |
LEMO 5-Pin 00B Female Audio Connector
|
pin |
signal |
description |
|
1 |
Ground |
Ground to camera |
|
2 |
Ch 3 + |
Channel 3 signal (positive) |
|
3 |
Ch 3 - |
Channel 3 negative |
|
4 |
Ch 4 + |
Channel 4 signal (positive) |
|
5 |
Ch 4 - |
Channel 4 negative |
NOTE: Mating connectors are FGG.00.305.CLAD35Z (5-Pin 00 circular push-pull connector, straight plug) and FHG.00.305.CLAD35Z (5-Pin 00 circular push-pull connector, right-angle plug).
