REDVOLT® NANO-V Battery

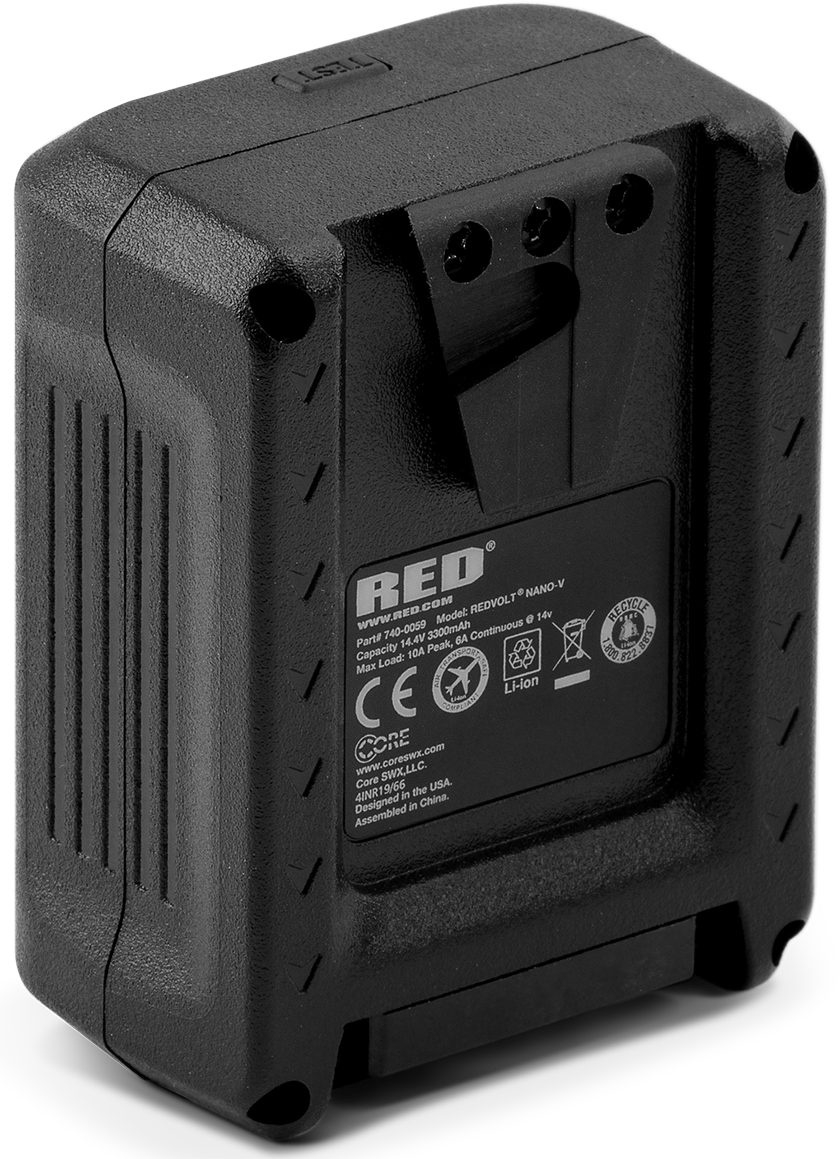

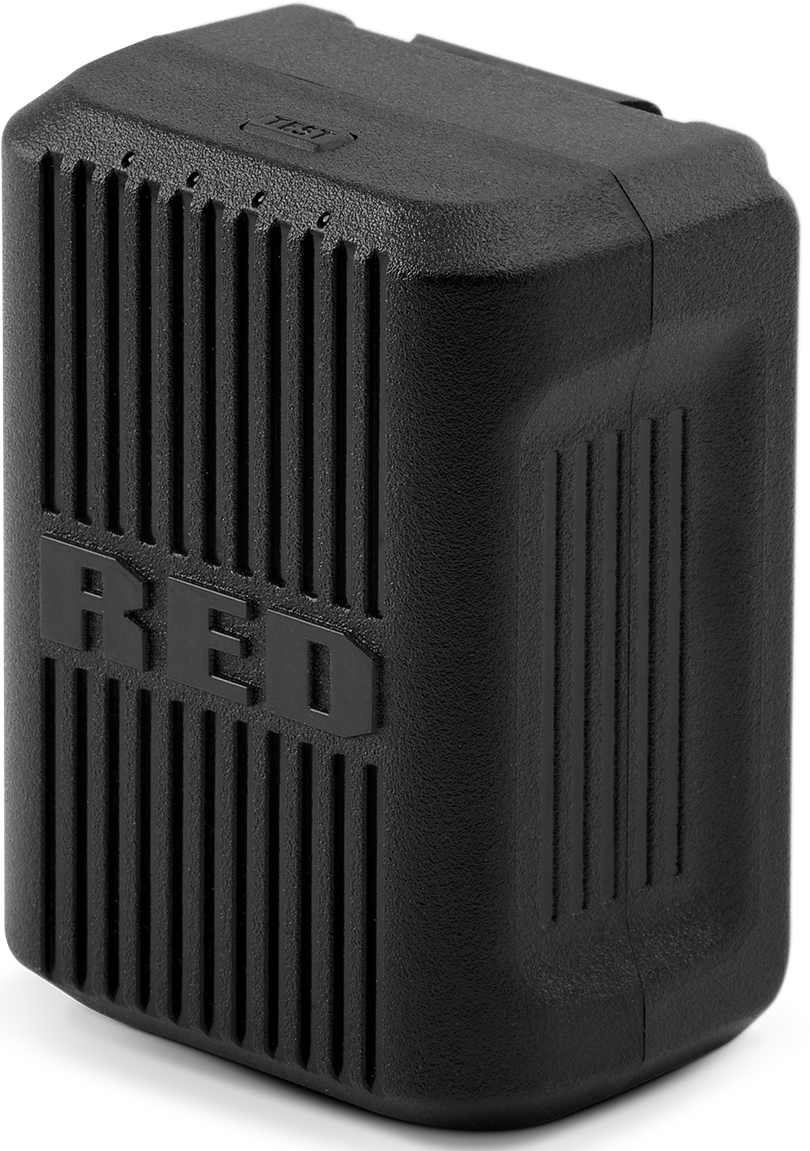

The REDVOLT NANO-V battery is a small, lightweight power solution for the KOMODO-X. Weighing in at only 0.63 lb (288 g), it is ideal for gimbals, drones, and other setups where form factor and weight matter. The battery's dimensions (66 mm x 88 mm x 44 mm) ensure the camera retains completely flat surfaces on the top and sides, allowing users to attach various combinations of cages and plates, without issue.
Featuring a 49 Wh capacity and with a maximum output current of 6 amps, the battery can power the KOMODO-X and DSMC3™ RED® Touch 7.0” LCD for short durations when you want to shoot in as light a configuration as possible.
|
Item |
Details |
|---|---|
|
Type |
Rechargeable Lithium-Ion Battery |
|
Capacity |
3300 mAh / 49 Wh |
|
Battery output |
12 to 16.8 V DC |
|
Maximum load |
6 Amps at 14 V DC |
|
Operating temperature |
50° F ~ 113° F (10° C ~ 45° C) |
|
Charging temperature |
32° F ~ 104° F (0° C ~ 40° C) |
|
Storage temperature |
68° F ~ 122° F (20° C ~ 50° C) |
|
Charger |
RED Compact Dual V-Lock charger |
|
Weight |
Approximately 0.63 lb (288 g) |
|
Dimensions |
Height: 3.46 in. (88 mm) |
|
Width: 2.60 in. (66 mm) |
|
|
Depth: 1.30 in. (44 mm) |
REDVOLT NANO-V was designed in partnership with Core SWX and is compatible with most cameras/modules that accept V-Lock batteries. For issues or troubleshooting, please visit https://coreswx.supportsystem.com.
