Playback

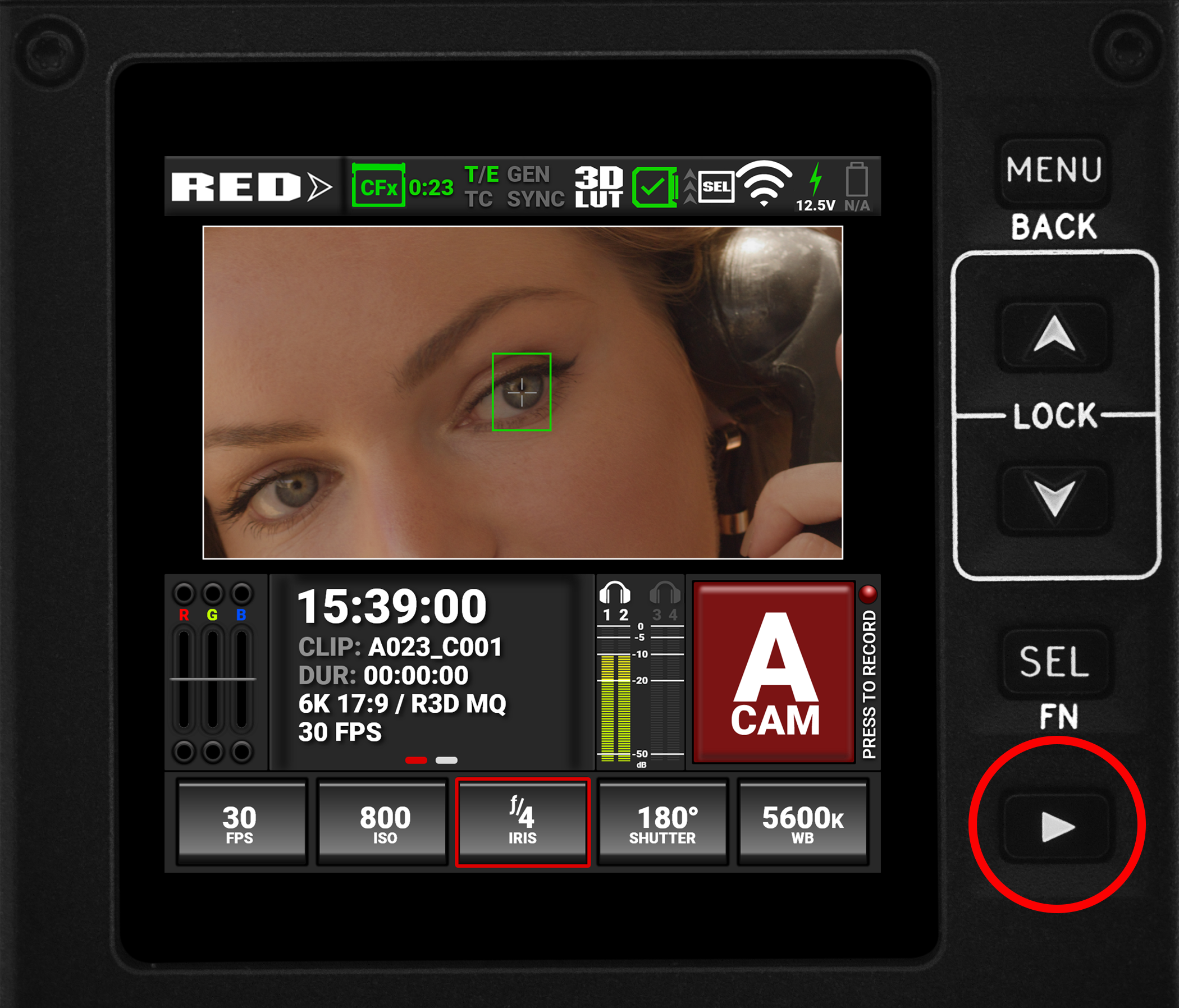

When you press on the Playback button, the
To close the Playback page, press the Playback button.
NOTE: When you open playback, it disables many of the menu settings.

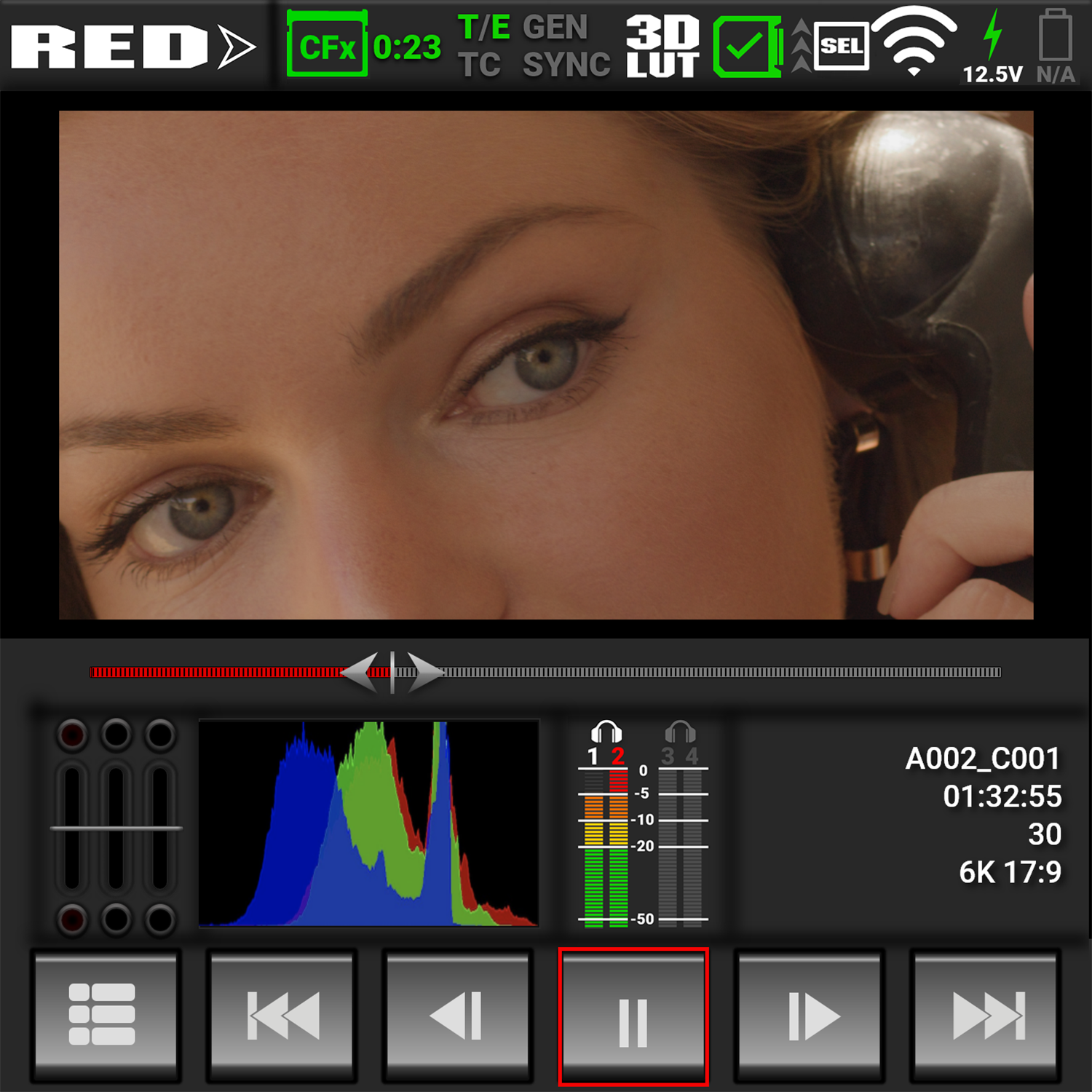

Playback Page
The Playback page displays the clip image along with the following:

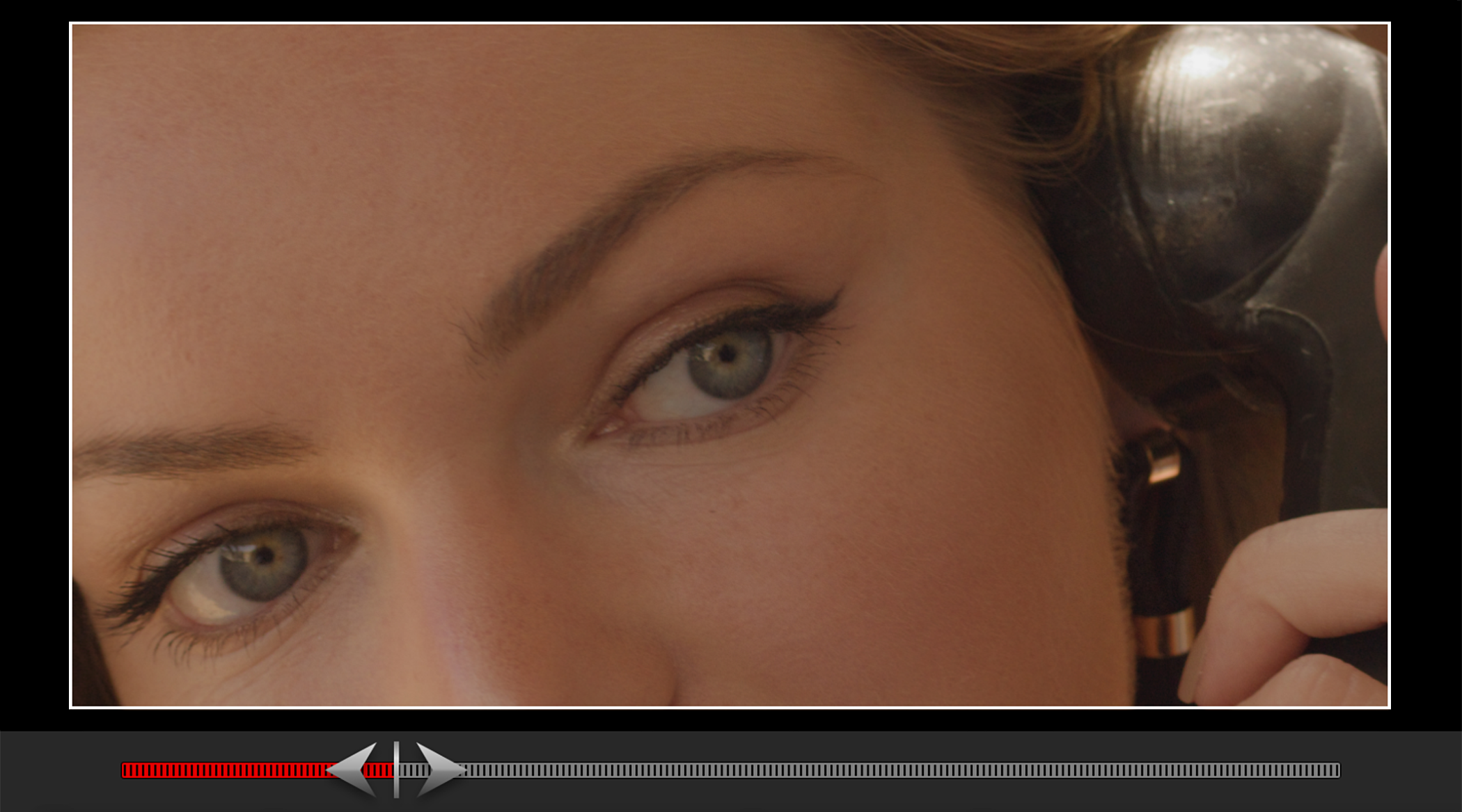

Clip Slider
Use your finger to move forward and backward through the frames by swiping the image to the left and the right. The Clip Slider shows where in the timeline the displayed frame is located in the clip.
RGB Exposure
RGB Exposure displays the exposure levels of the separate RGB channels and indicates when a channel is underexposed or overexposed. This meter measures the raw image data regardless of the ISO and LUT settings.

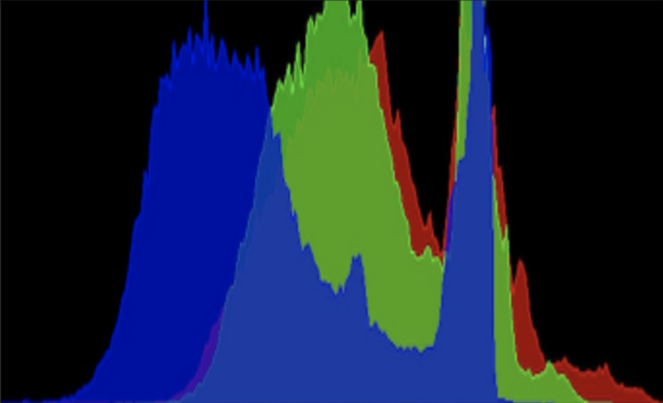

Histogram
The histogram displays the darkest image elements at the far left, the midtones in the middle, and the lightest image elements at the far right. This gives you a quick way to view your overall image exposure levels.

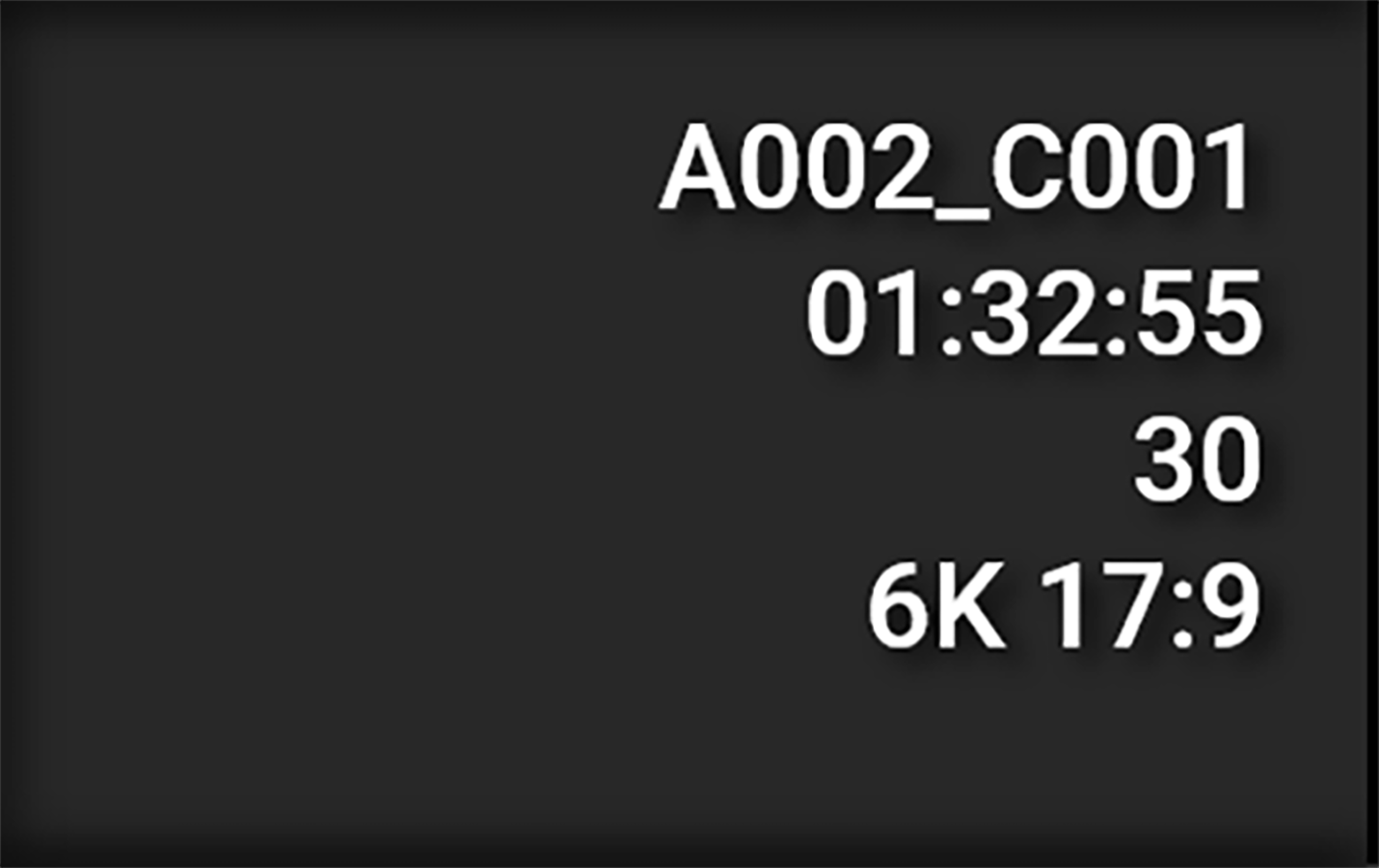

Clip Information
The Clip Information displays the name, duration, time base, and format of the clip.

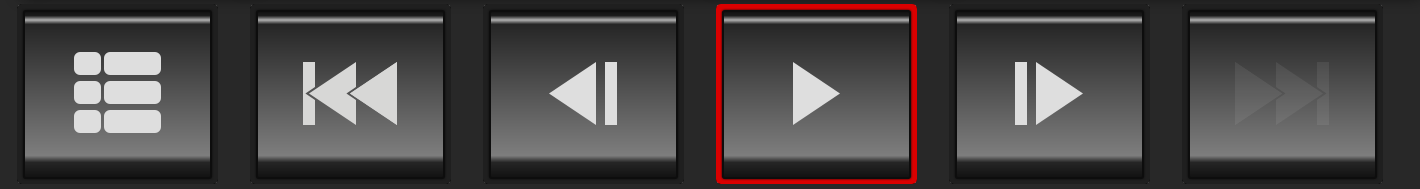

Playback Page Buttons
With the Playback page buttons you can view the Clip list, move one clip back, move one frame back, play/pause, move one frame forward, and move one clip forward.

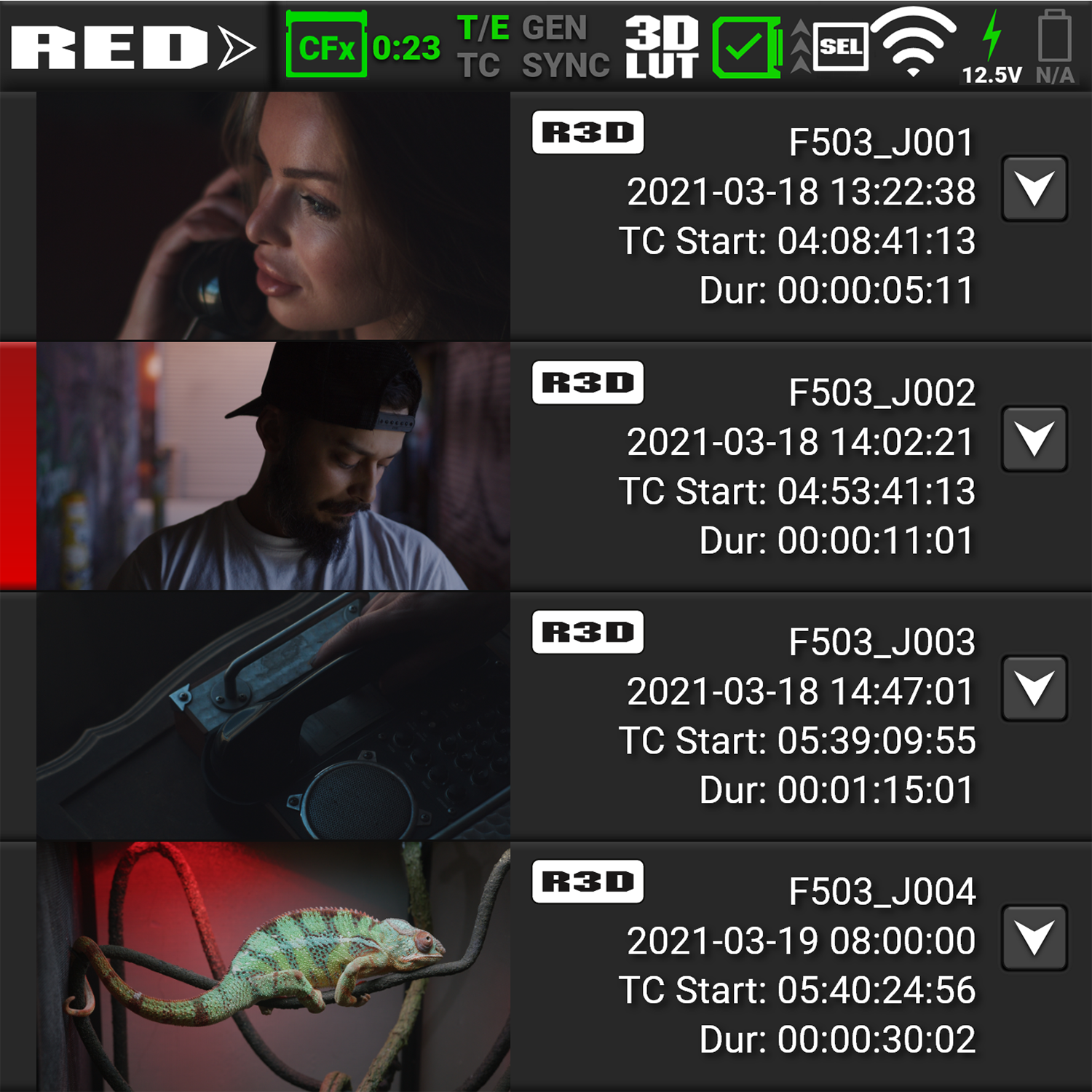

Clip List
The Clip List button displays the list of clips recorded on the media card.
Each clip displays the first frame of the clip, the clip information, and the clip file format.

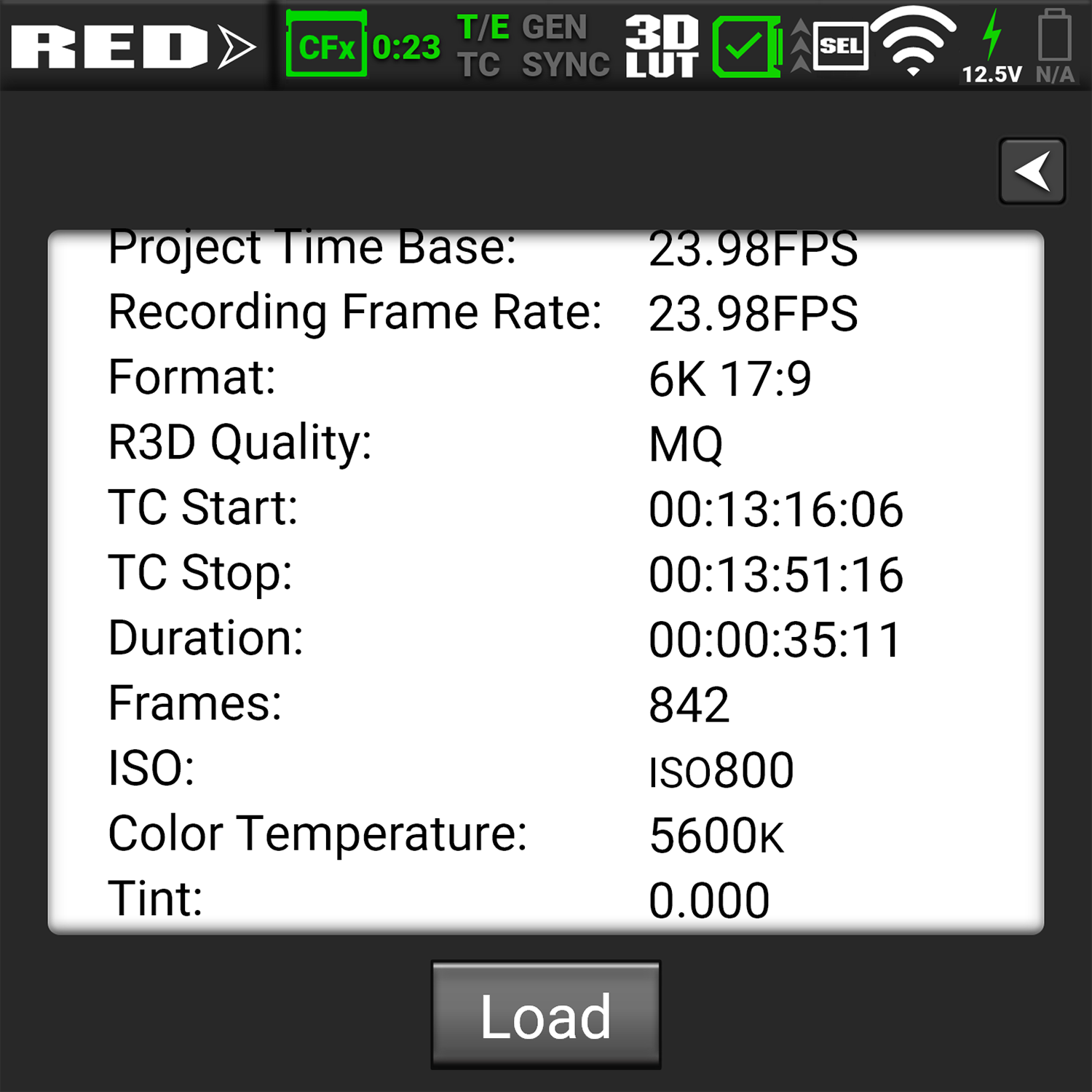

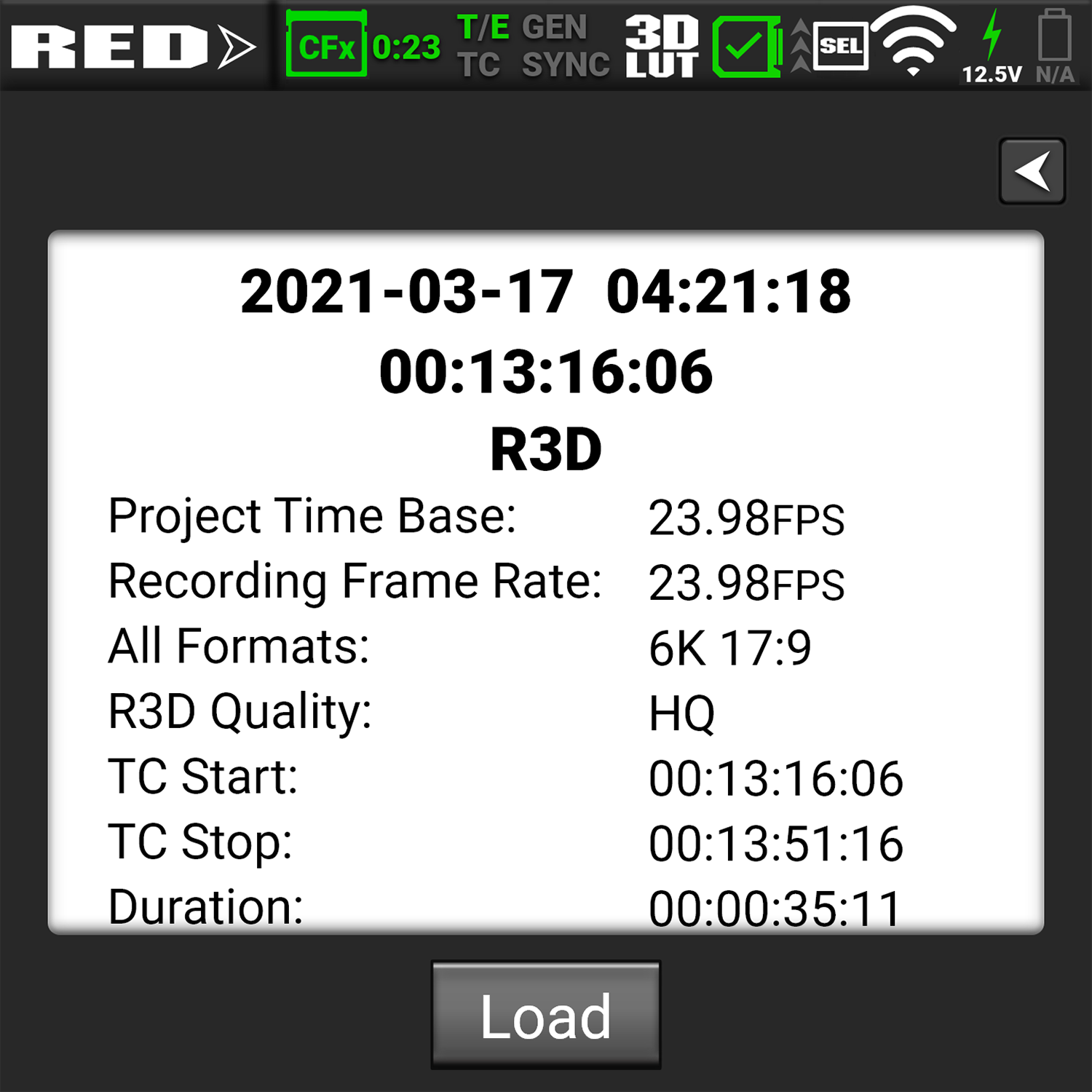

Swipe up and down to scroll through the list of clips. Tap the down arrow to open the clip information page.
When you tap the Load button, the camera loads the clip to the Playback page.
