Status Bar

The top of the Onboard LCD touchscreen page displays the camera status bar.

The Status Bar contains the following button and icons:

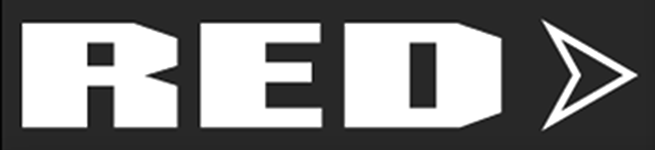

Preview / Menu Button

This button toggles the Onboard LCD display between the Preview page (or User Pages) and the Menu page. The arrow on the button changes direction when toggled.

Preview Page:



Menu Page:







Media Status Icon



Temperature / Exposure Icon

This icon displays the status of the CFexpress Type B media card, and it displays the recording time remaining for the current camera settings.

The status displayed includes:

Good

Missing

Incompatible



This icon displays the temperature (T) and exposure (E) calibration indicators.

•  When T is yellow or red, it indicates that the camera requires sensor re-calibration at the current ambient temperature.

•  When E is yellow or red, it indicates that the camera requires sensor re-calibration at the current shutter speed.

Refer to Calibrating the Sensor.

Timecode Icon



Genlock Icon

This icon indicates the state of the Timecode generator connection.

Gray indicates that no Timecode generator signal is detected.

Green indicates that the Timecode source is connected and jammed.

Red indicates that the selected Timecode Source is not present, or not jammed in the last 12 hours.

White indicates that the selected Timecode source is not currently connected but was jammed during the current camera boot.

Yellow indicates that the selected Timecode source has not been jammed in current camera boot but has been within the last 12 hours, or that timecode source is cross-jammed (at a different Project Time Base).





This icon indicates the state of the Genlock connection.

Gray indicates that no Genlock signal is detected.

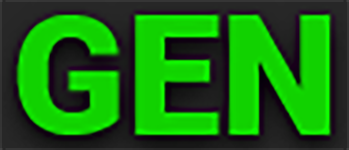

Green indicates that the camera is receiving a Genlock signal.

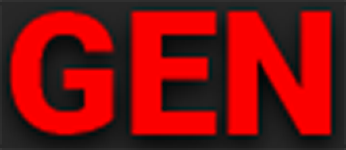

Red indicates that the camera is receiving and is not locked to a Genlock signal.

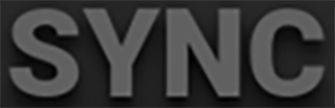

SYNC Icon



3D LUT Icon

This icon indicates that the Timecode and Genlock signals are synchronized to the camera's frames per second (FPS) settings.

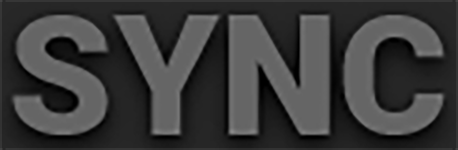

Gray indicates that no synchronization is detected.

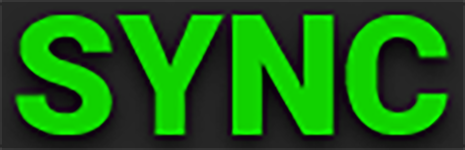

Green indicates that the camera is synchronized with the Timecode and Genlock signals.

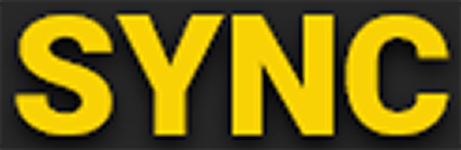

Yellow indicates that the camera is synchronized using Genlock but not Timecode.





This icon indicates the activation status of 3D LUTs.

Gray indicates that no 3D LUTs are in use.

White indicates that the camera is using a 3D LUT.

Camera Status Icon



Network Activity Icon

This icon indicates the state of the camera hardware. The different icons and their corresponding status include:

Good: Camera operating as expected.

Overheating Warning: Camera is nearing overheated state. Consider cooling the camera.

Overheating: Camera has reached temperature threshold and shut down is imminent.

Shutting Down: Camera is shutting down due to overheating.



This icon indicates the state of FTPS or Cloud data transfer.

Gray indicates that no network data transfer is occurring.

Green indicates that the camera is transferring FTPS or Cloud data.

Top Button Mode Icon



Wi-Fi Icon

This icon indicates the selected Top Buttons Mode.

White SEL indicates that the Top Buttons Mode is set to Select or Function, and you are on the Menu page.

Gray FN indicates that the Top Buttons Mode is set to Function, you are not on the Menu page, and an SDI monitor is not connected.

White FN indicates that the Top Buttons Mode is set to Function, you are not on the Menu page, and an SDI monitor is connected.

White Lock icon indicates that the Top Buttons Mode is set to Lock, and the Onboard LCD is locked.





This icon indicates the state of Wi-Fi connection.

Gray and empty indicates that no Wi-Fi signal is detected.

White bars indicate that Wi-Fi signal is detected (Infrastructure).

White antenna indicates that Wi-Fi signal is broadcasting (Ad-hoc).



DC-In Icon



Battery Icon

This icon indicates the state of DC power connection.

Gray indicates that no DC power is connected.

Green indicates that the camera is receiving DC power and the voltage number is displayed.





This icon indicates the state of the battery connection and charge level. When the voltage is low, it displays the voltage in red.

Gray indicates that no battery is connected.

White indicates that the battery is connected and green shows the relative level of charge remaining.

Yellow indicates 10 minutes of power remaining.

Red indicates less then 5 minutes of power remaining.

Gray question mark indicates no communication with the battery and no power.

White question mark indicates no communication with the battery and power.

Gray exclamation point indicates error communicating with the battery and no power.
