CDL Power

The CDL Power settings control the power of the Red, Green, and Blue, color data.

Use the CDL Power menu to adjust the power of the Red, Green, and Blue CDL data.

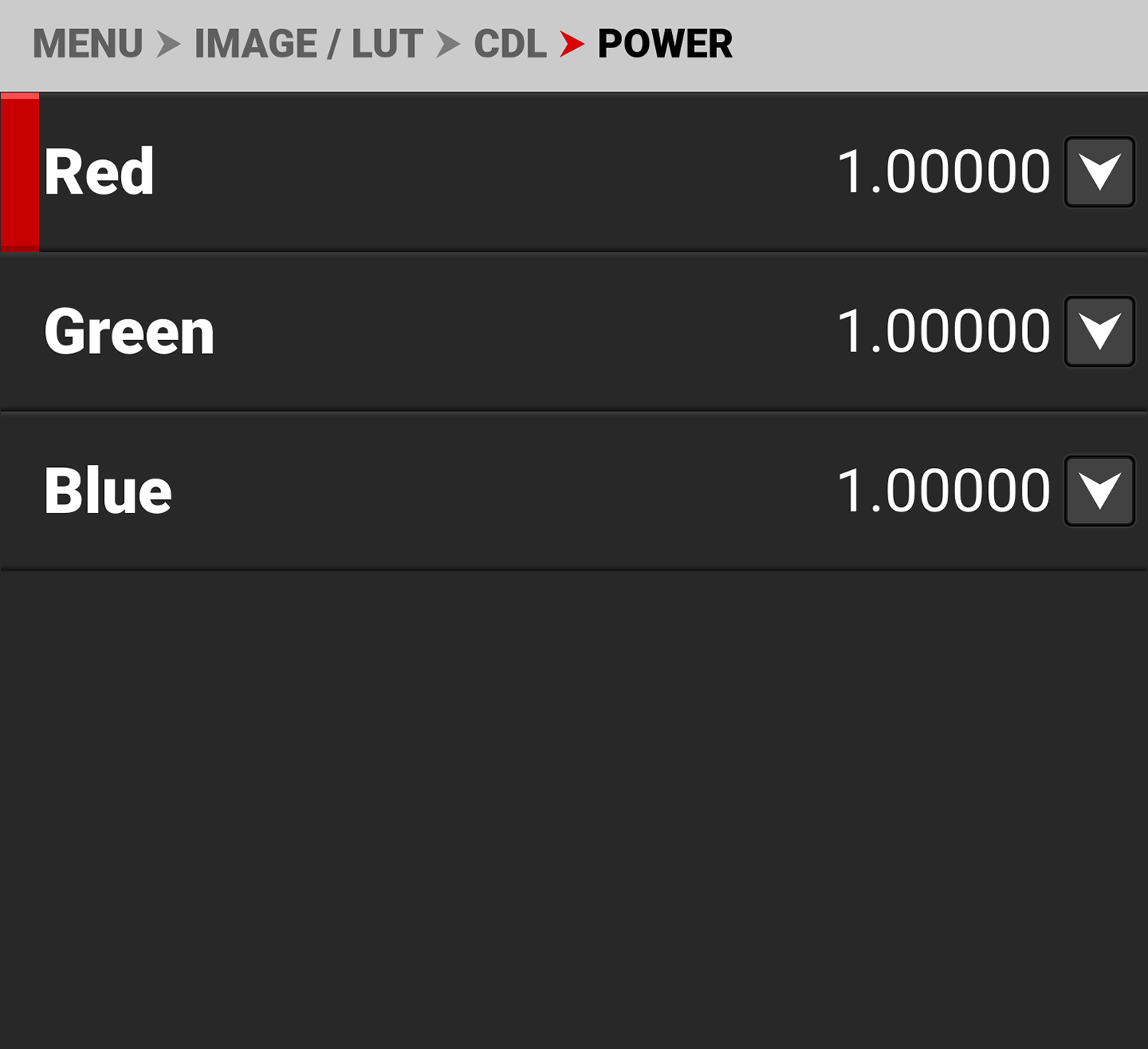

CDL Power Settings

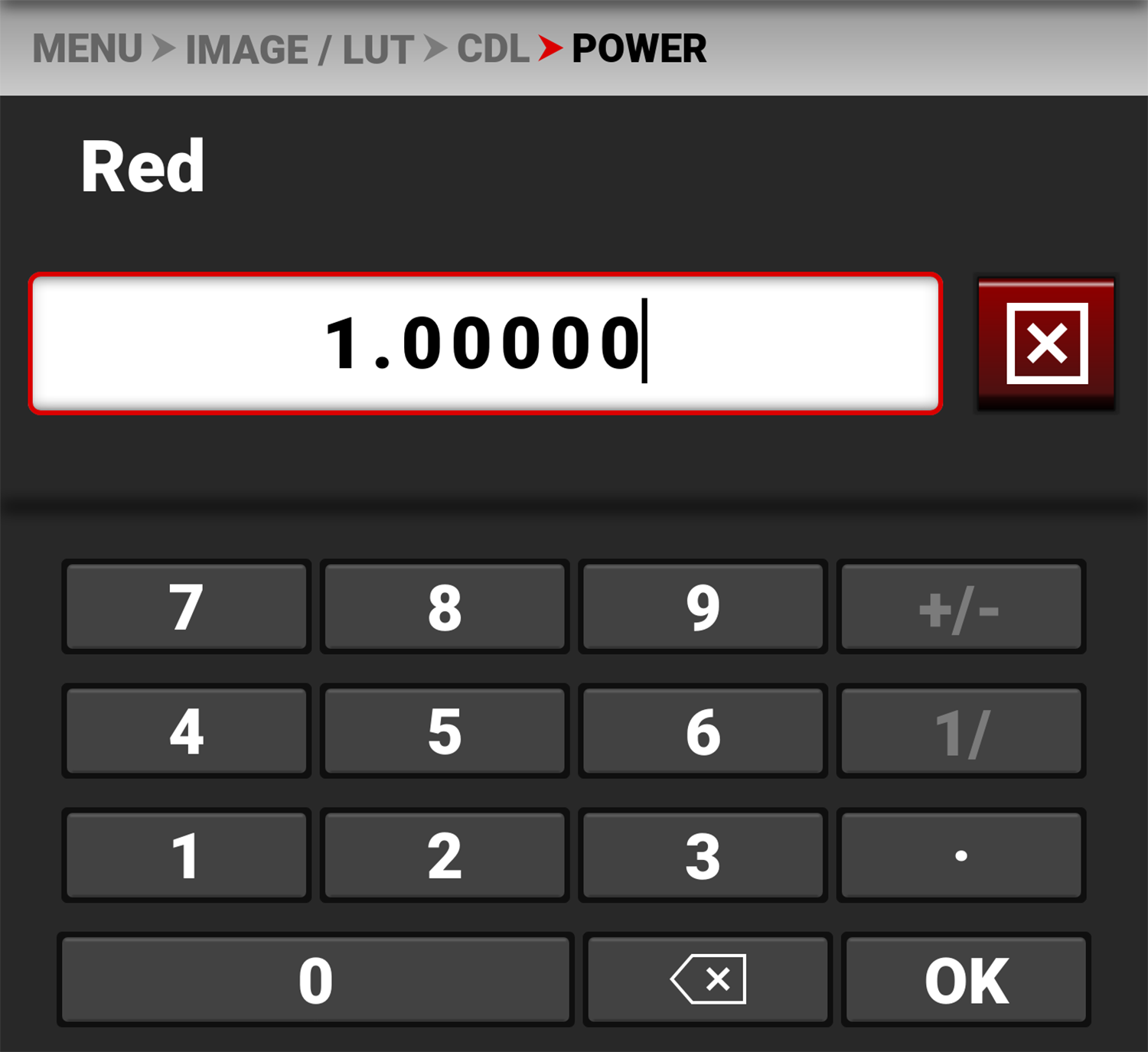

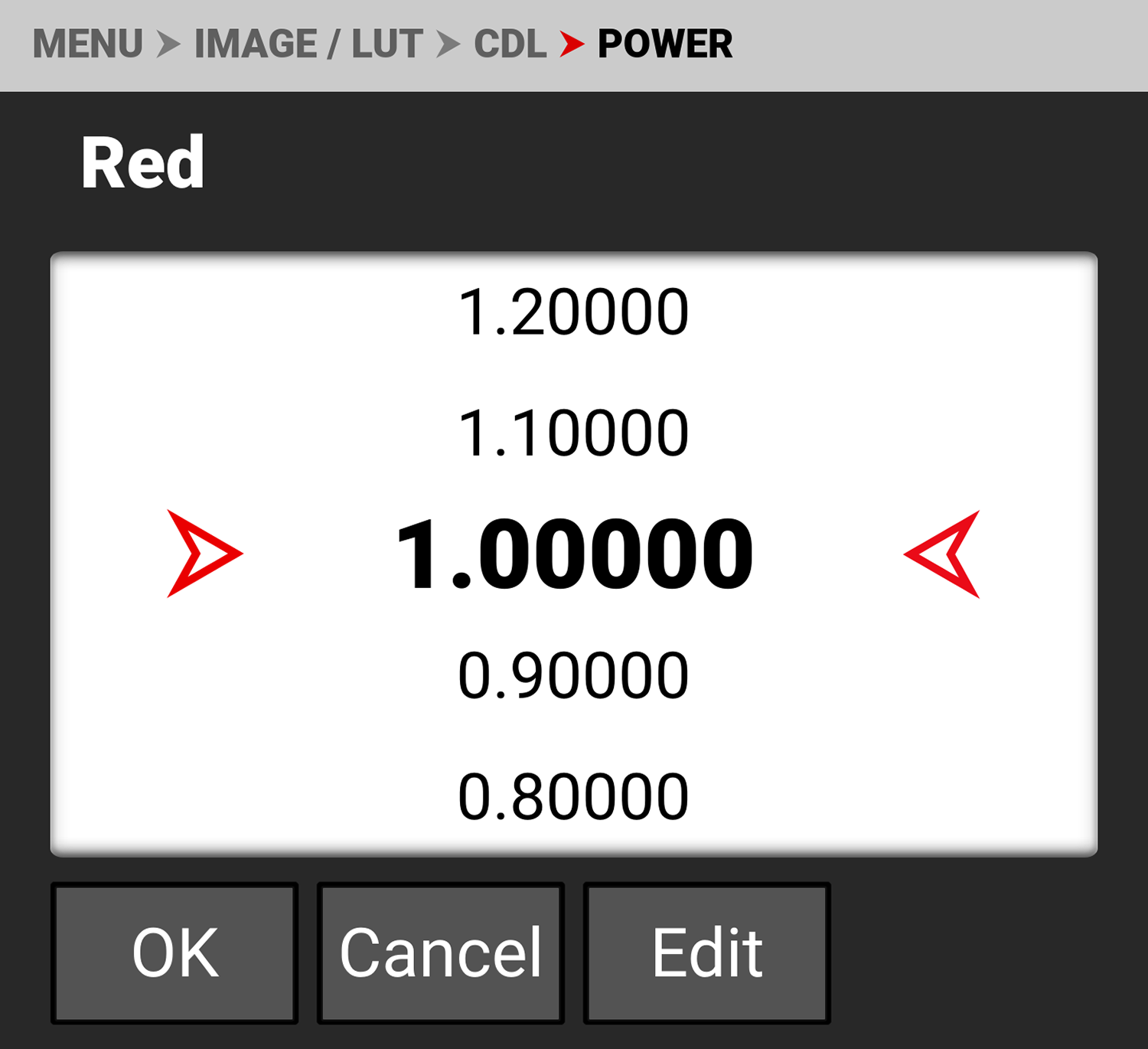

The CDL Power settings range from 0.00000 to 4.00000. The default CDL Power setting for each color is 1.00000. The Edit button opens the keypad where you can enter a specific CDL Power value.
