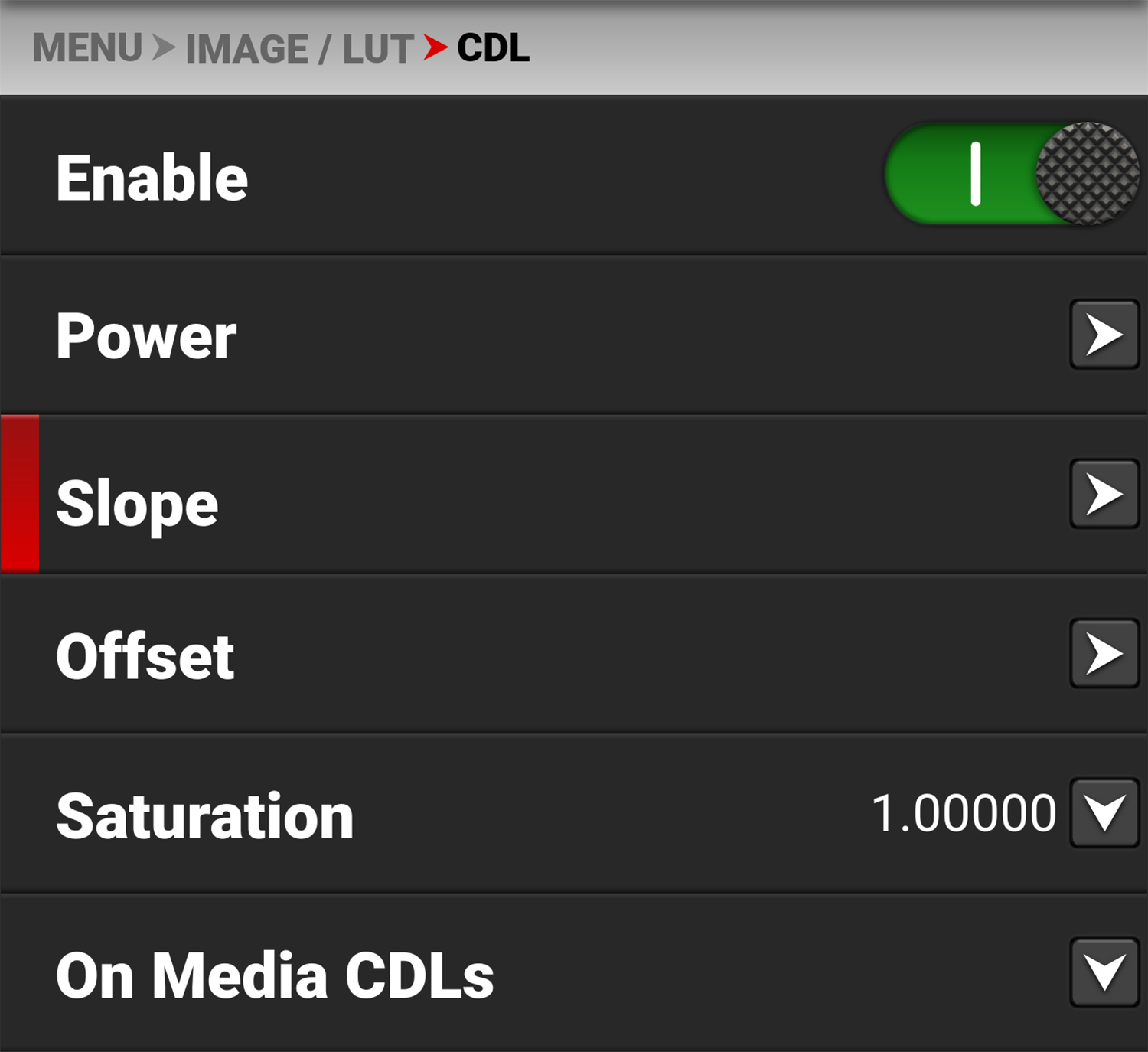

CDL Slope

The CDL Slope settings multiply the incoming RGB data.

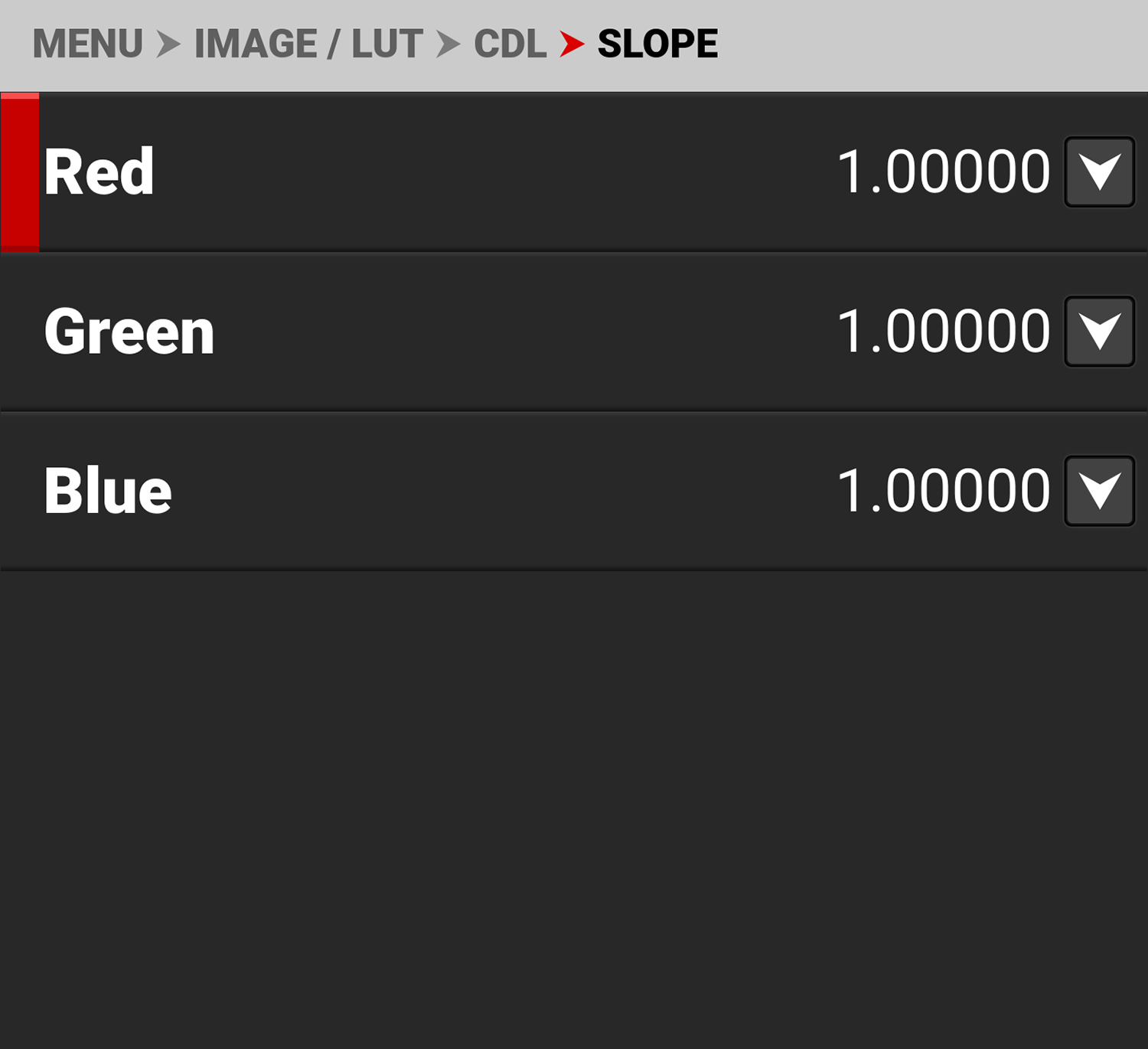

Use the CDL Slope menu to set the slope of the Red, Green, and Blue signals.

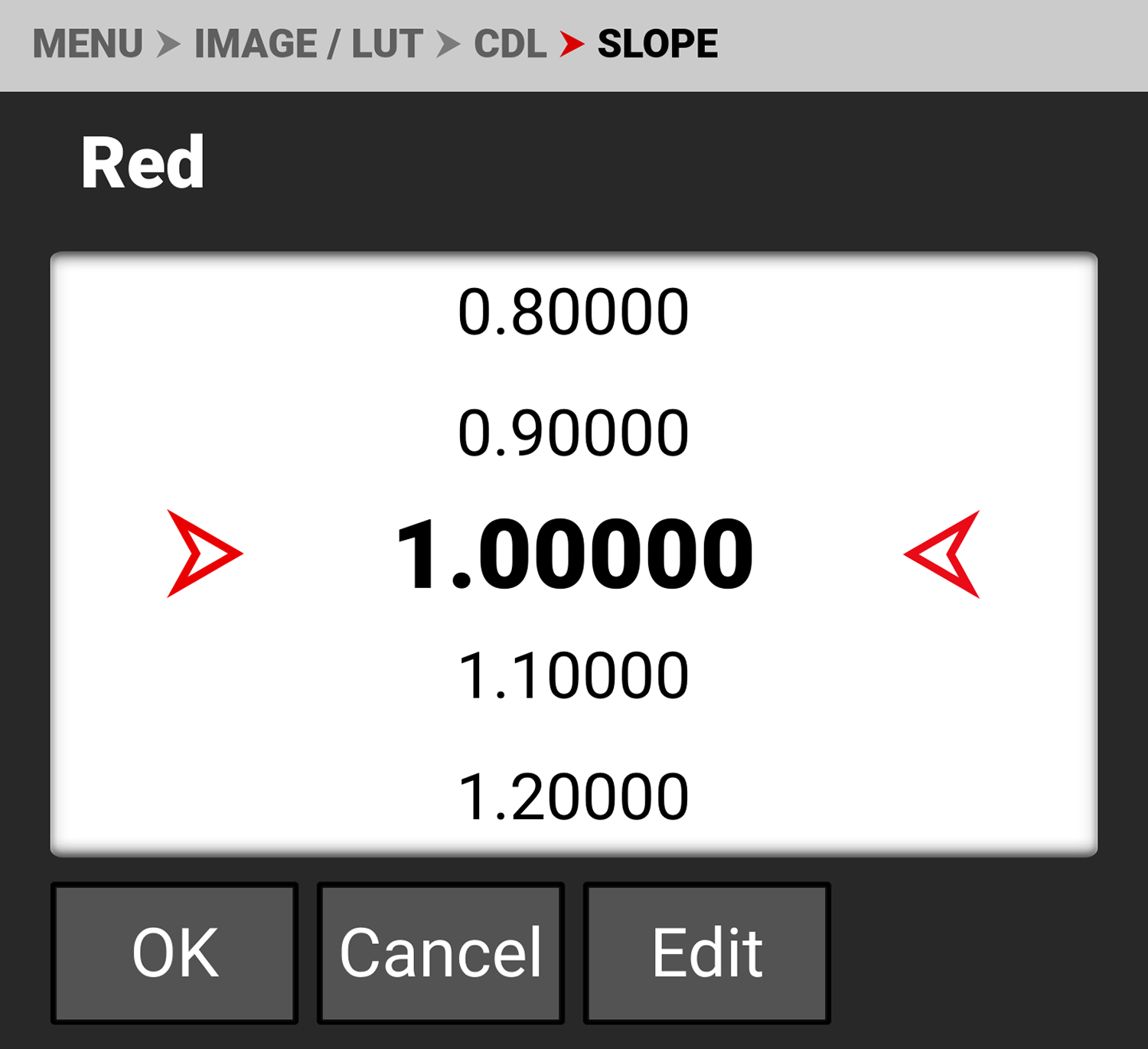

Slope Settings

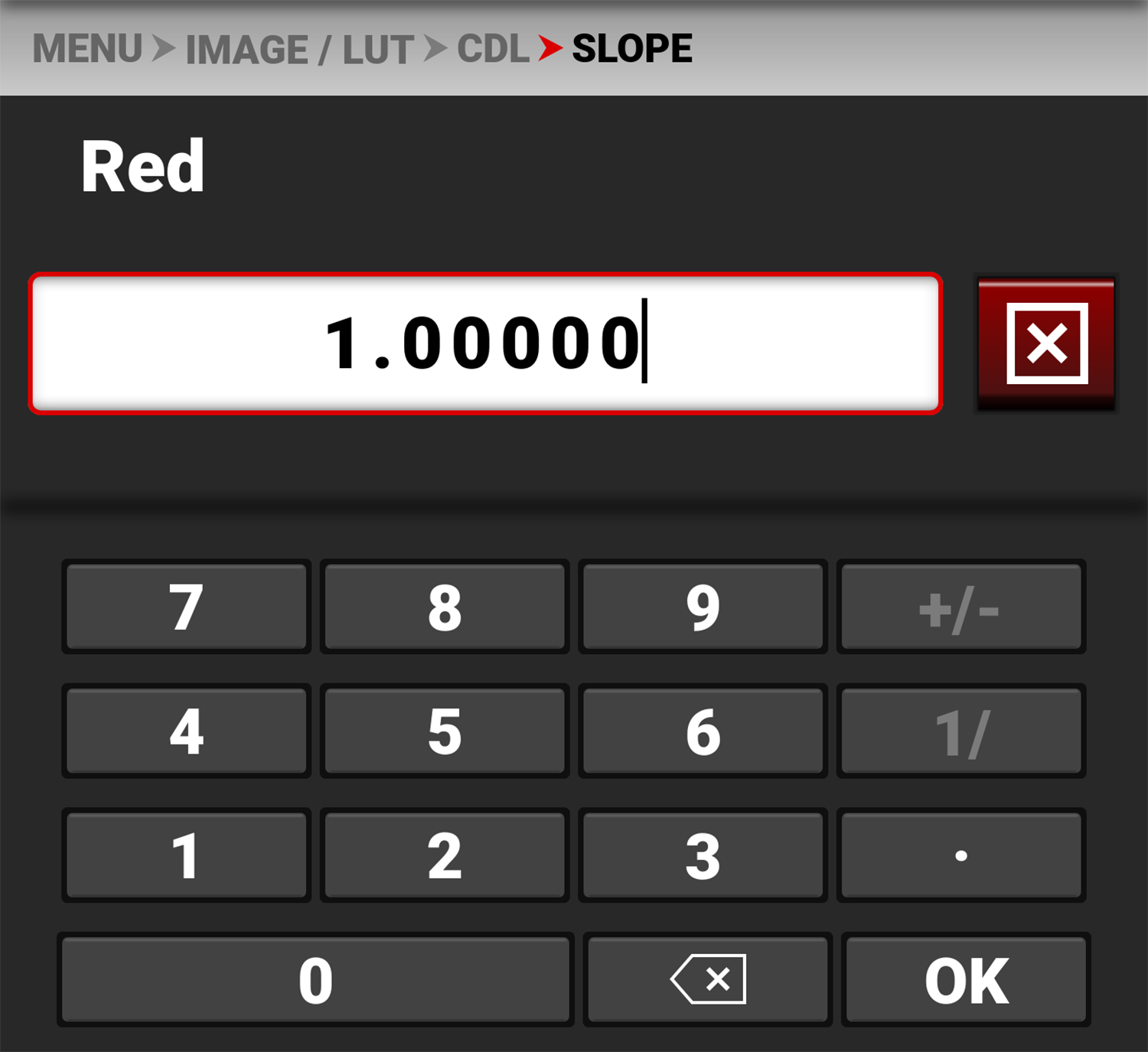

The CDL Slope settings range from 0.00000 to 2.00000. The default CDL Slope settings are 1.00000. The Edit button opens a keypad where you can enter a specific CDL Slope value.
