SDI

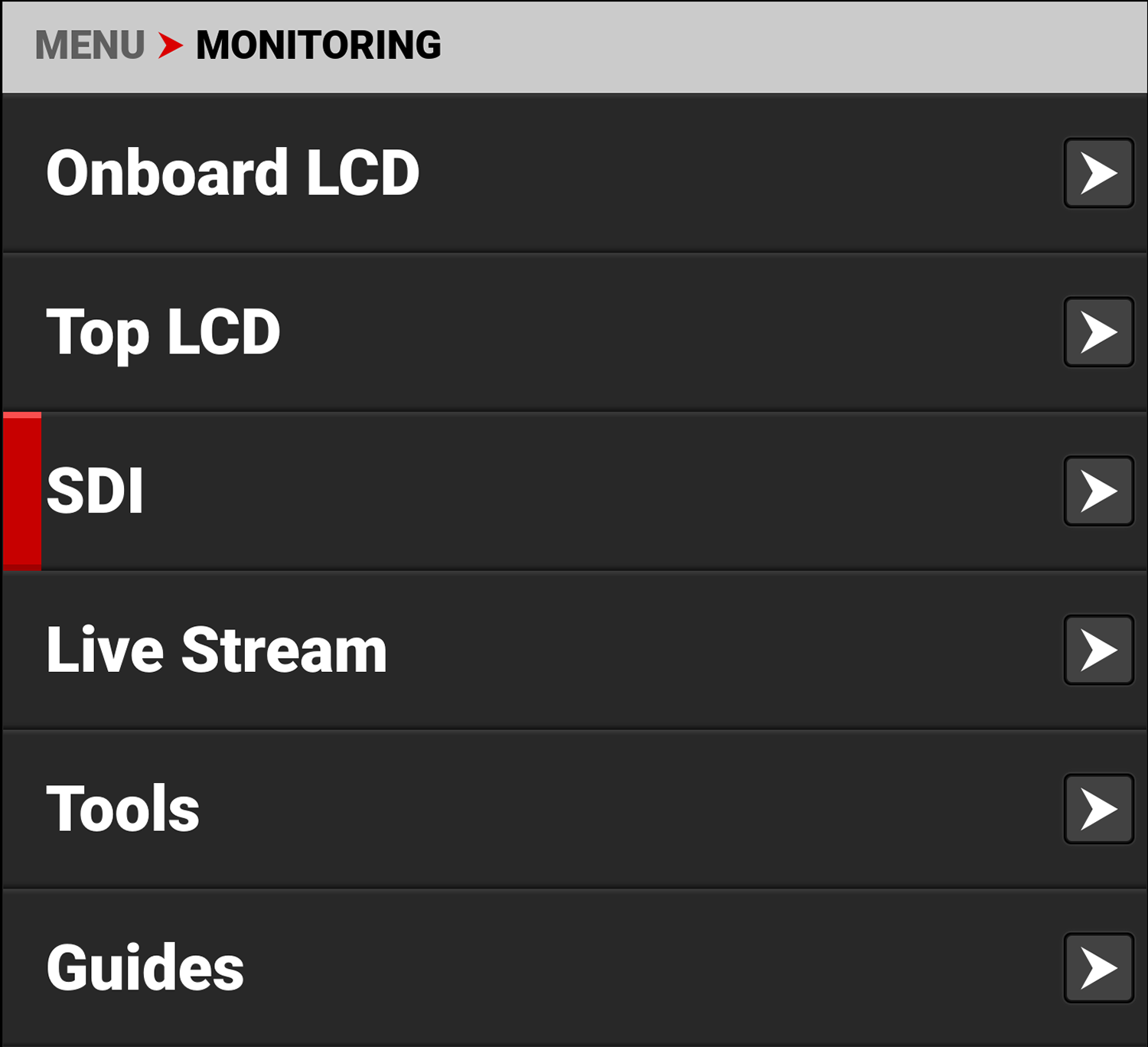

Use SDI to configure the SDI port settings.

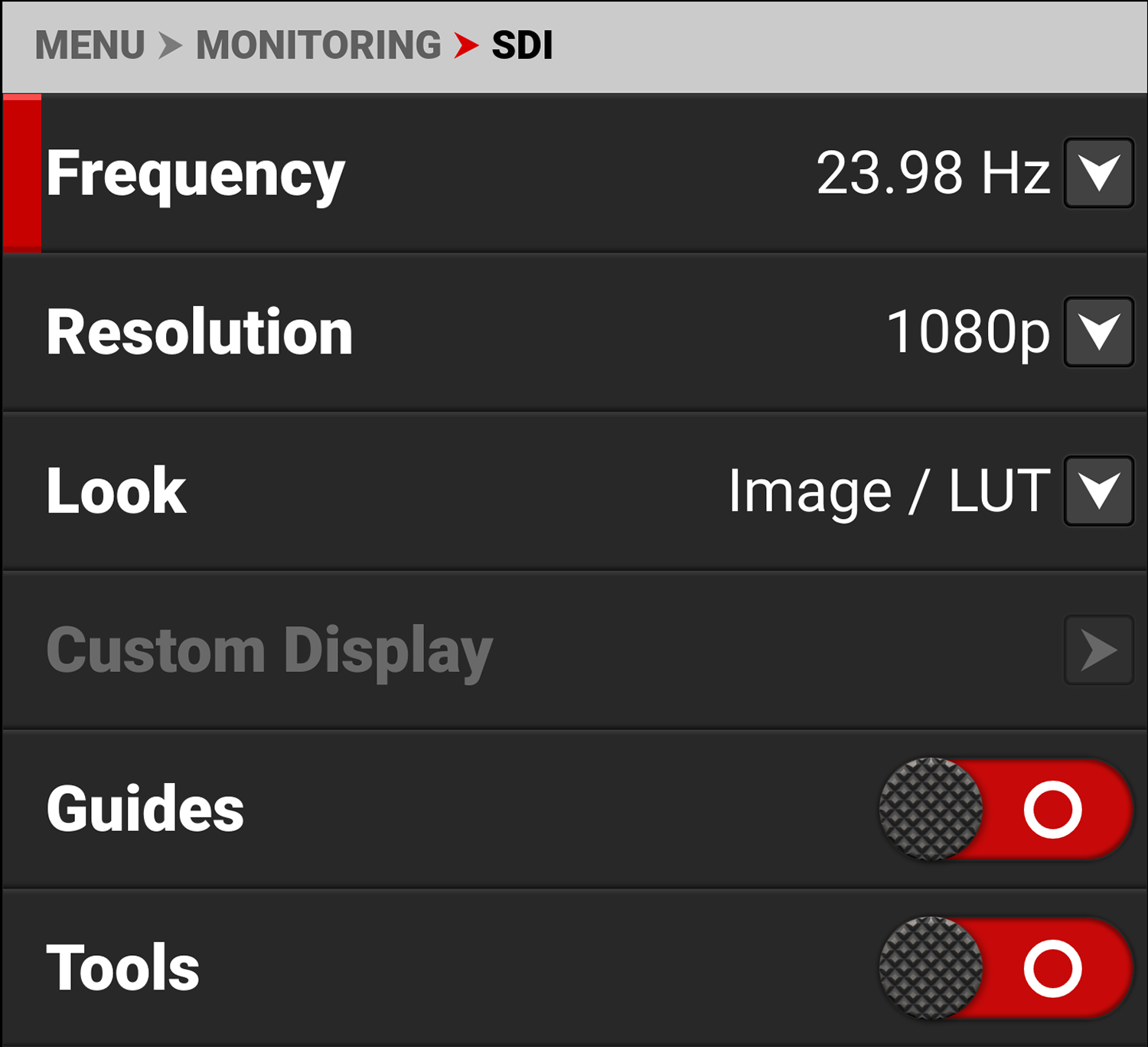

The SDI port settings you can configure include:

Items

Details

Frequency

Select the SDI port frequency

Resolution

Select the SDI port resolution

Look

Select the Image / LUT, RWG, Log3G10, or a Custom Display image preview

Custom Display

Configure the Custom Display settings when enabled

Guides

Enable or disable the monitor guides

Tools

Enable or disable the monitor tools

SDI

Enable or disable the monitor overlay

Magnify

Enable or disable monitor magnification

Magnify Position (Global)

Select the magnification area position

Flip / Mirror

Flip and mirror the image output to the monitor

WARNING: Under certain circumstances, it is possible for an SDI connector to incur damage when connected to an accessory and powered without using shielded cables. RED recommends only using high quality, shielded BNC cables that are rated for 12G-SDI signals and only using shielded power cables for powering SDI accessories.

Make sure power is connected to the SDI accessory at all times before you connect the BNC to the camera. Ungrounded power from SDI accessories can damage the camera’s SDI port. To avoid this possible damage, attach the power source to the accessory before attaching it to the BNC cable. When using RED Approved Third Party battery plates, unplug the BNC cable prior to hot swapping.

When possible, avoid using P-Tap (also known as D-Tap) cables to power accessories. To avoid damage when using P-Tap/D-Tap, it’s imperative that the connect/disconnect sequence (below) is followed precisely.

BNC Attachment Instructions

When attaching SDI accessories:

  1. Connect a power source to the SDI accessory; power on the SDI accessory.
  2. Ensure a power source is connected to the camera. This ensures both are grounded prior to connecting the BNC. The camera's power state does not have an impact on SDI attachment sequence.
  3. Connect the BNC cable to the accessory, then to the camera.



When detaching an accessory mounted to an SDI output, ensure that you remove the BNC connection to the camera before removing power to the SDI device:

  1. Shutdown the SDI accessory.
  2. Disconnect the BNC cable from the camera.
  3. Disconnect the power source from the SDI accessory.



When you need to swap out a battery on an accessory mounted to the camera’s SDI port, you must:

  1. Shutdown the SDI accessory.
  2. Disconnect the BNC cable from the camera.
  3. Replace the battery on the SDI accessory.
  4. Connect the BNC cable to the camera.
  5. Power on the SDI accessory.

For more information, refer to Preventing Damage to SDI Outputs.

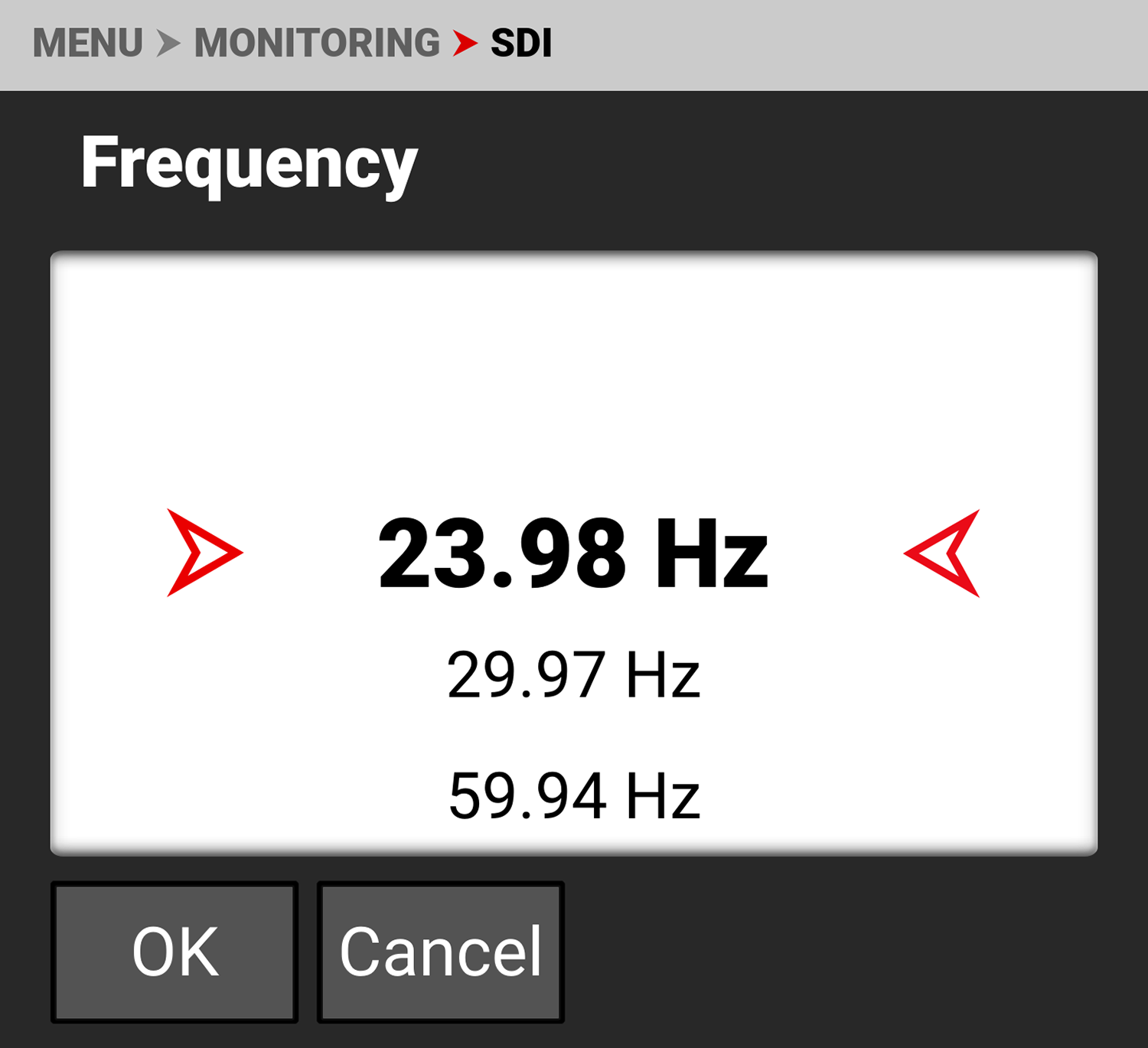

Frequency

Use Frequency to select one of the following SDI port frequency settings:

  • 23.98 Hz (default)
  • 29.97 Hz
  • 59.94 Hz

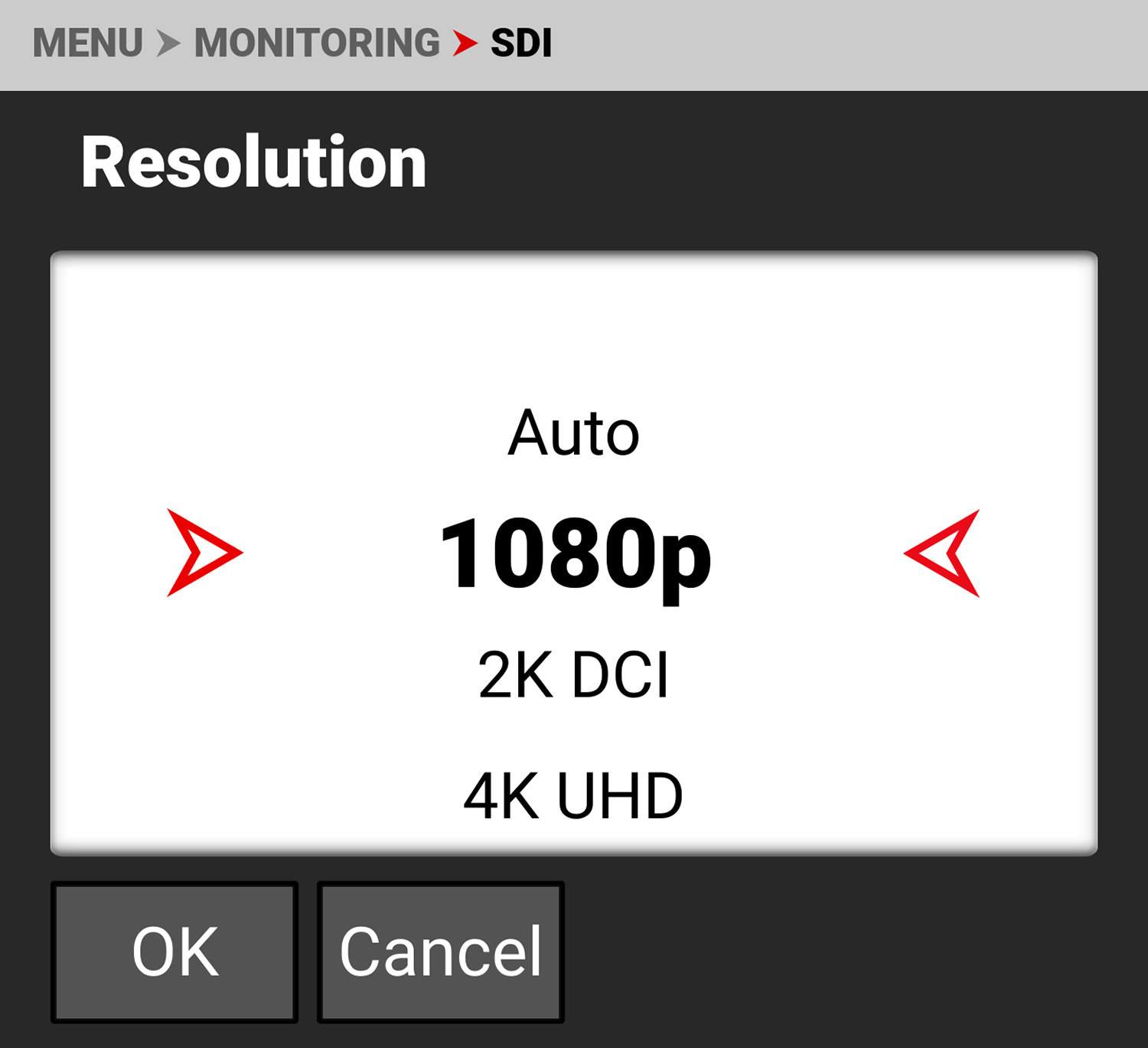

Resolution

Use resolution to select one of the following SDI port resolution settings:

•  1080p (default)

•  2K DCI

•  4K UHD

•  4K DCI

The resolution selected here controls the SDI output resolution of the preview page.

Scaling Preview

When monitoring in 1080p or 4K UHD while capturing in a 17:9 format, the entire 17:9 image will be down-scaled to the 16:9 aspect ratio of 1080p or 4K UHD. Small black bars will only appear on the top and bottom of the frame in the monitor path and not on the recorded image.

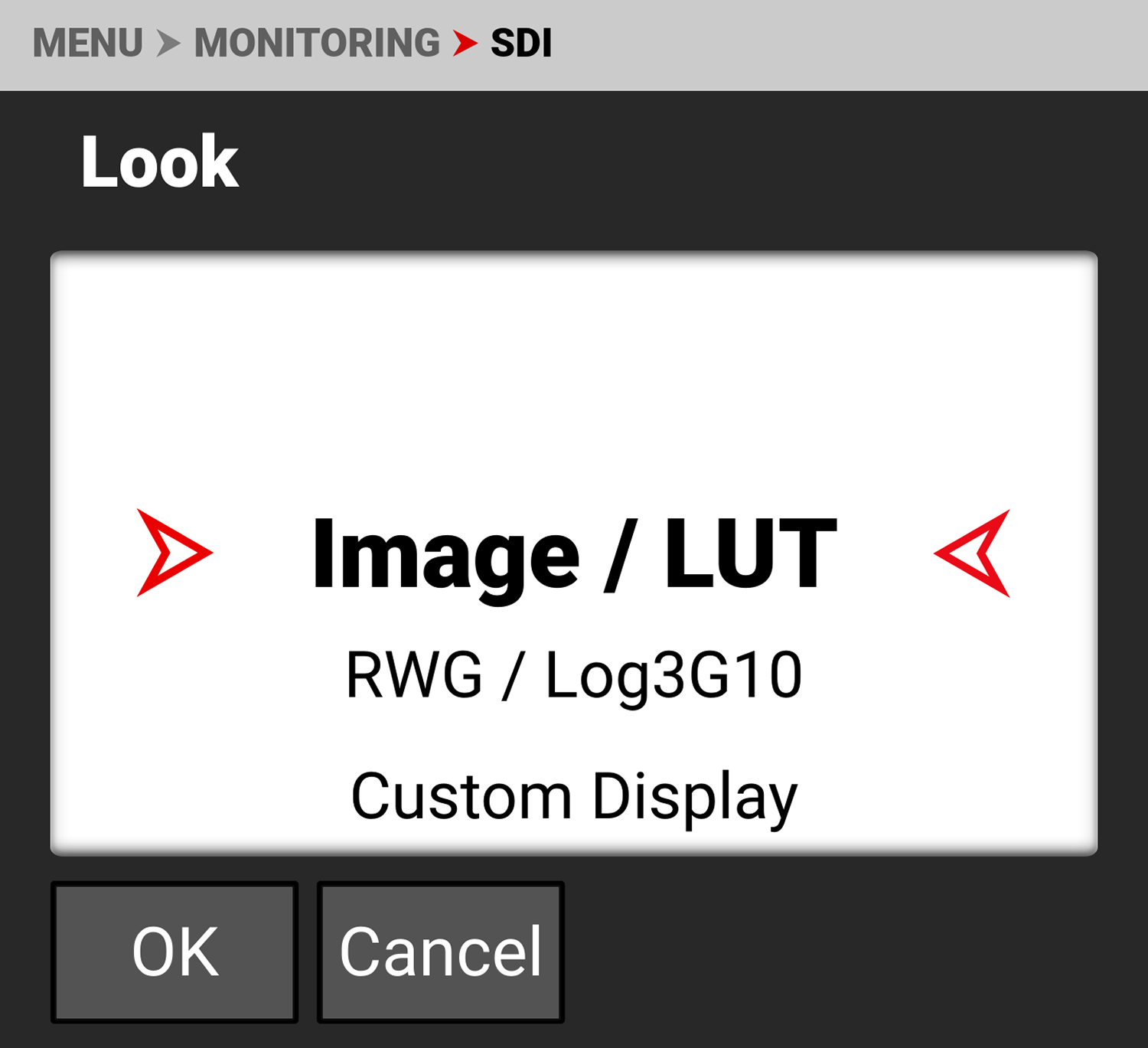

Look

You can select the look of the image preview signal sent to the SDI port.

The selections include:

  • Image / LUT (default)
  • REDWideGamutRGB / Log3G10
  • Custom Display (enables the Custom Display menu)

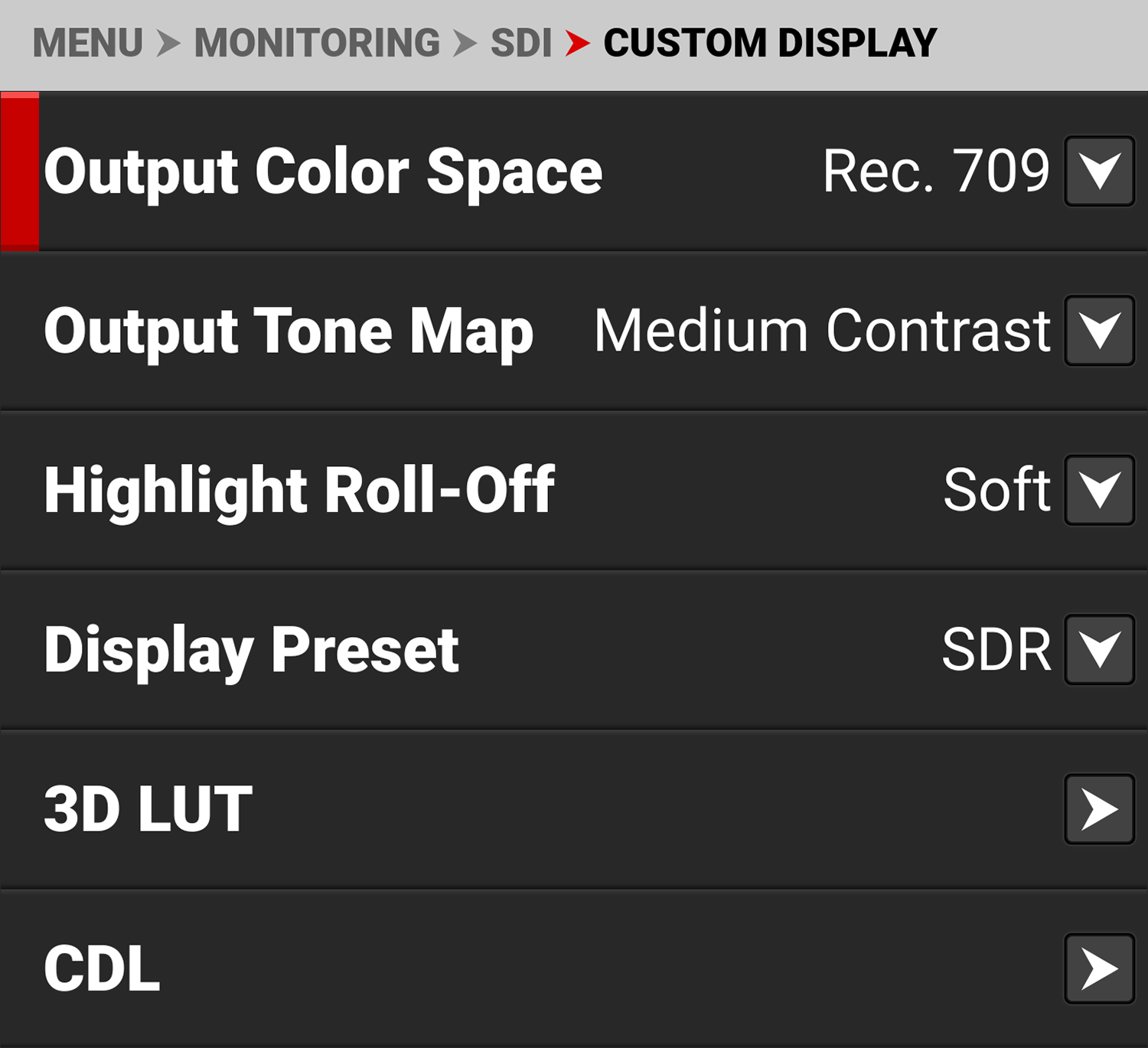

Custom Display

Use Custom Display (enabled from the Look menu) to select the SDI's isolated look settings.

Refer to Image / LUT Menu for more information about the specific look settings and menus.



Guides

Use Guides to enable or disable (default) the viewing of guides. Tap the switch to toggle between enabled and disabled.

Tools

Use Tools to enable or disable (default) the viewing of SDI tools, and use of the SDI Overlay Function Top button (refer to Top Buttons Mode). Tap the switch to toggle between enabled and disabled.

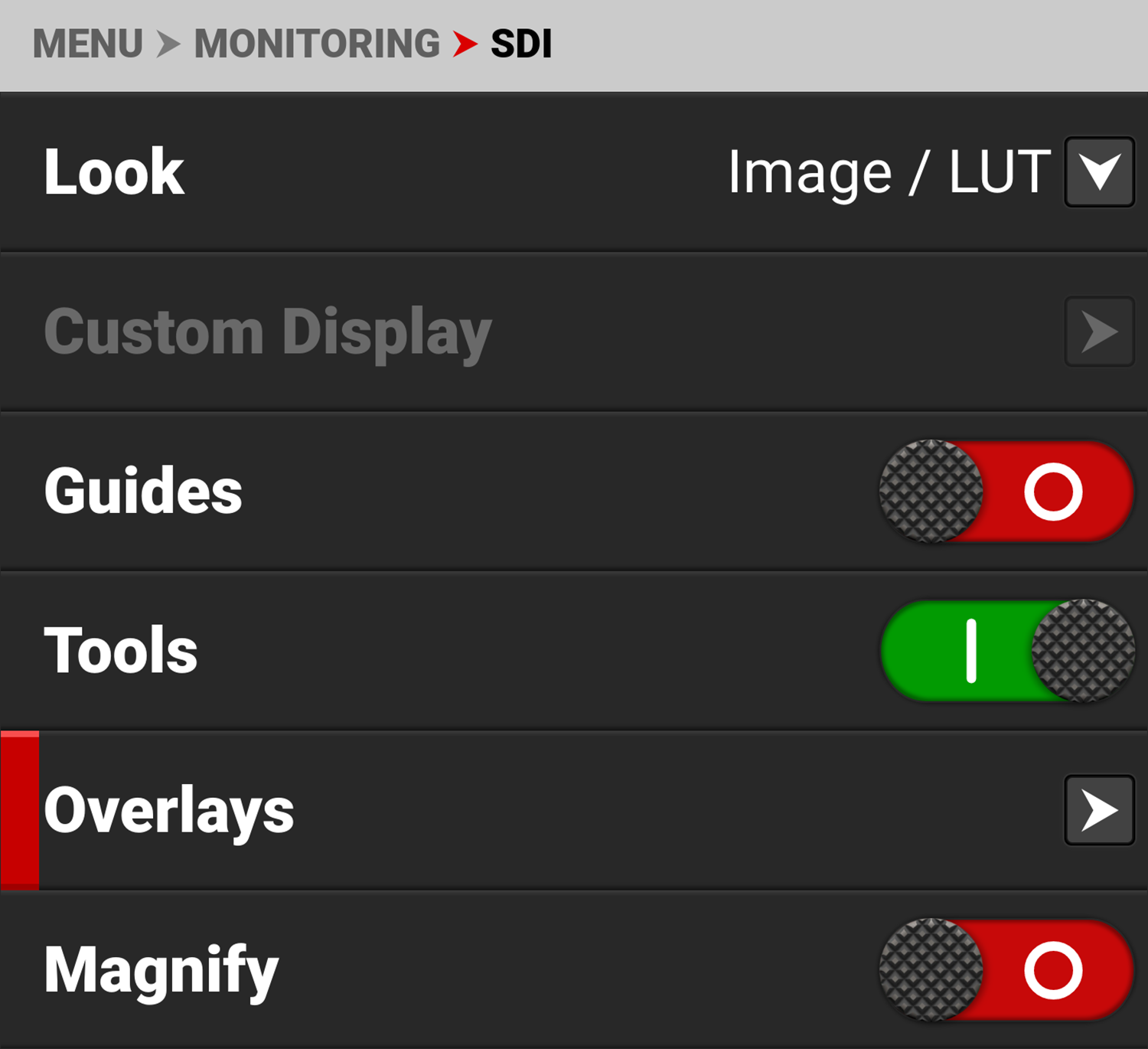

Overlays

Use Overlays to access the SDI port overlay menus.

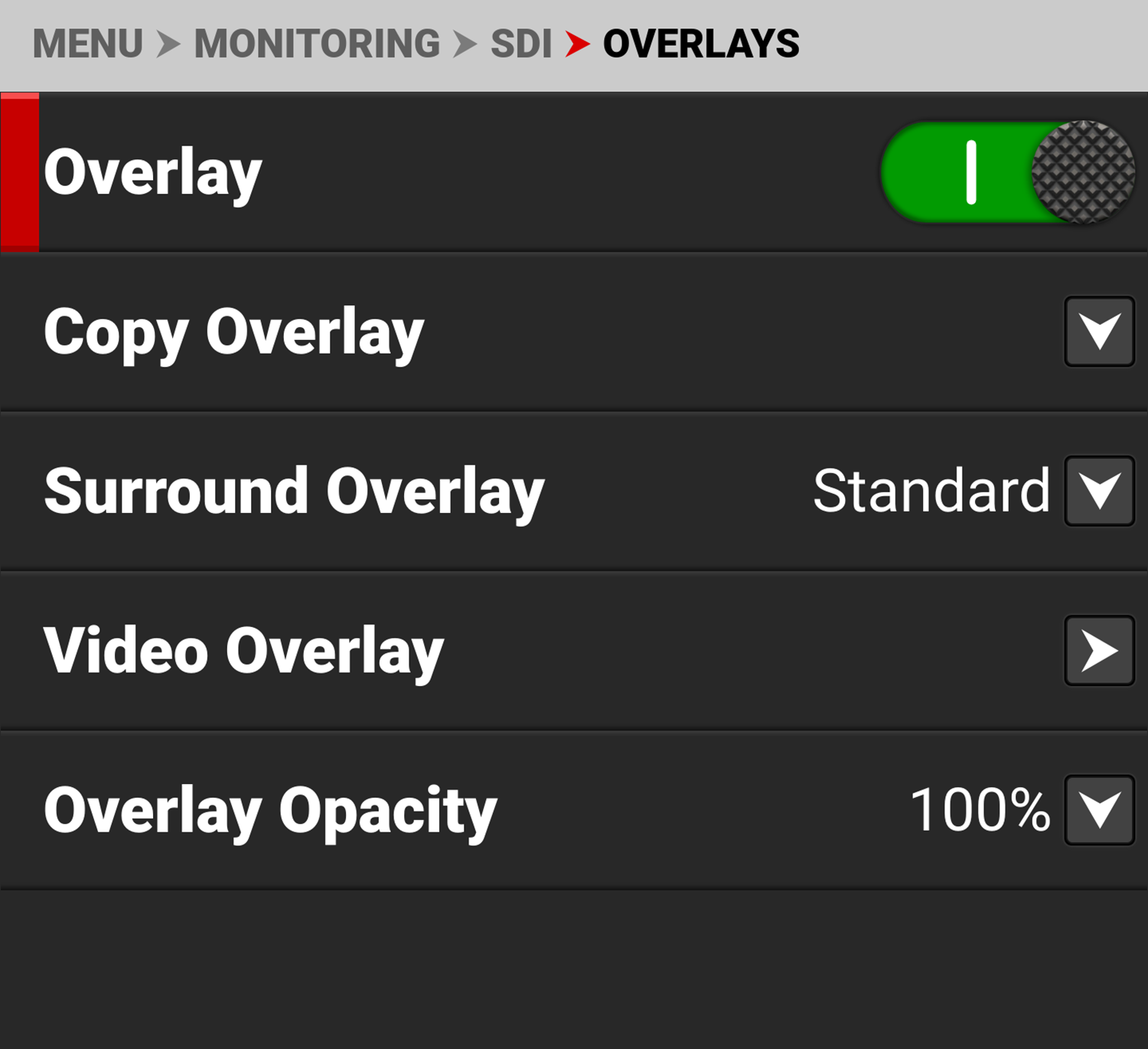

Use Overlays to manage the EVF overlay settings. These settings include:

Item

Details

Overlay

Enable or disable the SDI overlay display

Copy Overlay

Copy an overlay from or to the SDI to or from the Top EVF

Surround Overlay

Select the overlay surround type

Video Overlay

Manage the video overlay display values

Overlay Opacity

Select the opacity of the overlay

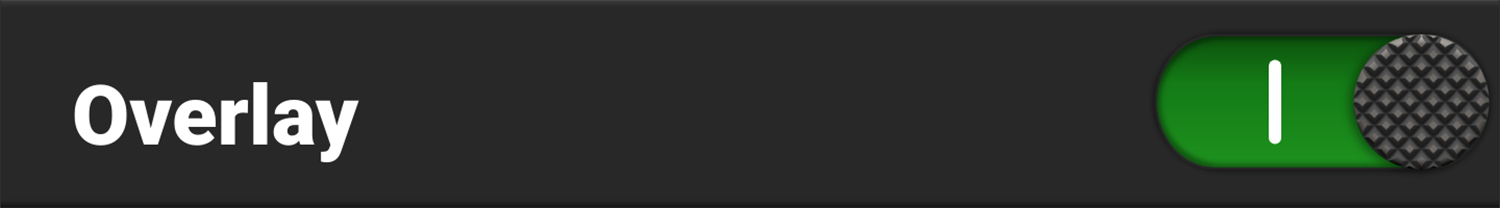

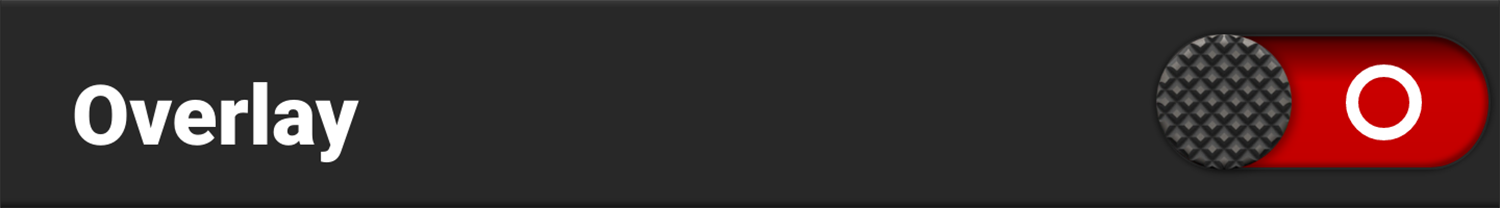

Overlay

Use Overlay to enable (default) or disable the viewing of the overlay. Tap the switch to toggle between enabled and disabled.

Copy Overlay

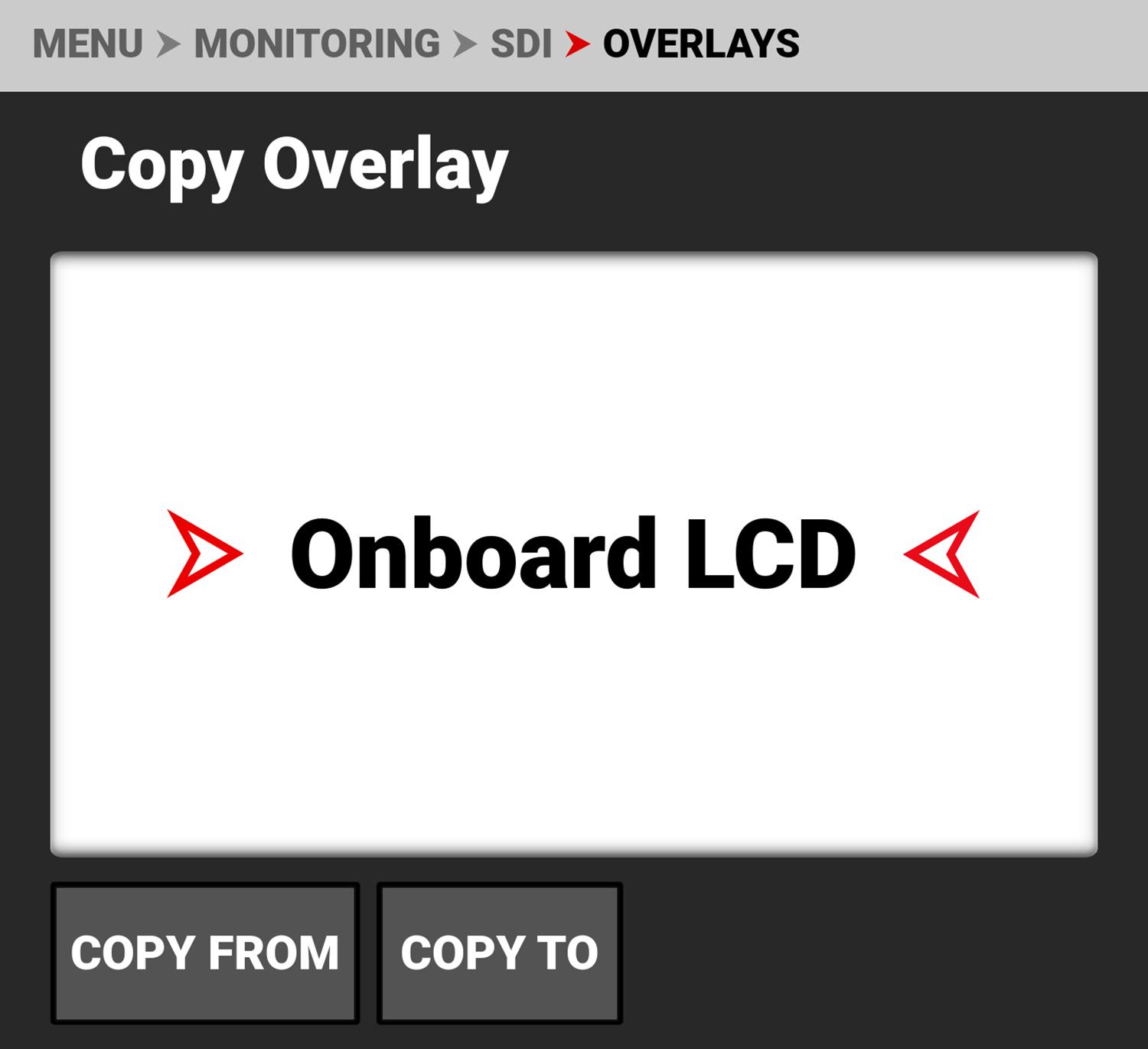

Use Copy Overlay to copy an overlay to or from the SDI from or to the Onboard LCD or Top EVF.

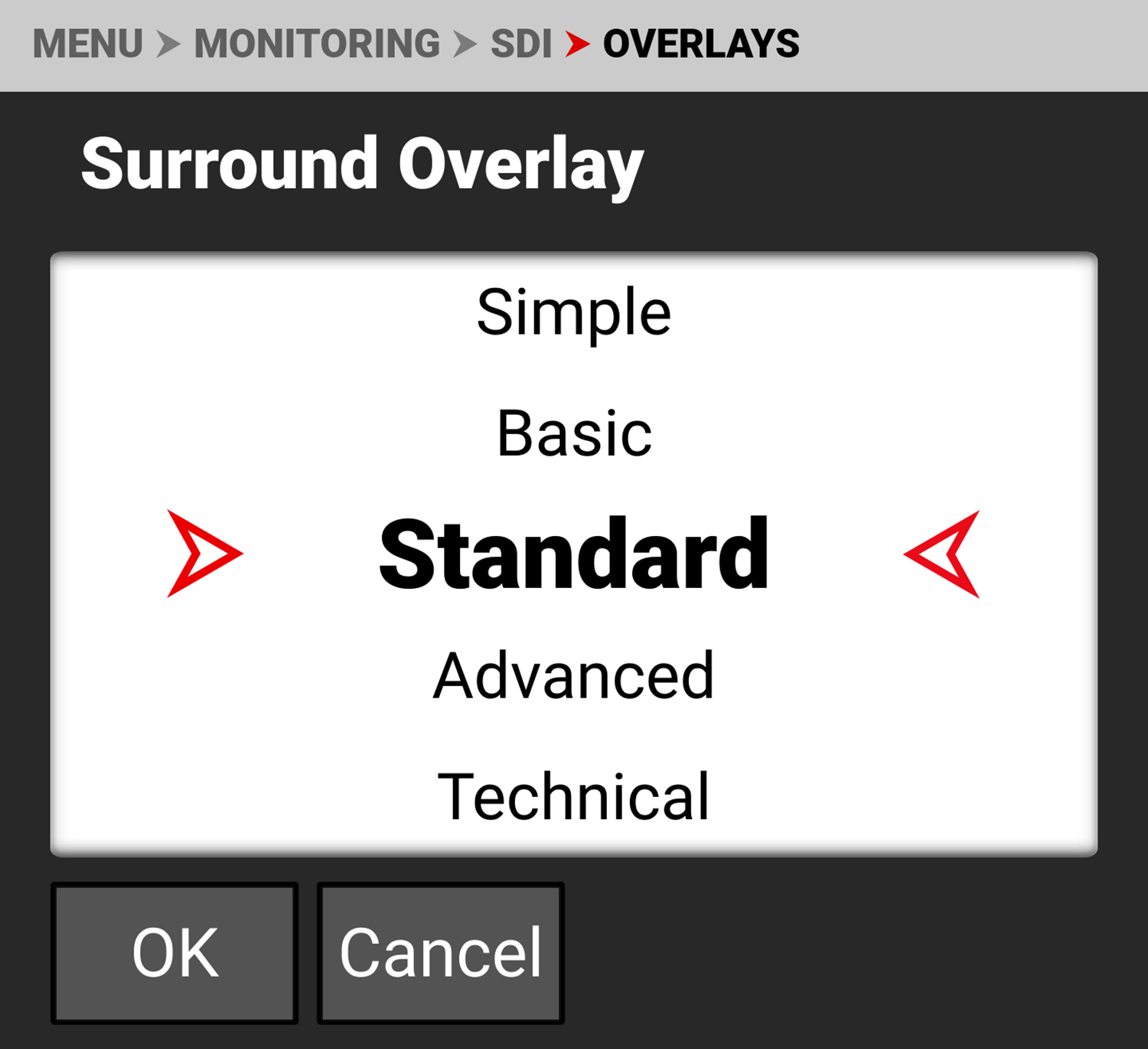

Surround Overlay

Use Surround Overlay to select one of the following SDI port overlay surrounds:

  • Simple - Minimal image information is displayed (refer to Simple Mode)
  • Basic - Simple plus time sensitive media and battery information (refer to Basic Mode)
  • Standard - Industry standard image and camera details are displayed (refer to Standard Mode)
  • Advanced - Standard plus exposure and audio meters (refer to Advanced Mode)
  • Technical - Advanced plus lens focus distance and monitor look status (refer to Technical Mode)



Simple Mode

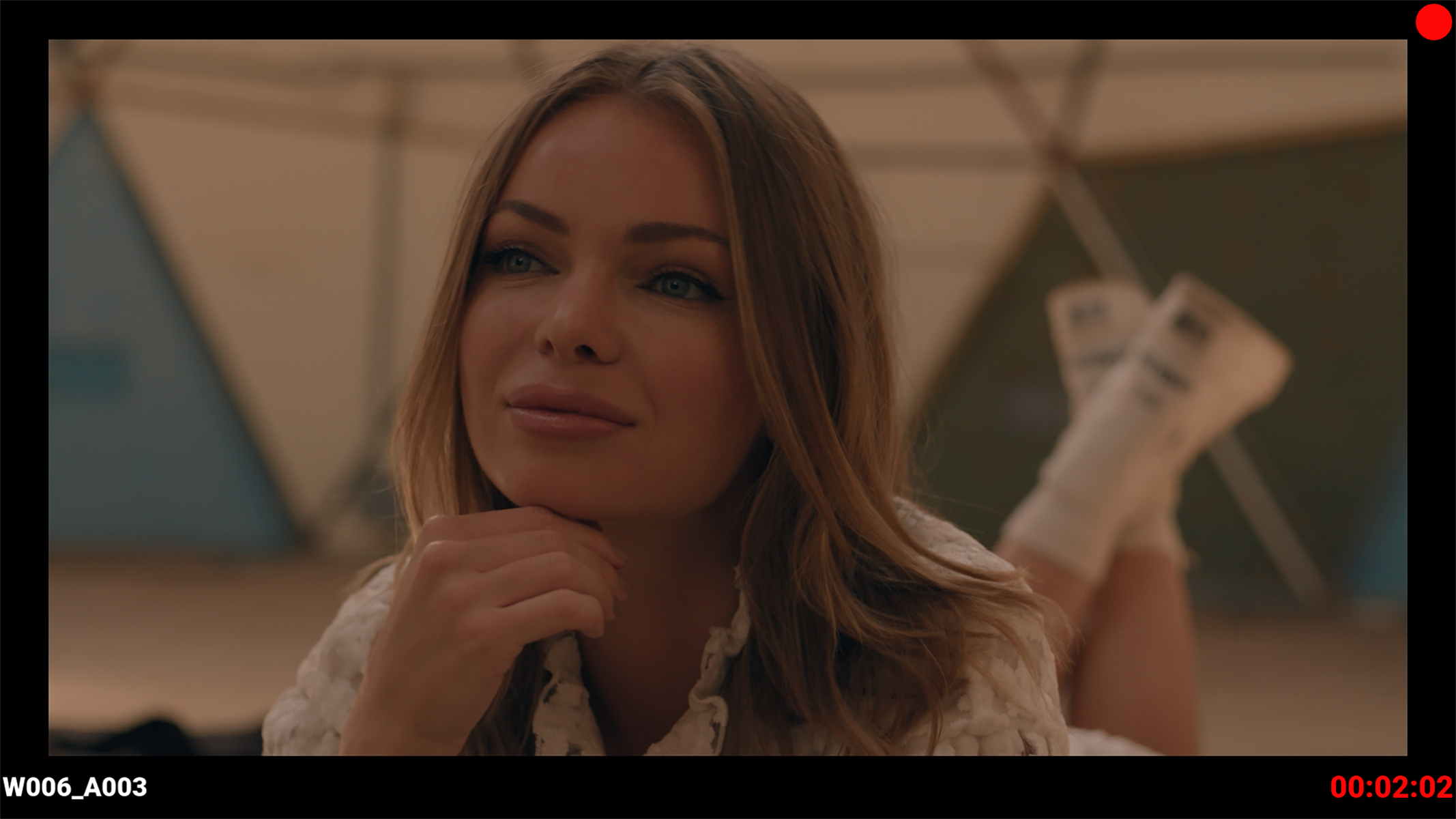

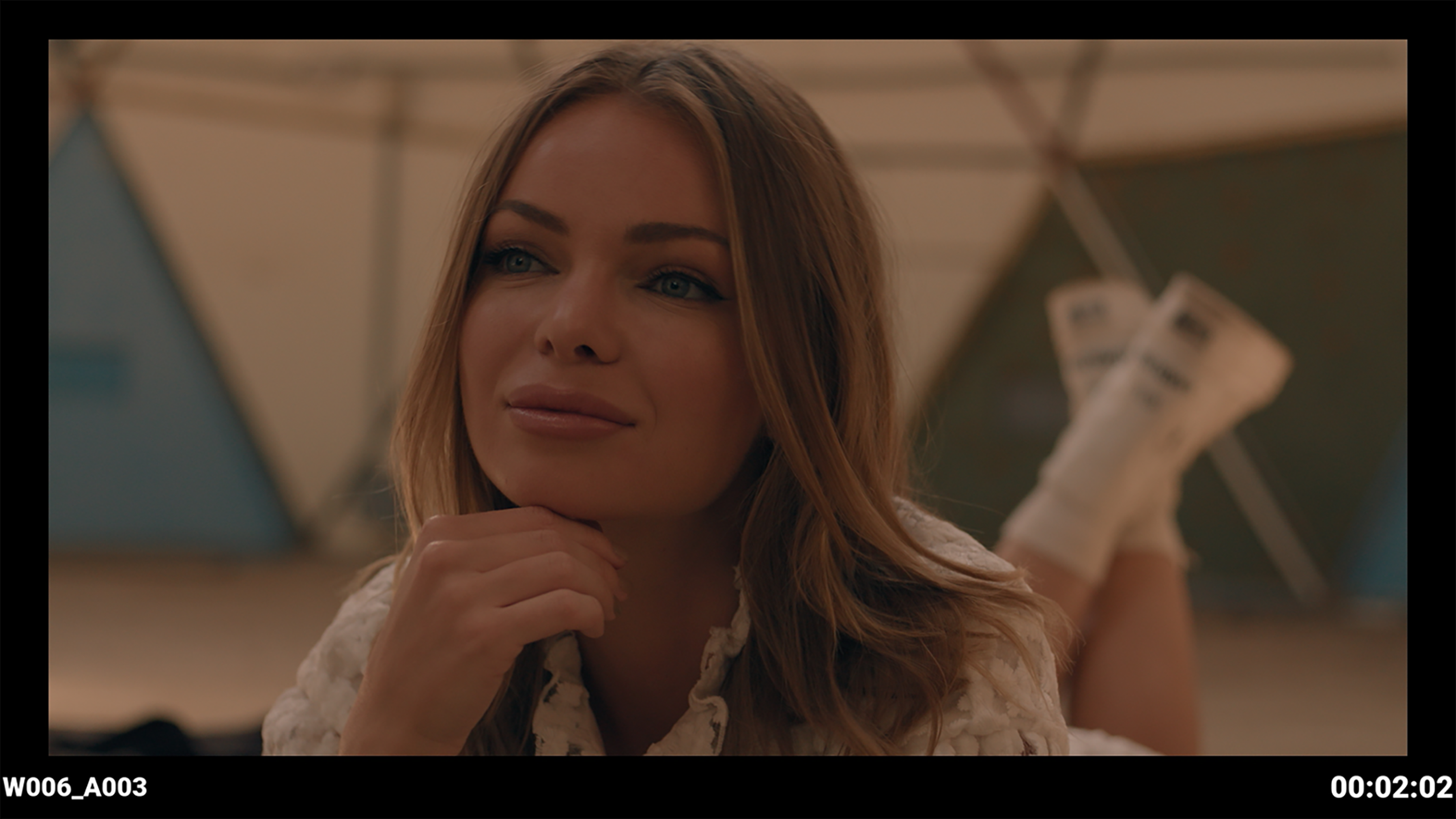

Simple mode displays the clip name and the current Timecode. When the camera is recording, the Timecode turns red, and a red dot appears in the top right corner.

Basic Mode

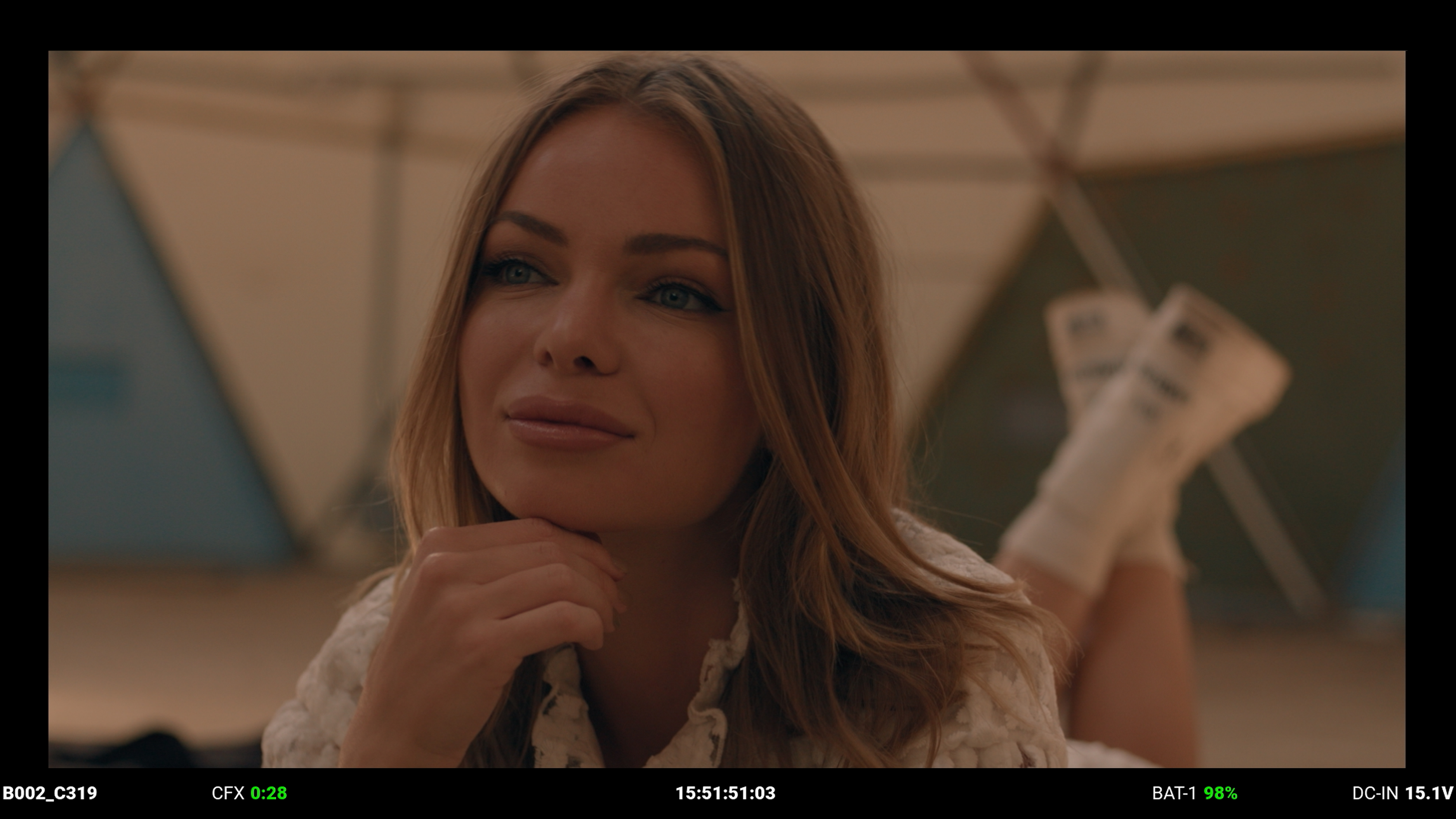

Basic mode displays the following:

  • Clip Name
  • CFexpress Time Remaining (at the current settings)
  • Timecode
  • Battery percentage remaining (at the current settings)
  • DC-IN

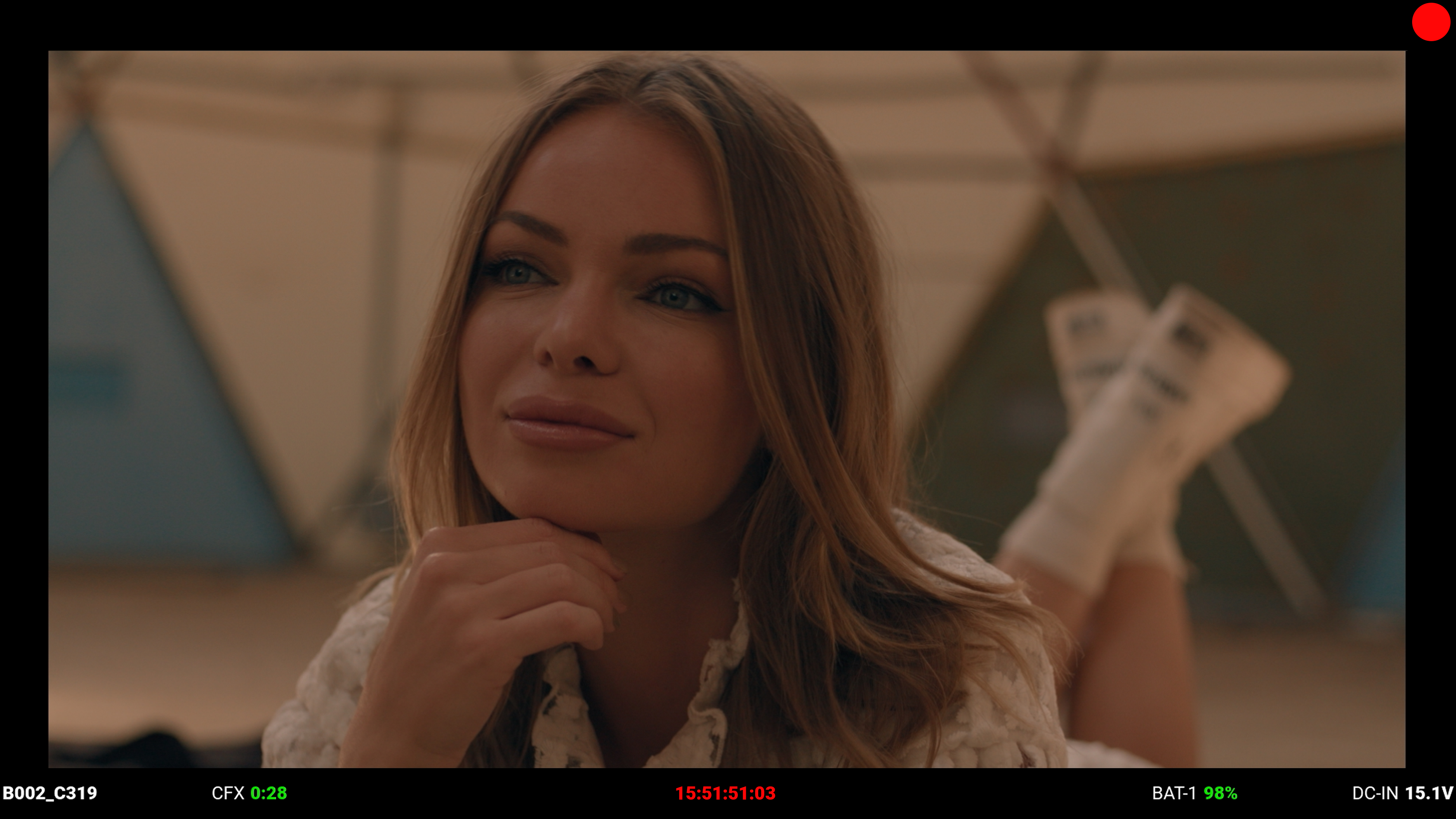

When the camera is recording, the Timecode turns red, and a red dot appears in the top right corner.

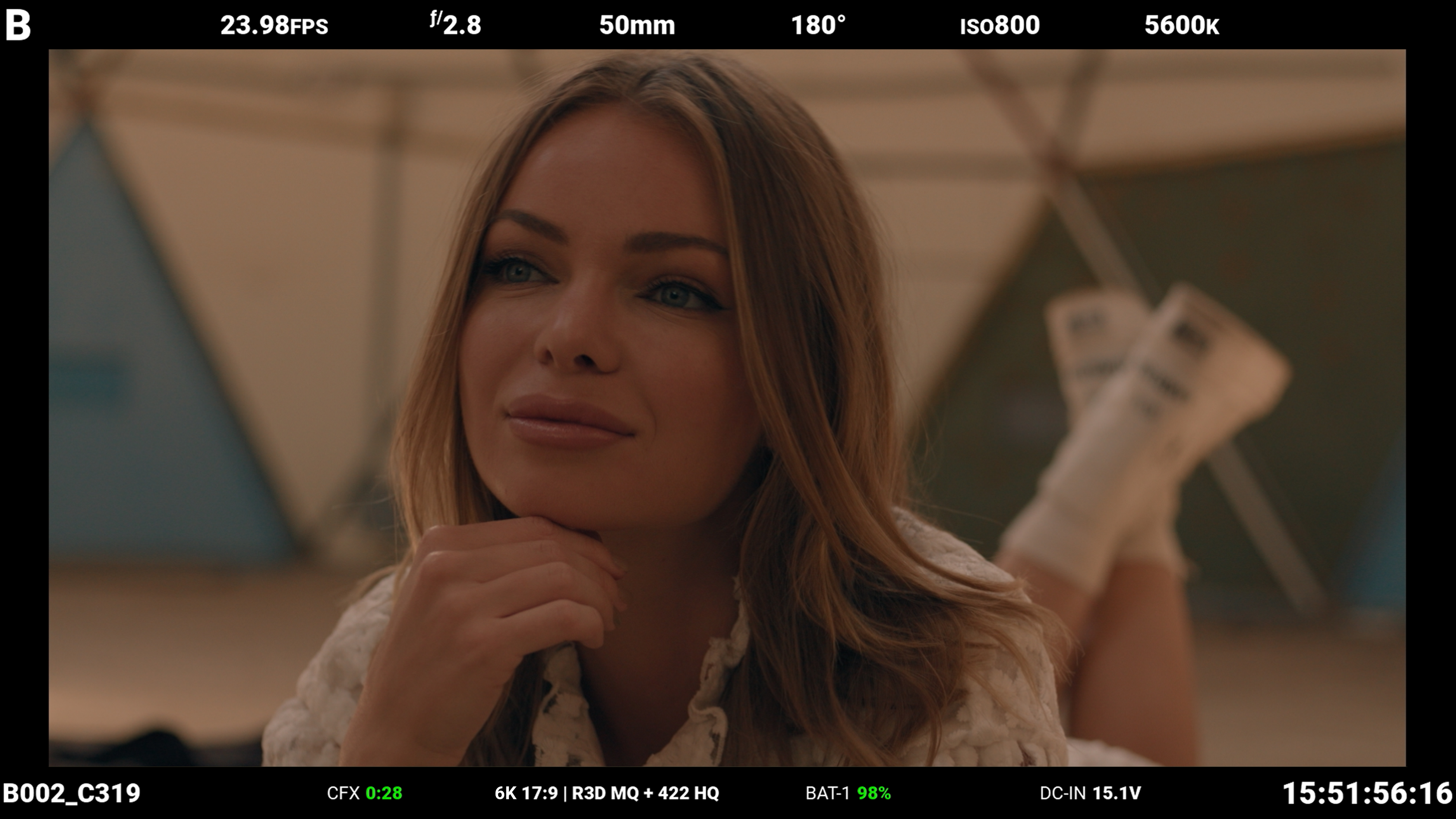

Standard Mode

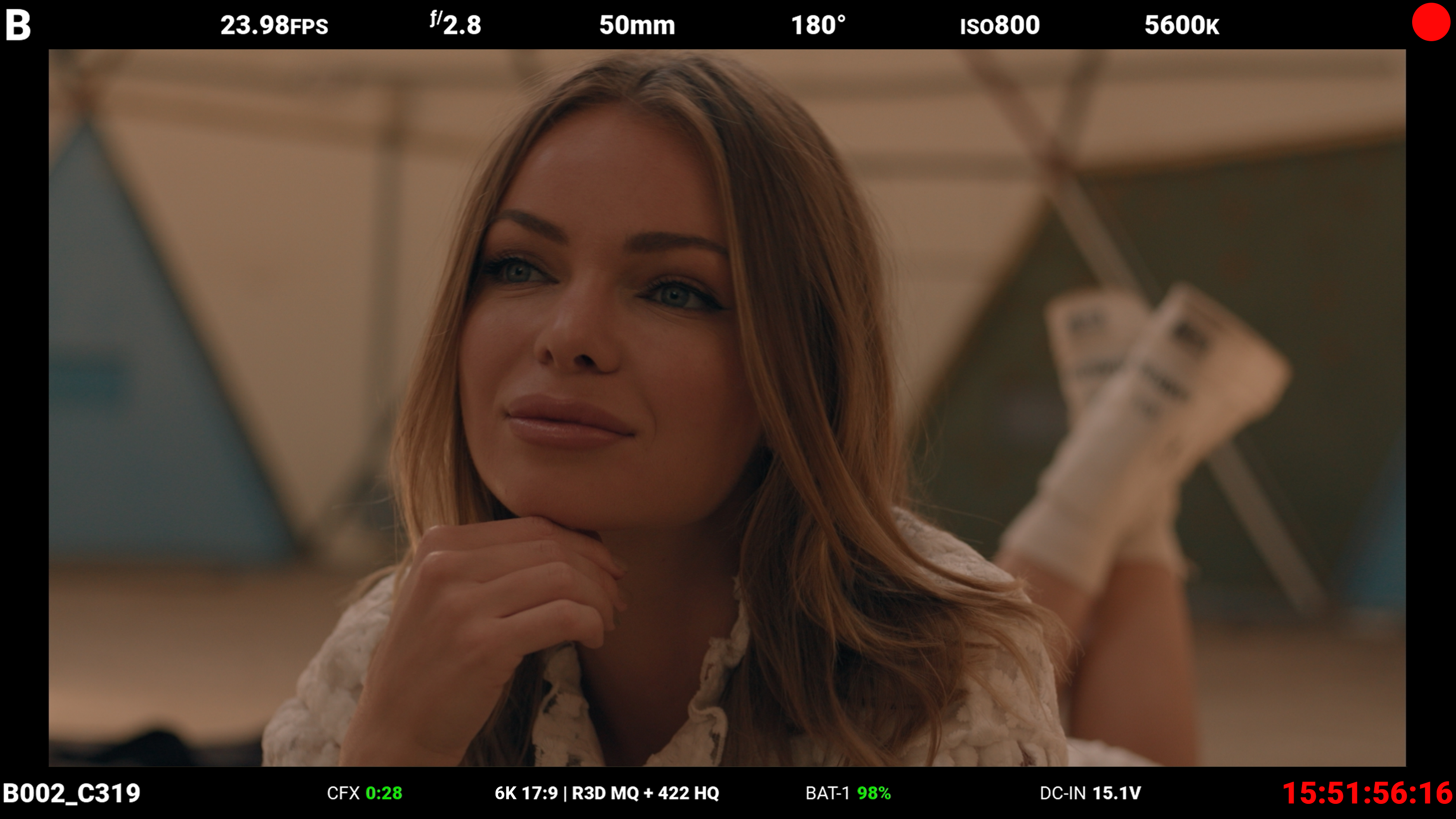

Standard mode displays the following:

Top



Bottom

• Camera ID

• Recording Frame Rate

• f-Stop

• Focus Length

• Shutter Angle

• ISO

• White Balance

• Clip Name

• CFexpress Time Remaining

• Format, File Type, Rate

• Battery

• DC-IN

• Timecode



Use the Top Buttons Function mode to cycle through and adjust the values displayed on the top (refer to Top Buttons Mode).

Lens items such as Focal Length and f-Stop will adaptively display depending on whether the lens data is available.

When the camera is recording, the Timecode turns red, and a red dot appears in the top right corner.

Advanced Mode

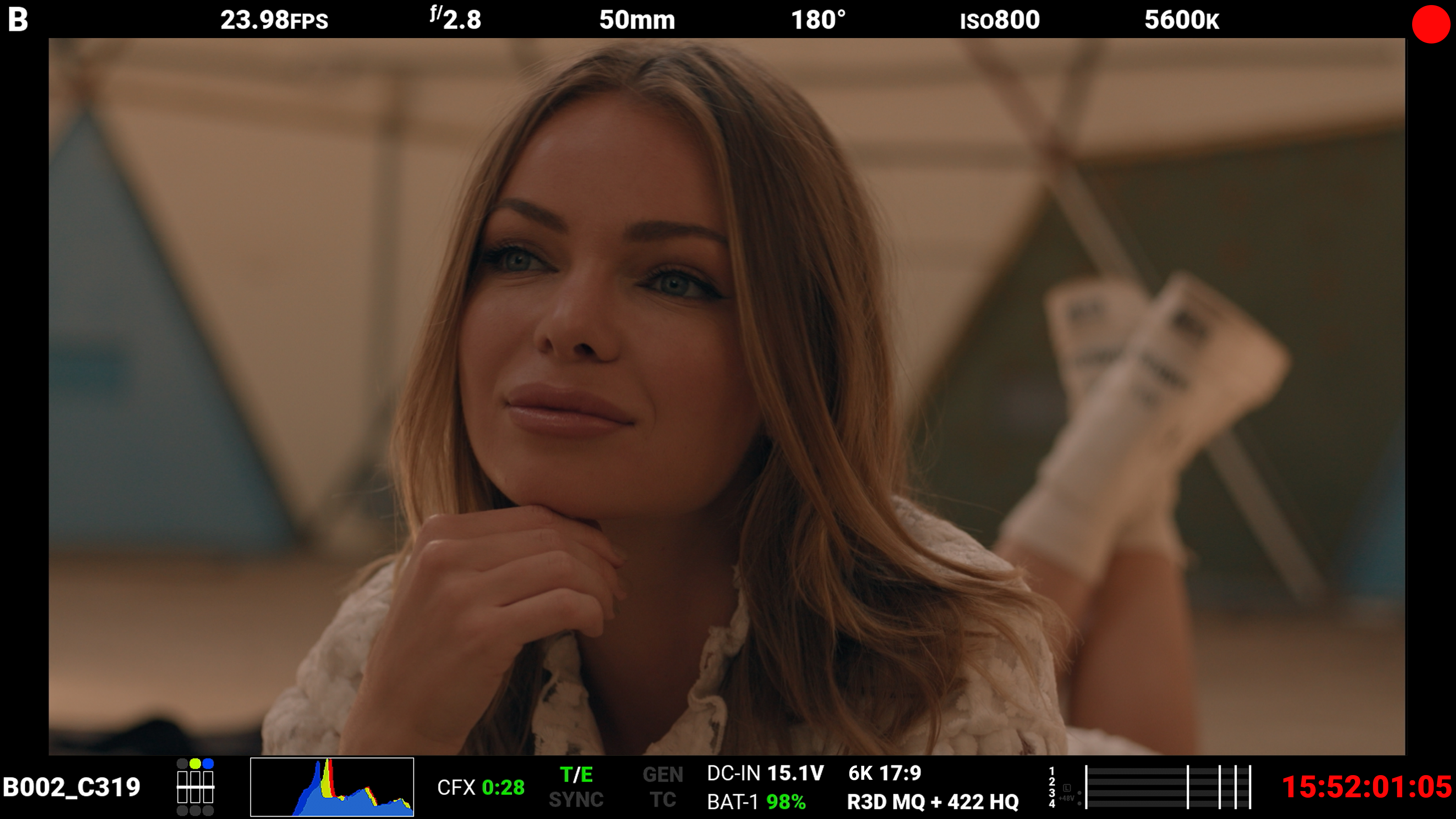

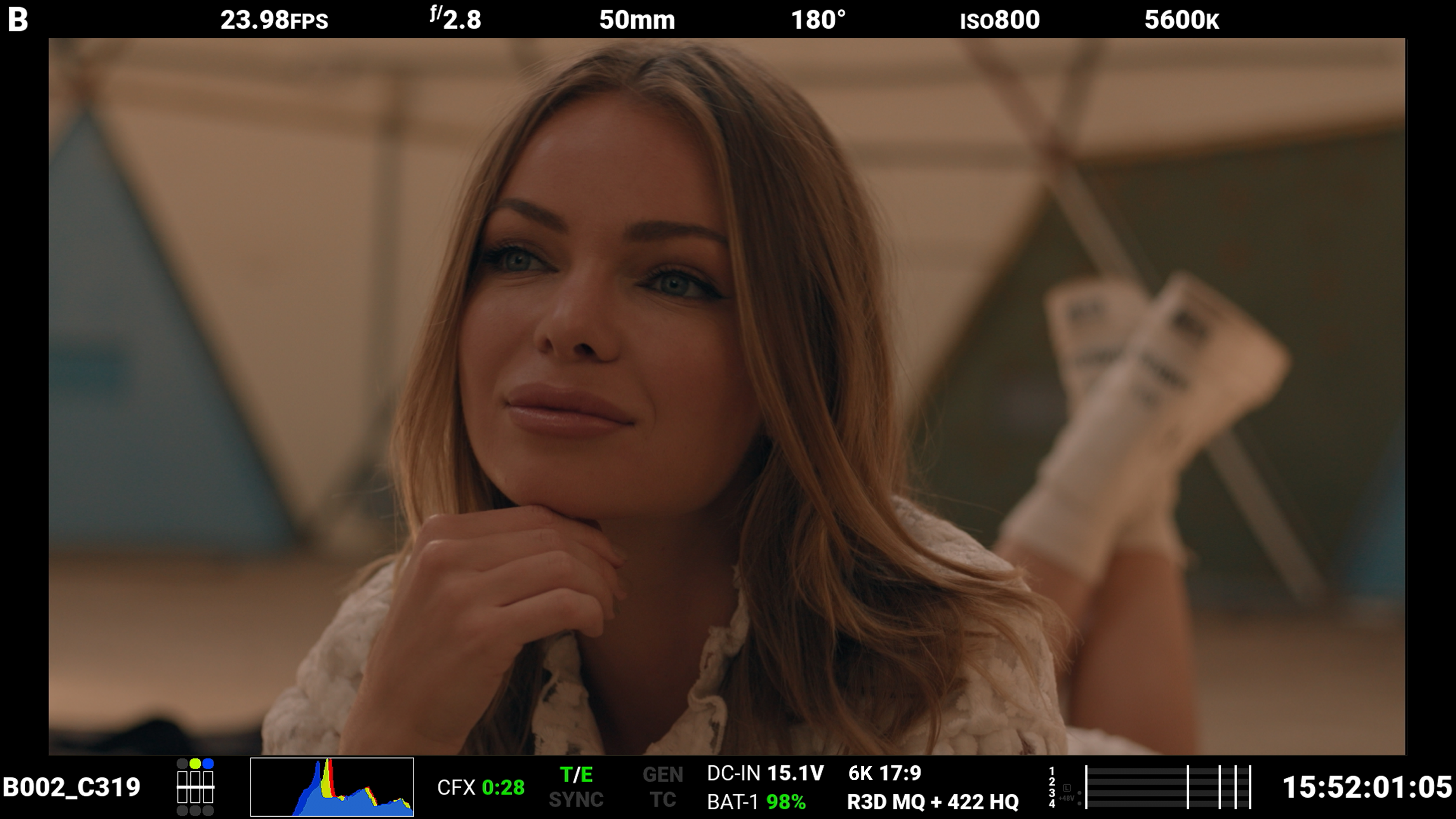

Advanced mode displays the following:

Top



Bottom



• Camera Number

• Recording Frame Rate

• f-Stop

• Focus Length

• Shutter Angle

• ISO

• White Balance

• Clip Name

• Exposure Meter

• Histogram

• CFexpress Time Remaining

• Temperature / Exposure

  Calibration

• Timecode, Genlock, Synch

• DC-In, Battery

• Format, File Type, Rate

• VU Meter

• Timecode



Use the Top Buttons Function mode to cycle through and adjust the values displayed on the top (refer to Top Buttons Mode).

Lens items such as Focal Length and f-Stop will adaptively display depending on whether the lens data is available.

When the camera is recording, the Timecode turns red, and a red dot appears in the top right corner.

Technical Mode

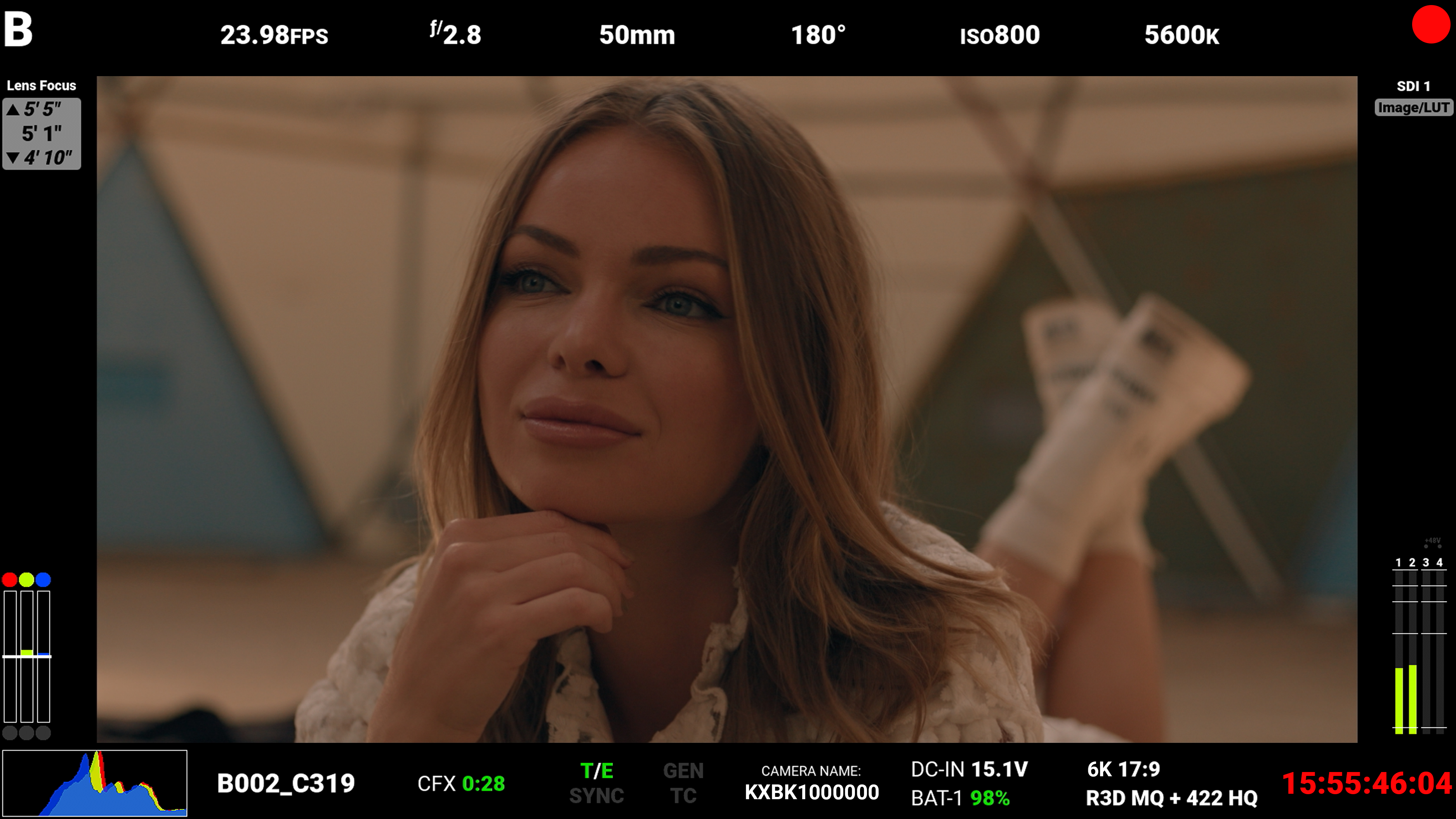

Technical mode displays the following:

Top



Bottom



• Camera ID

• Recording Frame Rate

• f-Stop

• Focus Length

• Shutter Angle

• ISO

• White Balance

• SDI Look

• Exposure Meter

• Histogram

• Clip Name

• CFexpress Time Remaining

• Temperature / Exposure

  Calibration

• Timecode, Genlock, Synch

• Camera Name

• DC-In, Battery

• Format, File Type, Rate

• Timecode

• VU Meter



Use the Top Buttons Function mode to cycle through and adjust the values displayed on the top (refer to Top Buttons Mode).

Lens items such as Focal Length and f-Stop will adaptively display depending on whether the lens data is available.

When the camera is recording, the Timecode turns red, and a red dot appears in the top right corner.

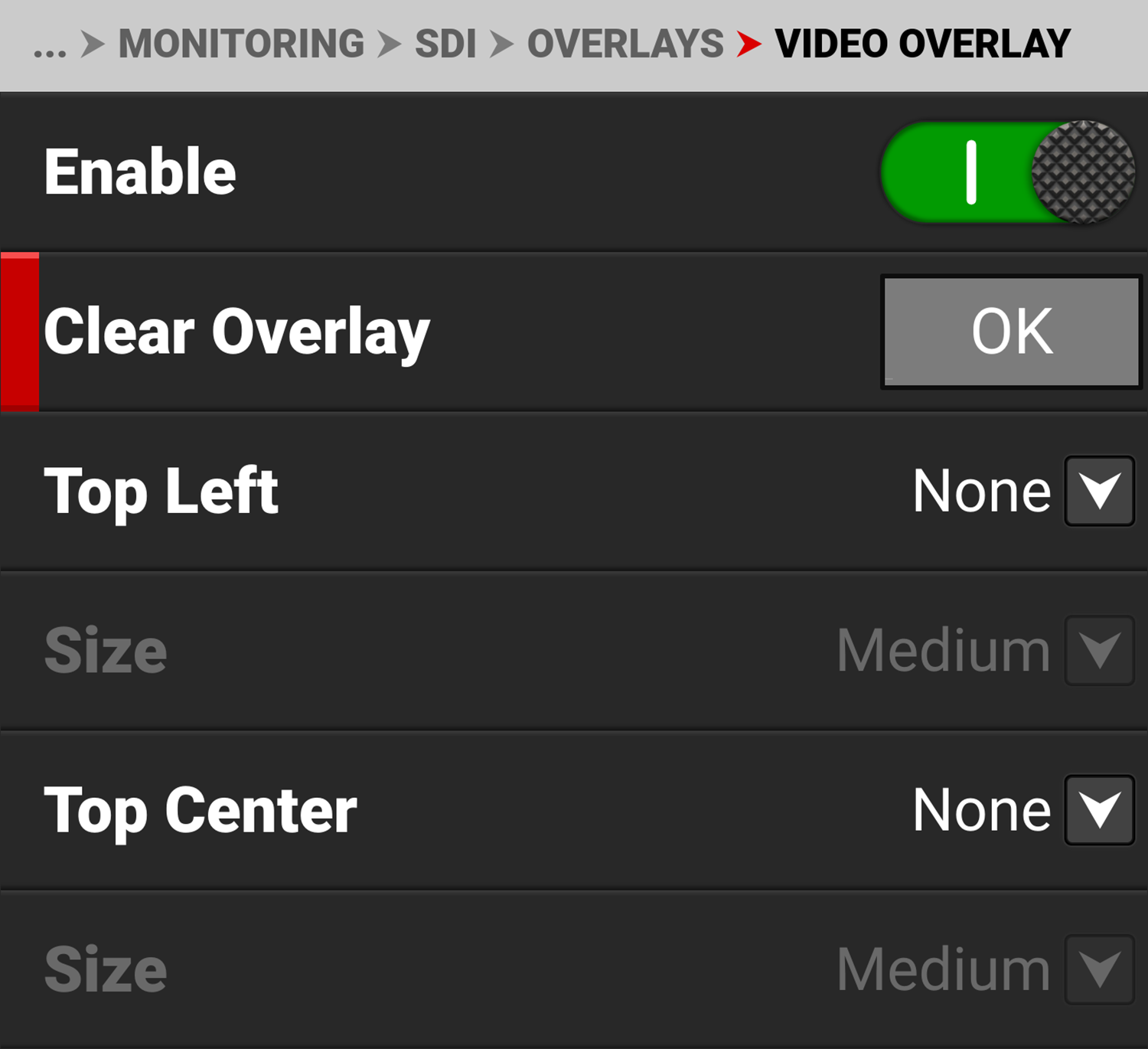

Video Overlay

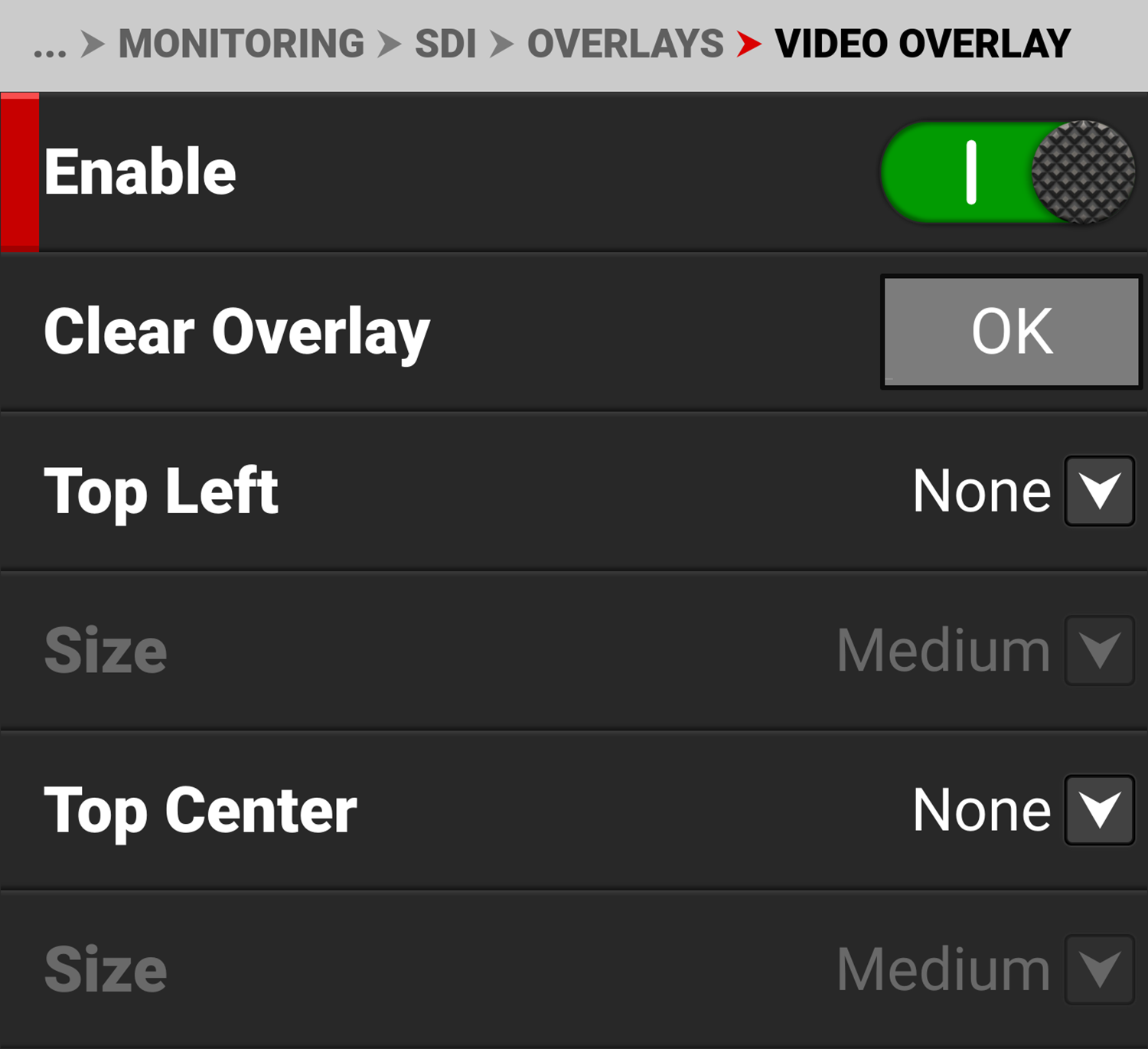

Use Video Overlay to manage overlay items displayed on the top bar of the video preview.

The Video Overlay display value management settings include:

Item

Details

Enable

Enable or disable SDI video overlay management

Clear Overlay

Clear all of the settings from the SDI overlays

Location

Select the locations and values for the SDI overlays

Size

Select the size for the SDI overlay values

Clear Overlay

Use Clear Overlay to clear the video overlay values from the SDI.

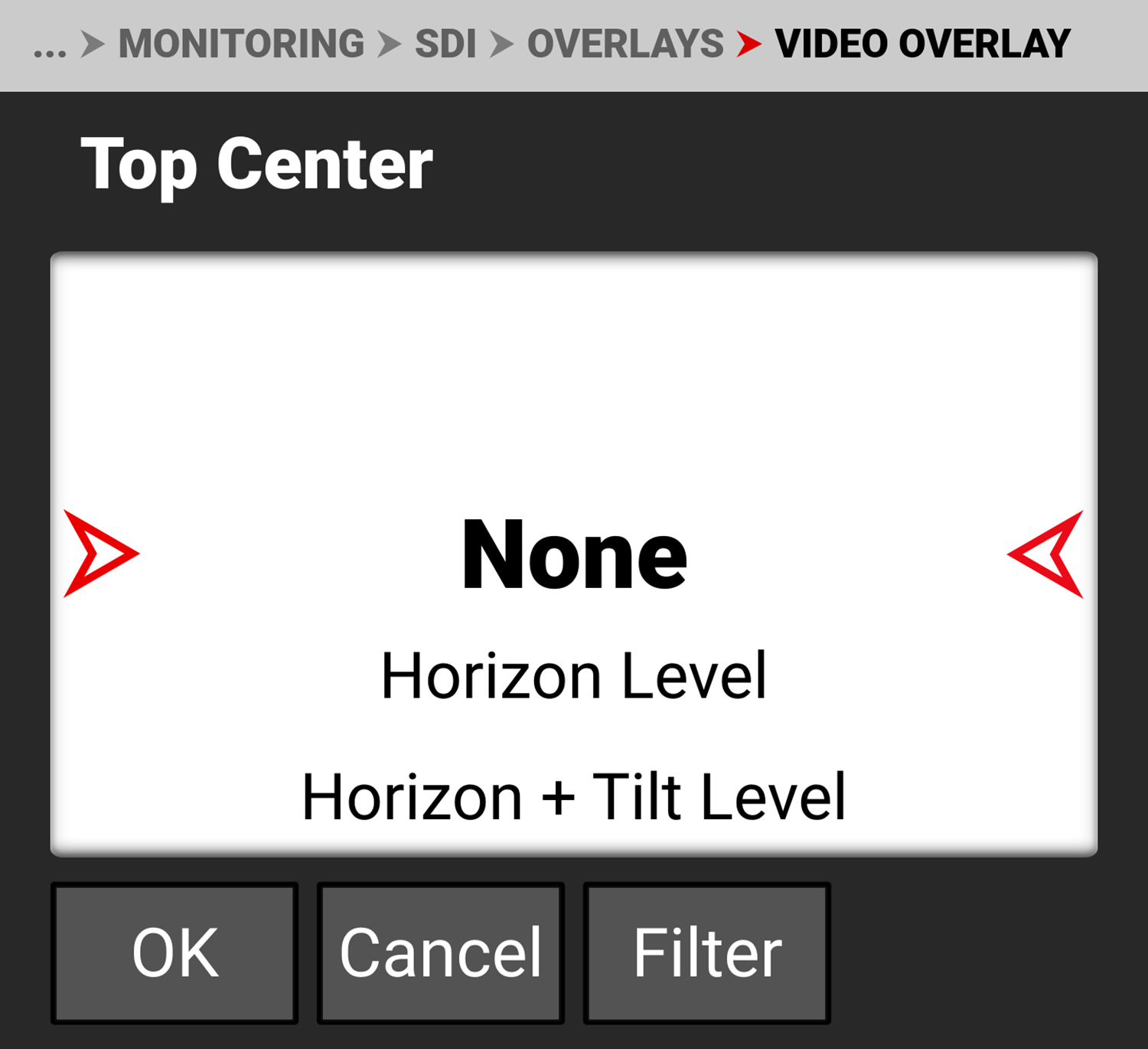

Location

Use each of the location choices (Top Left, Top Center, Top Right, Bottom Left, Bottom Center, Bottom Right) to select a value to display in that location.

The values you can display include:

Item

Details

None

Nothing is assigned

Horizon Level

Displays the horizon orientation (center locations only)

Horizon + Tilt Level

Displays the horizon orientation plus added tilt (center locations only)

Gyro Data

Displays the gyro readings

ISO

Displays the ISO setting

Shutter

Displays the shutter setting

Color Temperature

Displays the color temperature

Color Temperature and Tint

Displays the color temperature and tint

ND

Displays the ND setting

3D LUT

Displays the 3D LUT

Sensor Format

Displays the sensor format

Frame Rate

Displays the frame rate

Record Indicator

Red indicator when recording

Focal Length

Displays the lens focal length

Focus Distance

Displays the lens focus distance

Lens Information

Displays the lens information

Aperture

Displays the aperture setting

Camera Name

Displays the camera name

Clip Name

Displays the clip name

Slate Camera ID

Displays the slate camera ID

Slate Camera Position

Displays the slate camera position

Slate Camera Operator

Displays the slate camera operator

Slate Scene

Displays the slate scene

Slate Shot

Displays the slate shot

Slate Take

Displays the slate take

Slate Production

Displays the slate production

Slate Director

Displays the slate director

Slate DoP

Displays the slate DoP

Slate Unit

Displays the slate unit

Media Time Remaining

Displays the media time remaining

Media Percentage Remaining

Displays the percentage of media remaining

Battery Time Remaining

Displays the battery time remaining

Battery Percentage Remaining

Displays the battery percentage remaining

Active Input Voltage

Displays the active input voltage

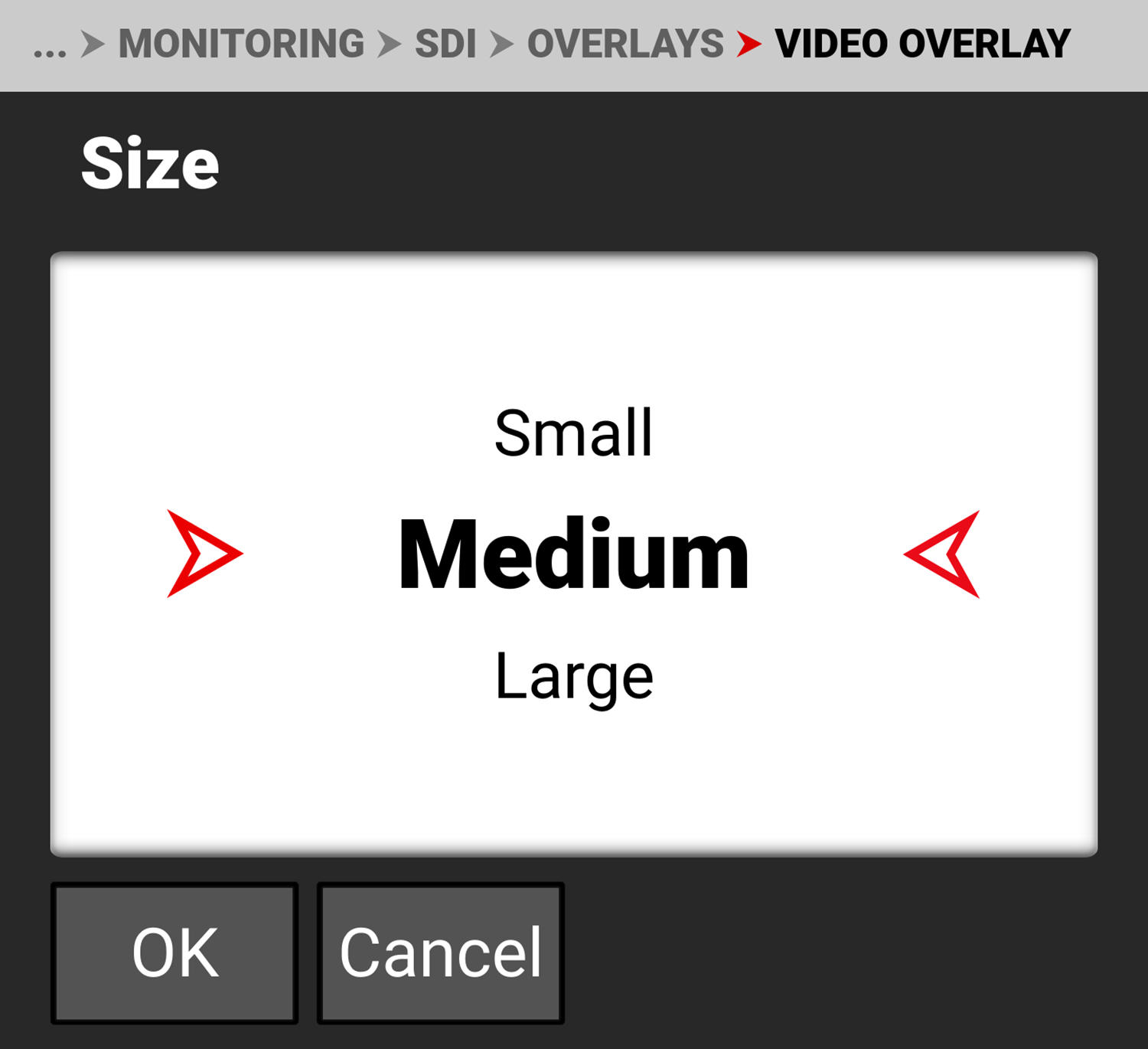

Size

Use Size to select the size of the displayed values on the SDI overlay.

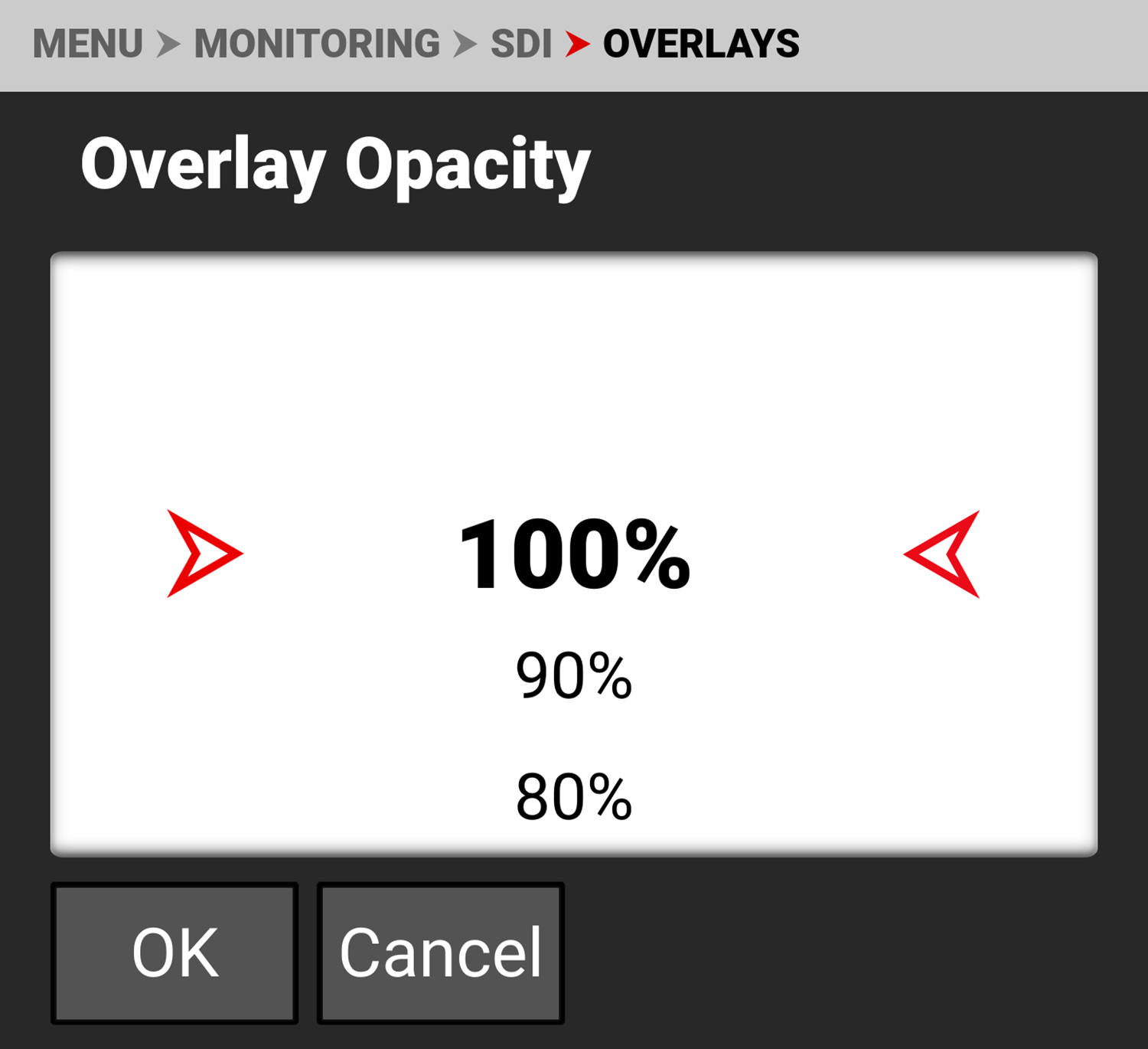

Overlay Opacity

Use Overlay Opacity to select the opacity of the overlay.

The settings you can select range from 100% (default) to 0%.

Magnify

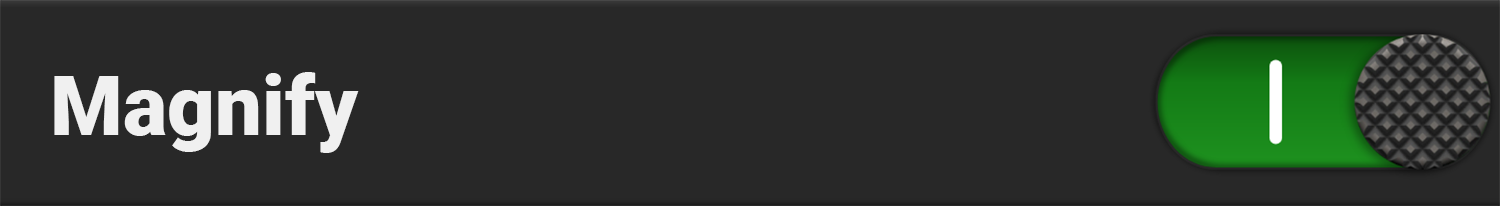

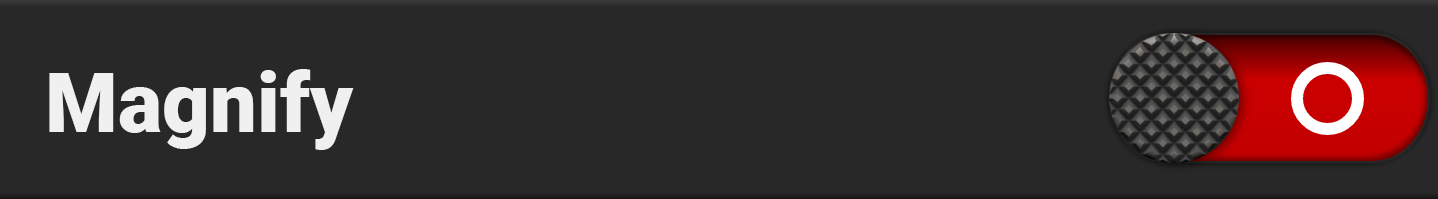

Use Magnify to enable or disable (default) monitor magnification. Tap the switch to toggle between enabled and disabled.

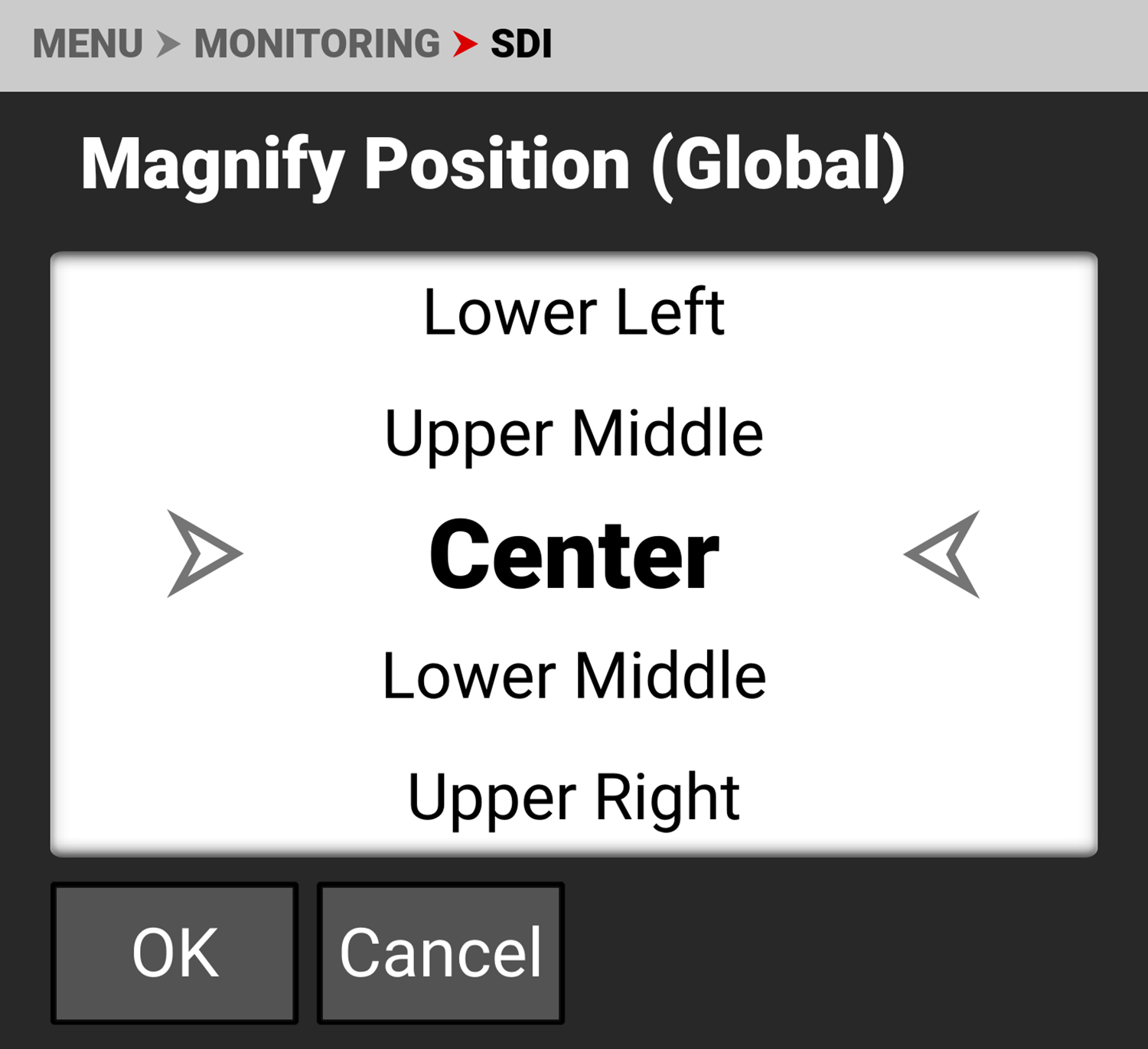

Magnify Position (Global)

Use Magnify Position (Global) to select the position of the magnified area for all magnification.

Use Magnify Position to globally select the area of the image you want to magnify.

The selections include:

•  Left

•  Upper Middle

•  Upper Right

•  Upper Left

•  Center (default)

•  Lower Right

•  Lower Left

•  Lower Middle

•  Right

Flip / Mirror

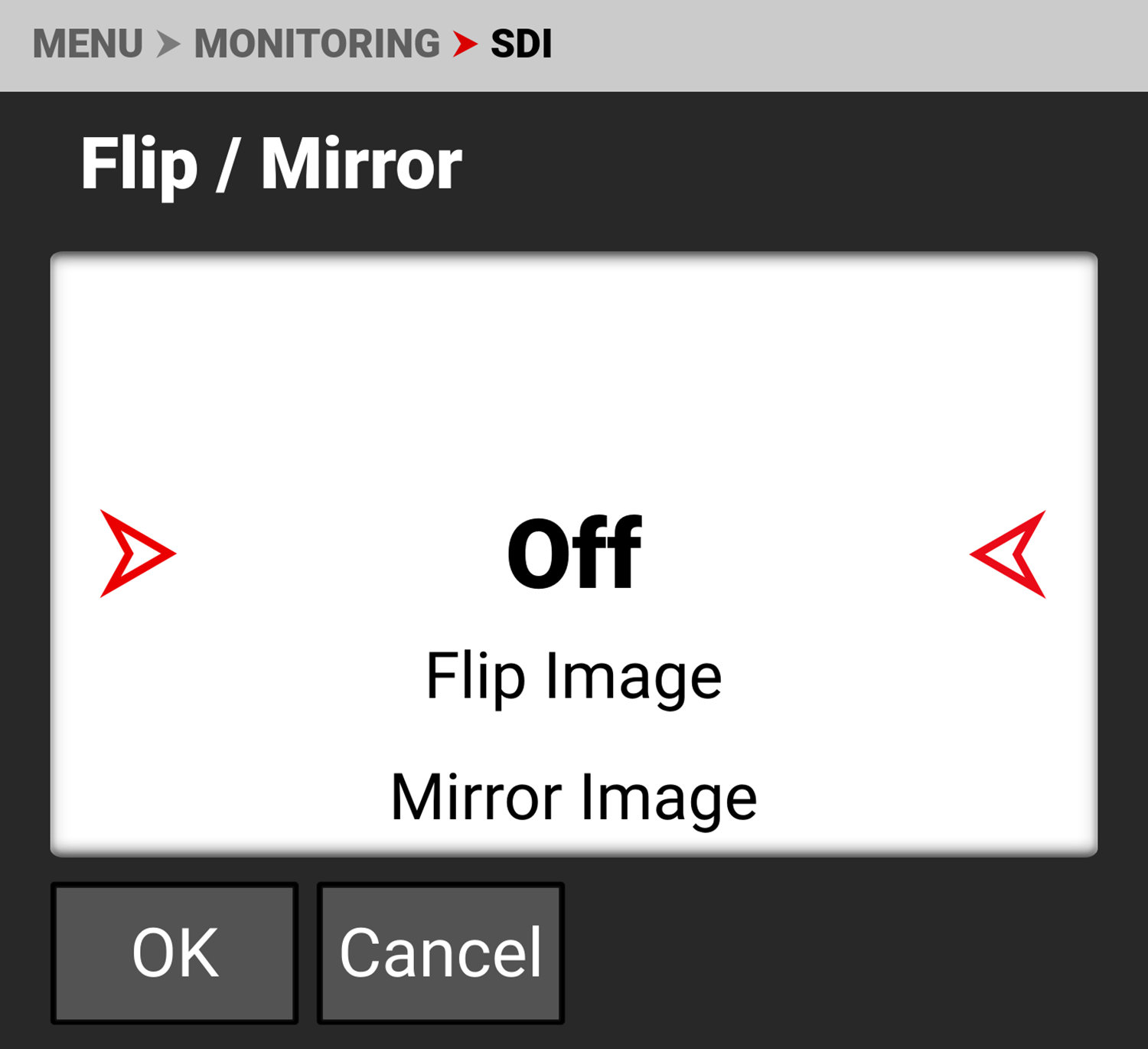

Use Flip / Mirror to select the display orientation for the SDI monitor output.

The SDI monitor display orientation options include:

  • Off (default)
  • Flip Image
  • Mirror Image
  • Flip/Mirror Image
  • Flip All
  • Mirror All
  • Flip/Mirror All

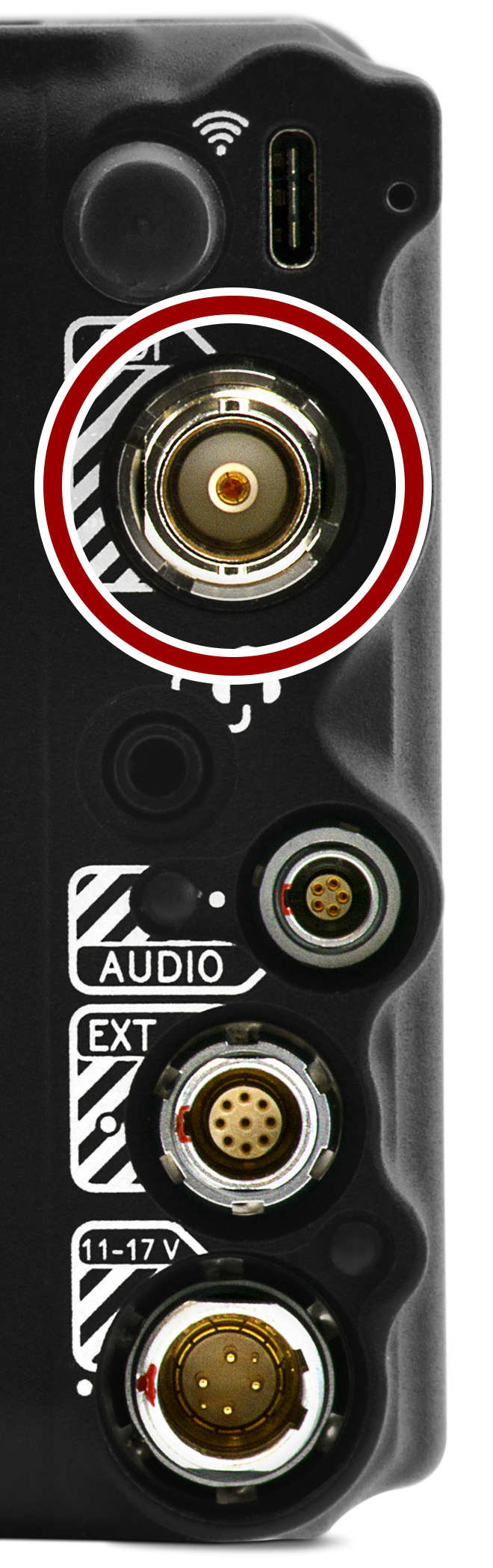

SDI Port Description

The Serial Digital Interface (SDI) port allows the camera to deliver 12 Gbps of image bandwidth with greater resolution, frame rates, and color fidelity. This single BNC cable solution makes it ideal for the 4Kp60 format. The output signal bit depth is 10-bit 4:2:2.

WARNING: Under certain circumstances, it is possible for an SDI connector to incur damage when connected to an accessory and powered without using shielded cables. RED recommends only using high quality, shielded BNC cables that are rated for 12G-SDI signals and only using shielded power cables for powering SDI accessories.

Make sure power is connected to the SDI accessory at all times before you connect the BNC to the camera. Ungrounded power from SDI accessories can damage the camera’s SDI port. To avoid this possible damage, attach the power source to the accessory before attaching it to the BNC cable. When using RED Approved Third Party battery plates, unplug the BNC cable prior to hot swapping.

When possible, avoid using P-Tap (also known as D-Tap) cables to power accessories. To avoid damage when using P-Tap/D-Tap, it’s imperative that the connect/disconnect sequence (below) is followed precisely.

BNC Attachment Instructions

When attaching SDI accessories:

  1. Connect a power source to the SDI accessory; power on the SDI accessory.
  2. Ensure a power source is connected to the camera. This ensures both are grounded prior to connecting the BNC. The camera's power state does not have an impact on SDI attachment sequence.
  3. Connect the BNC cable to the accessory, then to the camera.



When detaching an accessory mounted to an SDI output, ensure that you remove the BNC connection to the camera before removing power to the SDI device:

  1. Shutdown the SDI accessory.
  2. Disconnect the BNC cable from the camera.
  3. Disconnect the power source from the SDI accessory.



When you need to swap out a battery on an accessory mounted to the camera’s SDI port, you must:

  1. Shutdown the SDI accessory.
  2. Disconnect the BNC cable from the camera.
  3. Replace the battery on the SDI accessory.
  4. Connect the BNC cable to the camera.
  5. Power on the SDI accessory.

For more information, refer to Preventing Damage to SDI Outputs.



For more information about the SDI standard, refer to the SMPTE (Society of Motion Picture and Television Engineers) standard SMPTE ST-2082.
