Power

This section includes:

The camera accepts power through a DC-IN port and through an attached battery. The camera cannot accept power through USB, or BNC ports. For more information, refer to 6-pin DC-IN, KOMODO-X™ Power AdaptorREDVOLT® NANO-V Battery, and REDVOLT® MICRO-V Battery.

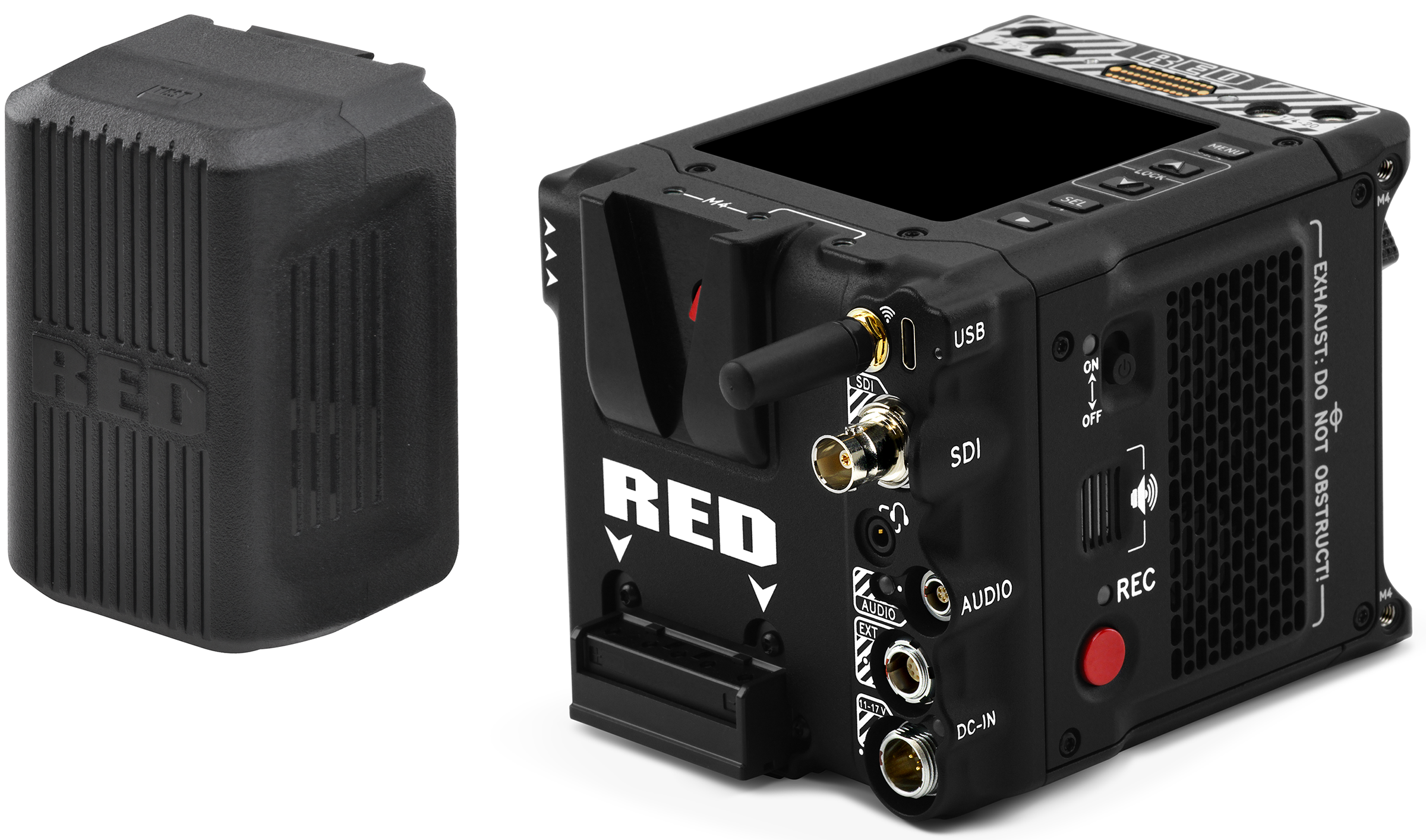

Attaching the Battery

Attach a compatible V-Lock battery (refer to REDVOLT® NANO-V Battery and REDVOLT® MICRO-V Battery) in the V-Lock battery mount. Slide the battery down until the locking mechanism clicks.



V-Lock batteries with a width greater than 2.95 in. (75 mm) are not compatible with the camera’s Micro V-Lock plate and will require a battery adapter.

The camera can charge the installed battery when the camera is off and the DC power Adaptor is connected. The camera charges the batteries only when the camera is off and the power Adaptor is connected. While the battery is charging the DC Power LED blinks amber until communication is established. The LED is solid amber when communication is established and the battery is charging. The LED is green when communication is not established (incompatible battery) and the battery is not charging.

NOTE: An incompatible battery will not charge on the camera.

Removing the Battery

Remove the battery when the charge is low or when you are storing the camera.



  1. Turn off the camera.
  2. While holding the attached battery, press the battery Eject Button.
  3. Slide and lift the battery up.
