Extension Port

The female 9-contact 0B ODU Extension port supports serial (RS-232 RX and TX), a General Purpose Input (GPI) trigger (active-low switch closure), General Purpose Output (GPO), Timecode, and Genlock. The connector also offers auxiliary 5-Volt power out, with a maximum sustained current draw of 500 mA.

To operate the GPI contact closure style trigger, short Pin 6 (GPI) to Pin 9 (ground).

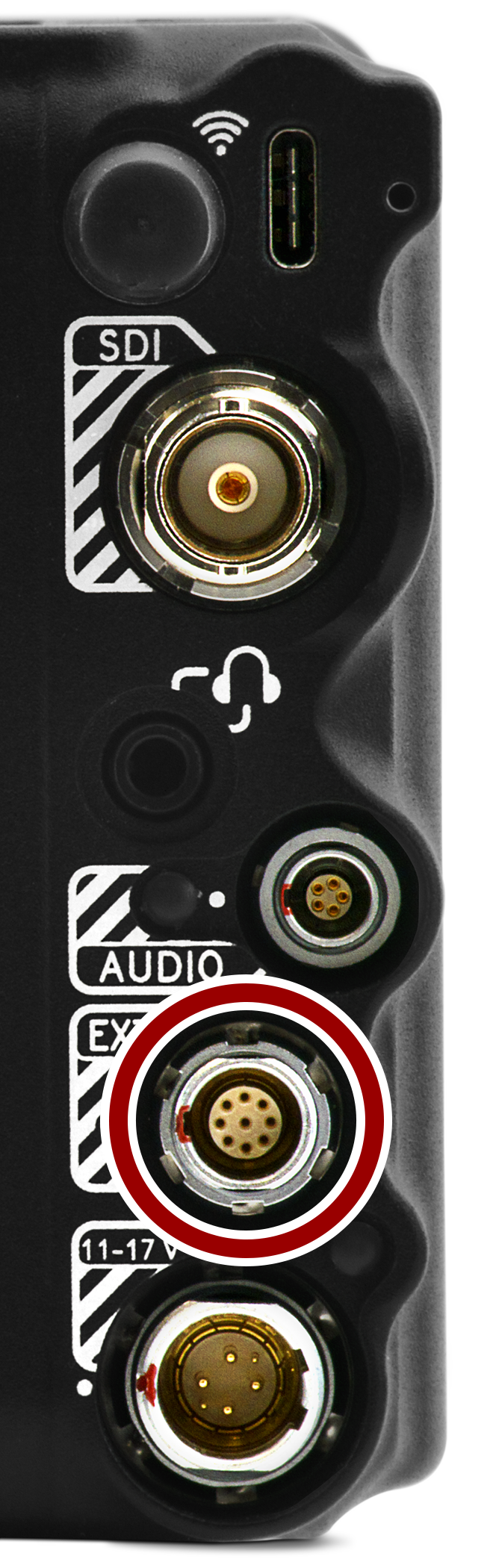

Front Face of the DC In Power Input Connector (Looking at the Camera)

Figure: Front face of the female 9-contact Extension port (looking at the back of the camera).

NOTE: The required mating connector is 9-Pin 0L Straight Plug Connector (ODU, part# SX0L0X-P09MCC0-0001).



9-Pin 0B ODU Extension port PinOut

pin



Signal



Details

1



5 V AUX



5 Volt AUX (500 mA Max) enabled using the Power menu

2



Timecode Out



Timecode Out – SMPTE 12M

3



GPO



General Purpose Out: Recording Indicator Out, Sensor Sync Out using 3.3 volt logic level

4



UART TX



Serial RS-232 transmit (refer to the Serial menu)

5



UART RX



Serial RS-232 receive (refer to the Serial menu)

6



GPI



General Purpose In, 3.3-Volt logic level1

7



Timecode In



Timecode In – SMPTE 12M

8



Genlock



Tri-Level Genlock In (SMPTE 296M and 274M)

9



GND



Signal and power ground
  1. The signal path includes a resistor pulling the signal high, which is designed to work with a closure switch connected to GND.
Compatible Cables
  • 790-0685: RED 9-Pin EXT to Flying Lead 1.3’
  • 790-0674: RED EXT to Timecode 3'
