USB Type-C Port

The USB Type-C port is used primarily for data connections. The USB Type-C port provides 5 volts at 0.5 amps.

Front Face of the DC In Power Input Connector (Looking at the Camera)

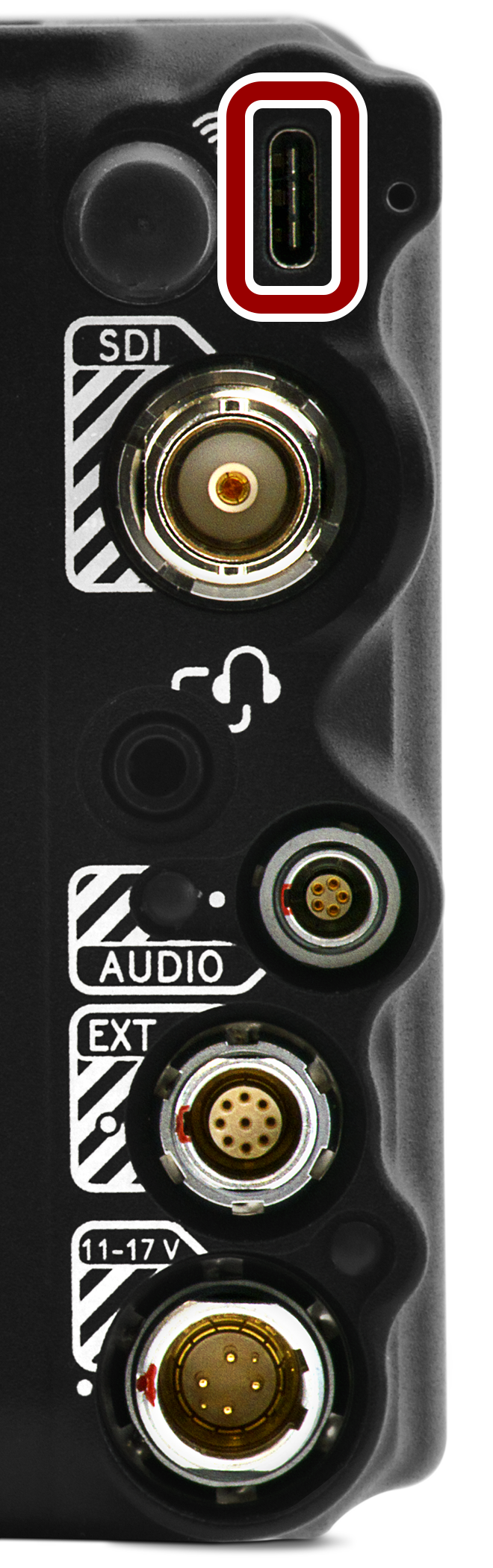

Figure: Front face of the USB-C port (looking at the back of the camera).

NOTE: Mating connector is a standard USB-C male connector.

Using a USB-C Drive

The RED KOMODO-X offers a USB-C drive option you can use for loading On-Media-based camera settings and preferences from a USB-C drive. The USB-C Drive Menu allows you to eject a USB-C drive connected to the USB-C Port, and to view a connected USB-C drive's status.
