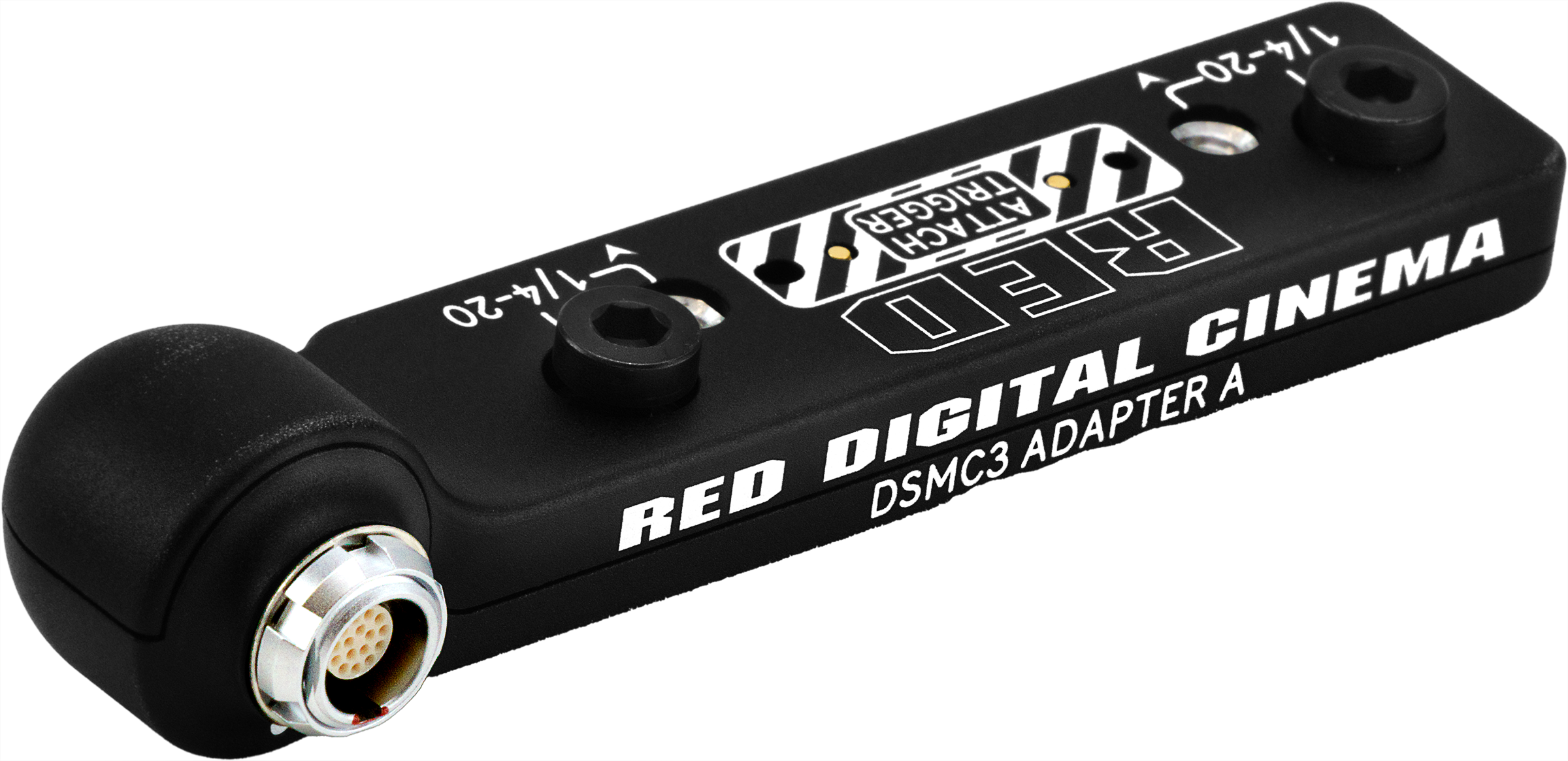

DSMC3™ Adapter A
DSMC3™ Adapter A attaches to the top of the KOMODO-X™, the V-RAPTOR®, or the V-RAPTOR® XL, and it provides a 16-pin output that provides power, video, and control to the RED® Compact EVF and DSMC2® RED® EVF (OLED).
The DSMC3™ Adapter A includes a Run-Stop trigger pass-through that the operator can use for the V-RAPTOR®, for the Compact Top Handles, and for Third-Party accessories.
NOTE:
-
The DSMC3 Adapter A is not compatible with the DSMC3™ RED® Touch 7.0" LCD or KOMODO Outrigger Handle.
-
The DSMC3 Adapter A can only be used with and mounted on KOMODO-X, V-RAPTOR and V-RAPTOR XL model cameras.
WARNING: Do not remove the DSMC3 Adapter A while the camera is powered on. Doing so could cause damage to the camera. The DSMC3 Adapter A must only be attached to, or removed from the camera while the camera power is off.
|
Item |
|
Details |
|---|---|---|
|
Dimensions |
|
Length 5.2" x Width 1.42" x Height 1.30" |
|
Weight |
|
0.25 lb |
|
Material |
|
Aluminum |
|
EVF Connection |
|
16-Pin 1B LEMO socket |
|
Camera Mounting |
|
2 x 1/4-20 captive mounting screws |
|
Accessory Mounting |
|
2 x 1/4-20 mounting points with trigger pass-through |
|
Operating Temperature |
|
32° F to 104° F (0° C to 40° C) |
|
Storage Temperature |
|
–4° F to 122° F (–20° C to 50° C) |
|
Operating Humidity |
|
0% to 85%, non-condensing |
|
Storage Humidity |
|
0% to 85%, non-condensing |
