RED® Compact Top Handle

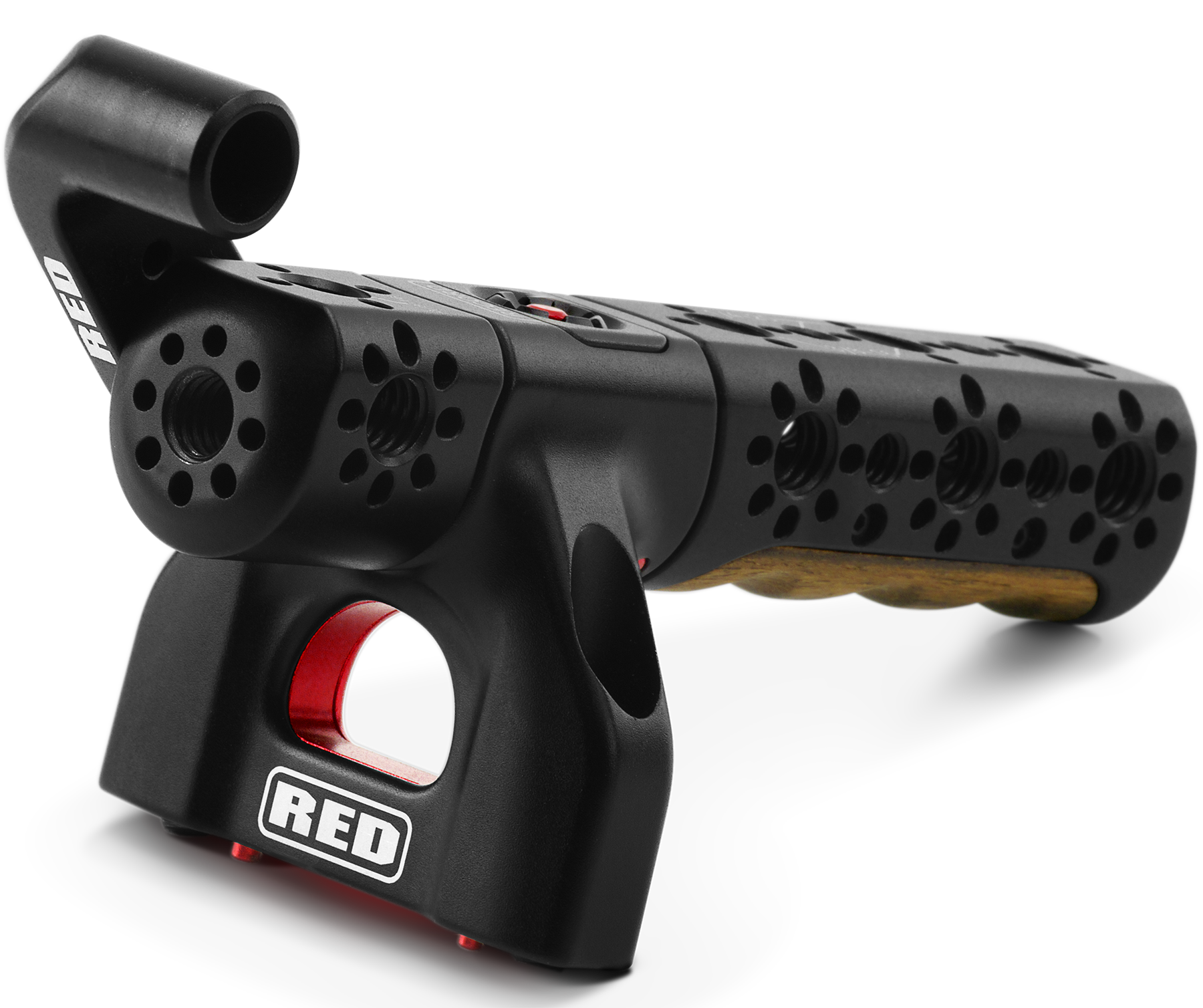

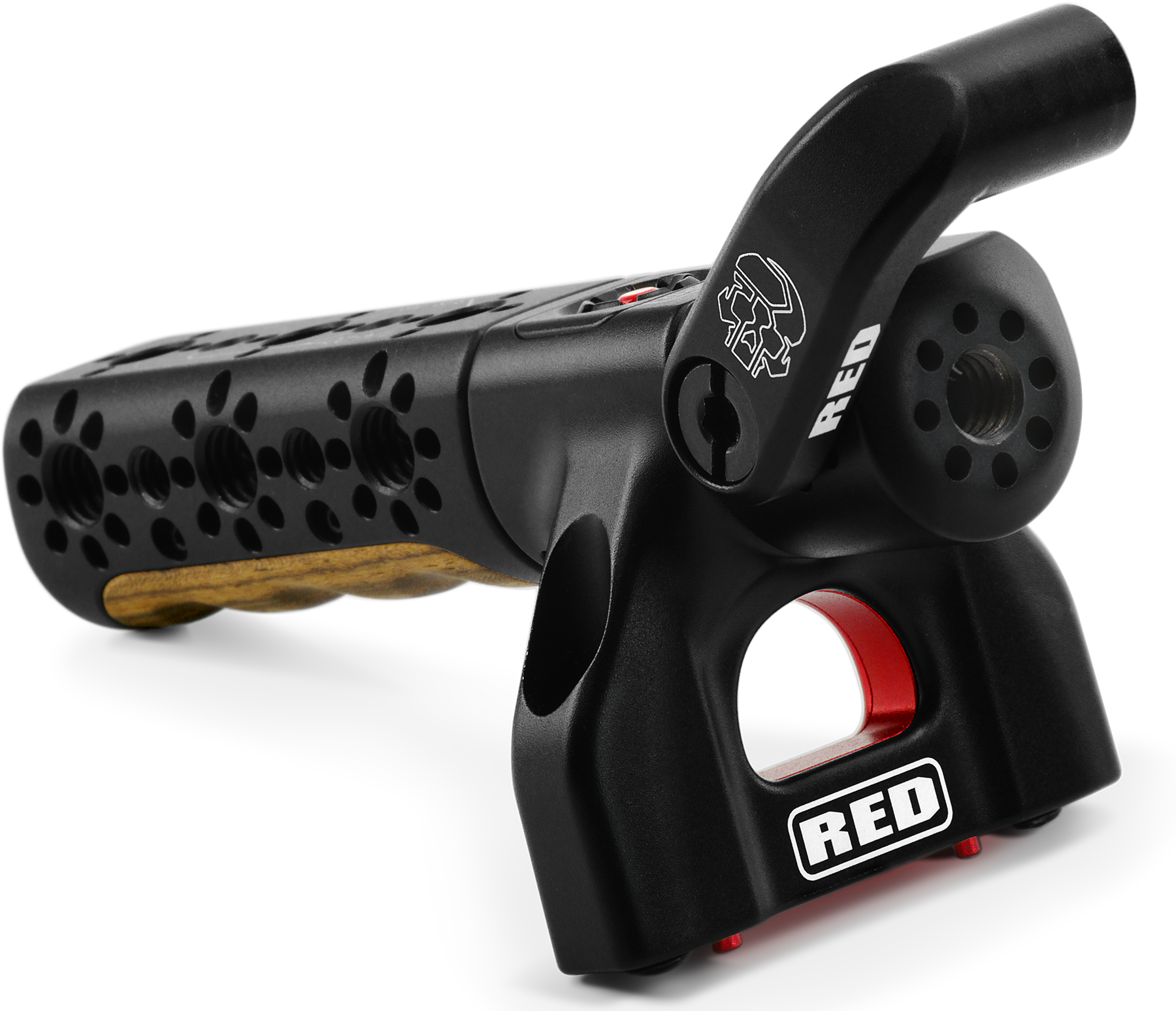

The RED® Compact Top Handle easily mounts to the top of the KOMODO, KOMODO-X or V-RAPTOR camera bodies while offering a combination of comfort and utility for carrying or shooting with your camera.



This top-mounted machined handle features ergonomic Bocote wood inlays with camera trigger control.

The handle includes:

• Handle trigger
• Rear 3” piece
• Front 1” piece
• 15 mm monitor mount

For issues or troubleshooting, contact support@cs.inc.

COMPATIBILITY: The RED Compact Top Handle is not compatible with DSMC®, DSMC2® or RED RANGER® camera systems.

Installing the DSMC3™ RED® Touch 7.0" LCD on the top handle

To install the RED Touch LCD to the Top Handle:

1. Align a Top Handle Extension with front of the Top Handle.
2. Tighten the hex bolt to the Top Handle.
3. Align the 15 mm Monitor Mount extension bolt with the side 3/8-16 mount hole of the Top Handle extension.
4. Tighten the Monitor Mount bolt to the Top Handle extension.
5. Align the 15 mm hole on the Monitor rail to the 15 mm Monitor Mount.
6. Slip the 15 mm Monitor rail collar over the 15 mm Monitor mount post and tighten the knurled knob on the Monitor rail to the desired monitor position.
