Status Bar

The top of the Onboard LCD touchscreen page displays the camera status bar.

The Status Bar contains the following button and icons:

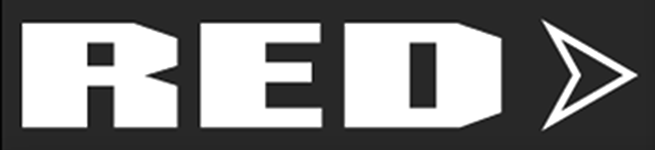

Preview / Menu Button

This button toggles the Onboard LCD display between the Preview page (or User Pages) and the Menu page. The arrow on the button changes direction when toggled.

Preview Page:



Menu Page:







Media Status Icon



Temperature / Exposure Icon

This icon displays the status of the CFexpress Type B media card, and the recording time remaining for the current camera settings.

The status displayed includes:

Good

Missing

Incompatible



This icon displays the temperature (T) and exposure (E) calibration indicators.

•  When T is yellow or red, it indicates that the camera requires sensor re-calibration at the current ambient temperature.

•  When E is yellow or red, it indicates that the camera requires sensor re-calibration at the current shutter speed.

Refer to Calibrating the Sensor.

Timecode Icon



Genlock Icon

This icon indicates the state of the Timecode generator connection.

Gray indicates that no Timecode generator signal is detected.

Green indicates that the Timecode source is connected and jammed.

Red indicates that the selected Timecode Source is not present, or not jammed in the last 12 hours.

White indicates that the selected Timecode source is not currently connected but was jammed during the current camera boot.

Yellow indicates that the selected Timecode source has not been jammed in current camera boot but has been within the last 12 hours.





This icon indicates the state of the SDI video output relative to an external Genlock source.

Gray indicates that no Genlock signal is detected.

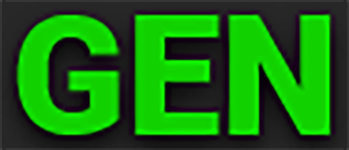

Green indicates that the SDI outputs are locked to the external Genlock signal.

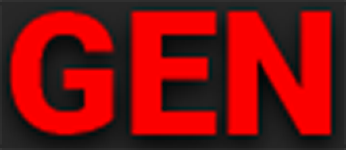

Red indicates that the SDI outputs are not locked to the external Genlock source. Make sure that the SDI Frequency matches, or is an interval of, the Genlock source.

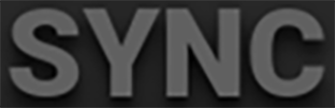

SYNC Icon



3D LUT Icon

This Icon indicates the state of the camera sensor relative to external synchronization sources.

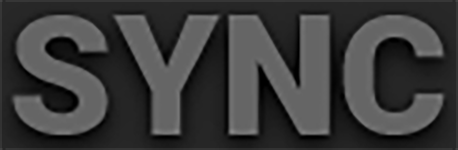

Gray indicates that no synchronization sources are detected.

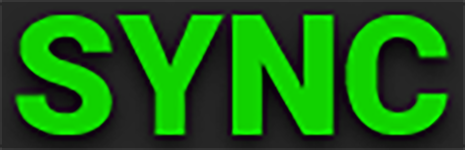

Green indicates that the camera sensor is synchronized to both external Timecode and Genlock.

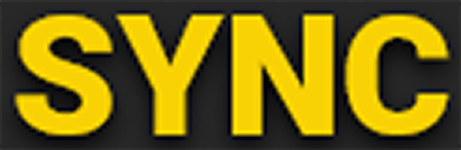

Yellow indicates that the camera sensor is synchronized to an external Genlock source and an external Timecode is not present.

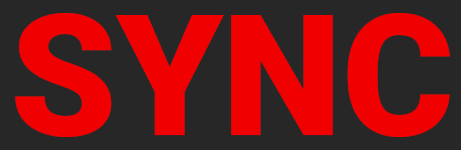

Red indicates that the camera sensor is not synchronized to the external Genlock source. Make sure that the Camera Sensor Rate is matches, or is an interval of the Genlock source.





This icon indicates the activation status of 3D LUTs.

Gray indicates that no 3D LUTs are in use.

White indicates that the camera is using a 3D LUT.

Camera Status Icon



Network Activity Icon

This icon indicates the state of the camera hardware. The different icons and their corresponding status include:

Good: Camera operating as expected.

Attention Required: Camera's calibration requires attention or camera is nearing overheated state.

Overheating: Camera has reached temperature threshold and shut down is imminent.

Shutting Down: Camera is shutting down due to overheating.



This icon indicates the state of FTPS or Cloud data transfer.

Gray indicates that no network data transfer is occurring.

Green indicates that the camera is transferring FTPS or Cloud data.

Top Button Mode Icon



Wi-Fi Icon

This icon indicates the selected Top Buttons Mode.

White SEL Indicates that the SEL/FN top button selects touchscreen items when pressed, and that the Up and Down buttons navigate through the items.

Grey FN Indicates that the SEL/FN button is in Function mode when pressed, but no SDI monitor is properly configured. In this state SEL/FN, Up and Down buttons are inactive.

White FN indicates that the SEL/FN button is in Function mode, and Up and Down buttons are Function Up and Function Down.

White Lock icon indicates that the Top Buttons Mode is set to Lock, and the Onboard LCD is locked.





This icon indicates the state of Wi-Fi connection.

Gray and empty indicates that no Wi-Fi signal is detected.

White bars indicate that Wi-Fi signal is detected (Infrastructure).

White antenna indicates that Wi-Fi signal is broadcasting (Ad-hoc).



DC-In Icon



Battery Icon

This icon indicates the state of DC power connection.

Gray indicates that no DC power is connected.

Green indicates that the camera is receiving DC power and the voltage number is displayed.





This icon indicates the state of the battery connection and charge level. When the voltage is low, it displays the voltage in red.

Gray indicates that no battery is connected.

White indicates that the battery is connected and green shows the relative level of charge remaining.

Yellow indicates 10 minutes of power remaining.

Red indicates less then 5 minutes of power remaining.

Gray question mark indicates no communication with the attached battery, and it is not being used as the camera's power source.

White question mark indicates no communication with the attached battery, and it is being used as the camera's power source.

Grey exclamation point flashing indicates low power threshold has been met. If solid, battery has faulted.
