Audio Port

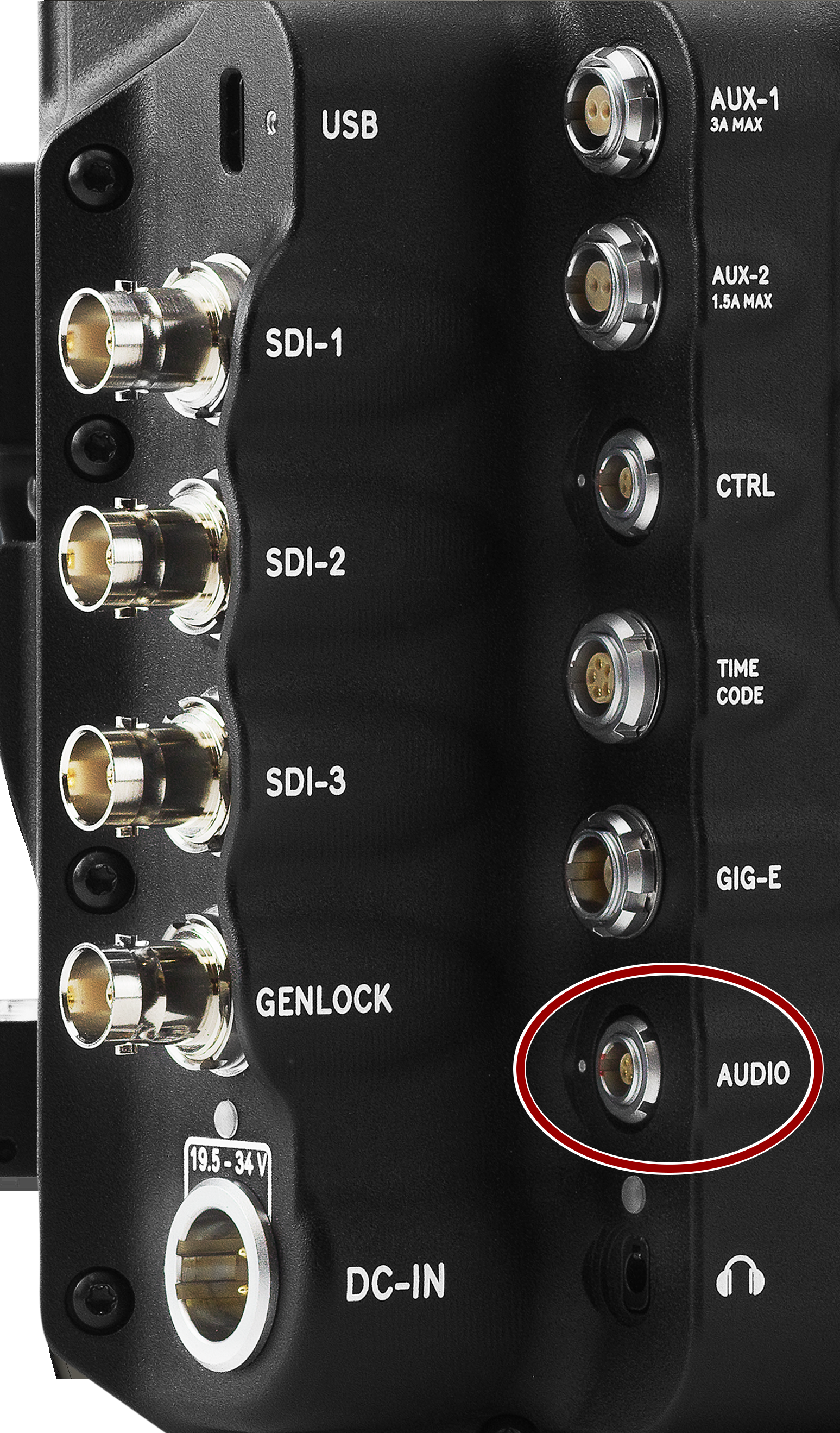

The female LEMO 5-Pin 00B audio connector accepts 2-channel audio, Line, Mic, and provides +48V Phantom Power.
Figure: Front face of the female 5-Pin 00B audio connector (looking at the back of the camera).
LEMO 5-Pin 00B Female Audio Connector
|
pin |
signal |
description |
Direction |
|---|---|---|---|
|
1 |
Ground |
Camera ground |
NA |
|
2 |
Channel 3+ |
Channel 1 (left), positive voltage |
In |
|
3 |
Channel 3- |
Channel 1 (left), negative voltage |
In |
|
4 |
Channel 4+ |
Channel 2 (right), positive voltage |
In |
|
5 |
Channel 4- |
Channel 2 (right), negative voltage |
In |
NOTE: Mating connector is a male LEMO 5-Pin 00B audio connector.
Compatible Cable
720-0061: DSMC3™ RED® 5-Pin to Dual XLR Adapter
