Lenses and Adapters

The V-RAPTOR [X] 8K VV is compatible with all Z Mount lenses (Z Mount model) and most RF lenses (RF Mount model) and adapters.

For more information on a specific lens or adapter, refer to the original manufacturer’s instructions.

WARNING: When the camera is not in use, protect lenses and the camera sensor by attaching the lens caps and camera mount cap.

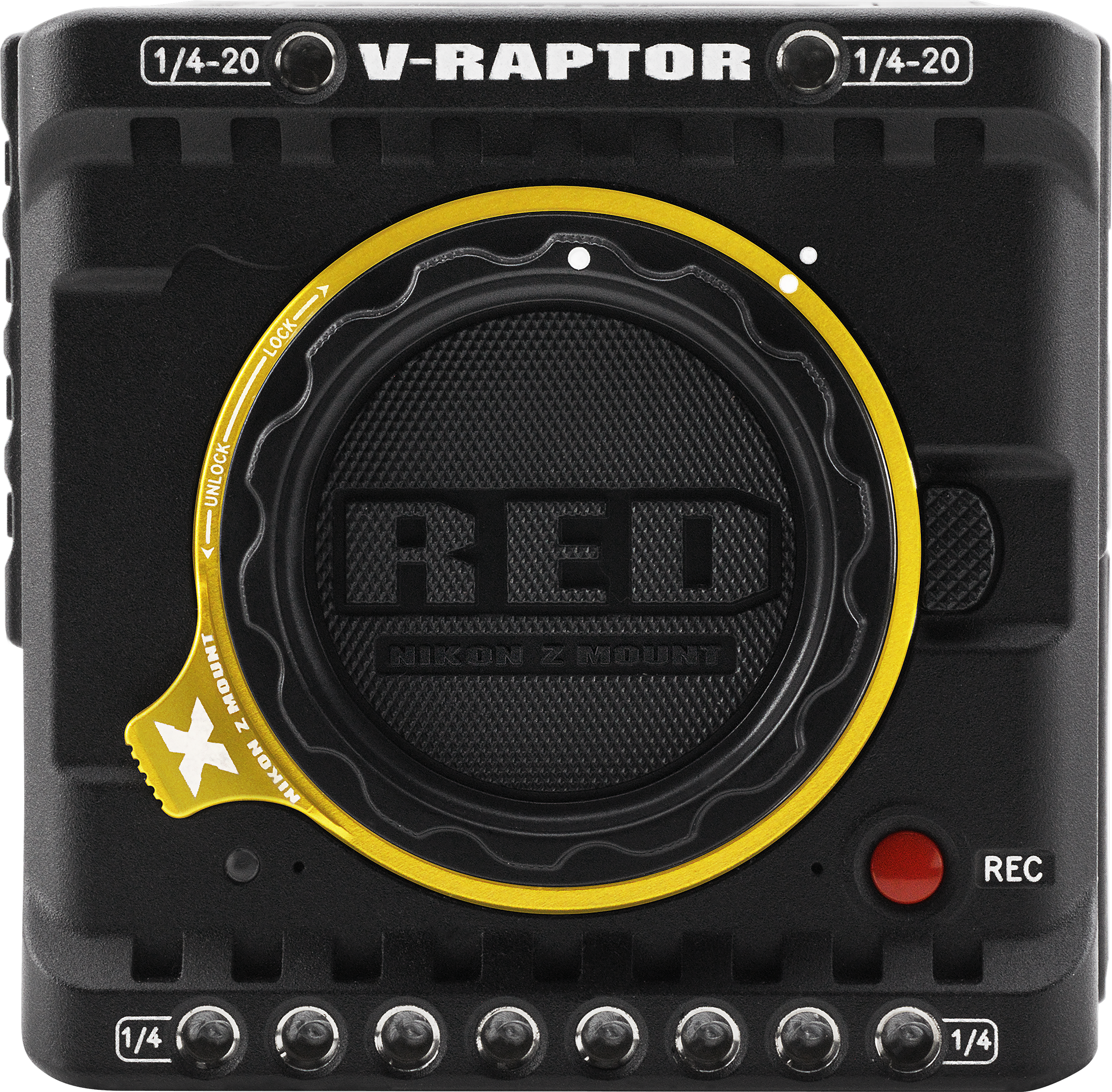

Figure: Camera with mount cap installed.

Incompatible lenses do not register on the camera UI and do not show any UI lens information or menu controls. The camera can control compatible lenses electronically, including the following features:

• Iris - The UI menu is enabled and the camera can control the lens Iris
• Autofocus - The UI menu is enabled for lenses that support autofocus
• Image Stabilization - The UI indicates that image stabilization is present
• Control Ring - The UI menu is enabled and the camera can use the control ring
• Lens Buttons - The UI menu is enabled and you can assign camera functions to the lens buttons

For more information, refer to the Lens Menu.

Compatible Lenses

All Z mount lenses are compatible with the V-RAPTOR [X] Z mount camera. The latest RED-tested and approved lenses for all other V-RAPTOR [X] cameras are listed on the V-RAPTOR [X] section of RED Support.

Lens Weight and Lens Support

Use a lens support system when mounting heavy or long lenses to your camera.

When mounting a heavy or long lens, ensure that the full weight of the lens is never directly on the camera or lens mount. Mount the lens to the support system first, then carefully mount the lens to the camera.
