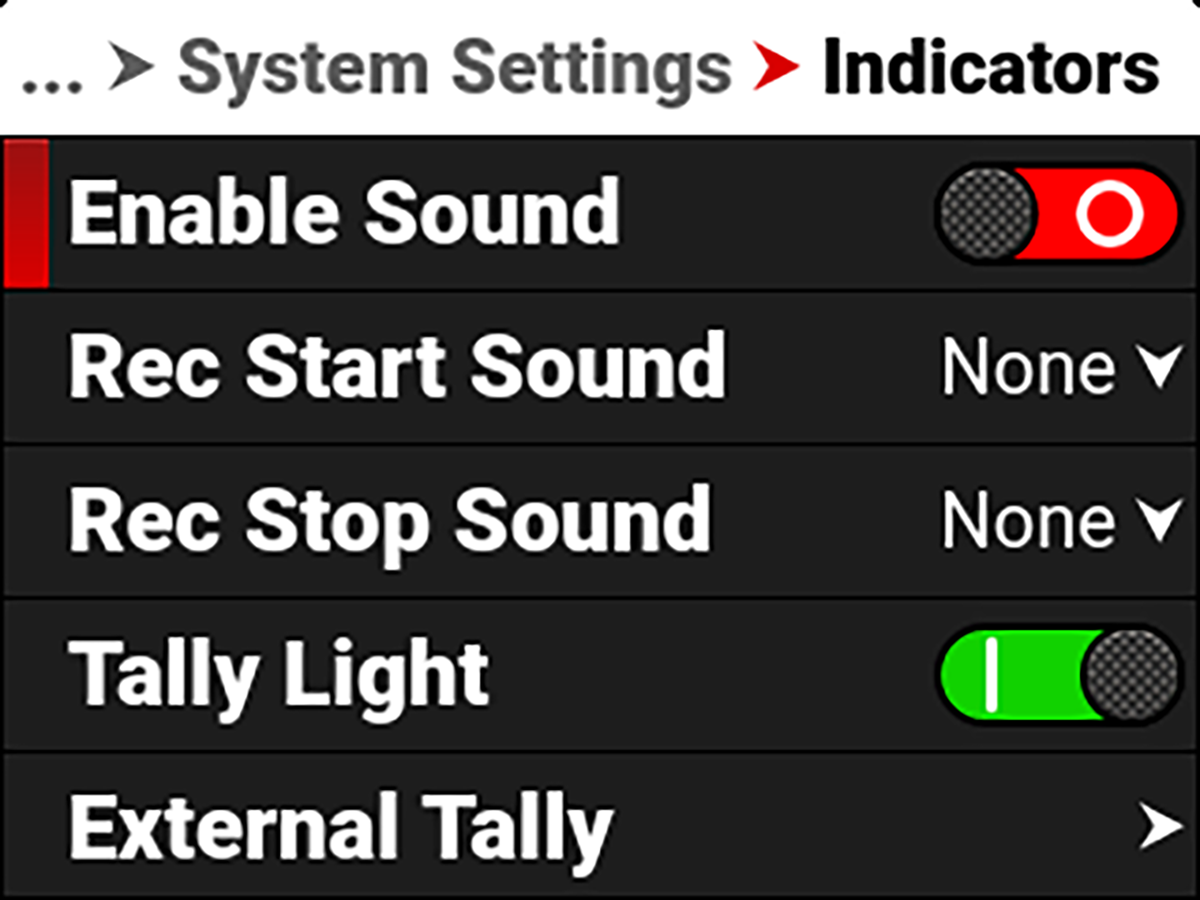

Indicators

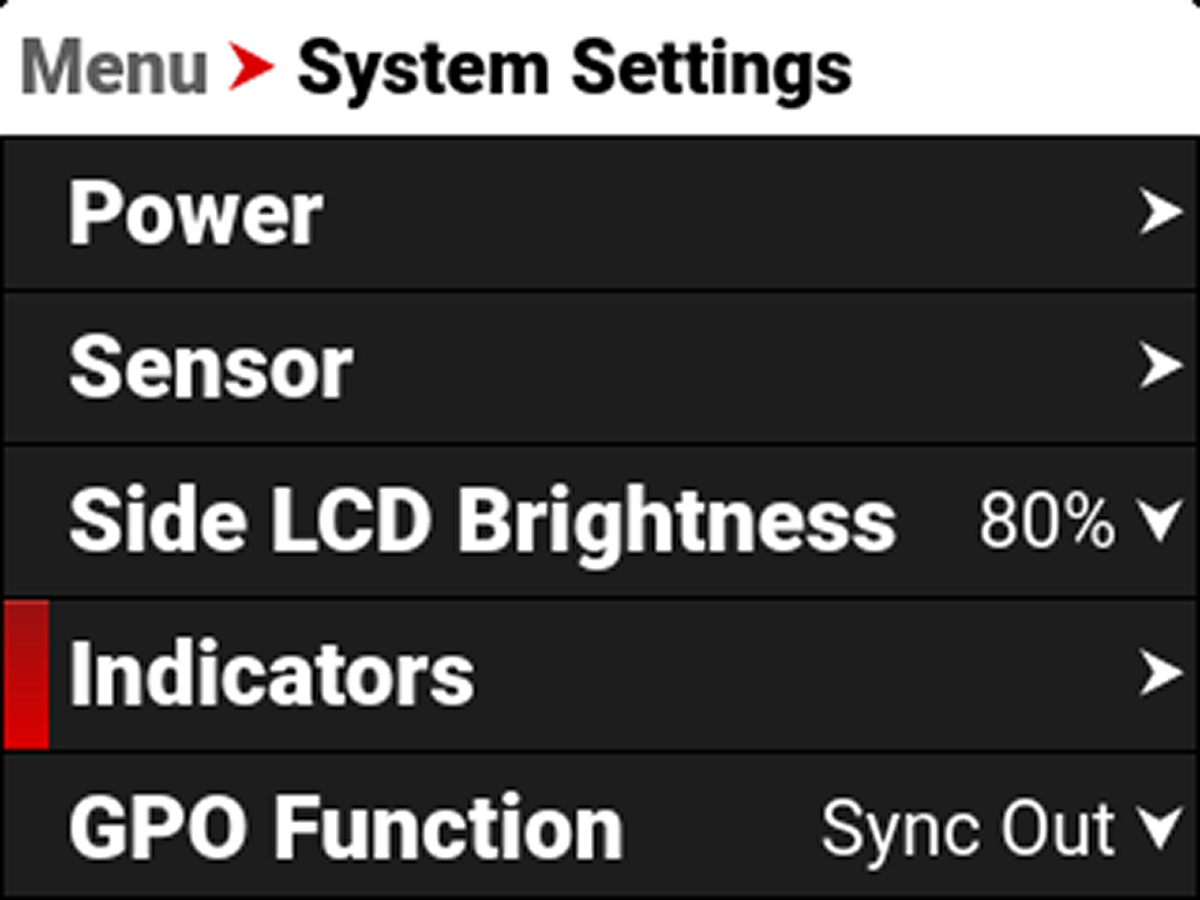

Use the Indicators menu to enable or disable the REC button sounds and the tally light, to select which sounds the REC button makes, and to configure the External Tally settings.

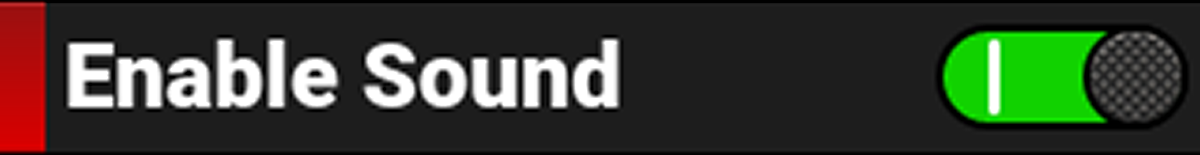

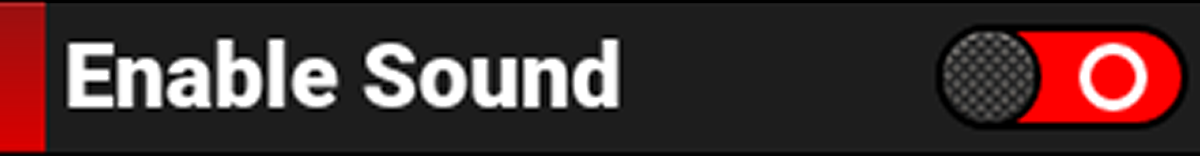

Enable Sound
Use Enable Sound to enable the REC button sounds.

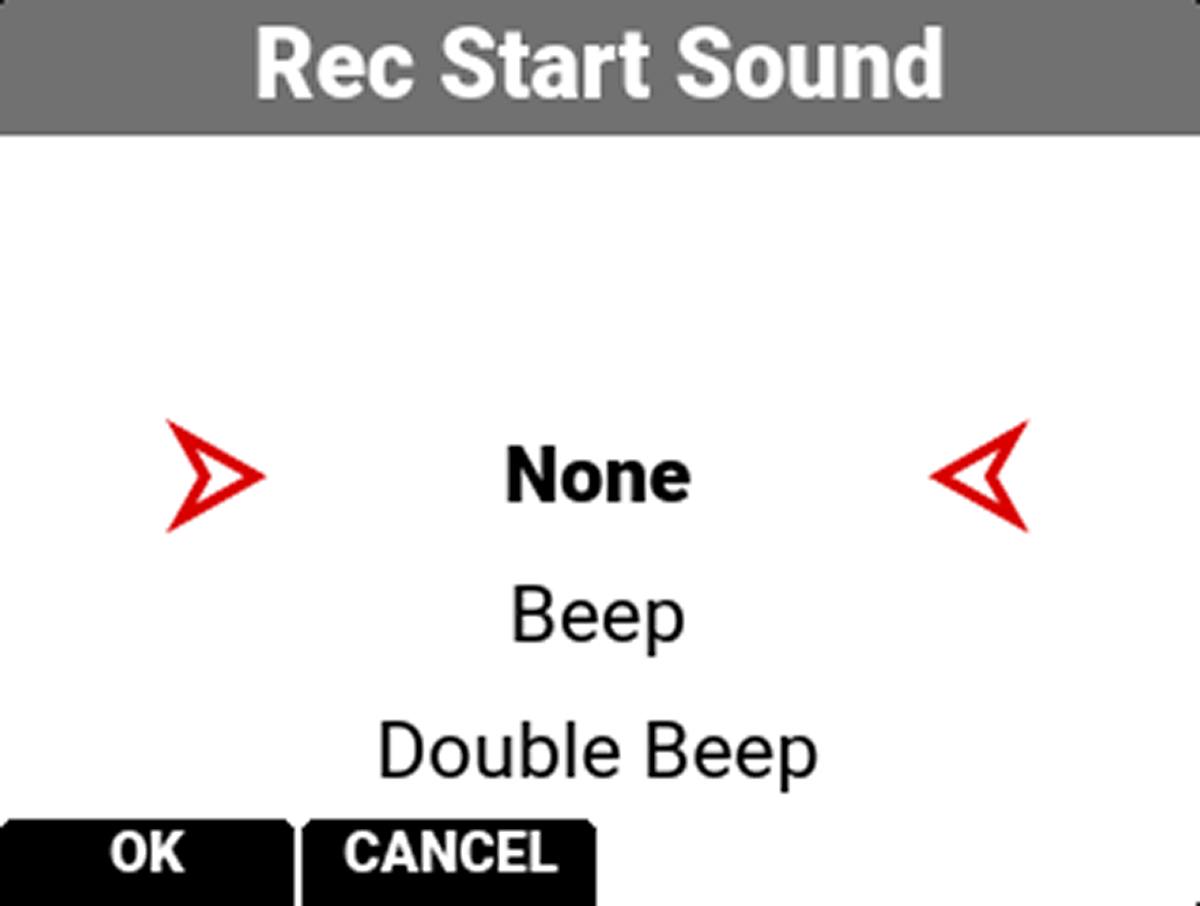

Rec Start Sound
Use Rec Start Sound to select the sound the speaker emits when the REC button is pressed to start recording.
The selections include:
- None
- Beep
- Double Beep
- Beep Ascending
- Beep Descending
- Money
- Shutter

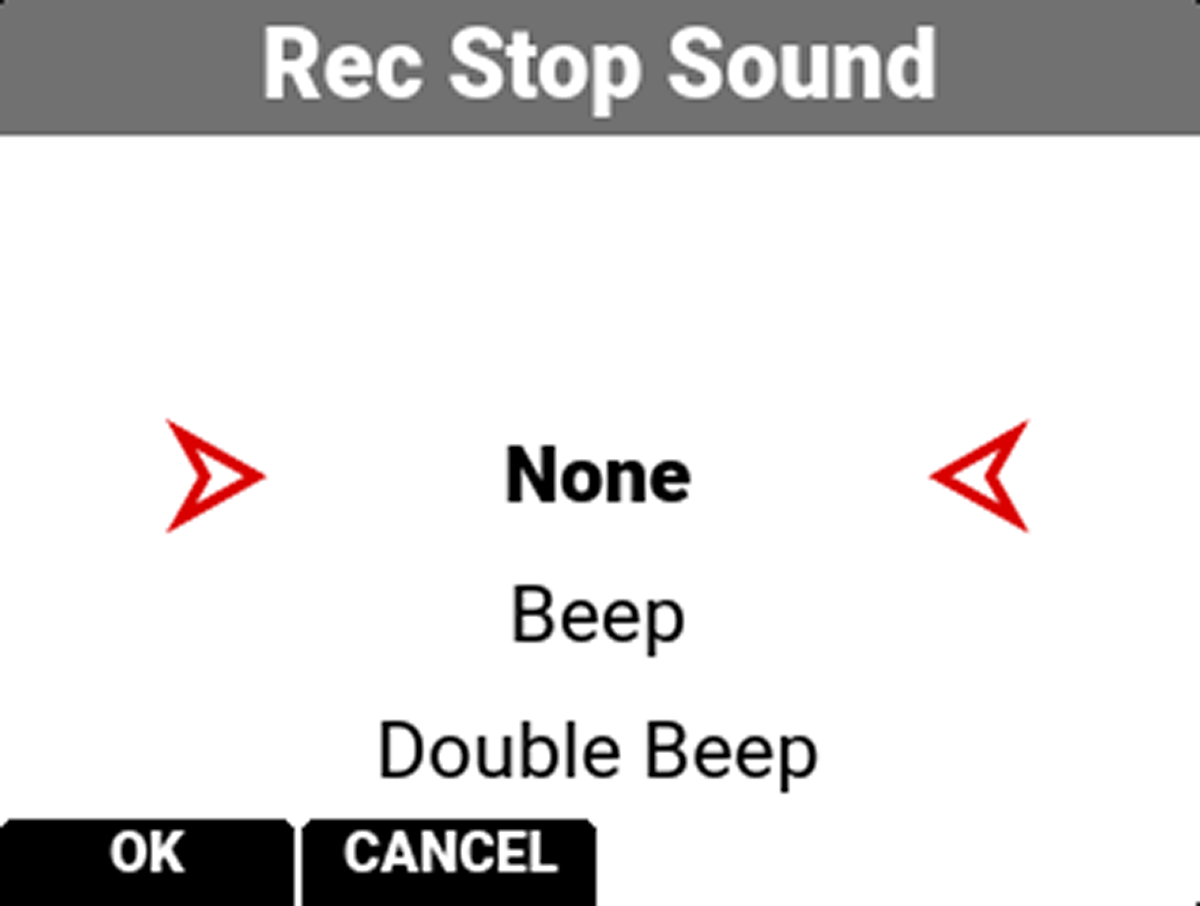

Rec Stop Sound
Use Rec Stop Sound to select the sound the speaker emits when the REC button is pressed to stop recording.
The selections include:
- None
- Beep
- Double Beep
- Beep Ascending
- Beep Descending
- Money
- Shutter

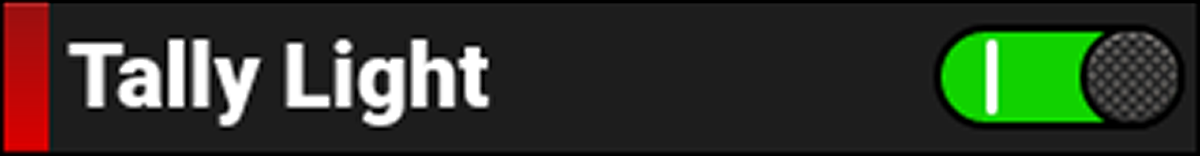

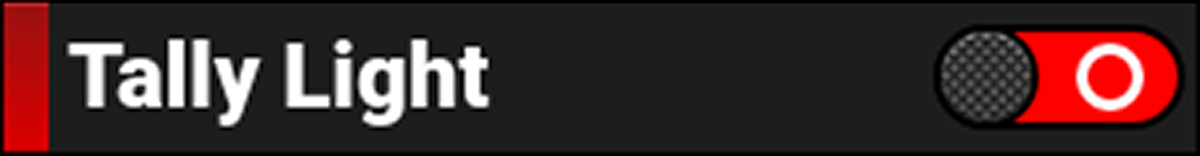

Tally Light
Use Tally Light to enable the tally indicator LED (refer to the LED section of Camera Body).

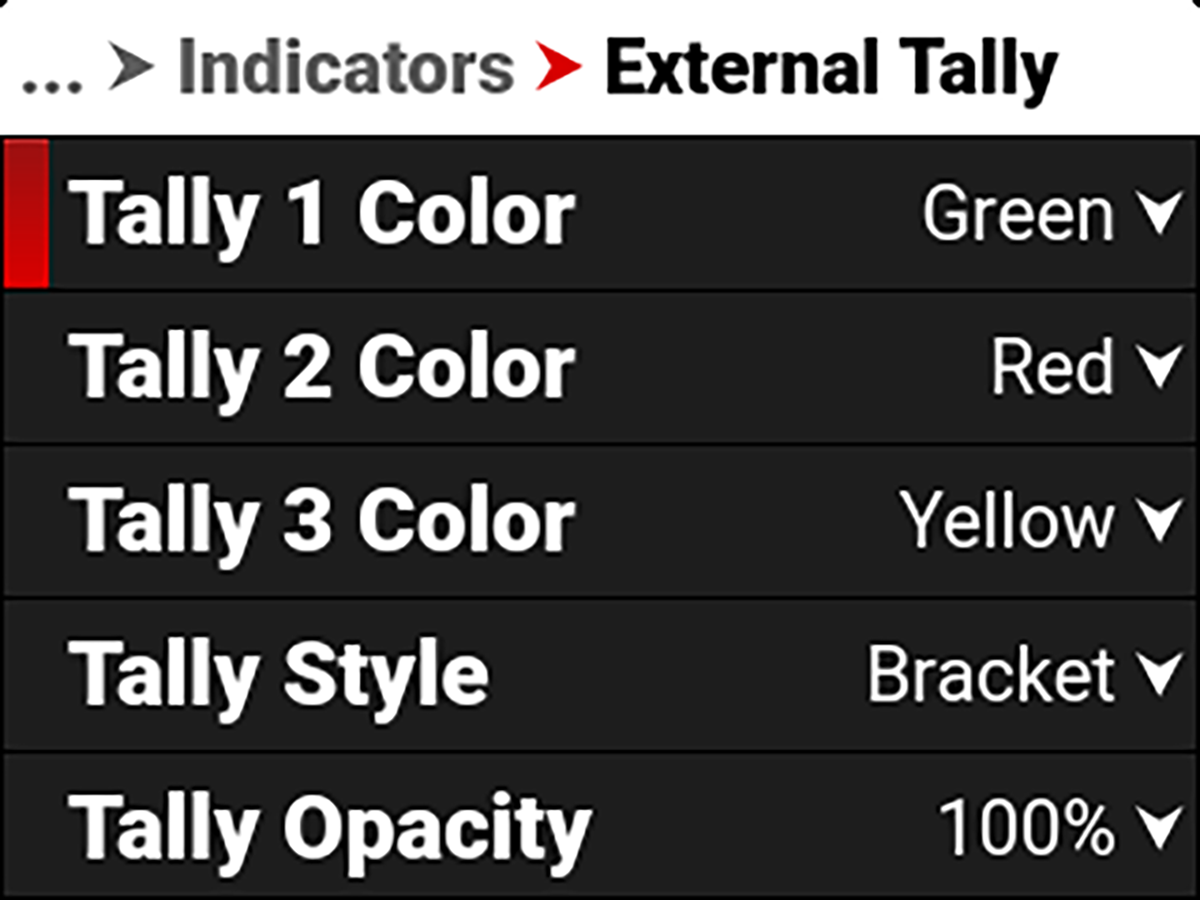

External Tally
Use External Tally to configure the style of External Tally displayed. External Tally triggers are supported by external applications communicating with the camera using RCP2.
The External Tally setting you can configure include Tally 1/2/3 Color, Tally Style, Tally Opacity.
External Tally 1/2/3 Color
Use External Tally Color to select the color of the indicator for the external tally.
The External Tally colors you can select include black, red, blue, green, yellow, magenta, cyan, dark gray, and white.

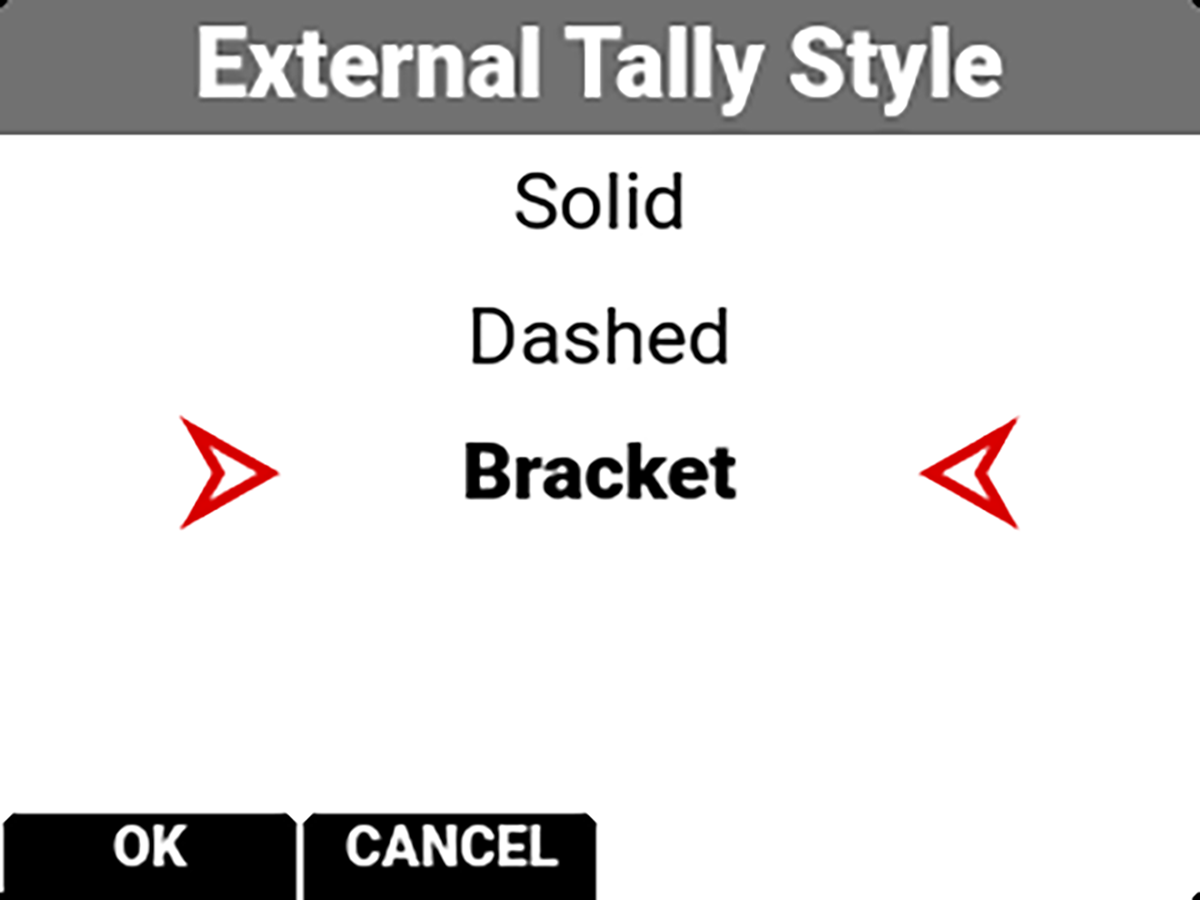

External Tally Style
Use External Tally Style to select the look of the indicator for the external tally.
The External Tally styles you can select include Solid, Dashed, and Bracket.
External Tally Opacity
Use External Tally Opacity to select the opacity of the indicator for the external tally.
The percentage of External Tally opacity you can select include 25%, 50%, 75%, and 100%.
