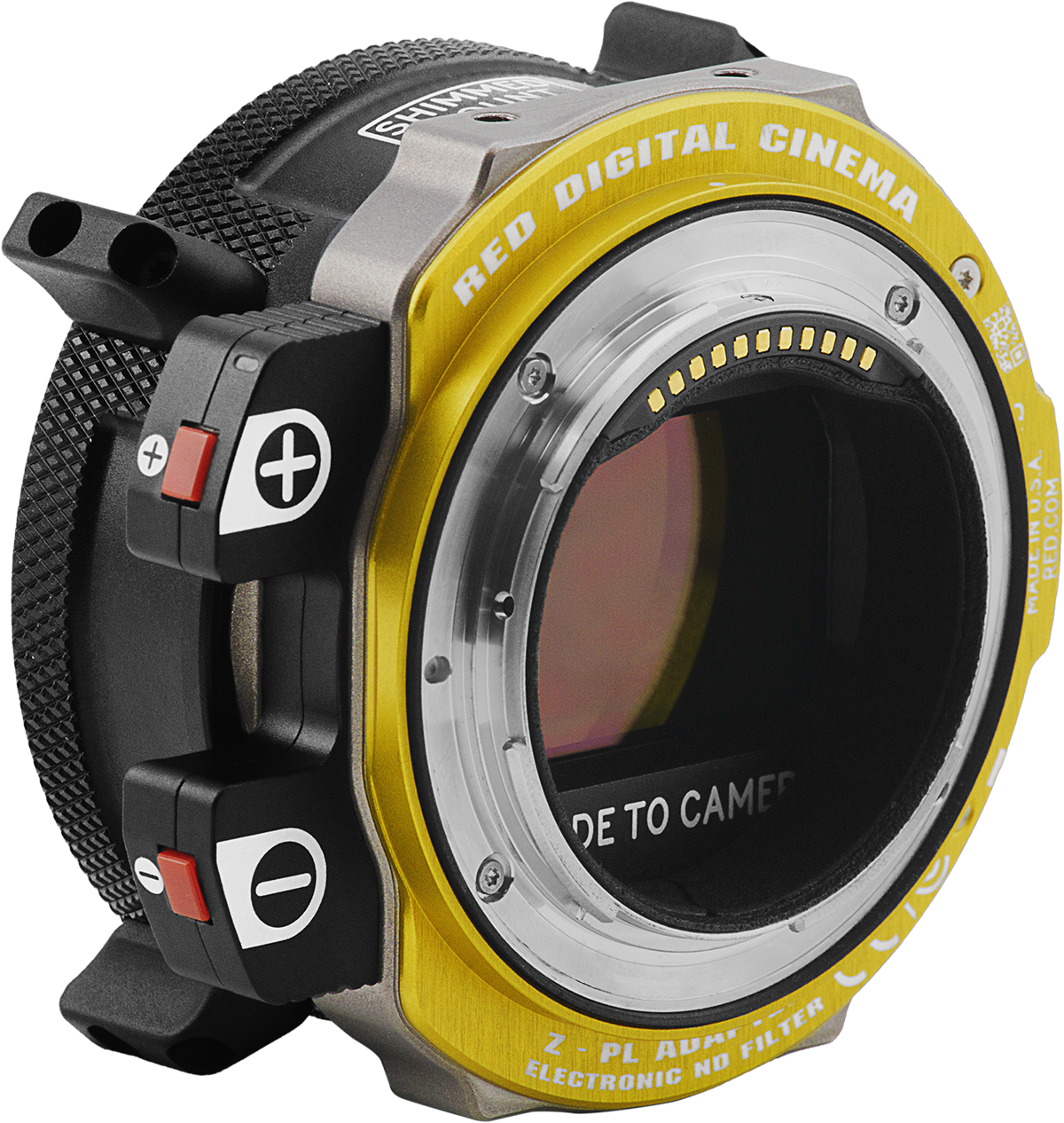

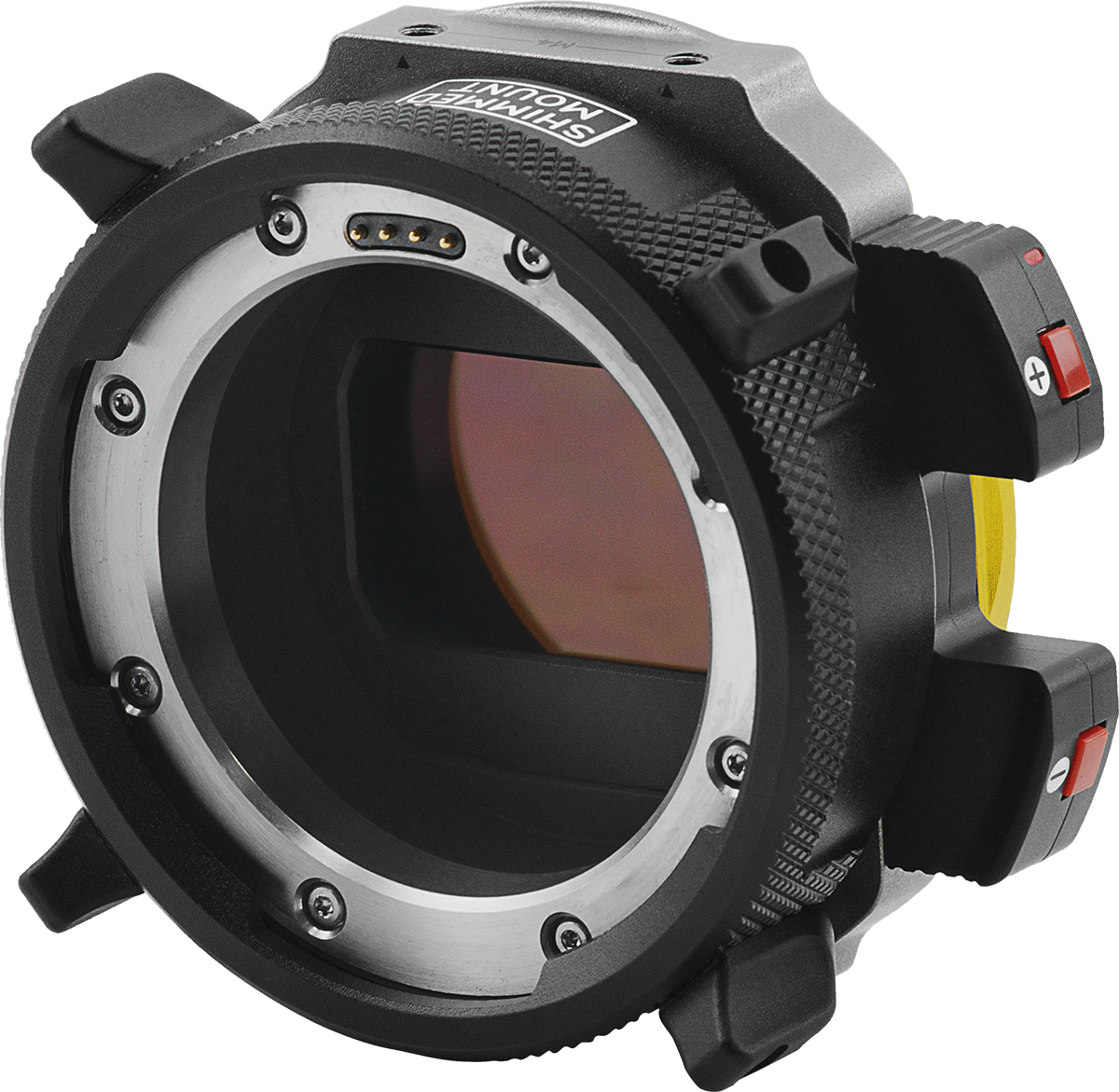

RED® V-RAPTOR Z to PL Adapter w/ Electronic ND Filter Pack

The RED V-RAPTOR Z to PL w/ Electronic ND Filter Adapter Pack integrates the same precise electronic ND control as used in the V-RAPTOR XL into a robust PL mount solution for the RED V-RAPTOR [X] Z Mount.

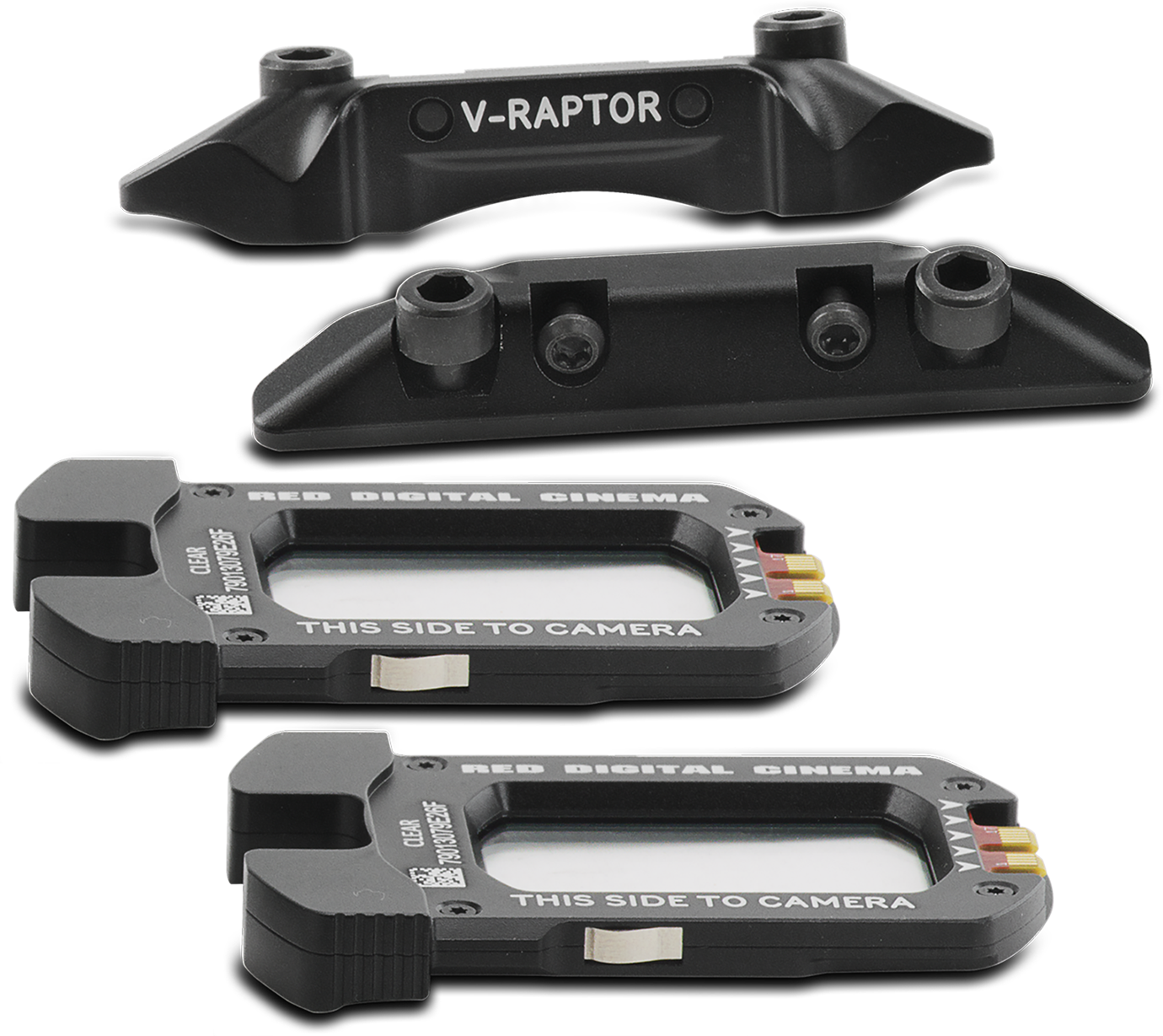

The pack includes two filters; A clear filter for when no ND is needed and an Electronic ND Filter with a 2-7 stop range.  It features precise control of ¼, 1/3 or full stop increments which allows choosing the exact exposure without compromising the intended aperture.

Each clear and electronic ND filter's thicknesses are measured and paired together to ensure no back focus shifts when switching between filters.

You can control ND by using the integrated buttons on the Electronic ND Filter, the Side LCD, DSMC3™ RED® Touch 7.0” LCD, RED Control, RED Control Pro, the web interface, or any other RCP2 compatible remote control, providing you with a variety of exposure control configurations.

Supporting Cooke /i lens communication and record triggering, the Z to PL Adapter w/ Electronic ND expands the functionality of the camera's native Z lens mount for professional applications. Constructed of a titanium core, the shimmable Z to PL Adapter is resistant to environmental temperature changes, providing consistent and precise back focus.

The RED V-RAPTOR Z to PL Adapter w/ Electronic ND Filter Adapter Pack includes V-RAPTOR Adapter Support Brackets to provide additional rigidity and a native-like mount experience.



NOTE: Users who already own the RED V-RAPTOR RF to PL Adapter Pack or RED Z to PL Adapter and have the V-RAPTOR PL Support Brackets should contact sales directly to purchase the Z to PL Adapter w/ Electronic ND only.

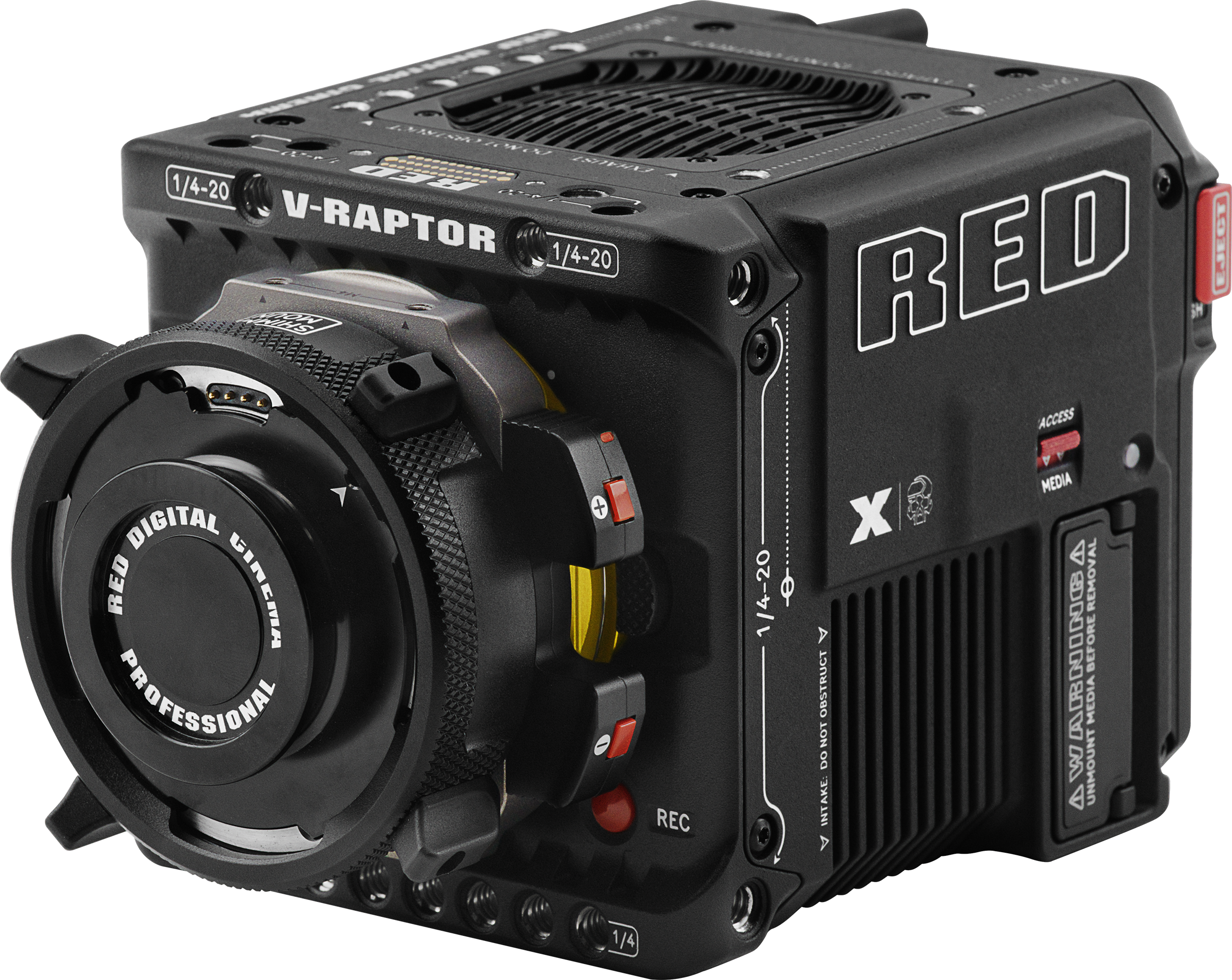

Compatible with V-RAPTOR [X] Z Mount camera only.

LENS COMPATIBILITY

While the vast majority of PL lenses are compatible with the RED Z PL Adapter w/ Electronic ND Filter, a small selection of PL lenses are not compatible due to their rear protrusion depth. Please reference the Z to PL Adapter w/ Electronic ND - Lens Compatibility online resource for more information.
